Basic 200 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

SKU: RS-K2002
$549.99

Specifications & Downloads

Product Images

Full Specification:

MEGA 200 Solar Panel

Download

BRAVO 30 30A MPPT Solar Charge Controller

Download

User Manual:

BRAVO 30 30A MPPT Solar Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

  • 200W Solar Array: Includes one 200W monocrystalline solar panel, producing approximately 0.7kWh of energy per day under 4 peak sun hours.
  • 12V Solar Panel: Built with a 12V nominal solar panel, ideal for charging compatible battery systems.
  • 30A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency.
  • Solar Charging Kit: Includes a solar panel, MPPT charge controller, and installation accessories for efficient battery charging.
  • Versatile Applications: Ideal for RVs, trailers, boats, cabins, and other small off-grid solar charging systems.

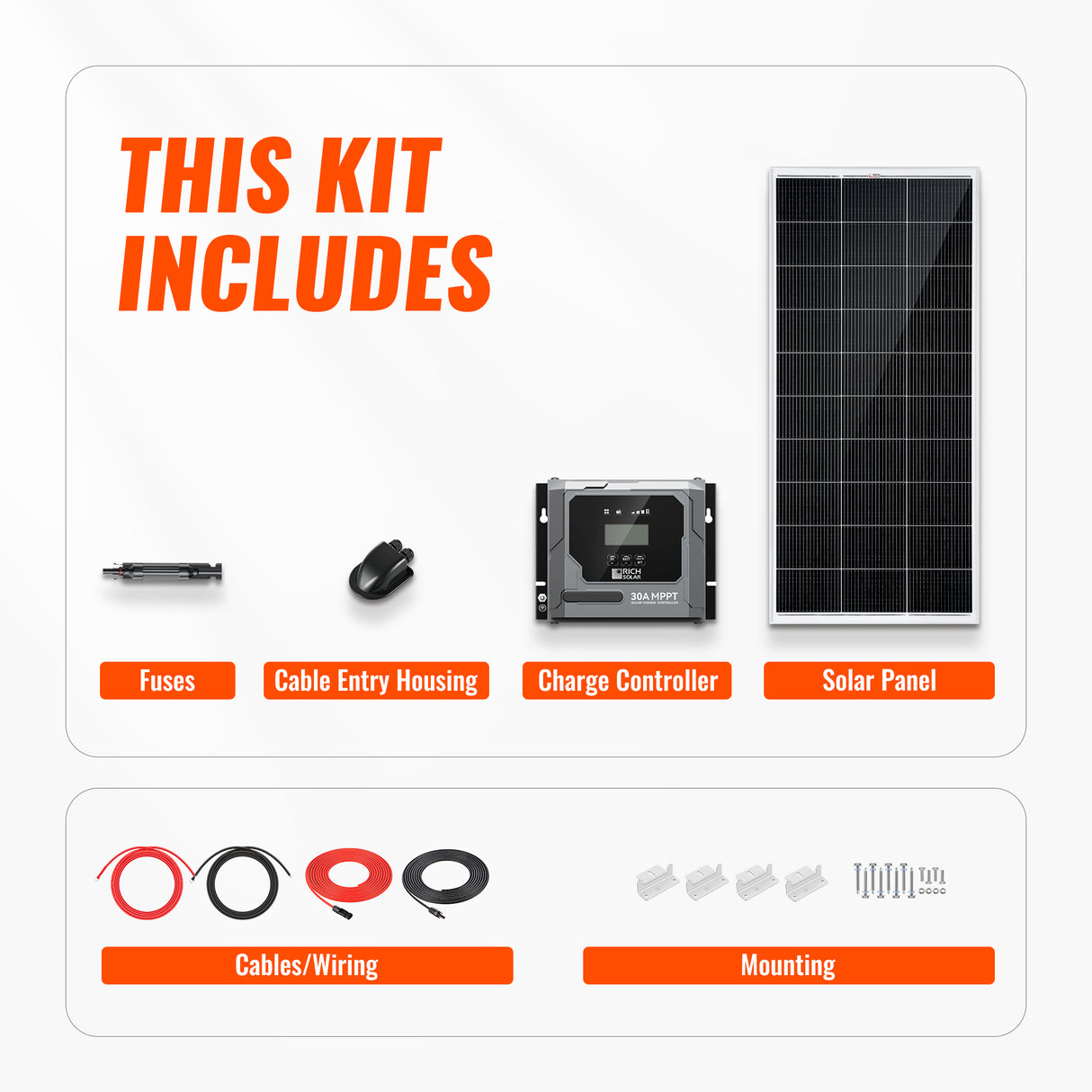

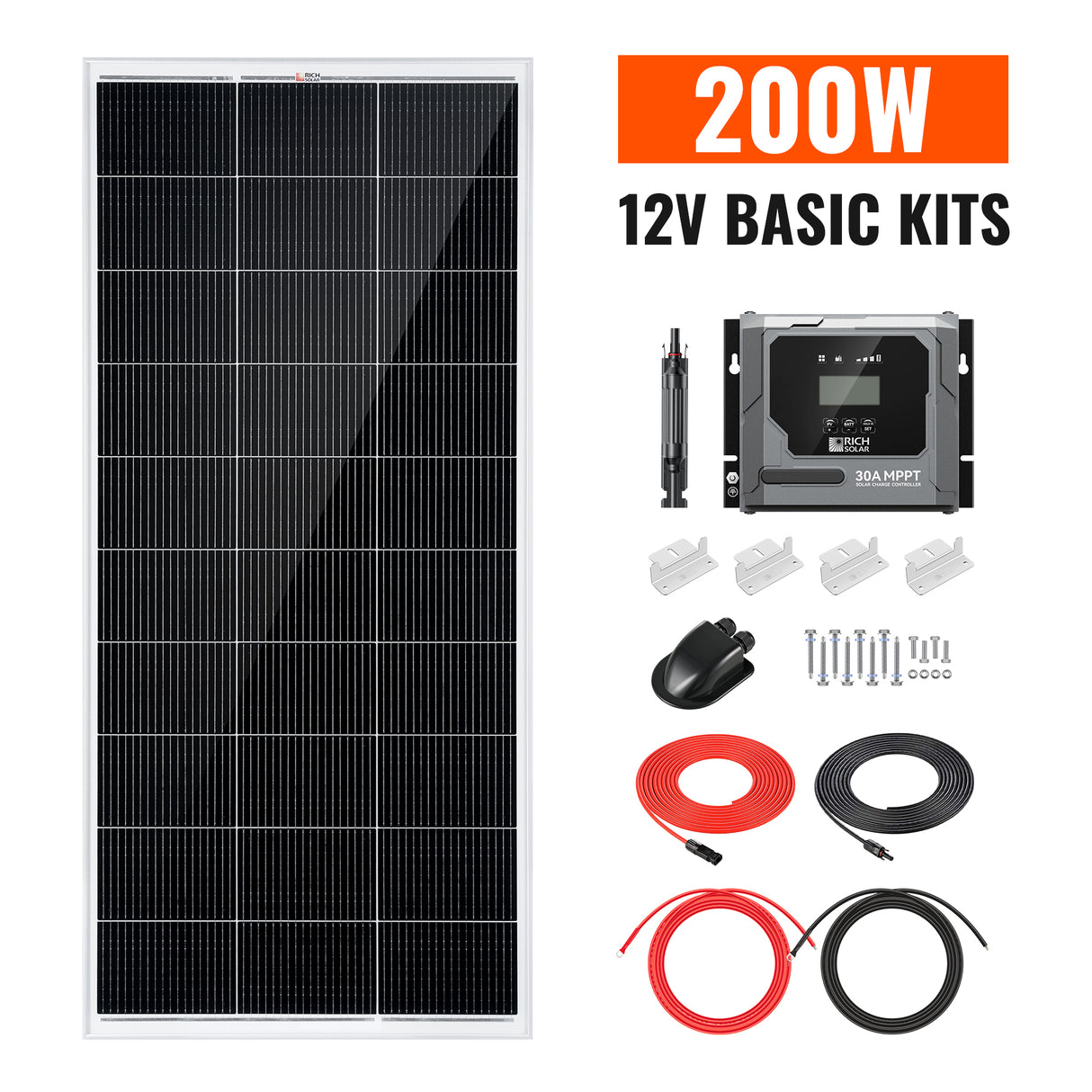

Kit Includes:

  • 1 x 200 Watt Monocrystalline Solar Panel (RS-M200)
  • 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
  • MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

    MEGA 200

    12V 200W Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features:

    • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Temperature Range: -40 ~ +185°F
    • Maximum Series Fuse Rating: 15A
    • Weight: 24 lb
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RICH SOLAR

    Bravo 30A

    30 Amp MPPT Solar Charge Controller

    Features:

    1. Advanced MPPT Technology

    • Advanced MPPT algorithm with up to 99.5% tracking efficiency
    • 98% conversion efficiency for maximum solar energy utilization
    • Stable operation under low-light or partial shading conditions

    2. Flexible Battery Compatibility

    • Auto-detects 12V/24V systems for seamless integration
    • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
    • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

    3. Advanced Protection System

    • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
    • Weather-resistant build with IP43-rated PCBA and IP22 connectors
    • Certified to ETL, FCC, CE, ROHS

    4. Intelligent Monitoring System

    • LCD + LED display: Real-time solar input, battery status, and customizable parameters
    • Built-in Bluetooth for App monitoring (Rich Solar App)
    • Optional remote meter and temperature sensor for enhanced control

    Specifications:

    • Maximum Solar Input Current: 30A
    • Maximum Charging Current: 30A
    • Recommended Solar Power:  500W (12V) / 1000W (24V)
    • Nominal System Voltage: 12V/24V Auto-Detect
    • Solar Input Voltage Range: 8V-100V
    • MPPT Voltage Range: 15V-72V
    • Maximum Conversion Efficiency: 98%
    • Maximum MPPT Tracking Efficiency: 99.5%
    • Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
    • Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
    • Protection Rating: IP43 PCBA, IP22 Connection
    • Net Weight: 1.8 lb
    • Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
