200W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Power

SKU: RS-K200B
$1,049.99

Specifications & Downloads

Full Specification:

MEGA 200 Solar Panel

Download

ALPHA 1 12V 100Ah LiFePO4 Battery

Download

BRAVO 30 30 Amp MPPT Solar Charge Controller

Download

User Manual:

BRAVO 30 30 Amp MPPT Solar Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

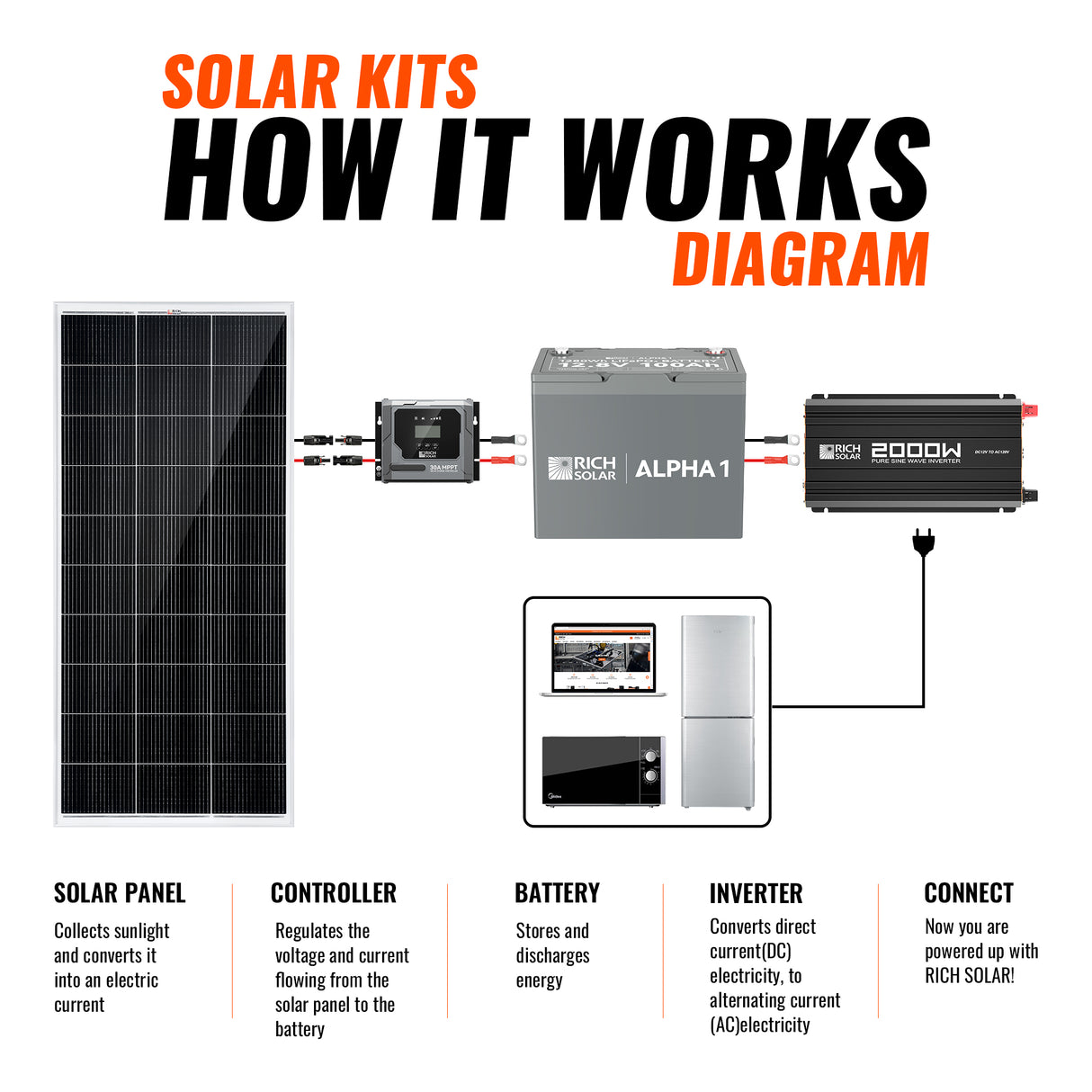

Our 200W 12V Battery Kit provides everything you need to harness, store, and utilize solar energy. This kit features a high-efficiency 200W monocrystalline panel, a 30A MPPT controller, and an Alpha 1 Lithium battery. Perfect for your RV or tiny home, this kit is your gateway to a solar-powered lifestyle. Start your solar adventure today!

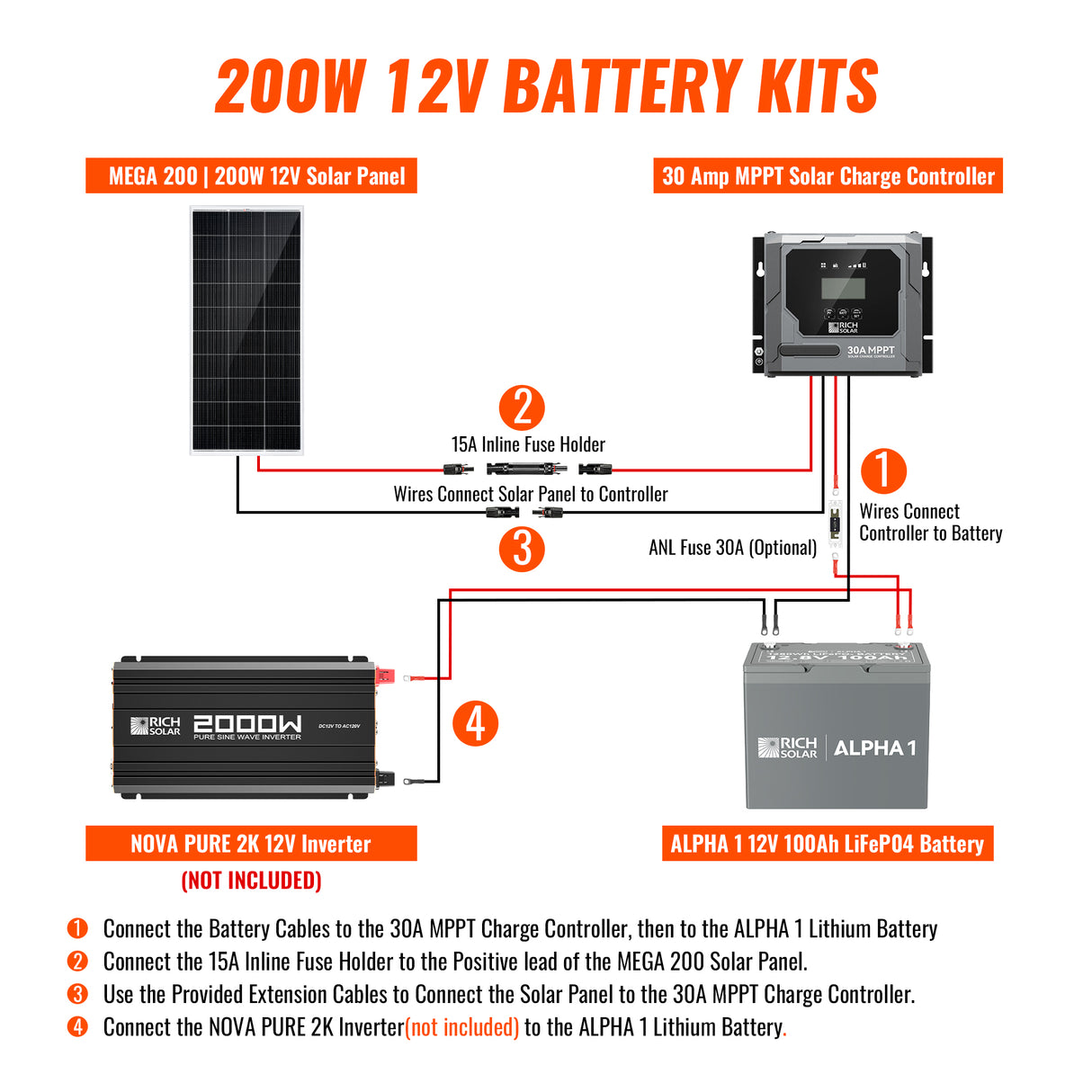

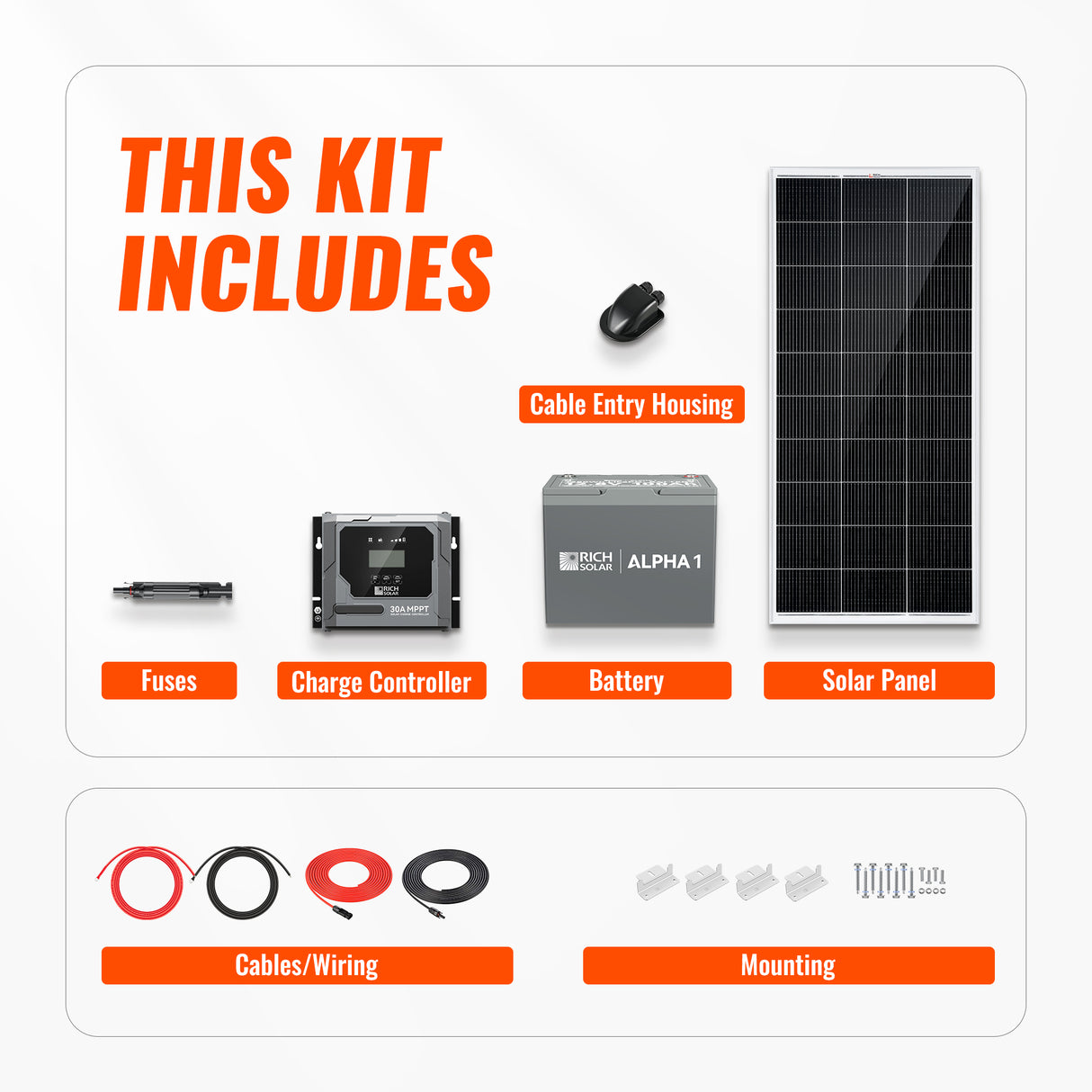

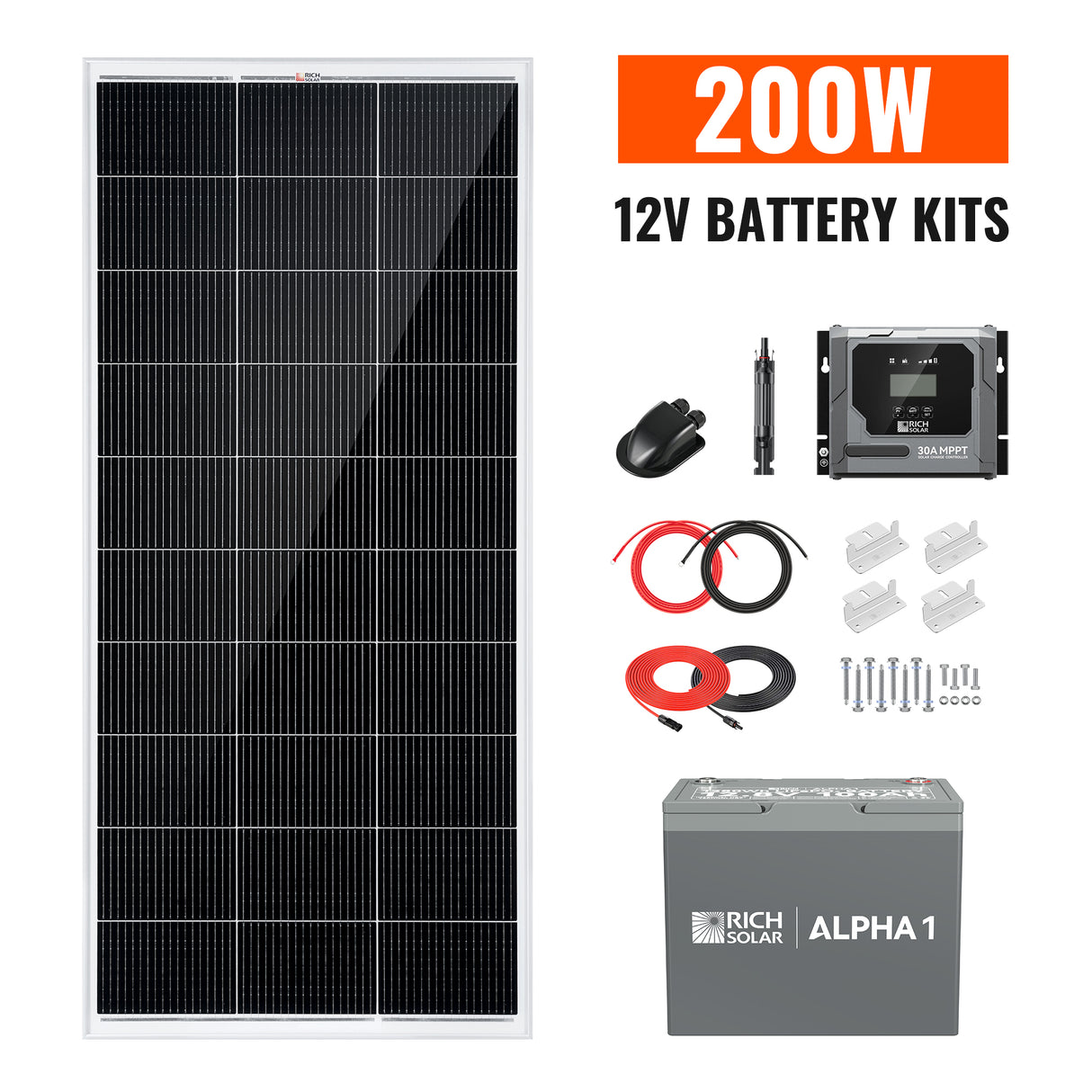

Kit Includes:

  • 1 x MEGA 200W 12V Panel (RS-M200)
  • 1 x ALPHA 1 Lithium Battery (RS-B121S)
  • 1 x 30A MPPT Charge Controller (RS-MPPT30)
  • 1 x Z Bracket Set (RS-ZB4C)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
  • MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

    MEGA 200

    12V 200W Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features:

    • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Temperature Range: -40 ~ +185°F
    • Maximum Series Fuse Rating: 15A
    • Weight: 24 lb
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology - RICH SOLAR

    ALPHA 1

    12V 100Ah LiFePO4 Battery

    Features:

    • Stay powered in low temps with advanced internal heating tech
    • Track battery health in real time from your phone
    • Over 5,000 cycles with UL94 V-0 flame-retardant protection
    • IP65 waterproof, dustproof, and tested for extreme safety
    • Free of toxic metals—safe for you and the planet
    • Lightweight design, heavy-duty performance
    • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

    Warranty:

    • *5-Year Warranty

    Specifications:

    Battery

    • Cell Type: LiFePO4 Battery
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Nominal Energy: 1280Wh
    • Cycle Life: 5000 cycles

    BMS

    • BMS: 100A
    • Maximum Charging Current: 100A
    • Maximum Continuous Discharge Current: 100A
    • Maximum Discharge Current 10 Seconds: 110A

    Charge

    • Charge Method: CC/CV
    • Charge Voltage: 14.4V ± 0.2V
    • Recommend Charge Current: 50A (0.5C)

    Temperature

    • Charge Temperature: 32°F to 131°F (0°C to 55°C)
    • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
    • Storage Temperature: 14°F to 113°F (-10°C to 45°C)

    Self-heating

    • External Power Draw: 100W
    • Internal Heating Starts: < 41°F (5°C)
    • Internal Heating Stops: > 50°F (10°C)

    Others

    • Net Battery Weight: 24.0lb
    • Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)
    • Housing Material: ABS (Flame Retardant Plastic)
    • Protection Class: IP65
    • Warranty: 5 Years
  • BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RICH SOLAR

    Bravo 30A

    30 Amp MPPT Solar Charge Controller

    Features:

    1. Advanced MPPT Technology

    • Advanced MPPT algorithm with up to 99.5% tracking efficiency
    • 98% conversion efficiency for maximum solar energy utilization
    • Stable operation under low-light or partial shading conditions

    2. Flexible Battery Compatibility

    • Auto-detects 12V/24V systems for seamless integration
    • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
    • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

    3. Advanced Protection System

    • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
    • Weather-resistant build with IP43-rated PCBA and IP22 connectors
    • Certified to ETL, FCC, CE, ROHS

    4. Intelligent Monitoring System

    • LCD + LED display: Real-time solar input, battery status, and customizable parameters
    • Built-in Bluetooth for App monitoring (Rich Solar App)
    • Optional remote meter and temperature sensor for enhanced control

    Specifications:

    • Maximum Solar Input Current: 30A
    • Maximum Charging Current: 30A
    • Recommended Solar Power:  500W (12V) / 1000W (24V)
    • Nominal System Voltage: 12V/24V Auto-Detect
    • Solar Input Voltage Range: 8V-100V
    • MPPT Voltage Range: 15V-72V
    • Maximum Conversion Efficiency: 98%
    • Maximum MPPT Tracking Efficiency: 99.5%
    • Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
    • Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
    • Protection Rating: IP43 PCBA, IP22 Connection
    • Net Weight: 1.8 lb
    • Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
