200 WATT 24 VOLT SOLAR PANEL

Features

• 5 buss bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box

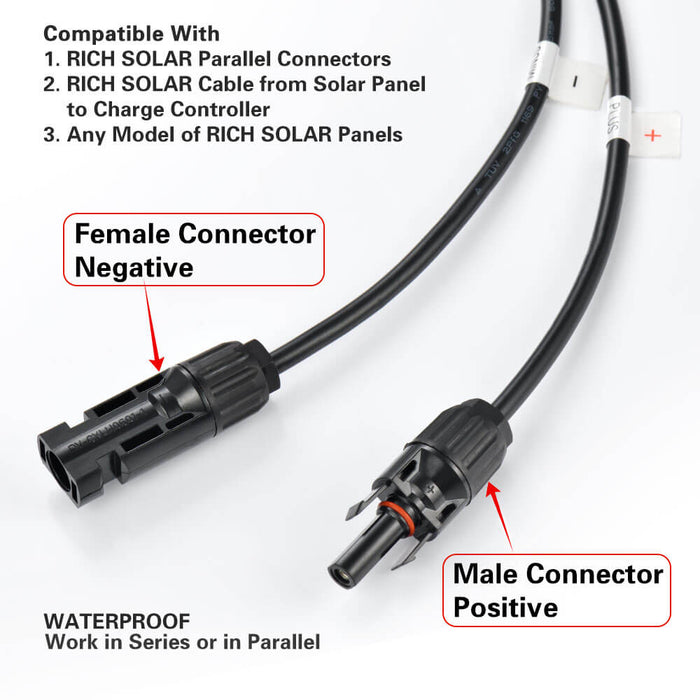

• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

• 25 year limited power output

• RICH SOLAR 200 watt monocrystalline solar panel
• Panel leads (pair): 3 feet each
• IP65 rated waterproof junction box
• IP67 rated waterproof connectors
• Bypass diodes built-in the junction box

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 37.6V
• Maximum Power Current(Imp): 5.36A
• Open Circuit Voltage(Voc): 45.4V
• Short Circuit Current(Isc): 5.83A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40°C ~ 90°C
• Max Series Fuse Rating: 15A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in
