MEGA 200 PRO ONYX | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified

Features

• 24V off-grid solar panel.
• 18-busbar N-Type TOPCon cells with up to 25.3% efficiency.
• 60-cell configuration delivers a reliable 200W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• PID-resistant and 100% EL-inspected to help prevent microcracks.
• Tested for UV exposure, thermal cycling, humidity freeze, and more.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, boats, cabins, sheds, and off-grid solar systems.

Installation

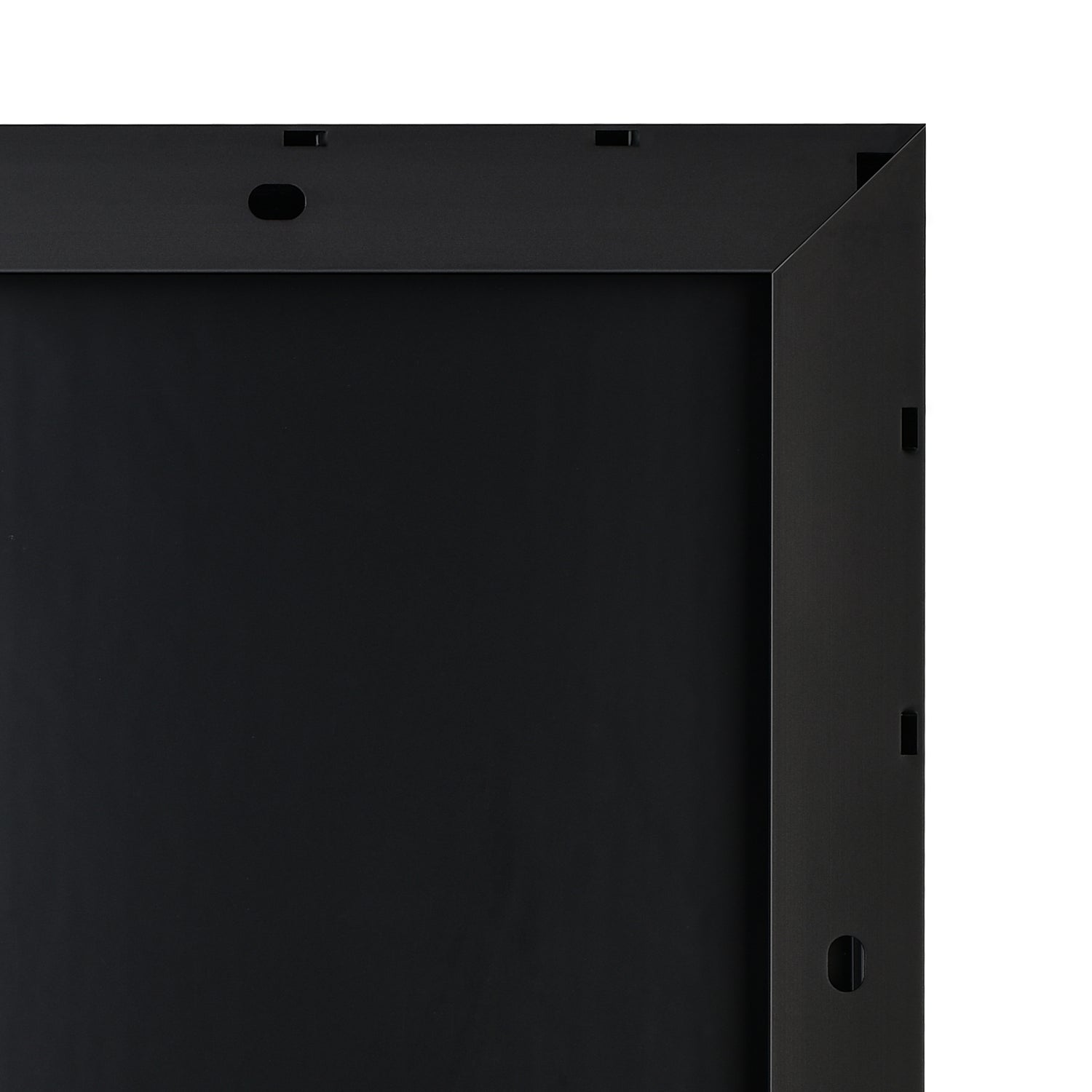

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year output warranty
• 10-year workmanship warranty

Built-in Components

• Panel Leads (Pair): 12 AWG, 3 ft each

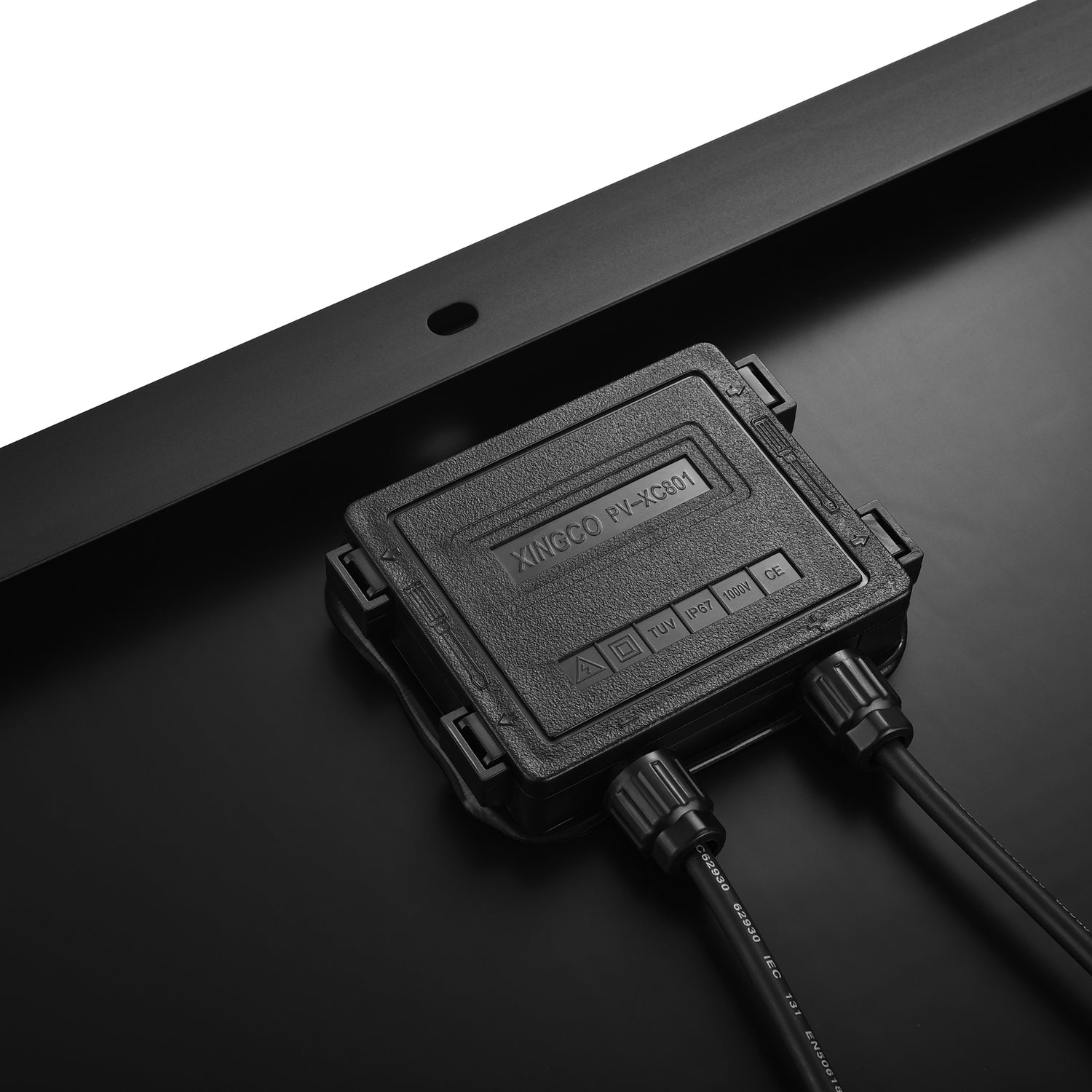

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Warranty

• 25-year limited power output warranty
• 10-year workmanship warranty

Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 36.3V
• Maximum Power Current(Imp): 5.51A
• Open Circuit Voltage(Voc): 43.5V
• Short Circuit Current(Isc): 5.93A
• Maximum System Voltage: 1000 VDC
• Maximum Series Fuse Rating: 15A
• Temperature Range: -40 ~ +185°F
• Weight: 24.0 lb

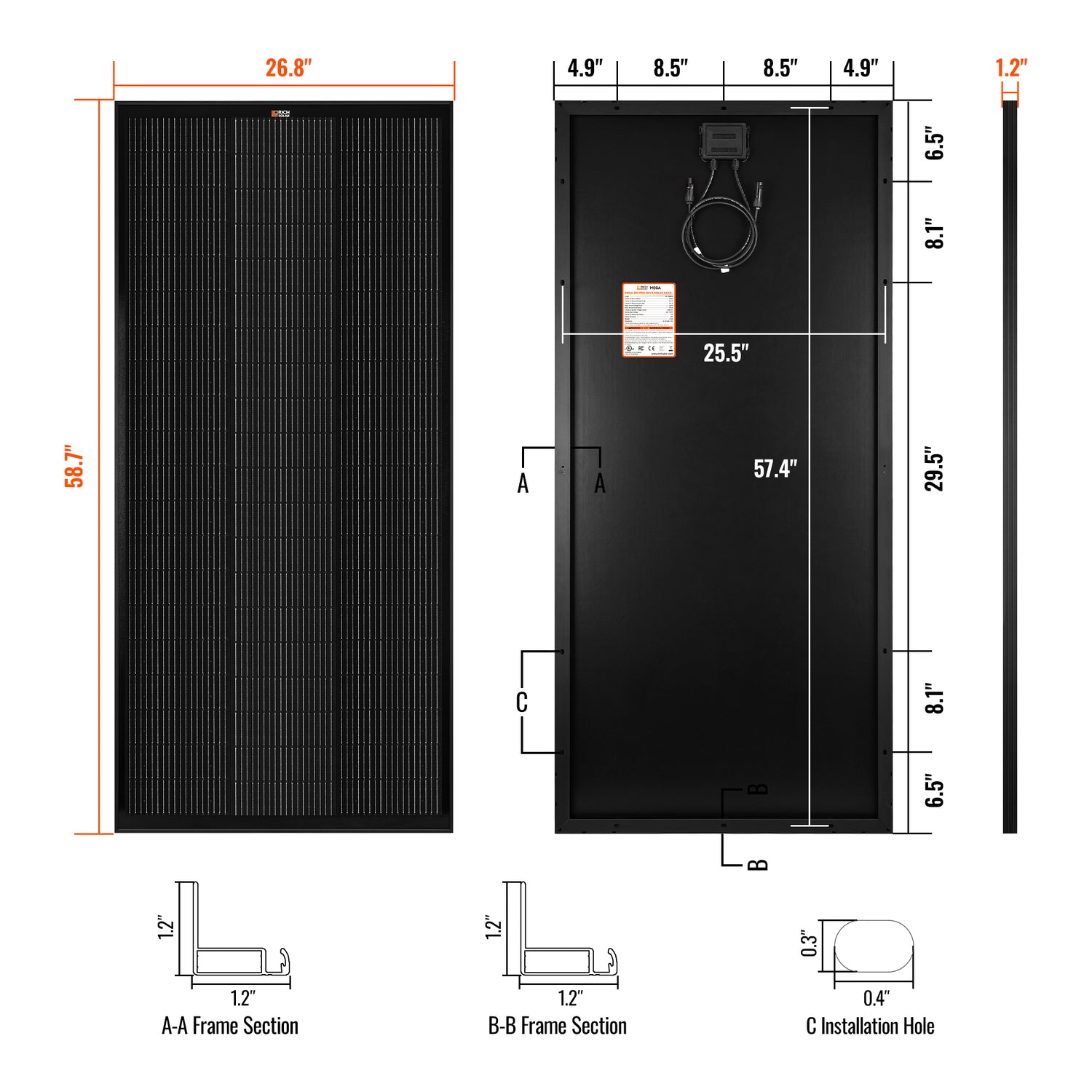

• Dimensions: 58.7 x 26.8 x 1.2 in
