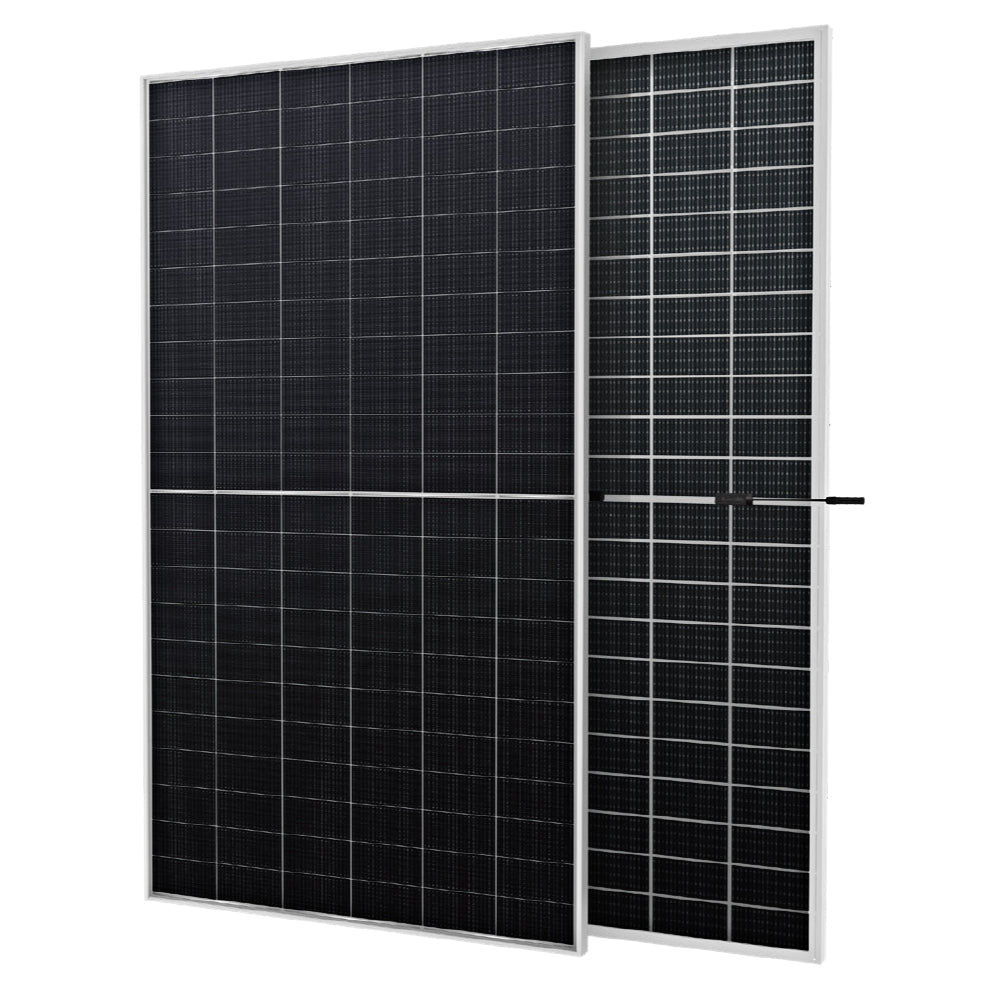

MEGA 720 BIFACIAL | 720W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty

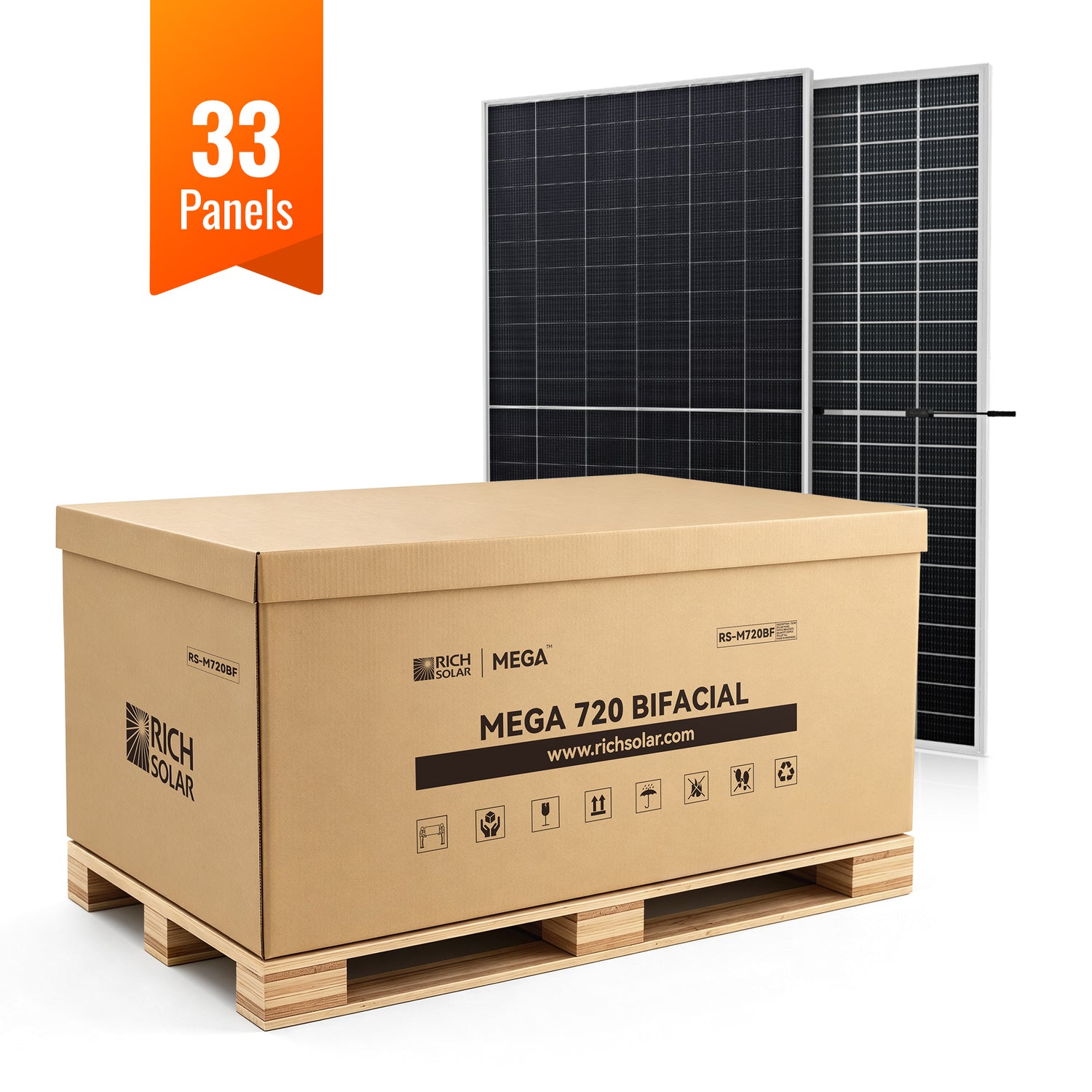

MEGA 720 BIFACIAL | 720W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 33 Panels is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Product Images
Specifications
Download-
Peak Power720W
-
Max Power Voltage (Vmp)41.3V
-
Max Power Current (Imp)17.4A
-
Open Circuit Voltage (Voc)49.4V
-
Short Circuit Current (Isc)18.5A
-
Max Series Fuse Rating35A
-
Maximum System Voltage1500VDC
-
Operating Temperature Range-40°F to 185°F
-
Dimensions93.9 × 51.3 × 1.3 in
-
Weight85.3 lb
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 720 BIFACIAL | 720W Bifacial N-Type Solar Panel | Premium 24V ...
MEGA 720 BIFACIAL | 720W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 33 Panels is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
Unmatched Performance
- 25.1% Maximum Cell Efficiency: Advanced N-Type TOPCon technology for greater energy production.
- 720W Maximum Power Output: More power per panel with reduced installation costs.
- -0.30%/°C Temperature Coefficient: Reliable performance in high-temperature conditions.
Breakthrough Cell Technology
- N-Type TOPCon Cells: Higher efficiency and improved long-term reliability.
- Low Annual Power Degradation: Designed for reliable long-term energy production.
Advanced Bifacial Design
- Up to 25% Additional Energy Yield: Captures reflected sunlight to maximize total energy production.
- Excellent Low-Light Performance: Maintains reliable energy production in low-irradiance conditions.
- Optimized for Reflective & Shaded Sites: Delivers strong performance on reflective surfaces and under partial shading.
Proven Durability
- 5400 Pa Front Load Rating: Built to withstand heavy snow loads.
- 2400 Pa Rear Load Rating: Engineered for excellent wind-load resistance.
- IP68-Rated Junction Box: Superior protection against dust and moisture.
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Specifications
- Peak Power: 720W
- Max Power Voltage (Vmp): 41.3V
- Max Power Current (Imp): 17.4A
- Open Circuit Voltage (Voc): 49.4V
- Short Circuit Current (Isc): 18.5A
- Max Series Fuse Rating: 35A
- Maximum System Voltage: 1500VDC
- Number of Cells: 132 cells
- Glass: 2.0 + 2.0 mm Tempered Glass
- Frame Material: Anodized Aluminum Alloy
- Operating Temperature Range: -40°F to 185°F
- Dimensions: 93.9 × 51.3 × 1.3 in
- Weight: 85.3 lb
