MEGA 55 | 55 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty

Features

• 12V off-grid solar panel.
• 5-busbar monocrystalline cells with up to 22.6% efficiency.
• 33-cell design delivers a reliable 35W output.
• 3.2 mm AR-coated tempered glass for maximum durability and light transmission.
• 0 to +5W guaranteed positive power output.
• Excellent low-light performance on cloudy days and at dawn or dusk.
• Designed to withstand salt, ammonia, sand, high temperatures, and humidity.
• Premium quality with 100% EL inspection and PID resistance.
• Certified for 2400 Pa wind loads and 5400 Pa snow loads.

• Ideal for RVs, vans, truck campers, and marine systems.

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

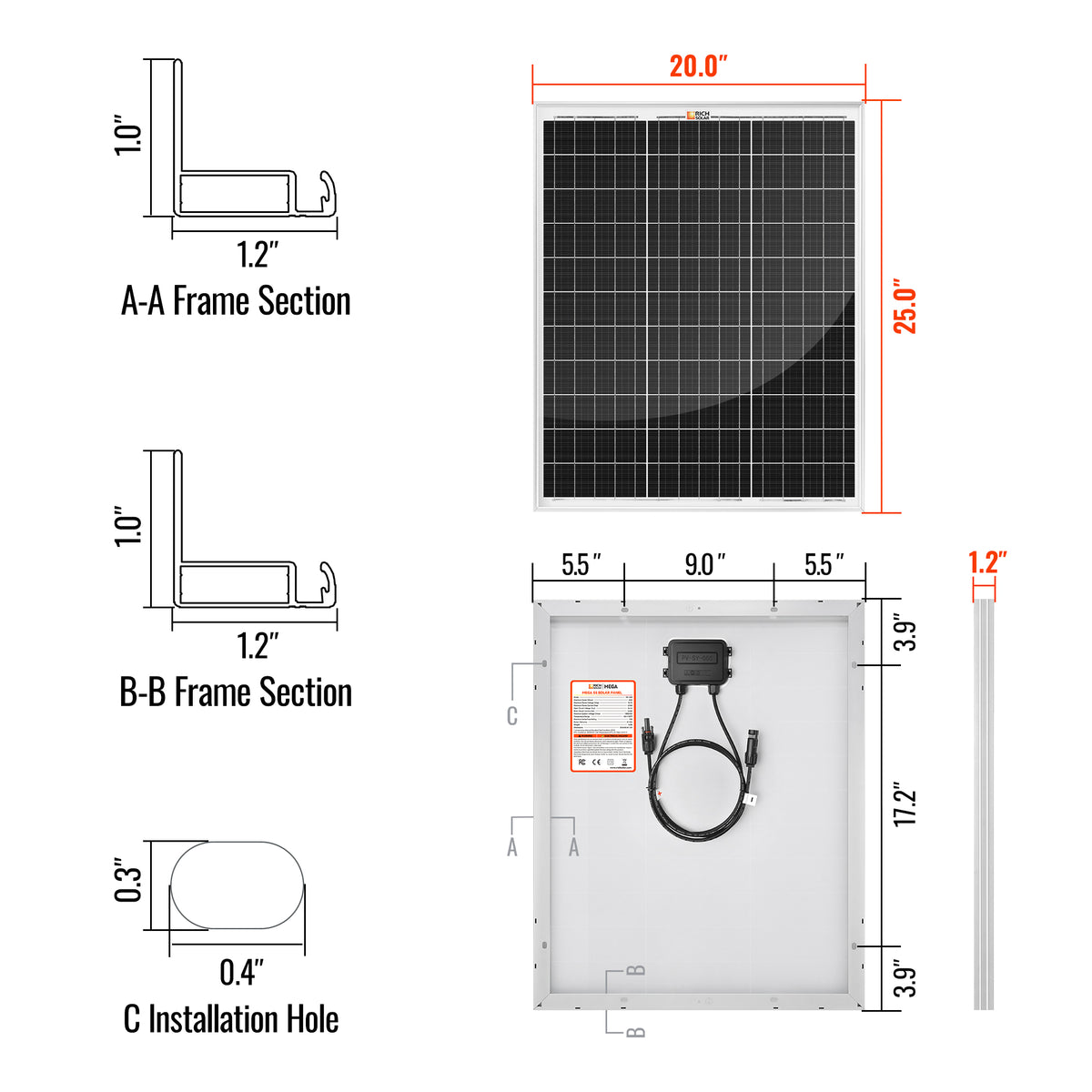

• 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year output warranty
• 10-year workmanship warranty

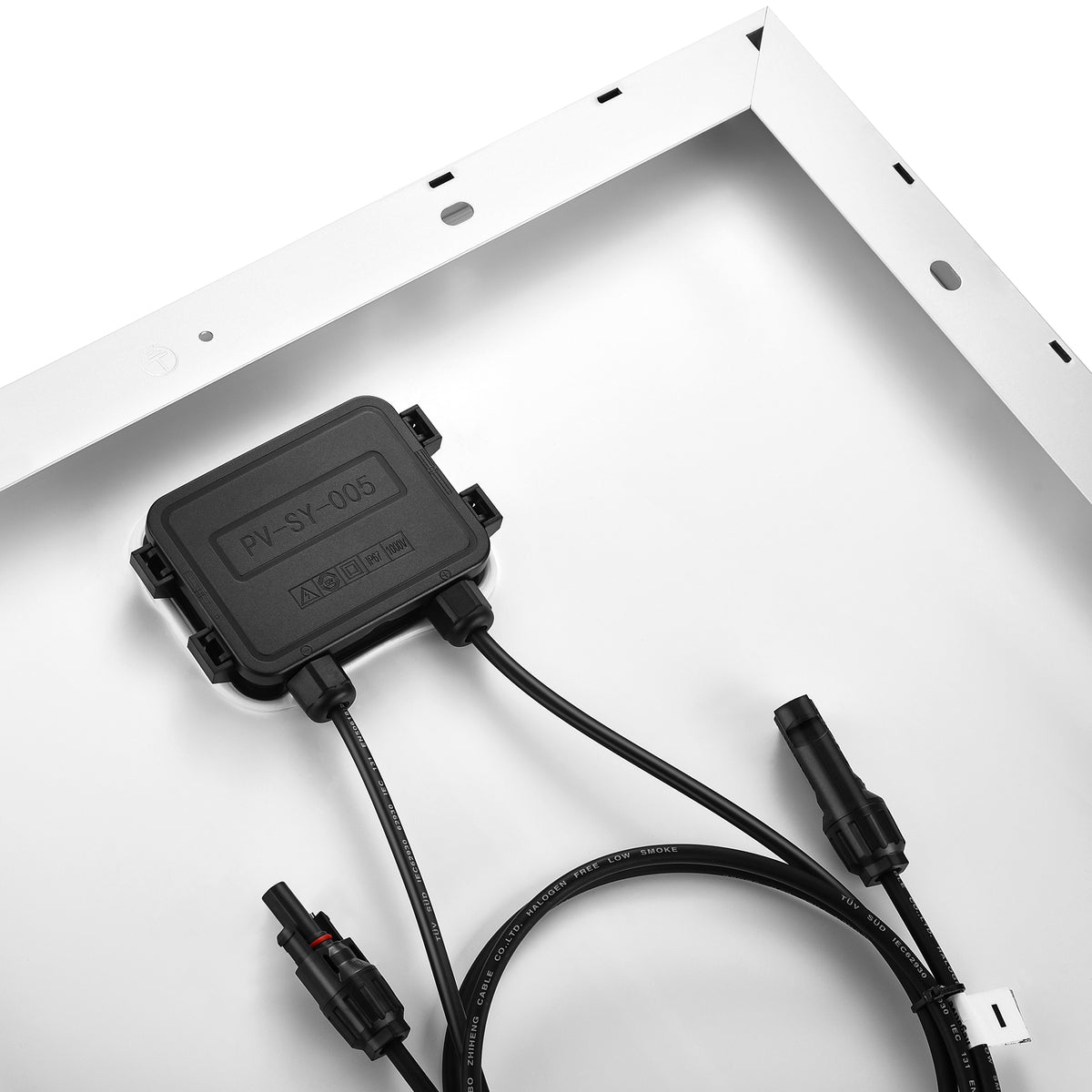

Built-in Components

• Panel Leads (Pair): 12 AWG, 3 ft each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

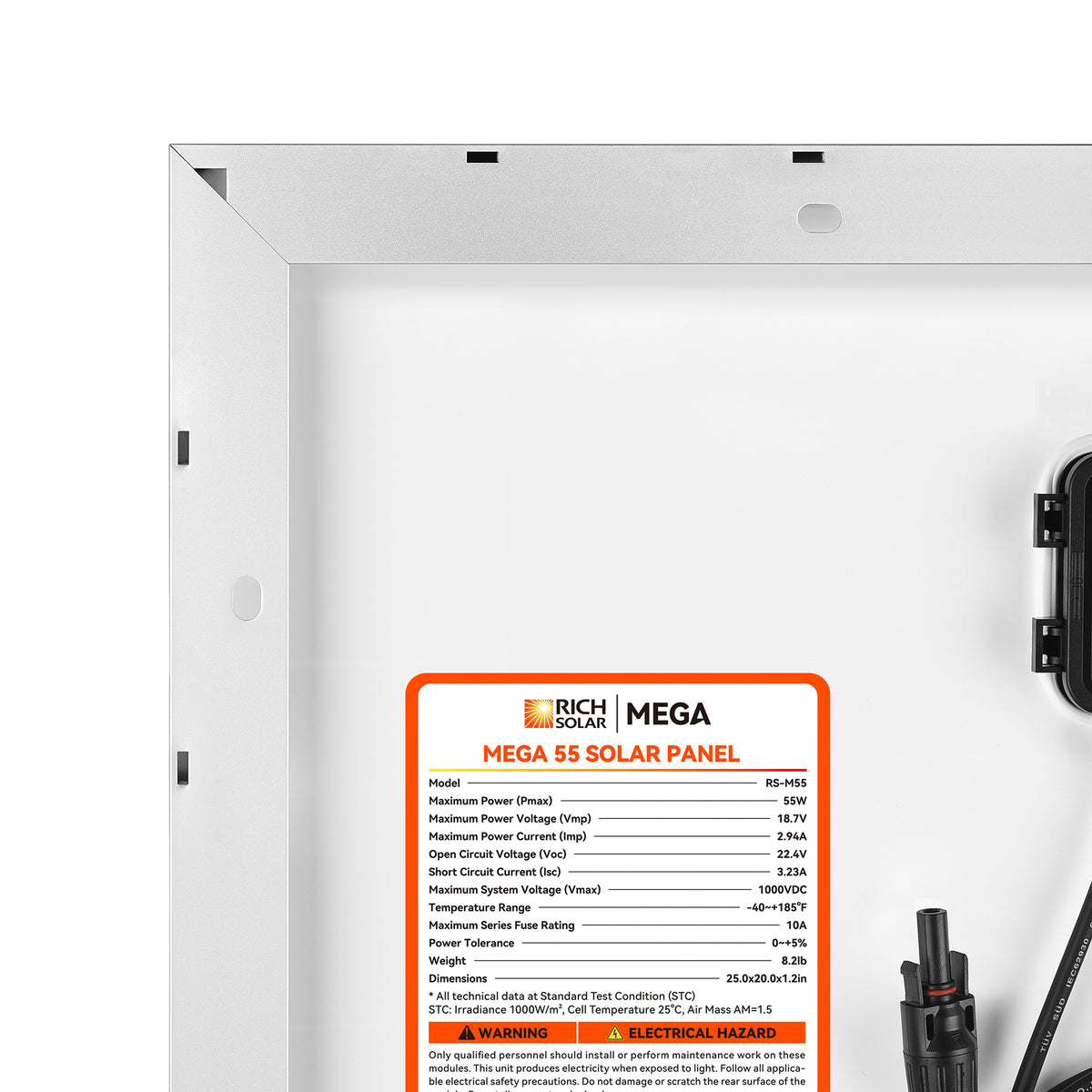

Specifications

• Maximum Power (Pmax): 55W
• Maximum Power Voltage (Vmp): 18.7V
• Maximum Power Current (Imp): 2.94A
• Open Circuit Voltage (Voc): 22.4V
• Short Circuit Current (Isc): 3.23A
• Maximum System Voltage (Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Weight: 8.2 lb
• Dimensions: 25 × 20 × 1.2 in
