MEGA 50 ONYX | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty

Features

• TOPCon N-type cells with up to 25.3% efficiency for higher energy conversion
• Advanced 18-busbar (18BB) cell technology improves current collection and power output
• 0~+5W positive power tolerance ensures a reliable rated output
• High-transmission AR-coated tempered glass maximizes sunlight absorption and durability
• Excellent low-light performance for stable output on cloudy days and at dawn/dusk
• Low temperature coefficient (-0.35%/°C) reduces power loss in high temperatures
• Rated for 5400 Pa snow load / 2400 Pa wind load for outdoor reliability
• Ideal for RVs, boats, cabins, and off-grid power systems


Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

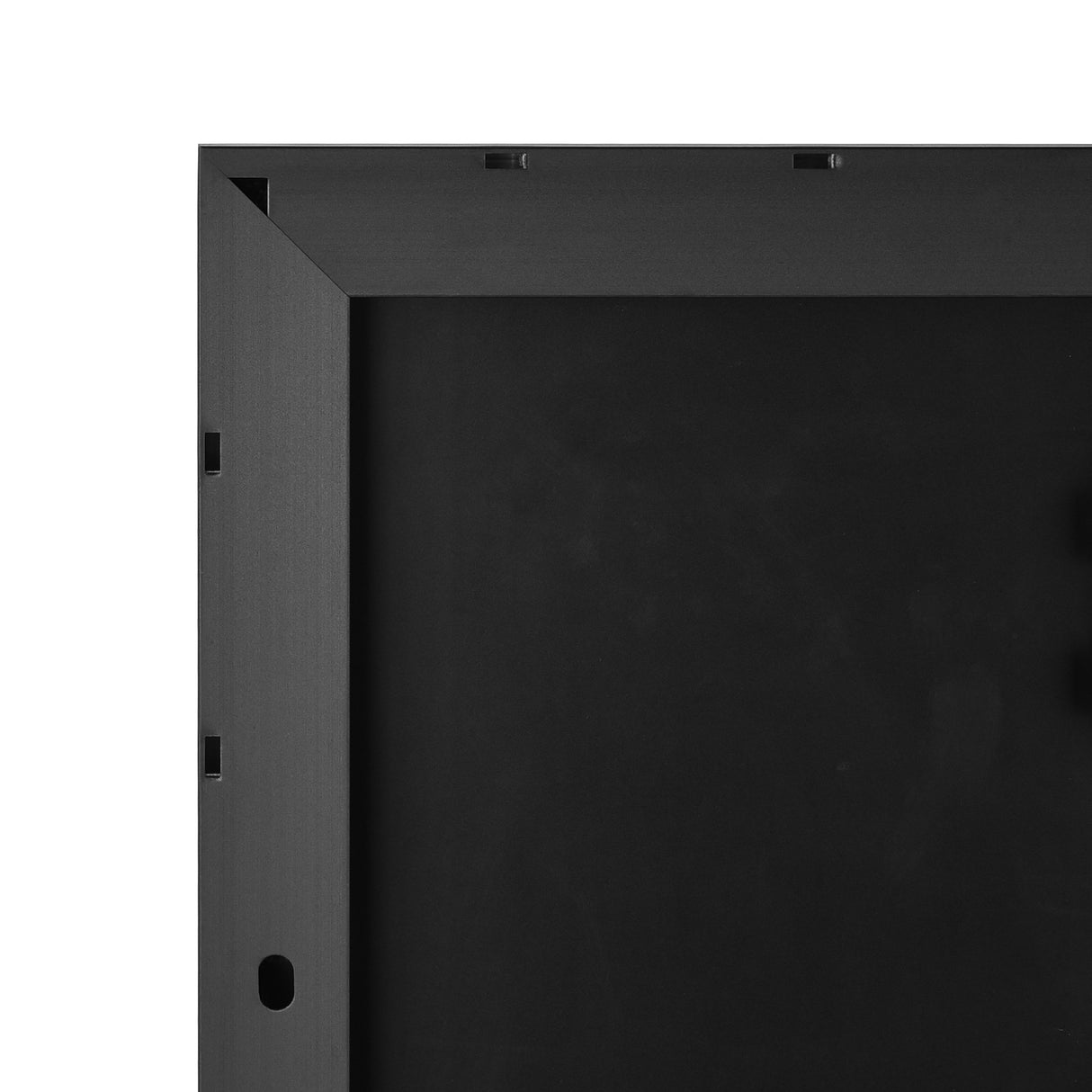

• 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• Pre-attached 2 ft solar cables with connectors for fast setup


Warranty

• 25-year output warranty

• 10-year workmanship warranty

Built-in Components

• Panel leads (pair): 2 feet each

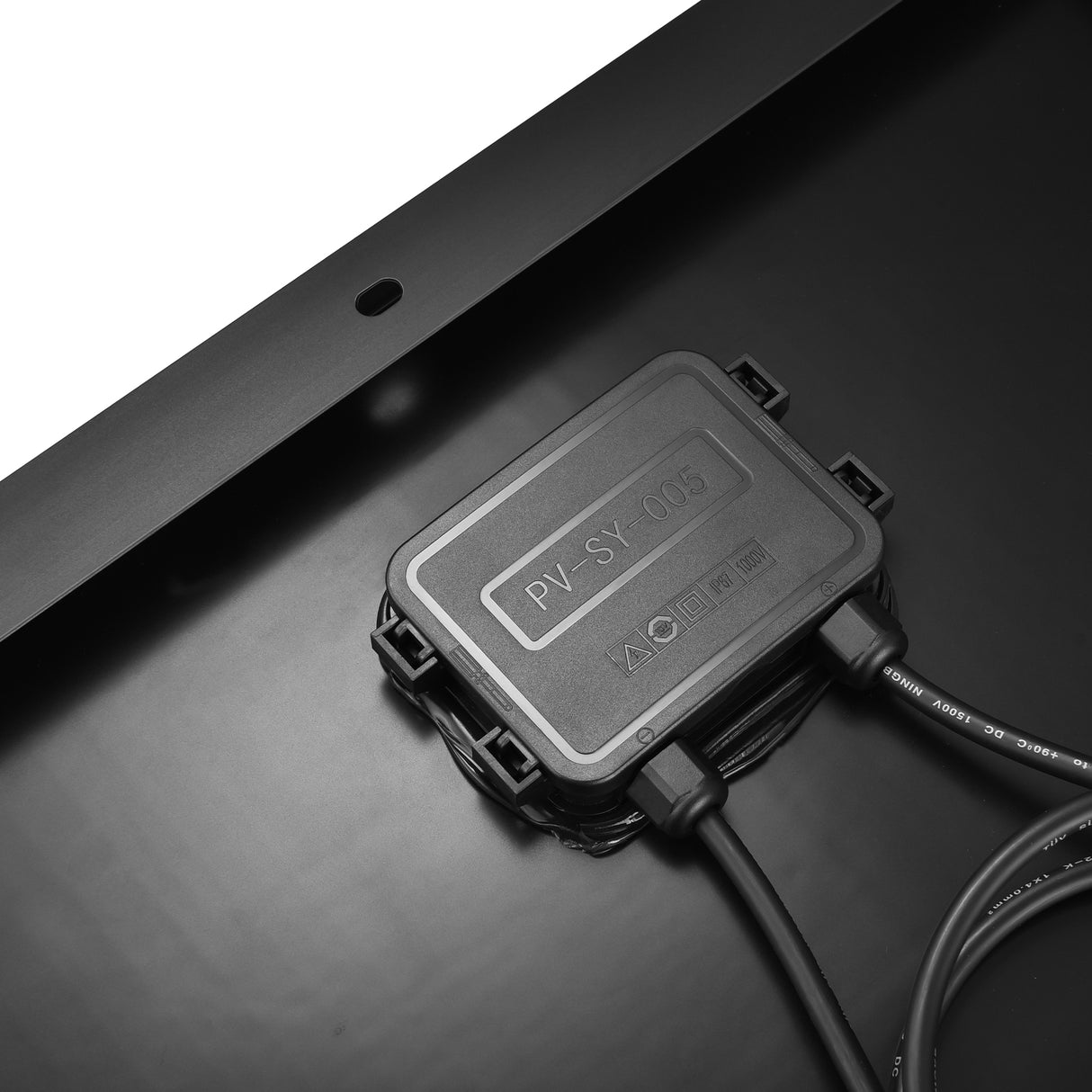

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes are built into the junction box

Specifications

• Maximum Power(Pmax): 50W
• Maximum Power Voltage(Vmp): 18.2V
• Maximum Power Current(Imp): 2.76A
• Open Circuit Voltage(Voc): 22.8V
• Short Circuit Current(Isc): 2.87A
• Maximum System Voltage(Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Weight: 7.3 lb

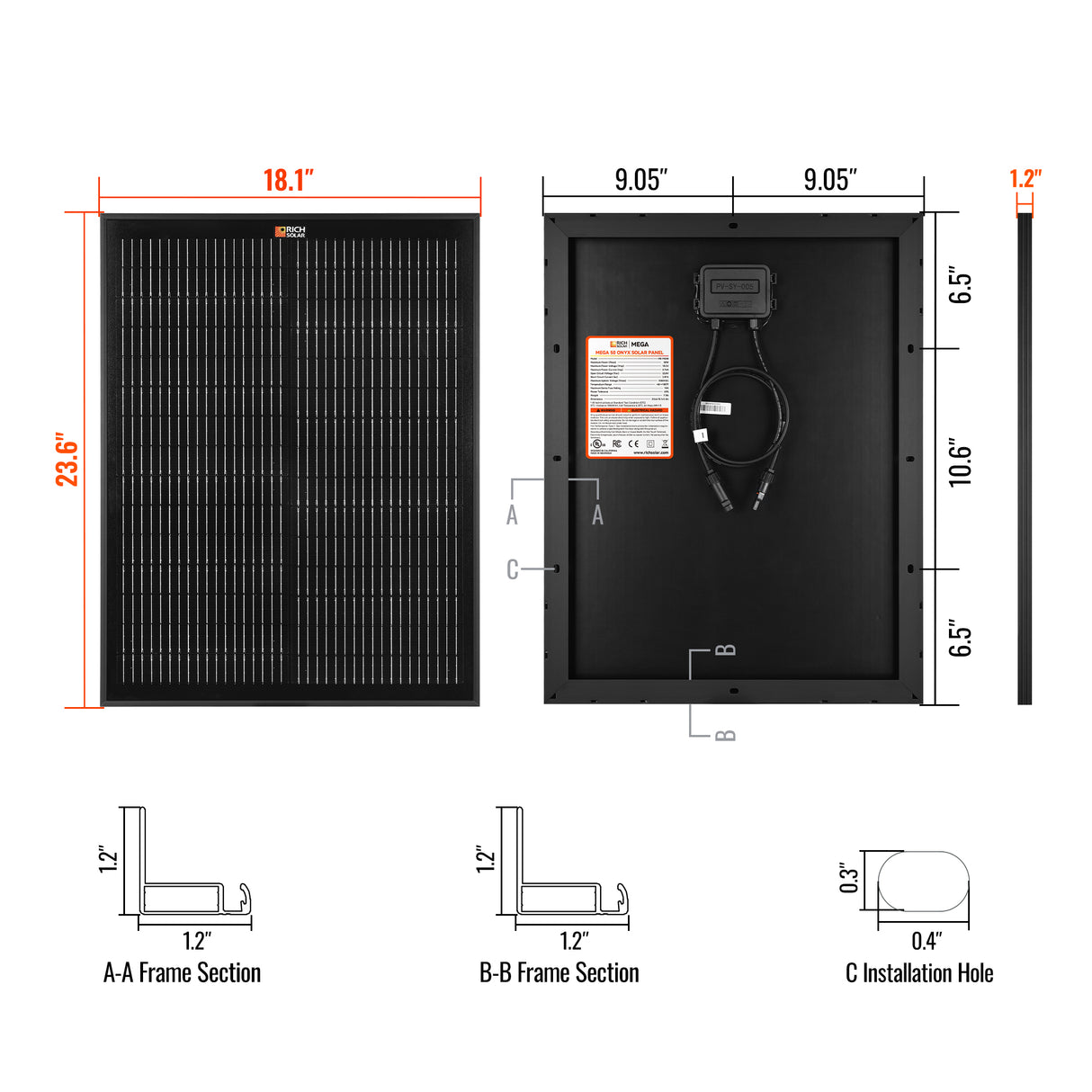

• Dimensions: 23.6 x 18.1 x 1.2 in
