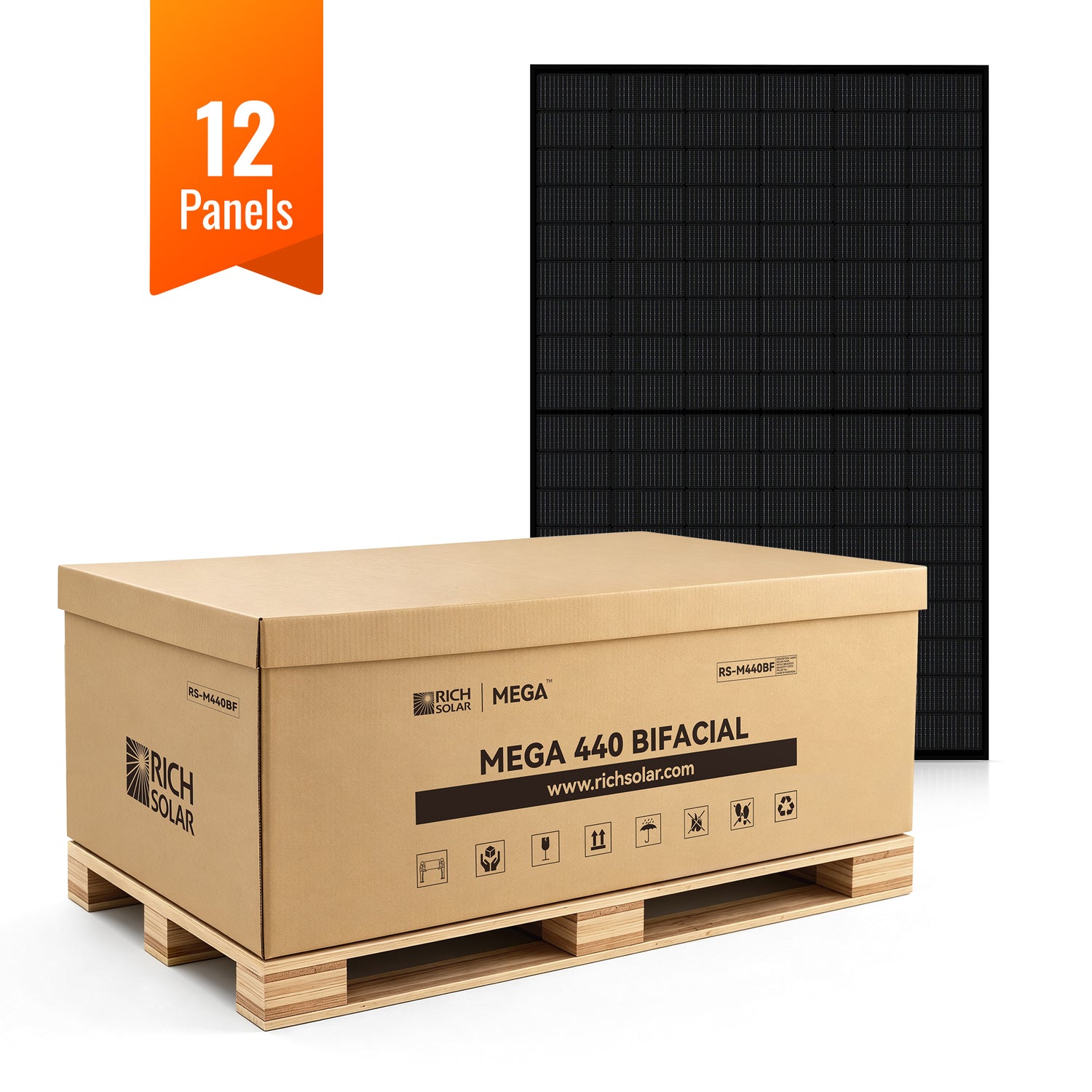

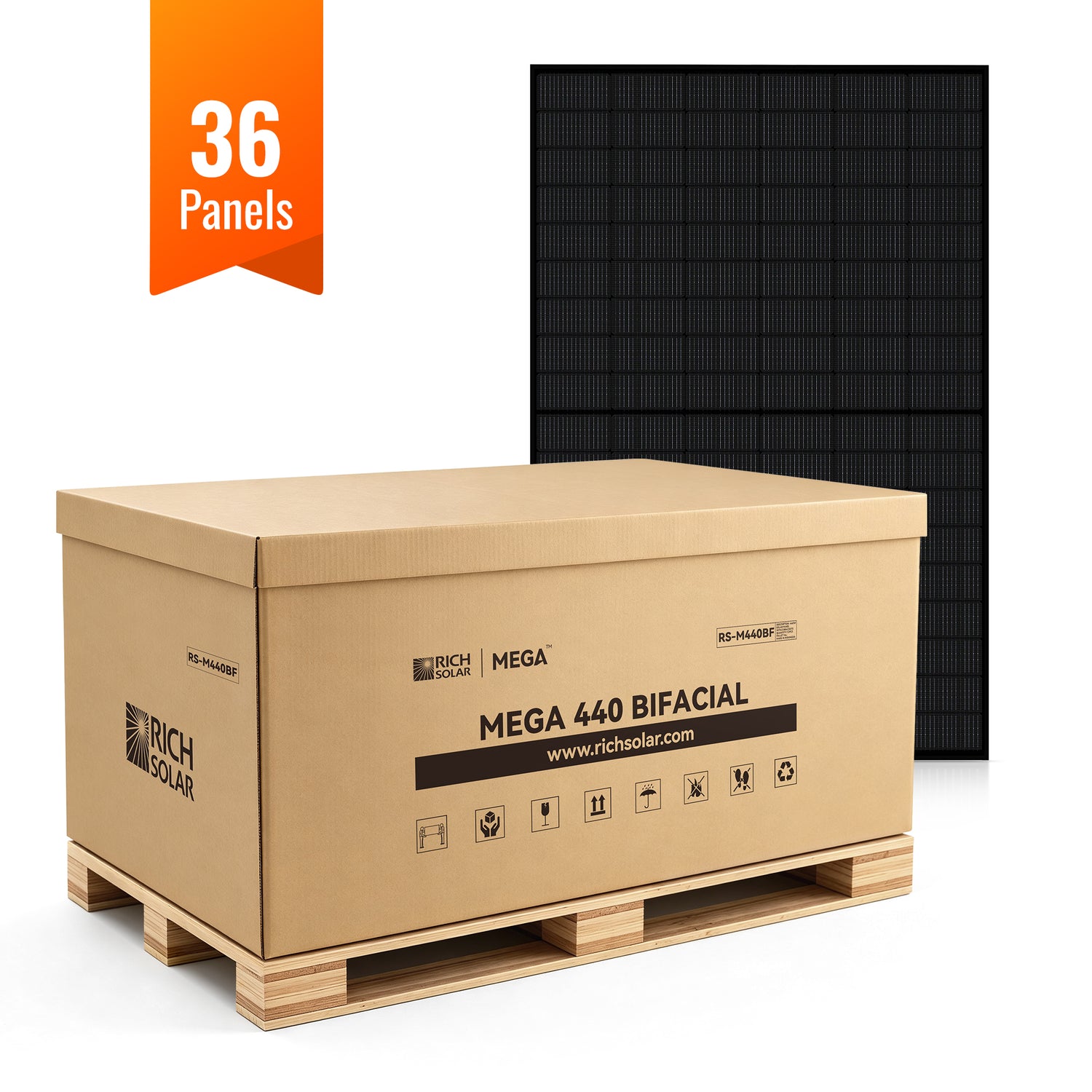

MEGA 440 BIFACIAL | 440W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty

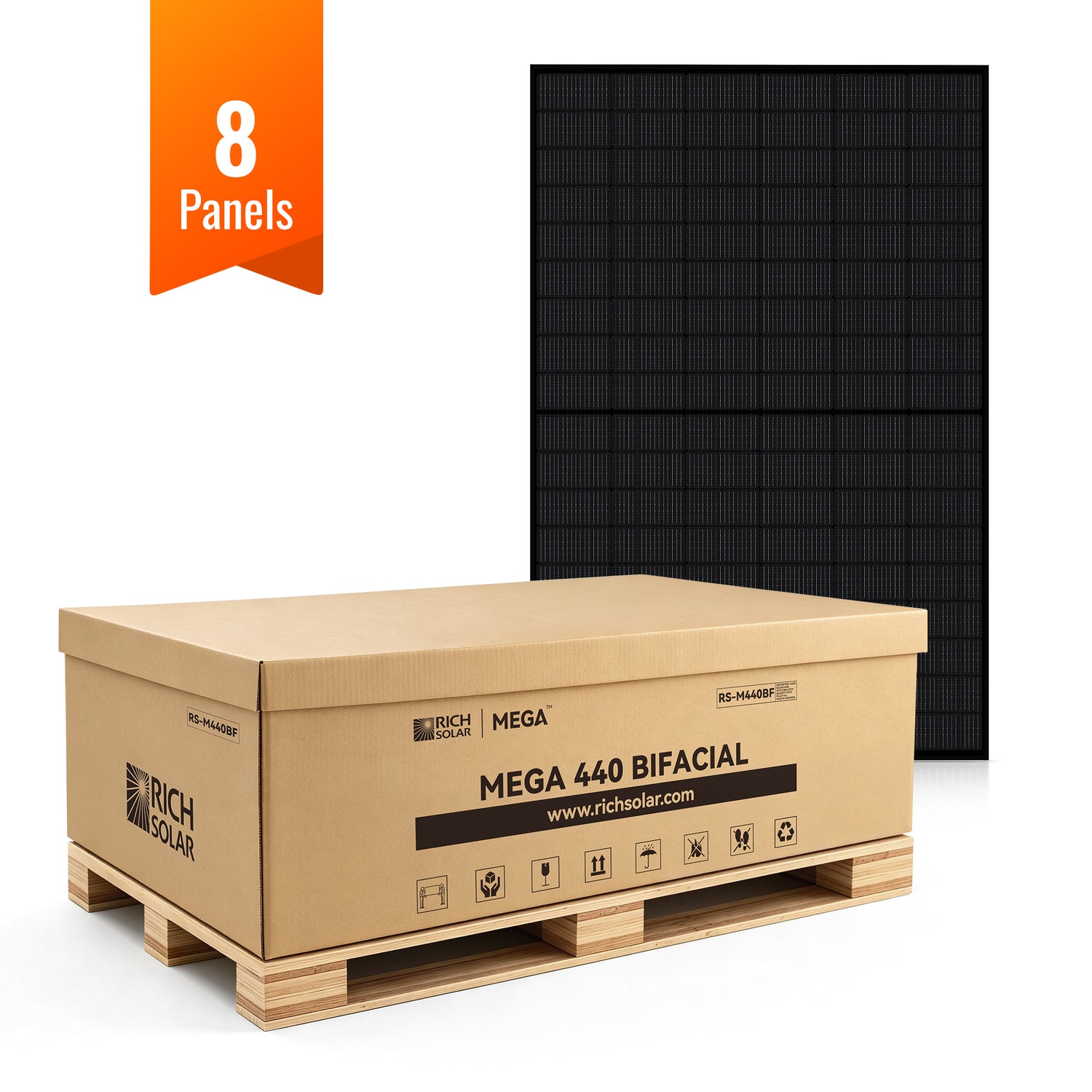

MEGA 440 BIFACIAL | 440W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 8 Panels is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Specifications
Download-
Peak Power440W
-
Max Power Voltage (Vmp)32.3V
-
Max Power Current (Imp)13.6A
-
Open Circuit Voltage (Voc)37.8V
-
Short Circuit Current (Isc)14.8A
-
Max Series Fuse Rating25A
-
Maximum System Voltage1500VDC
-
Number of Cells108 cells
-
Glass2.0 + 2.0 mm Tempered Glass
-
Frame MaterialAnodized Aluminum Alloy
-
Operating Temperature-40°F to 185°F
-
Dimensions (L × W × H)67.8" × 44.6" × 1.2"
-
Weight52.9 lb
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 440 BIFACIAL | 440W Bifacial N-Type Solar Panel | Premium 24V ...
MEGA 440 BIFACIAL | 440W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty - 8 Panels is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
Unmatched Performance
- 25.1% Maximum Cell Efficiency: Advanced N-Type TOPCon technology for greater energy production.
- 450W Rated Power Output: More power per panel with reduced installation costs.
- -0.30%/°C Power Temperature Coefficient: Reliable performance in hot-weather conditions.
Breakthrough Cell Technology
- N-Type TOPCon Cells: Higher efficiency and improved long-term reliability.
- Low Annual Power Degradation: Designed for reliable long-term energy production.
- Low Power Degradation: Designed for consistent long-term energy production.
Advanced Bifacial Design
- Up to 25% Additional Energy Yield from the Rear Side: Captures reflected sunlight to boost overall energy production.
- Optimized for Reflective Surfaces: Performs exceptionally well over concrete, sand, gravel, and snow.
- Increased Daily Energy Production: Maximizes system performance throughout the day.
Proven Durability
- 5400 Pa Front Load Rating: Built to withstand heavy snow loads.
- 2400 Pa Rear Load Rating: Reliable performance in high-wind environments.
- IP68-Rated Junction Box: Superior protection against dust and moisture.
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Specifications
- Peak Power: 440W
- Max Power Voltage (Vmp): 32.3V
- Max Power Current (Imp): 13.6A
- Open Circuit Voltage (Voc): 37.8V
- Short Circuit Current (Isc): 14.8A
- Max Series Fuse Rating: 25A
- Maximum System Voltage: 1500VDC
- Number of Cells: 108 cells
- Glass: 2.0 + 2.0 mm Tempered Glass
- Frame Material: Anodized Aluminum Alloy
- Operating Temperature Range: -40°F to 185°F
- Dimensions (L × W × H): 67.8" × 44.6" × 1.2"
- Weight: 52.9 lb
