MEGA 35 | 35 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty

Features

• 12V off-grid solar panel.

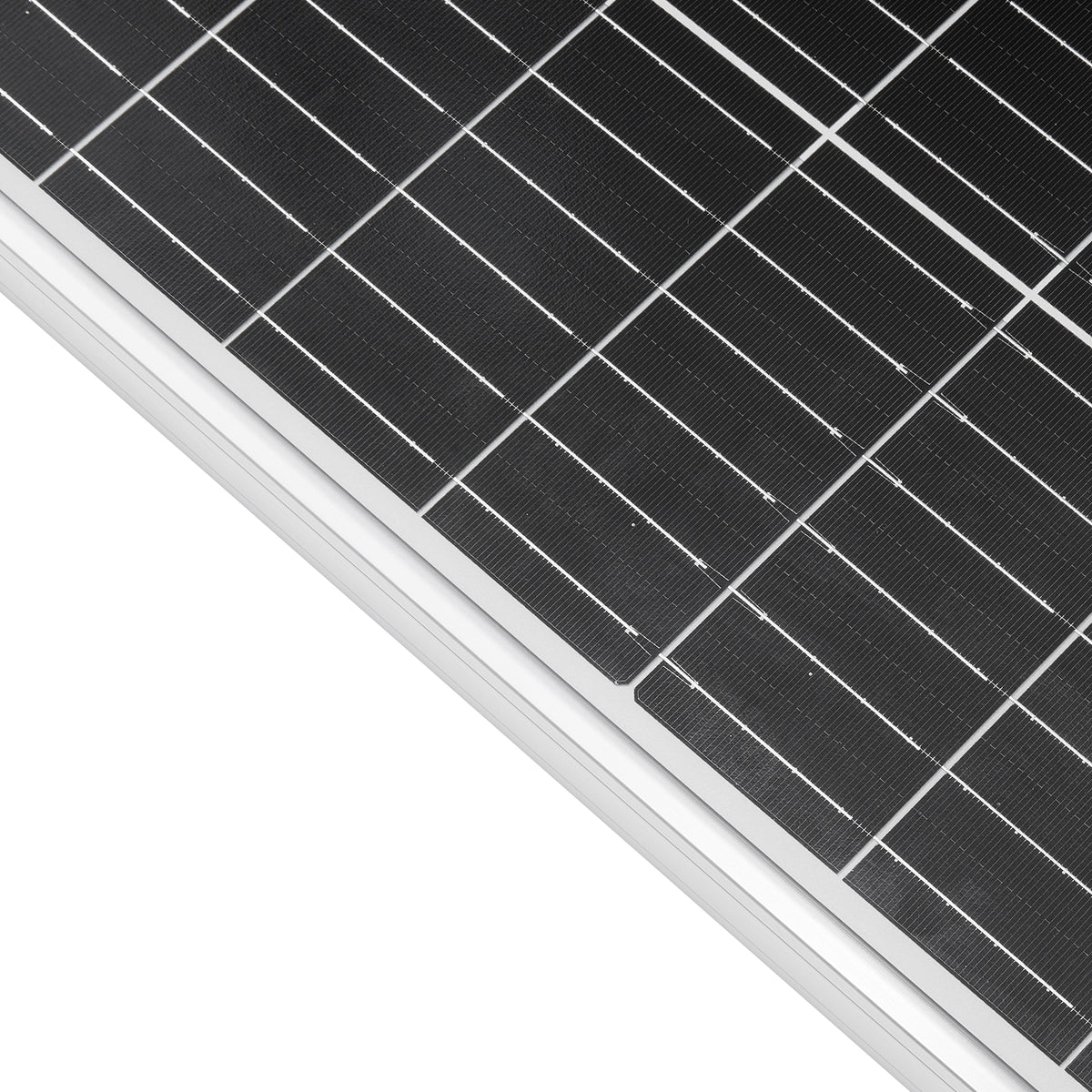

• 6-Busbar Monocrystalline Cells with up to 23.2% efficiency.
• 32-Cell Design delivers a reliable 35W output.
• 3.2 mm AR-Coated Tempered Glass for maximum durability and light transmission.
• 0 to +5W Positive Power Tolerance ensures the rated output or better.
• Excellent Low-Light Performance on cloudy days and at dawn or dusk.
• Designed to withstand salt, ammonia, sand, high temperatures, and humidity.
• Premium Quality with 100% EL inspection and PID resistance.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.

• Ideal for RVs, Vans, Truck Campers,  and Marine Systems.

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

• 4 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

• MC4 connectors with 3 ft pre-attached cables for quick and easy installation

• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year output warranty
• 10-year workmanship warranty

Built-in Components

• Panel Leads (Pair): 12 AWG, 3 ft each

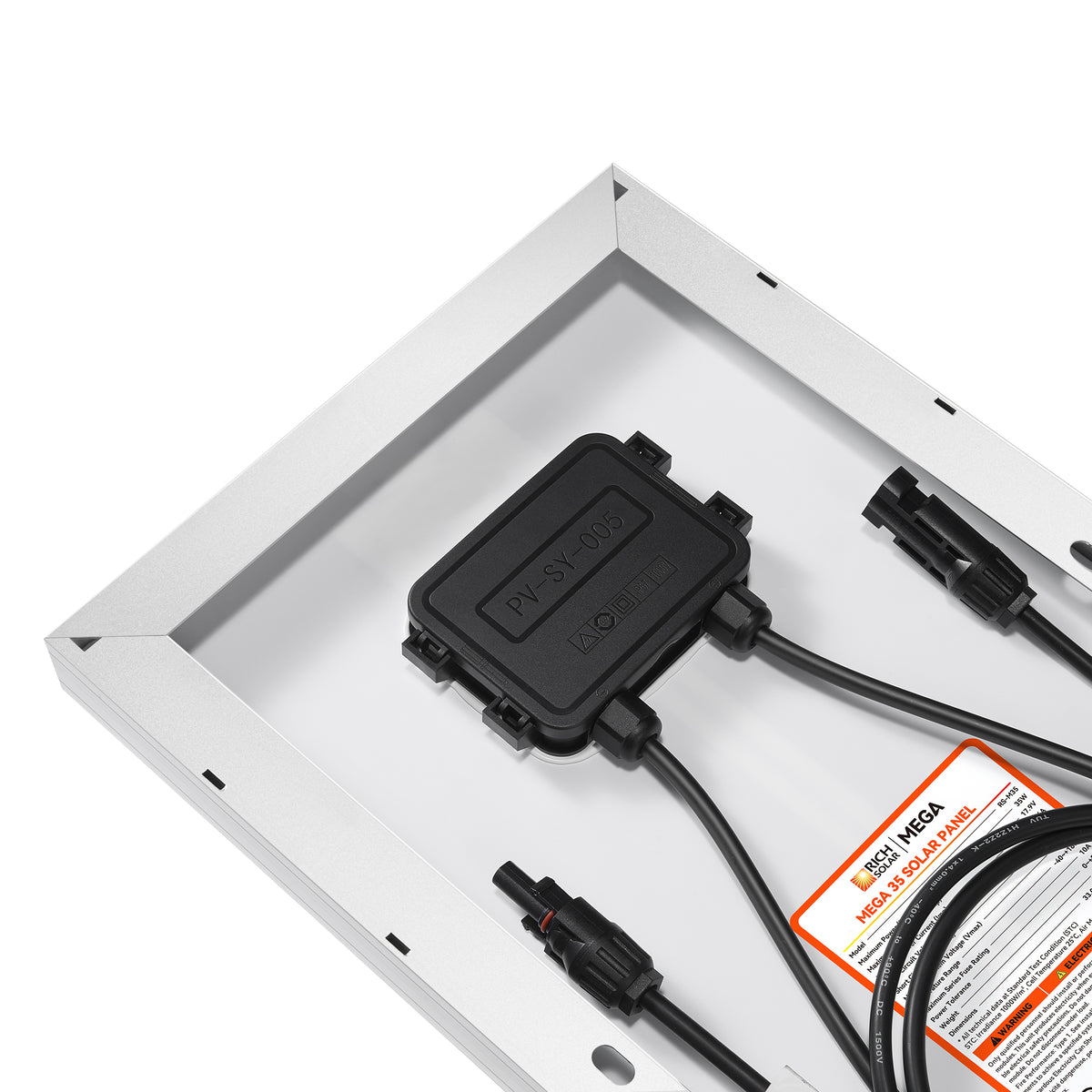

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Maximum Power (Pmax): 35W
• Maximum Power Voltage (Vmp): 17.9V
• Maximum Power Current (Imp): 1.96A
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 2.13A
• Maximum System Voltage (Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Weight: 5.7 lb

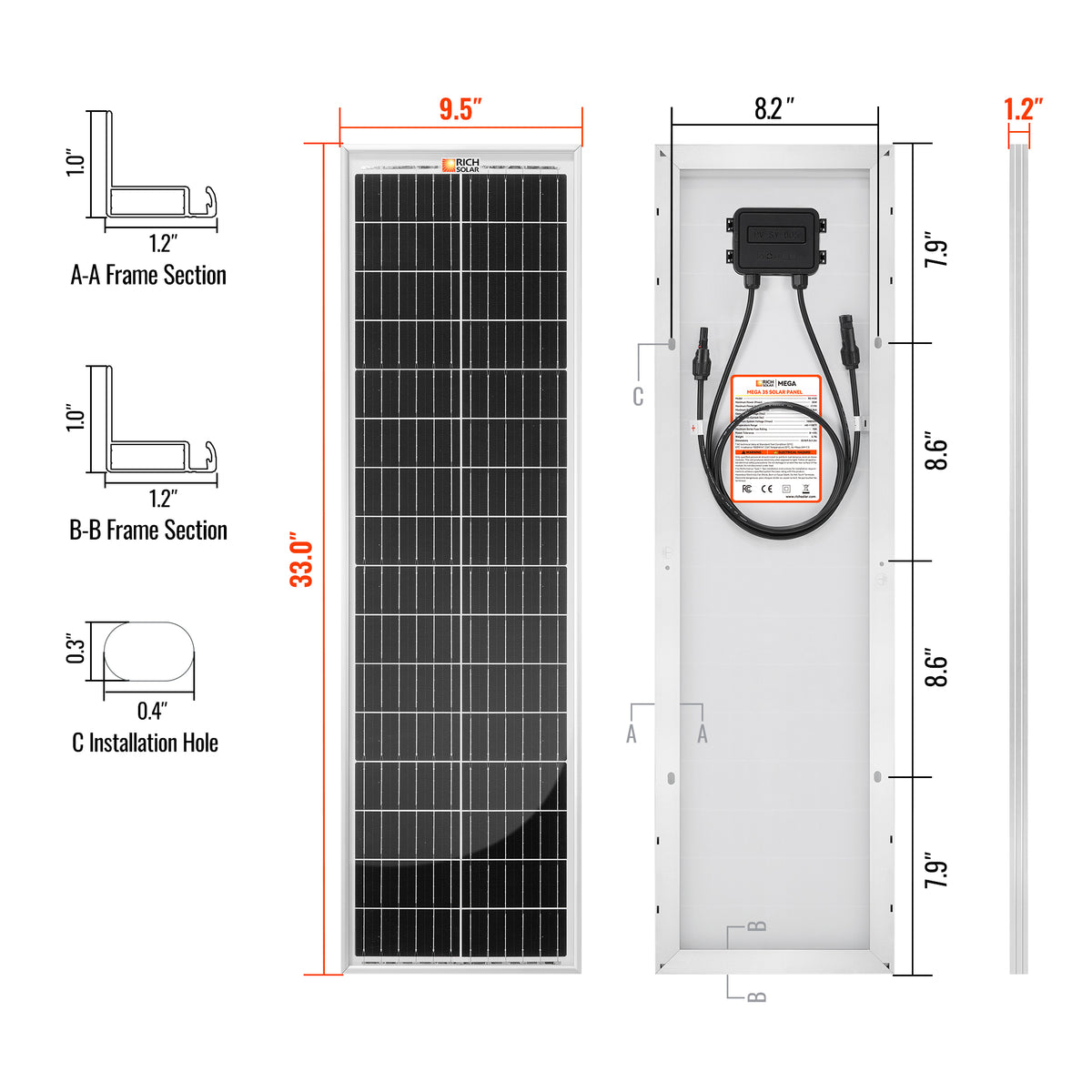

• Dimensions: 33.0 x 9.5 x 1.2 in
