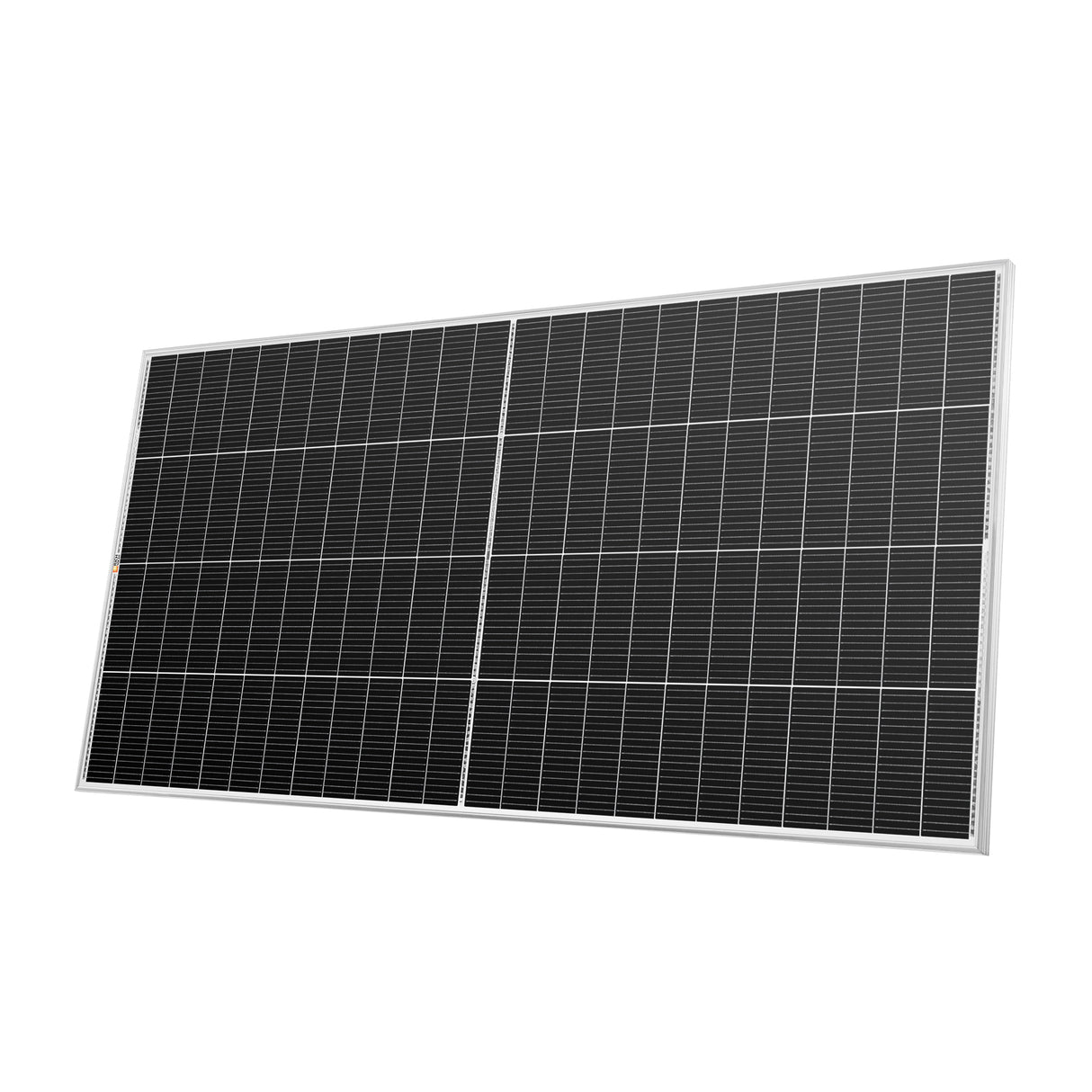

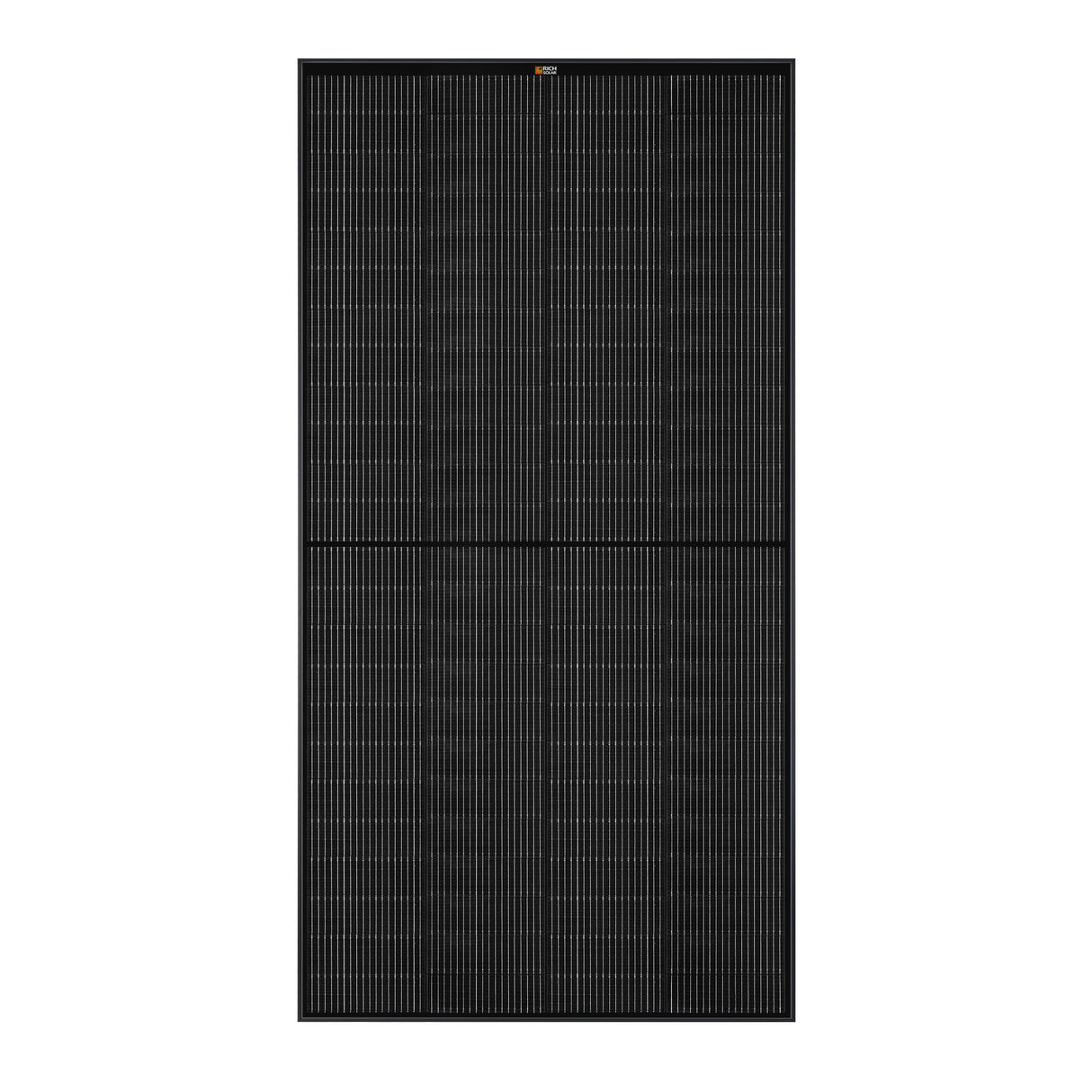

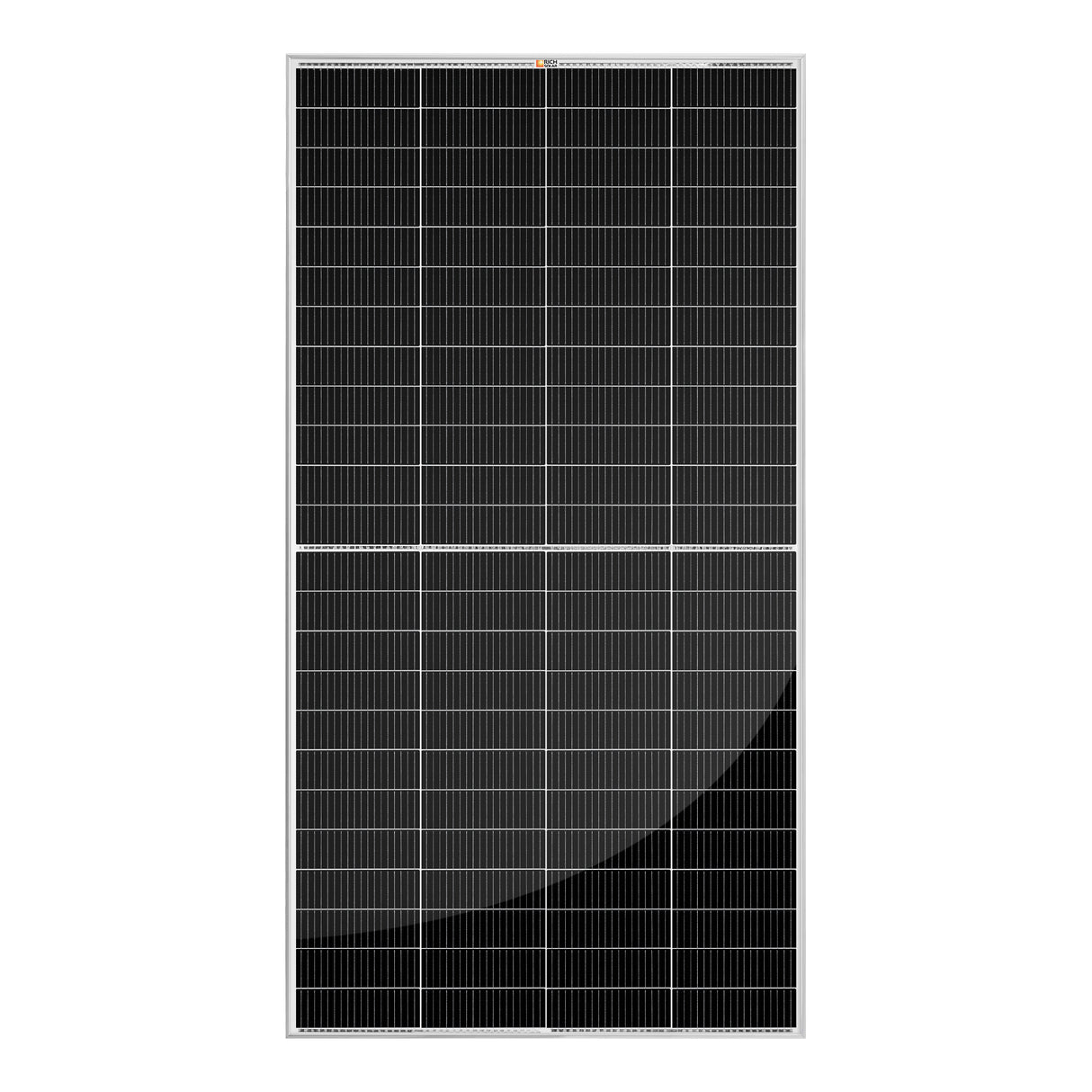

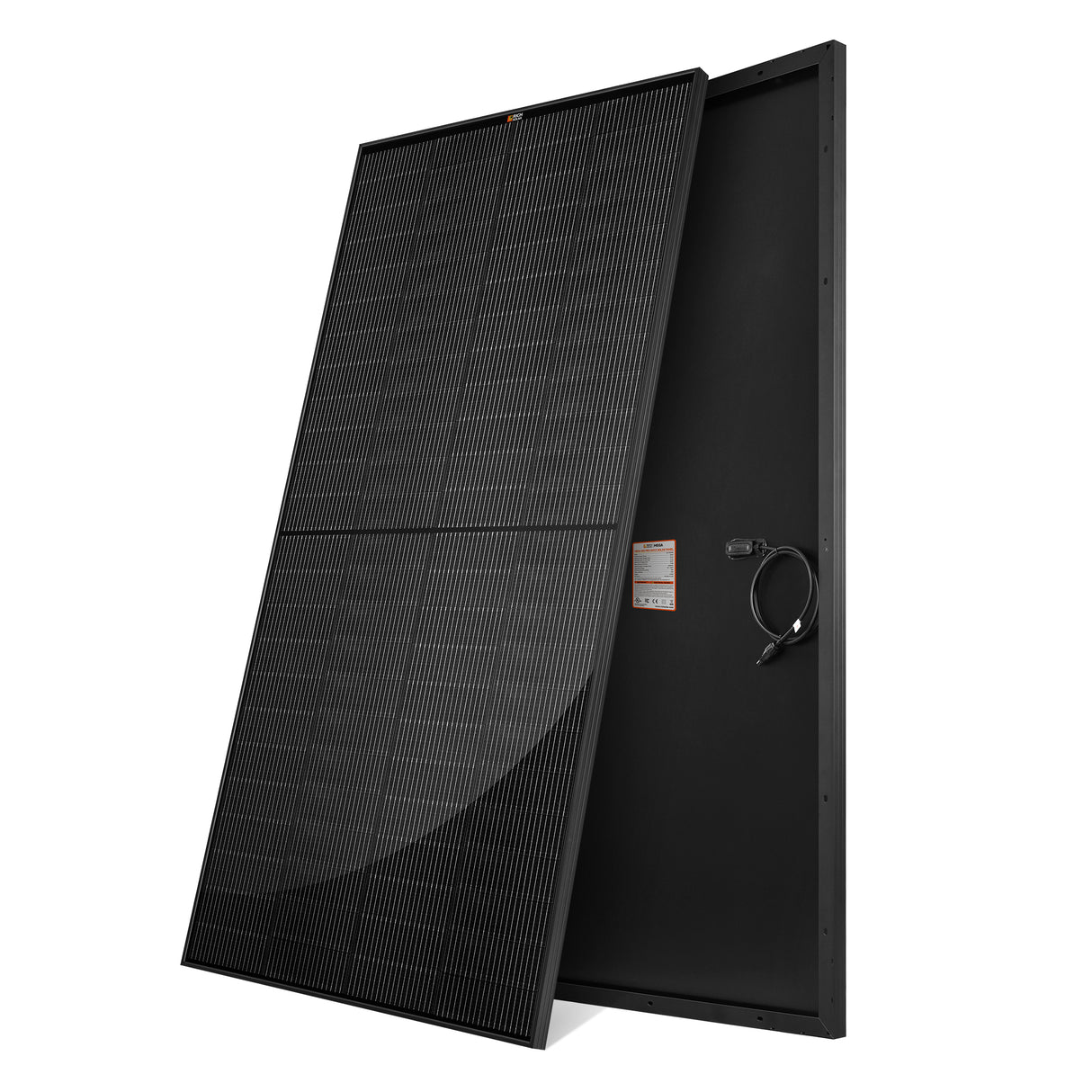

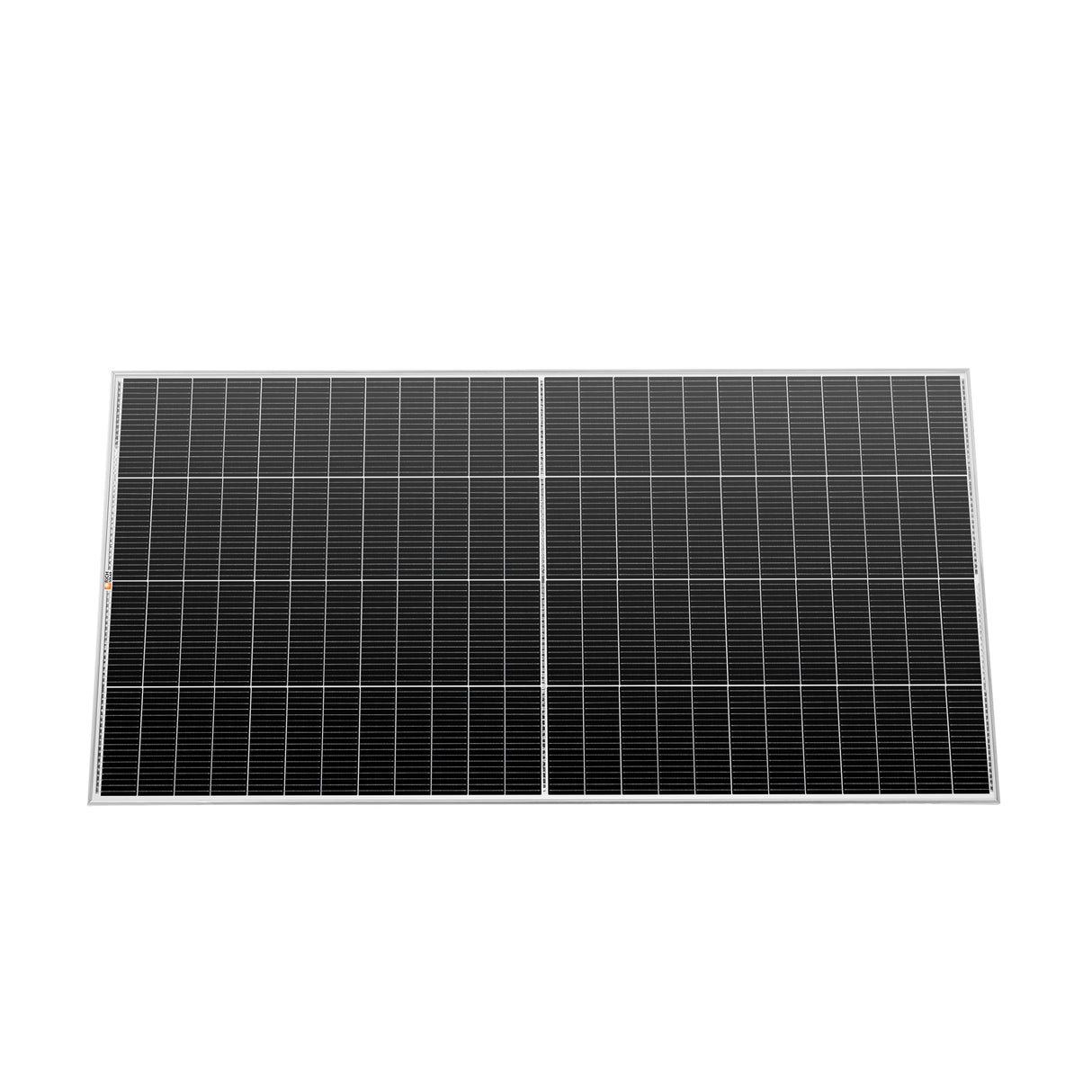

MEGA 335 PRO | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
MEGA 335 PRO | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified - 8 Panels is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 335 PRO | 335 Watt Solar Panel | Premium Grid-tie or Off-grid ...
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

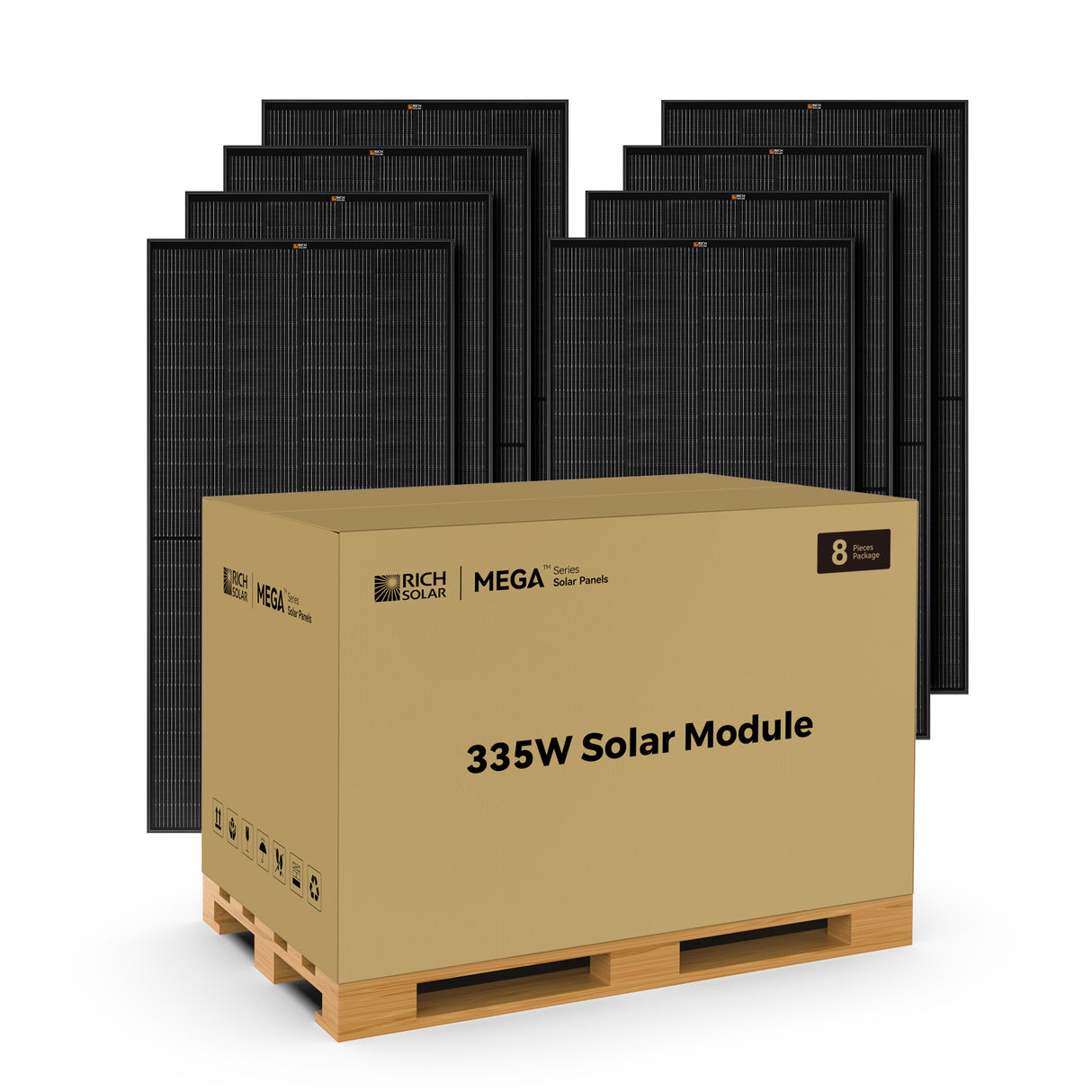

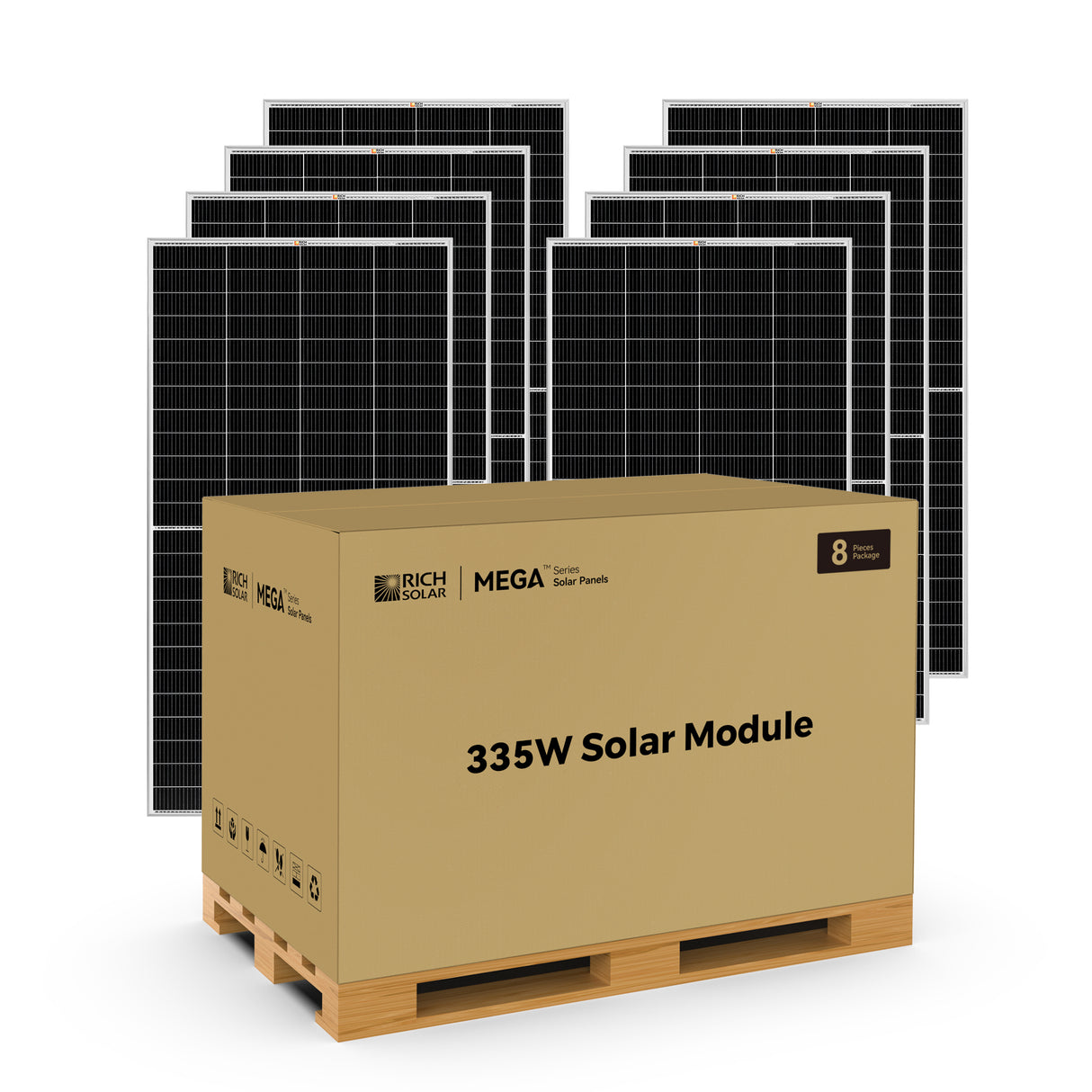

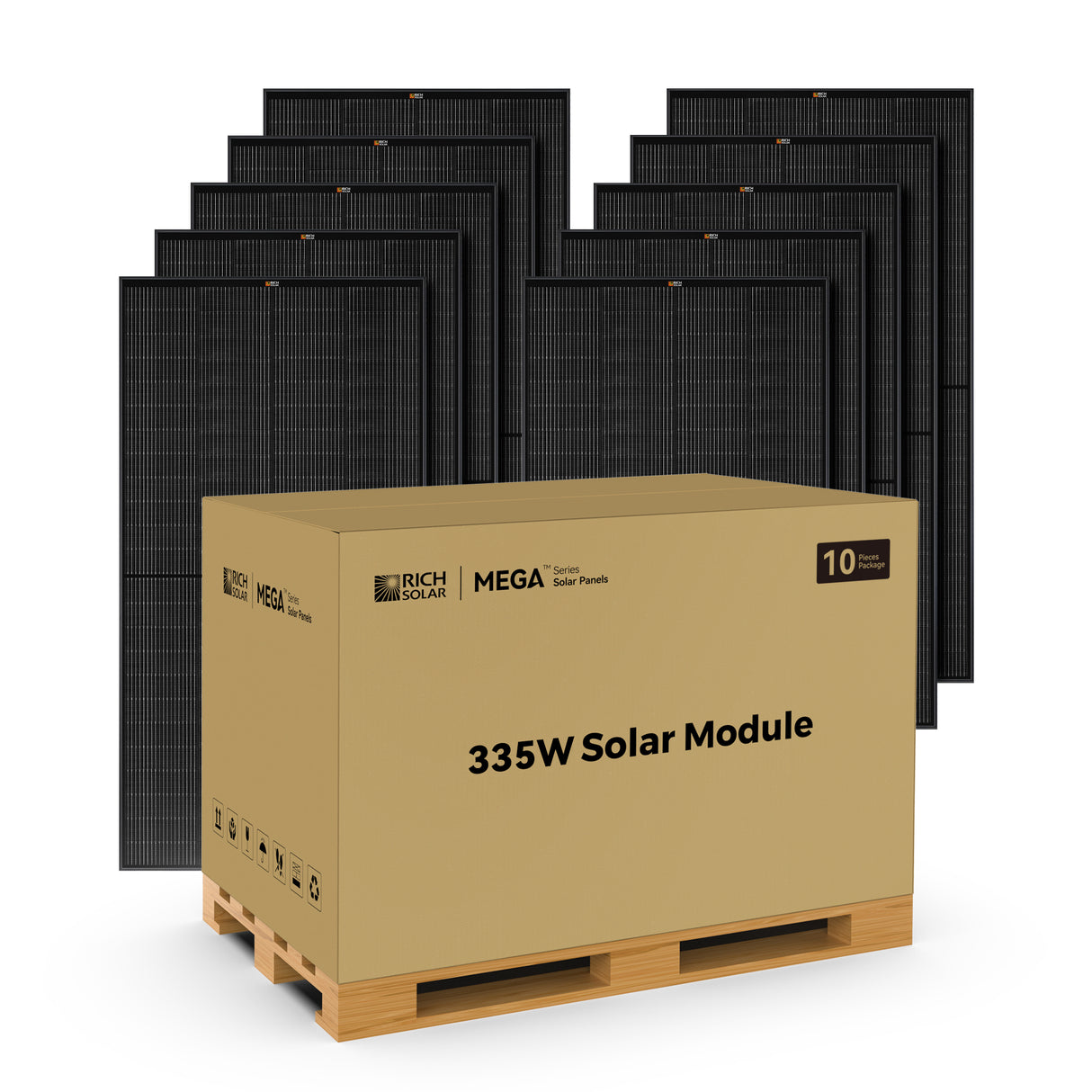

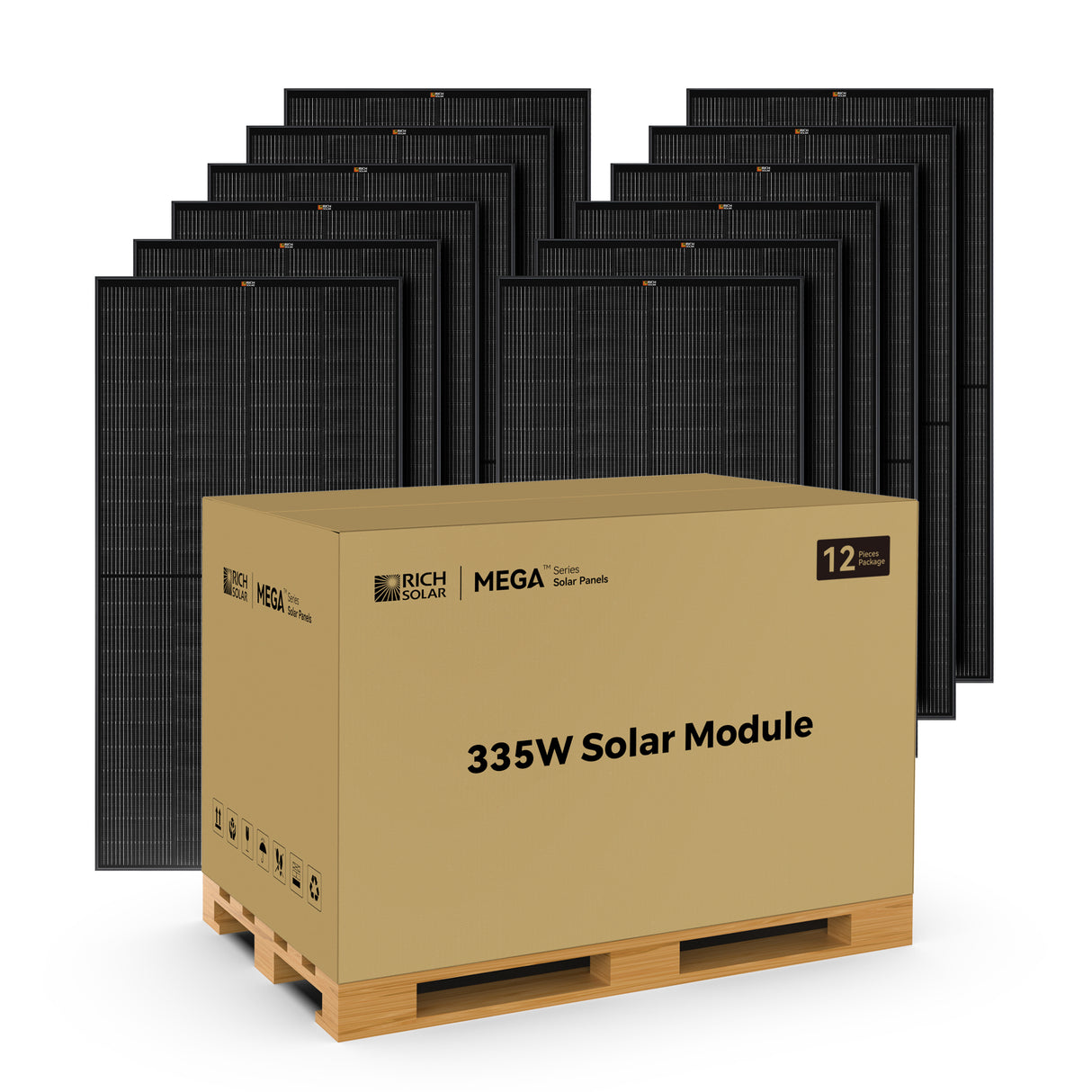

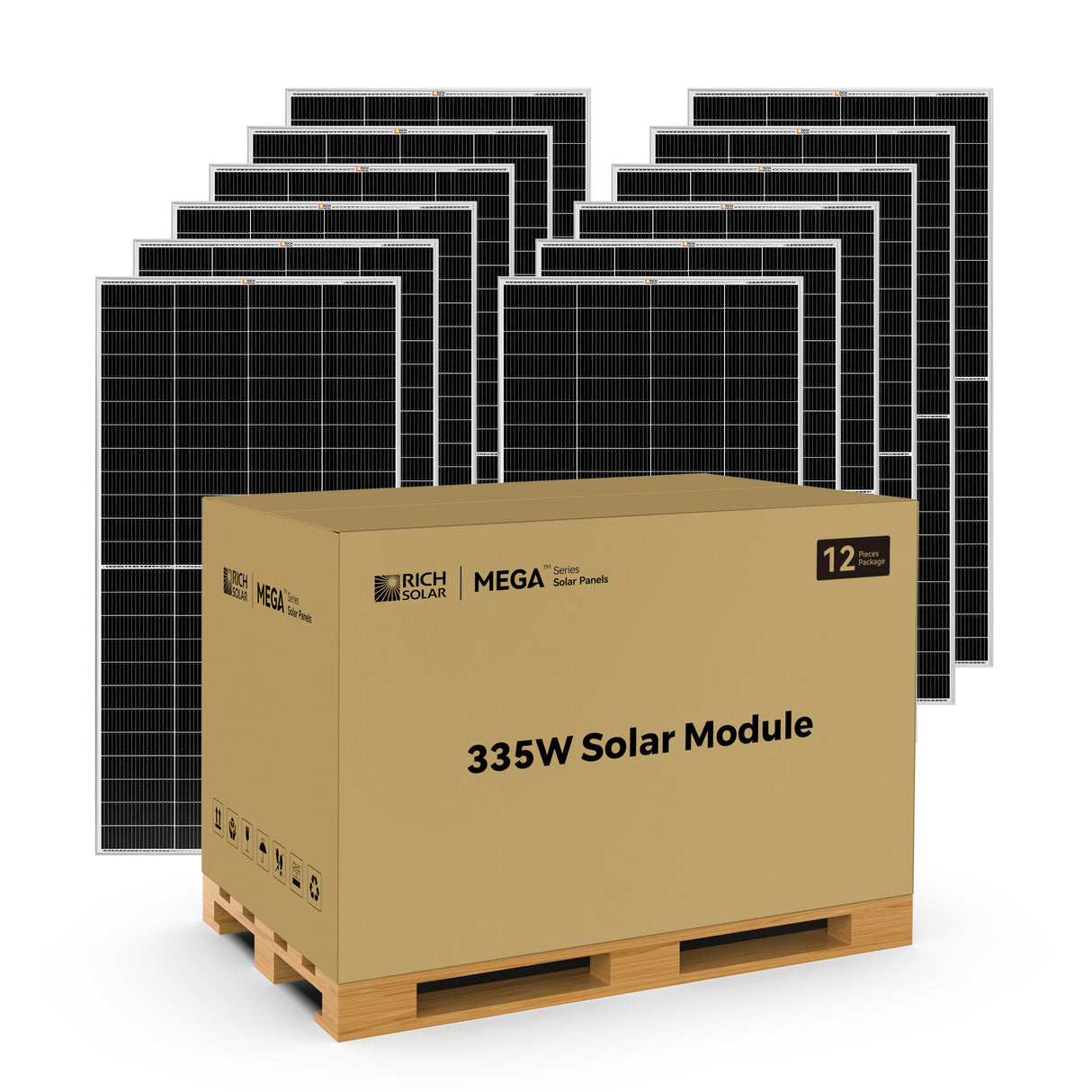

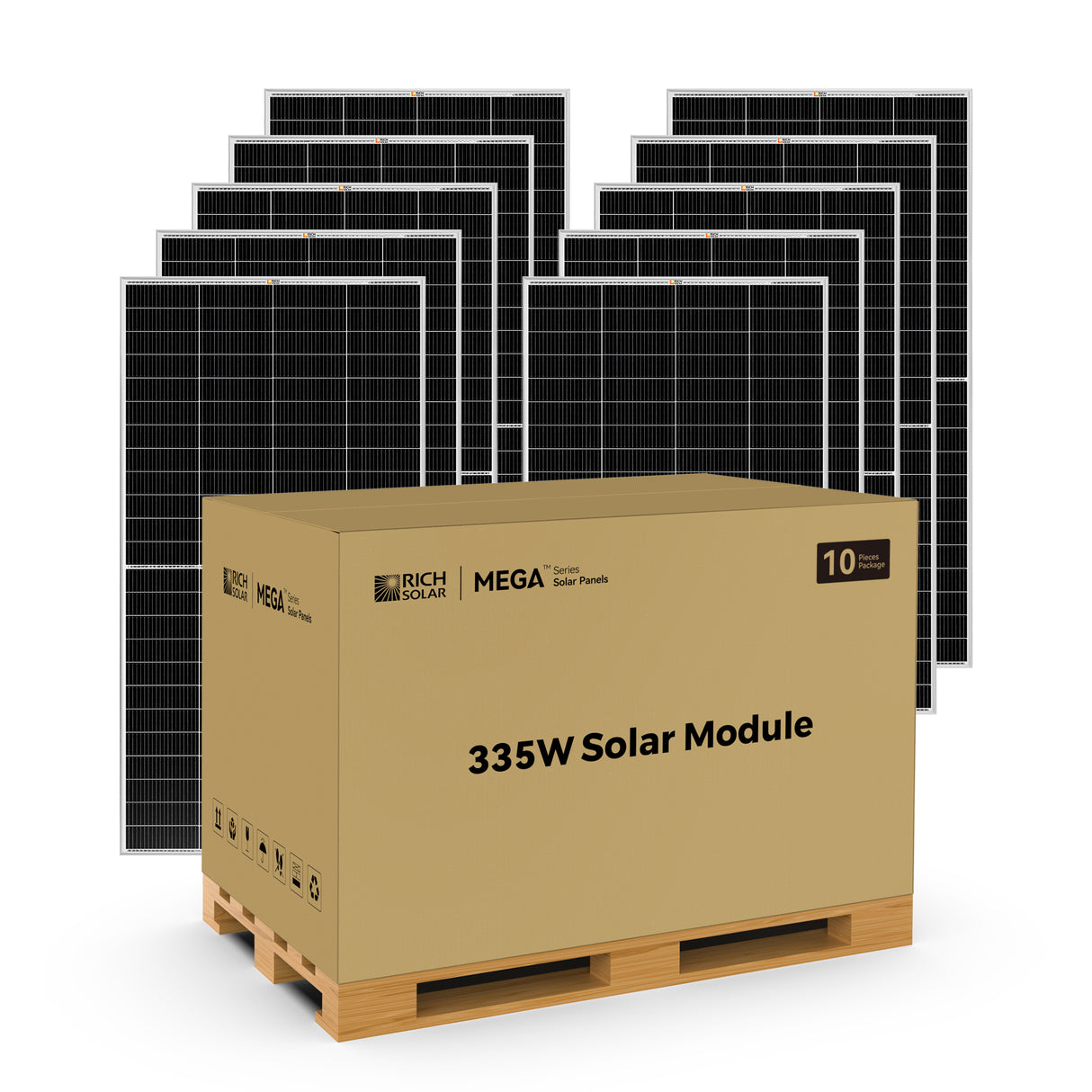

Pallet shipping only; for any other quantities, please contact our Sales Representative at 1-800-831-9889 or email us at sales@richsolar.com.
Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
☑ High PerformanceExcellent low-light performance even on early mornings, evenings, and cloudy days.

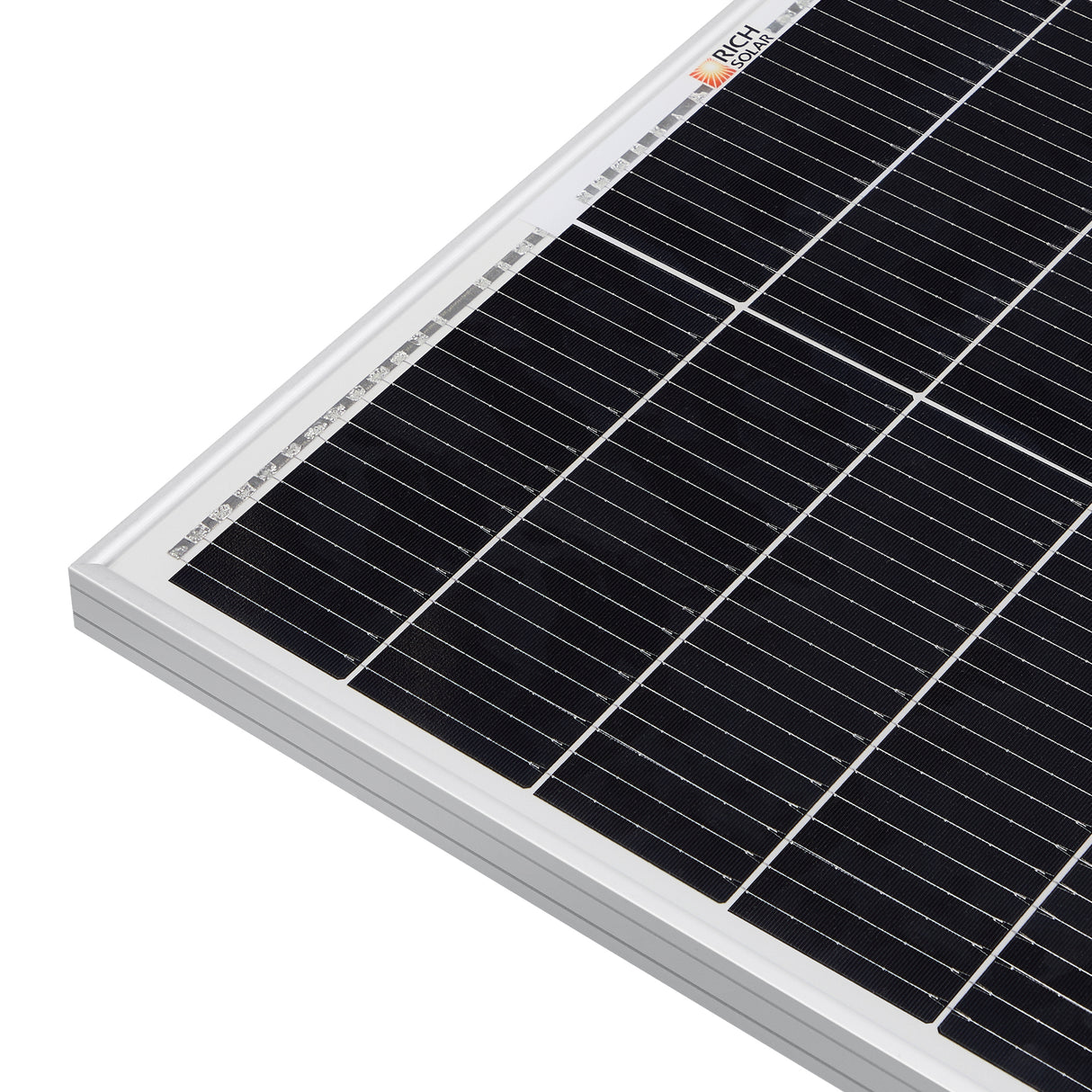

☑ Rugged DurabilityBuilt with strong high transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.

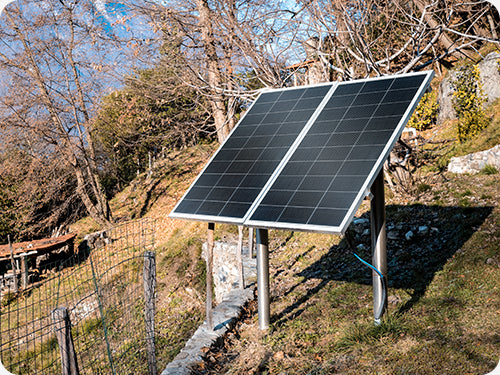

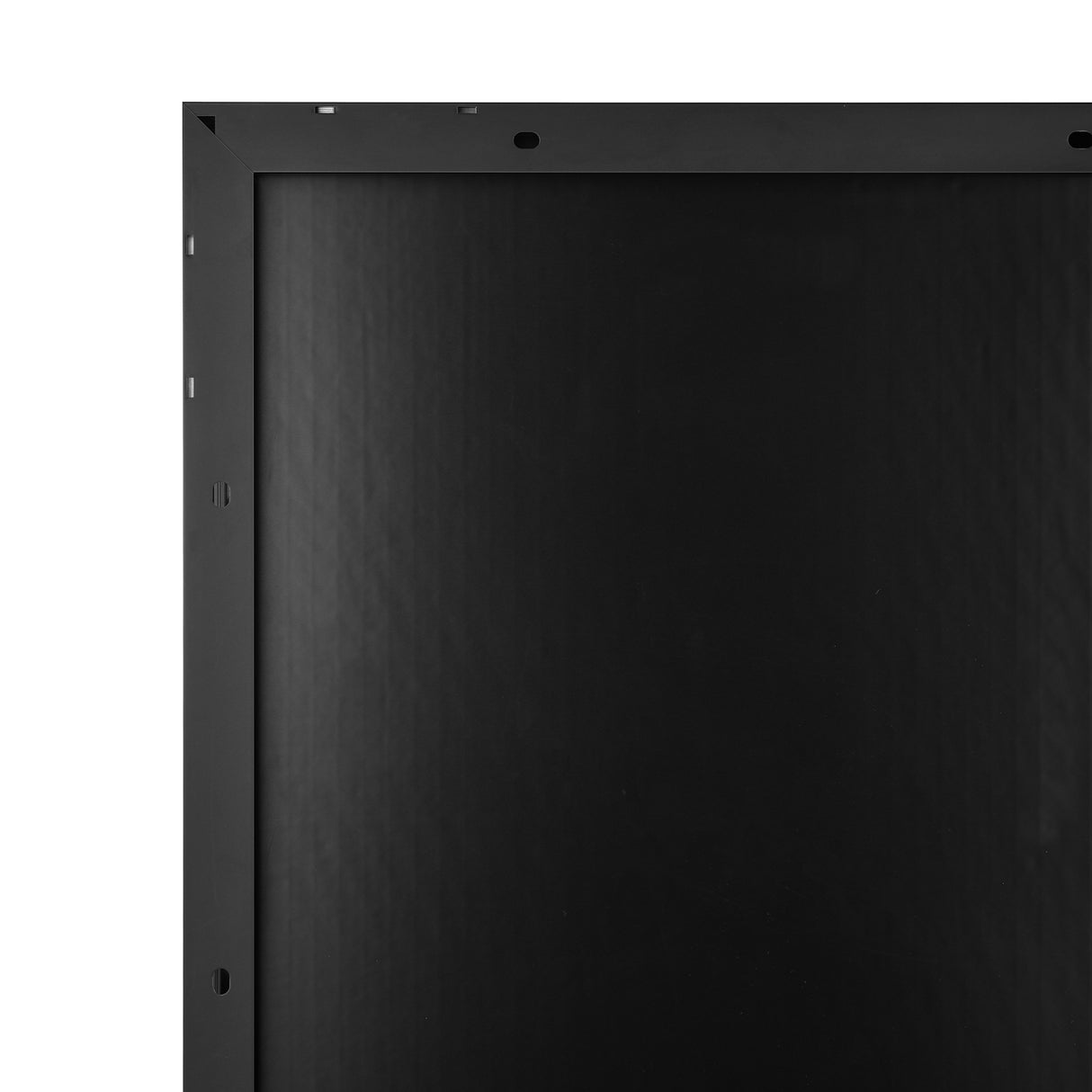

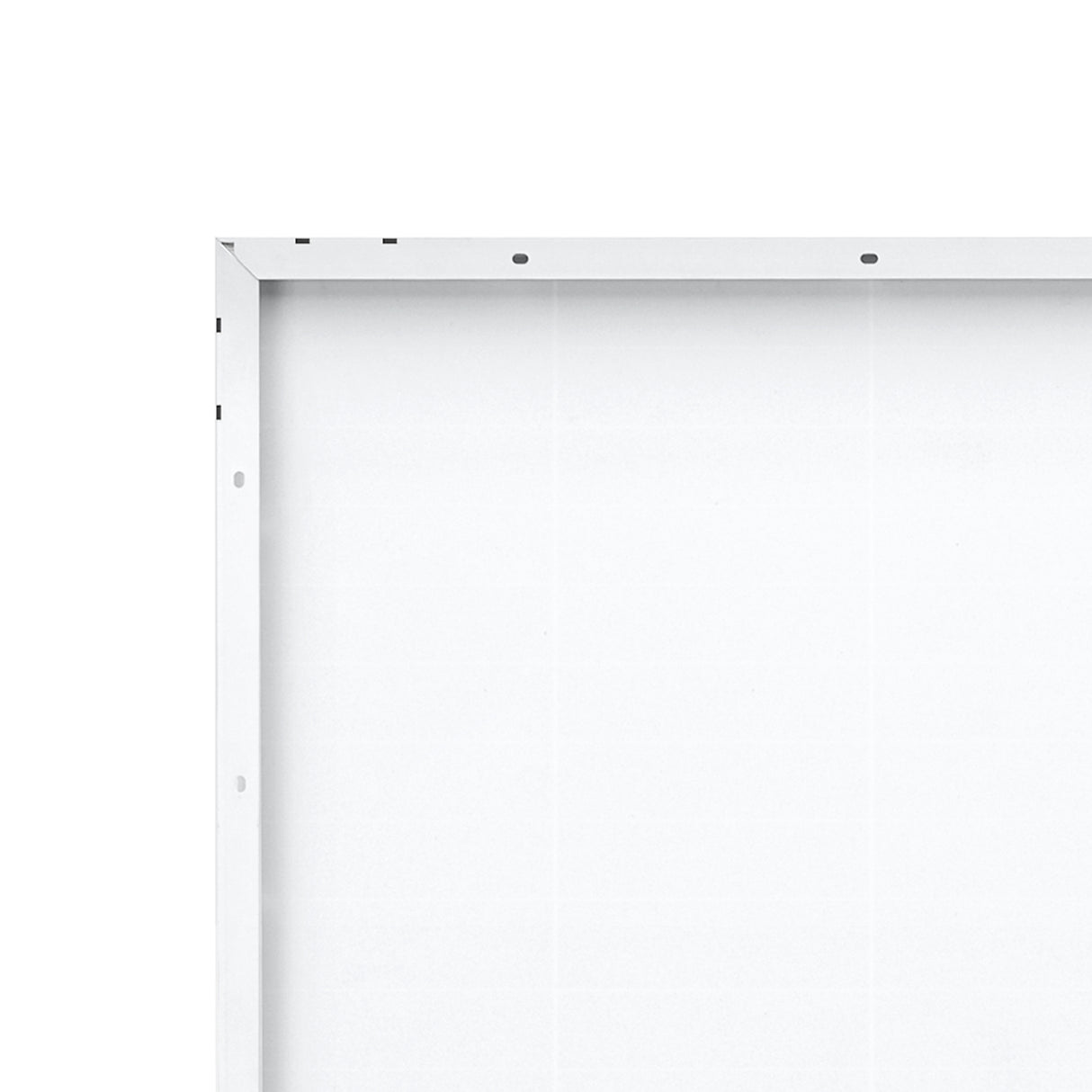

Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
☑ Warranty25-year power output warranty and a 10-year workmanship warranty.

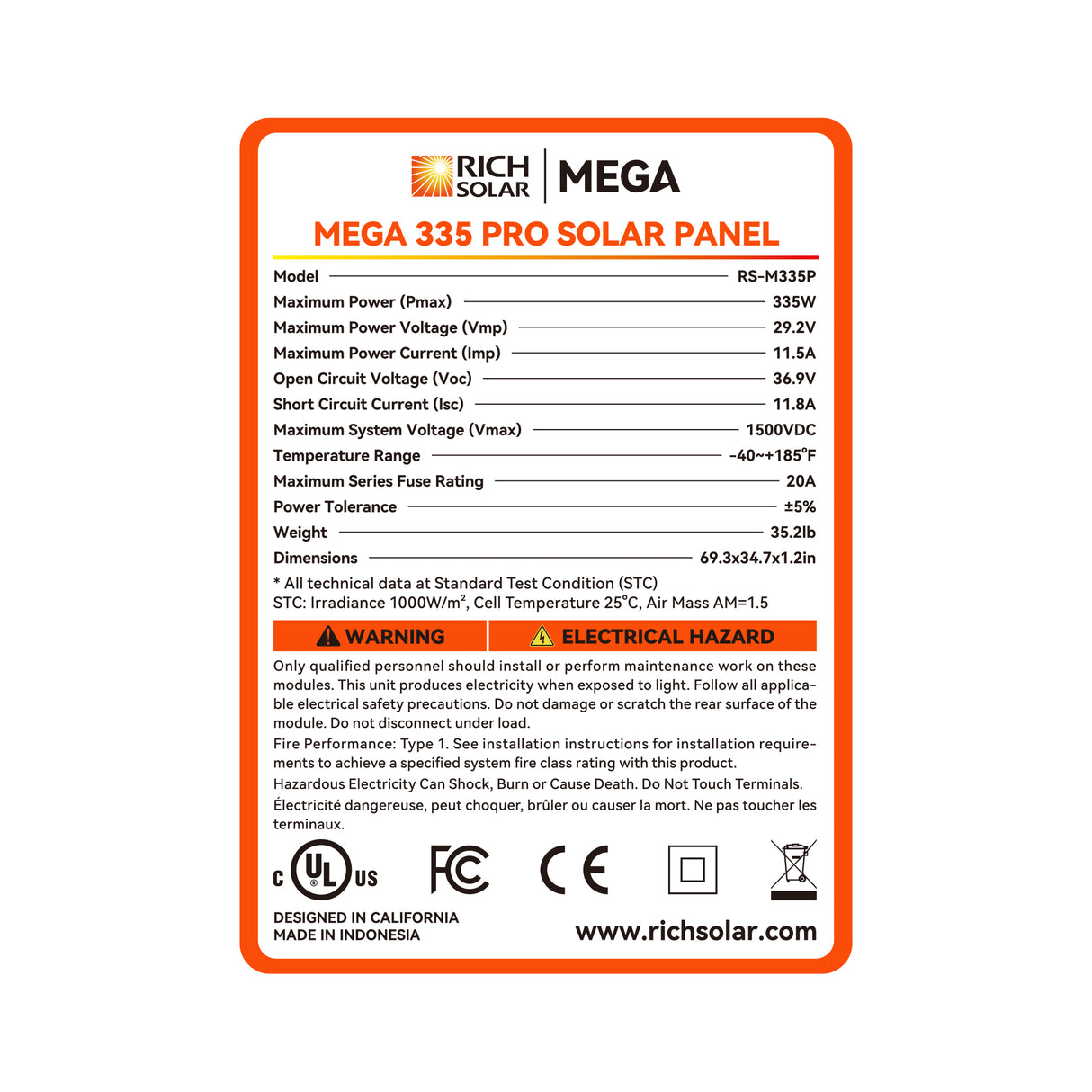

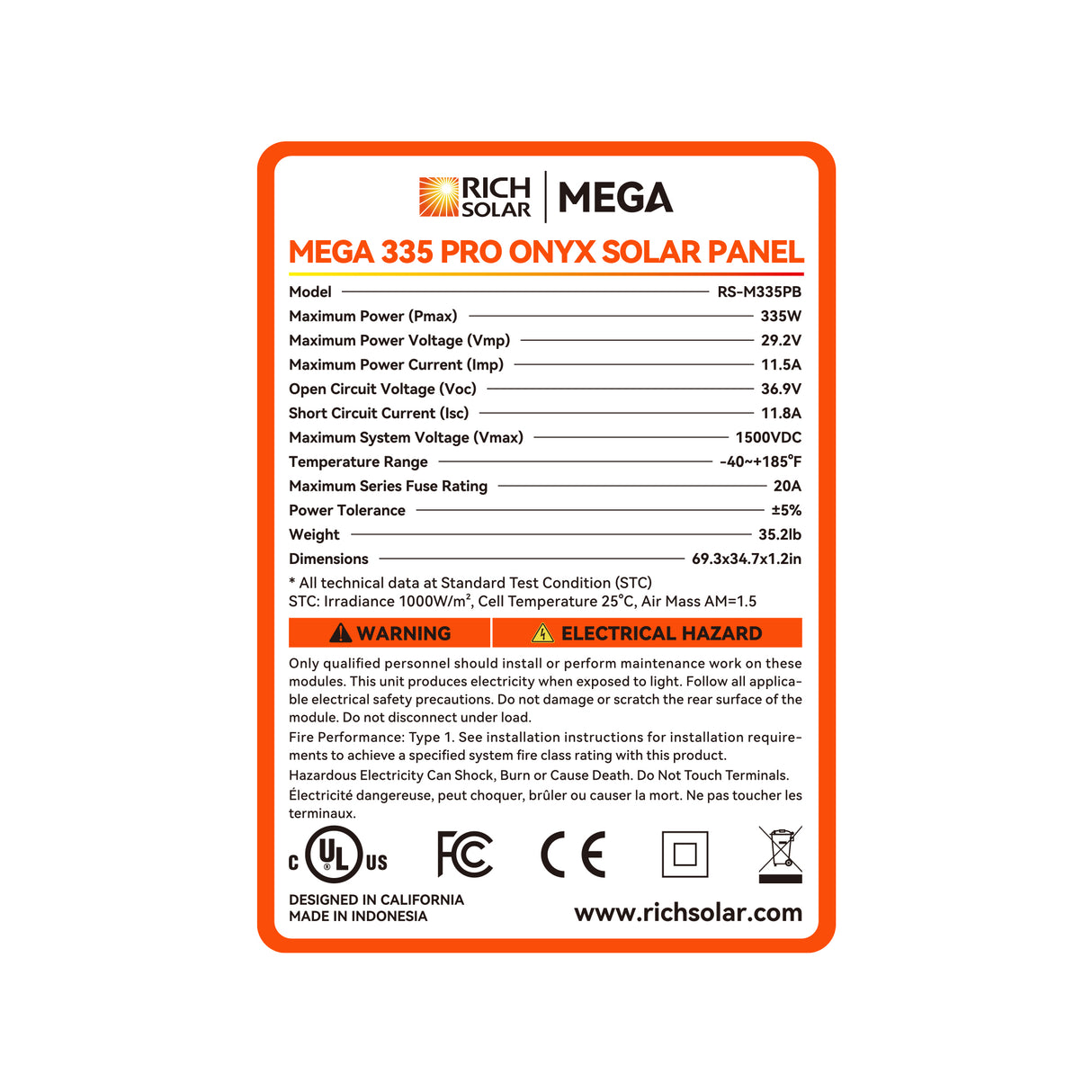

Specifications
SOLAR PANEL INFO
Maximum Power(Pmax):
335W
Maximum Power Voltage(Vmp):
29.2V
Maximum Power Current(Imp):
11.5A
Open Circuit Voltage(Voc):
36.9V
Short Circuit Current(Isc):
11.8A
Maximum System Voltage(Vmax):
1500VDC
Temperature Range:
-40°F ~ 185°F
Max Series Fuse Rating:
20A

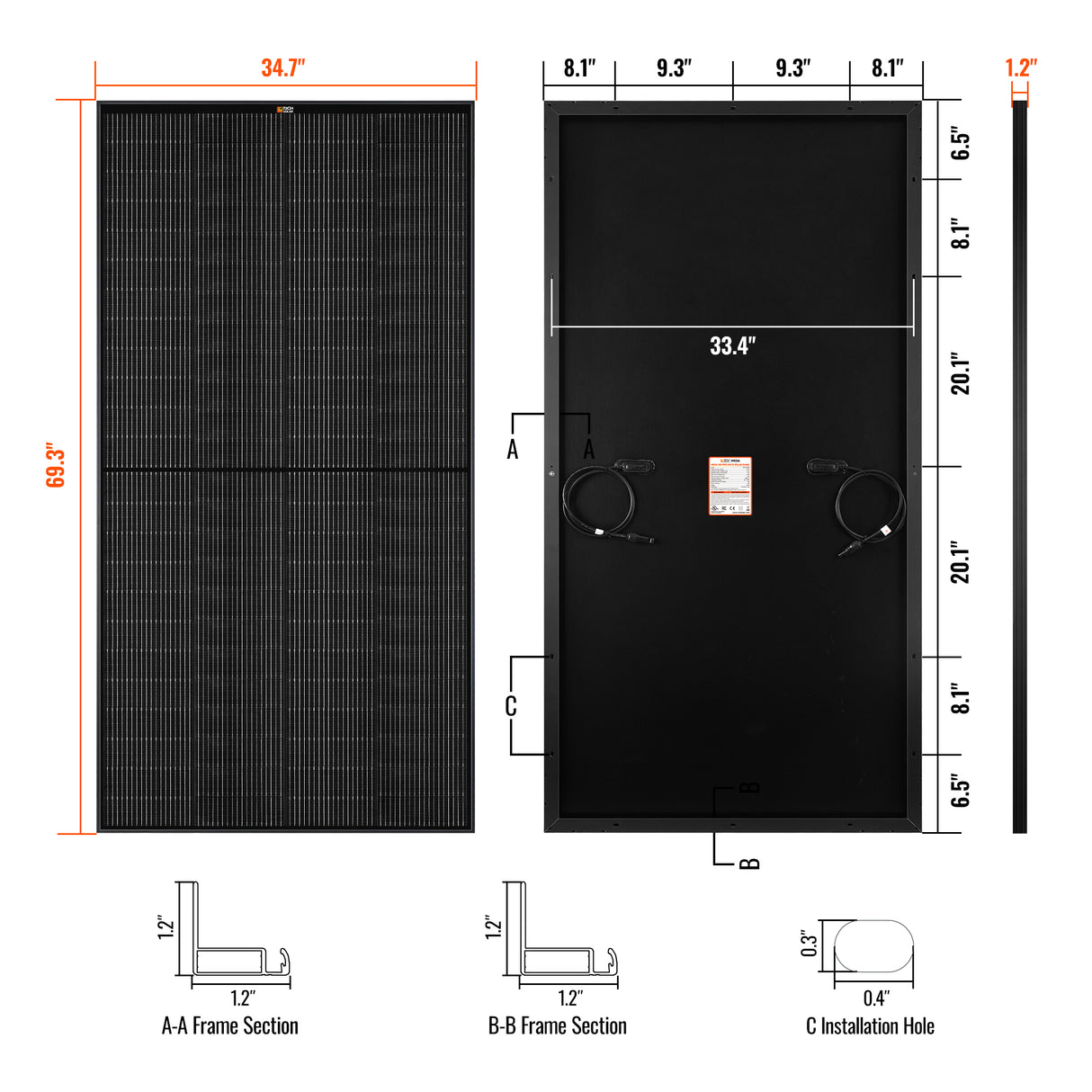

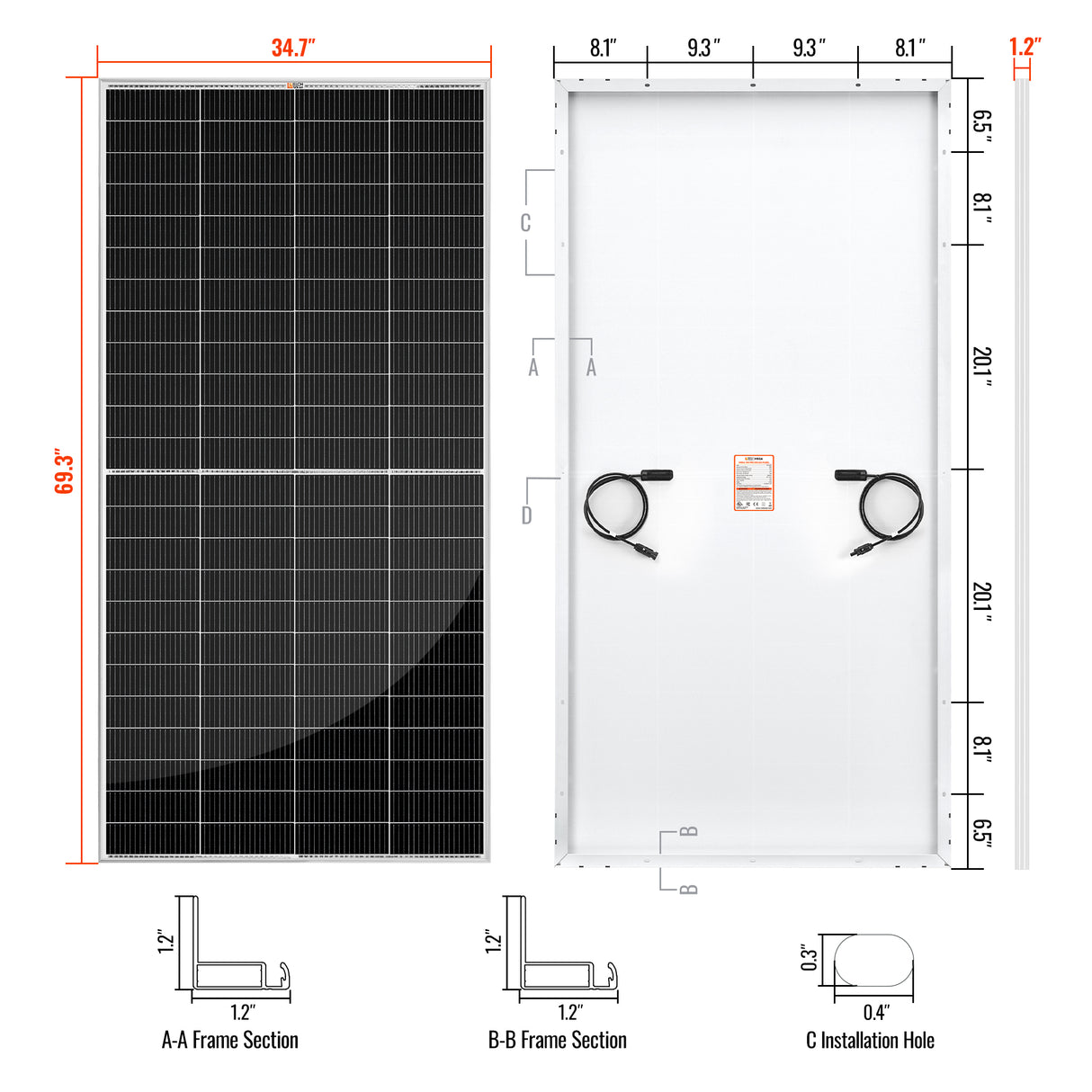

Dimensions:
69.3 x 34.7 x 1.2 in
Weight:
35.2 lb

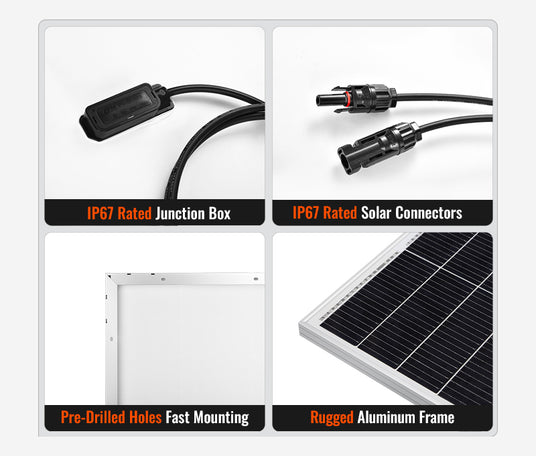

Built-in Components

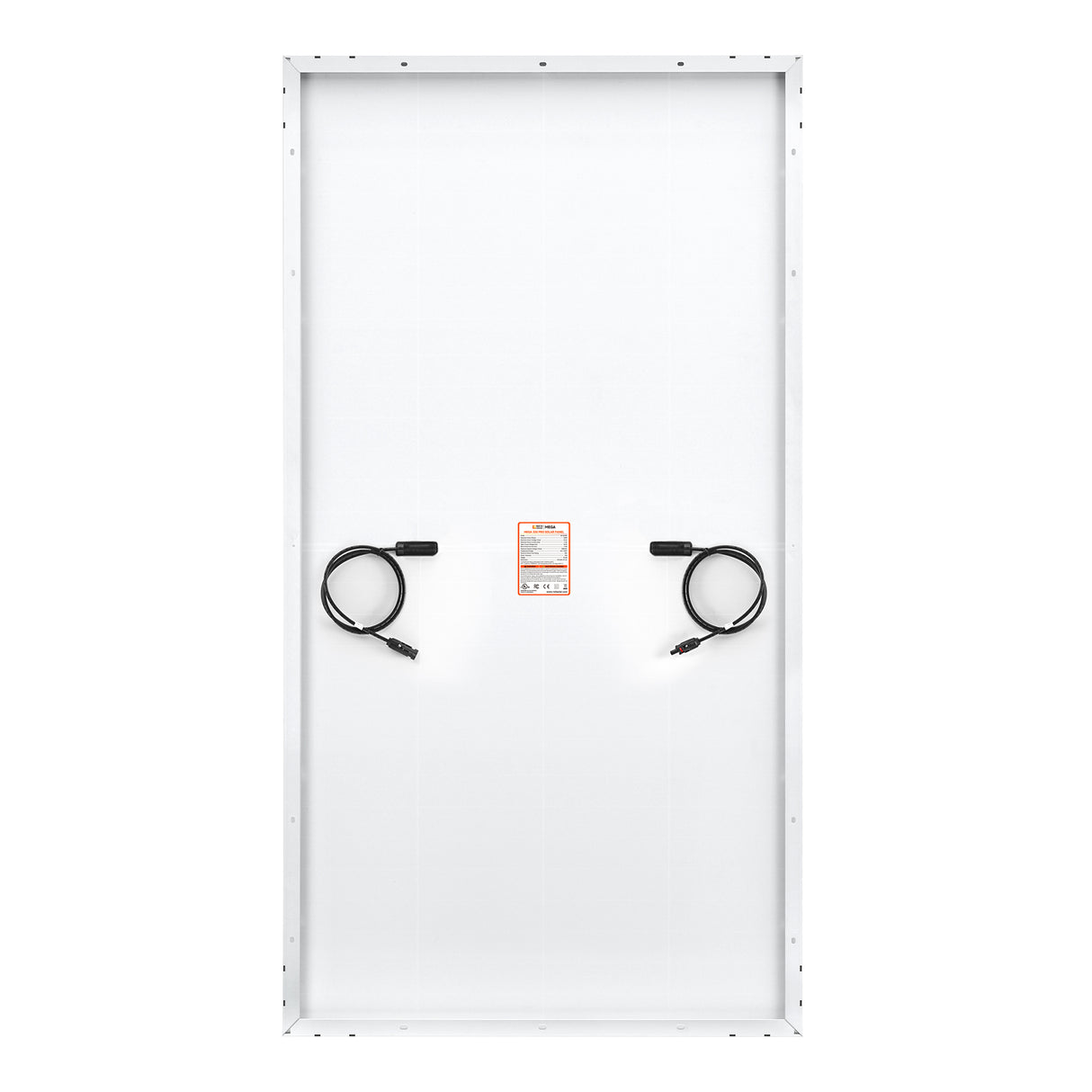

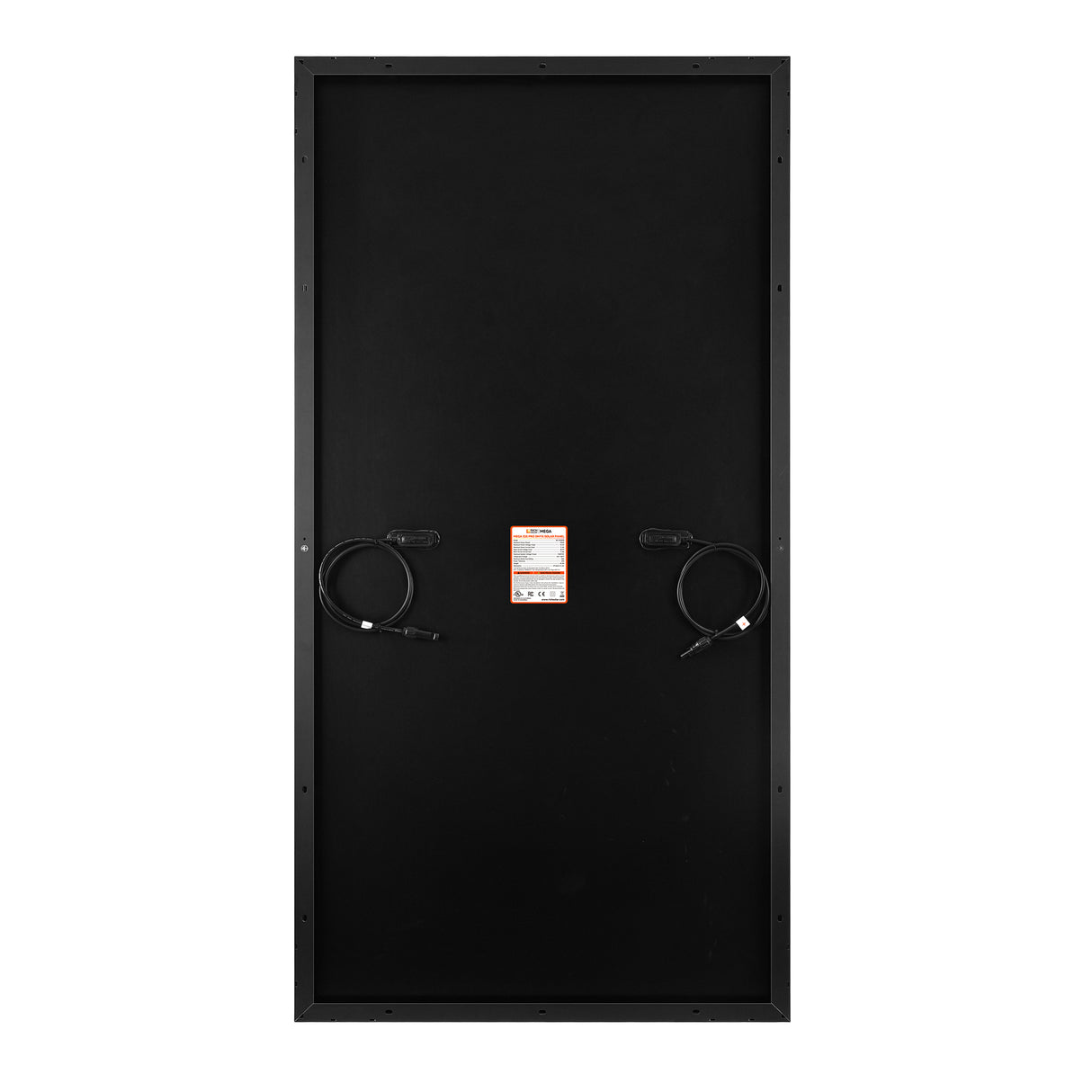

- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box

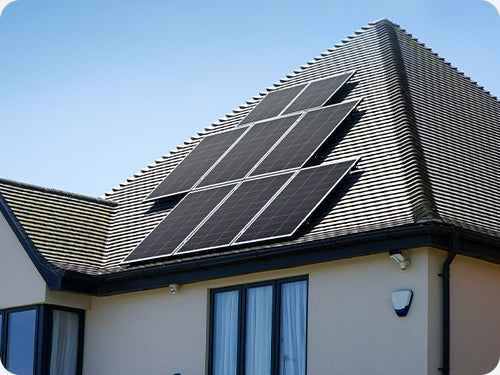

WHAT IS A BASIC SOLAR SYSTEM?
