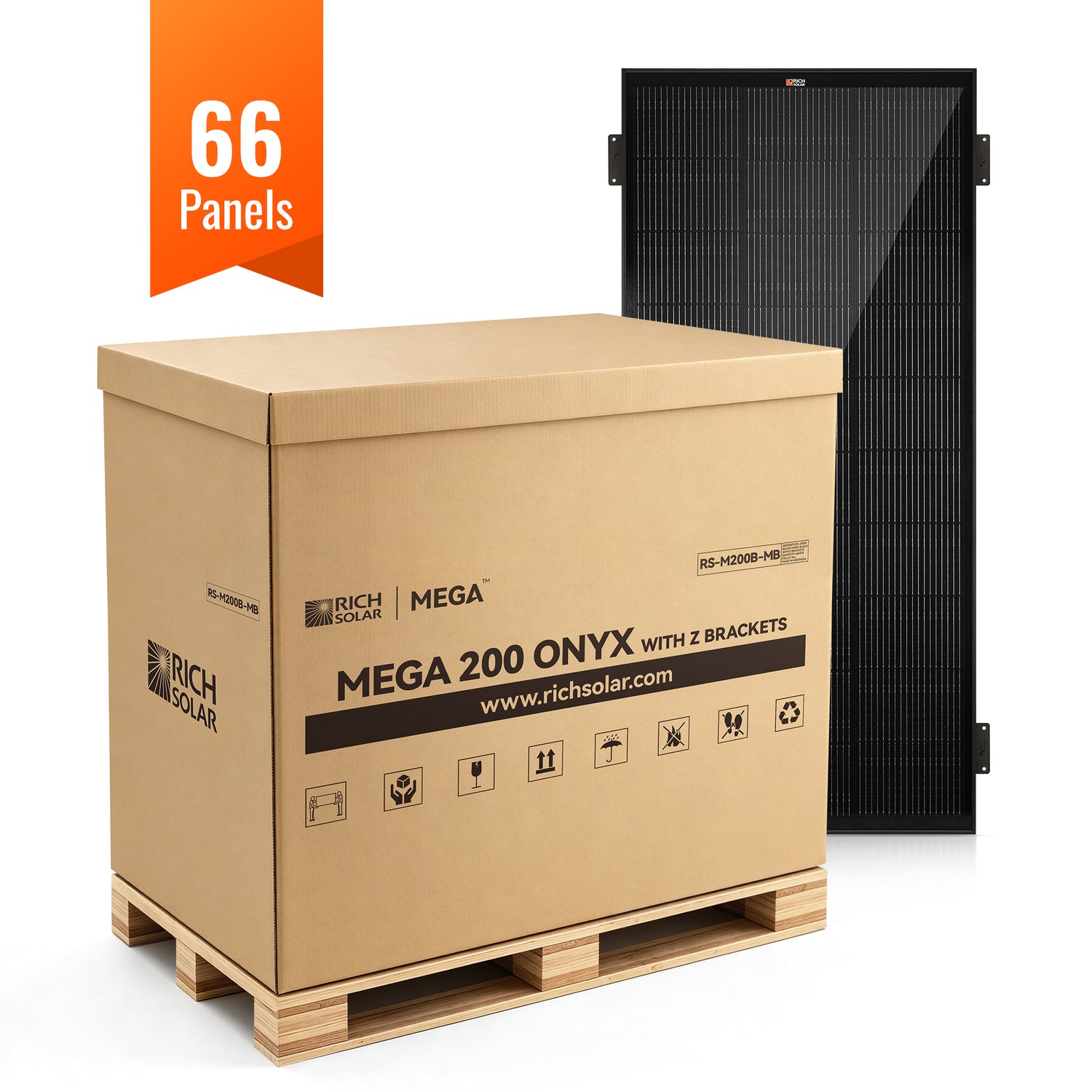

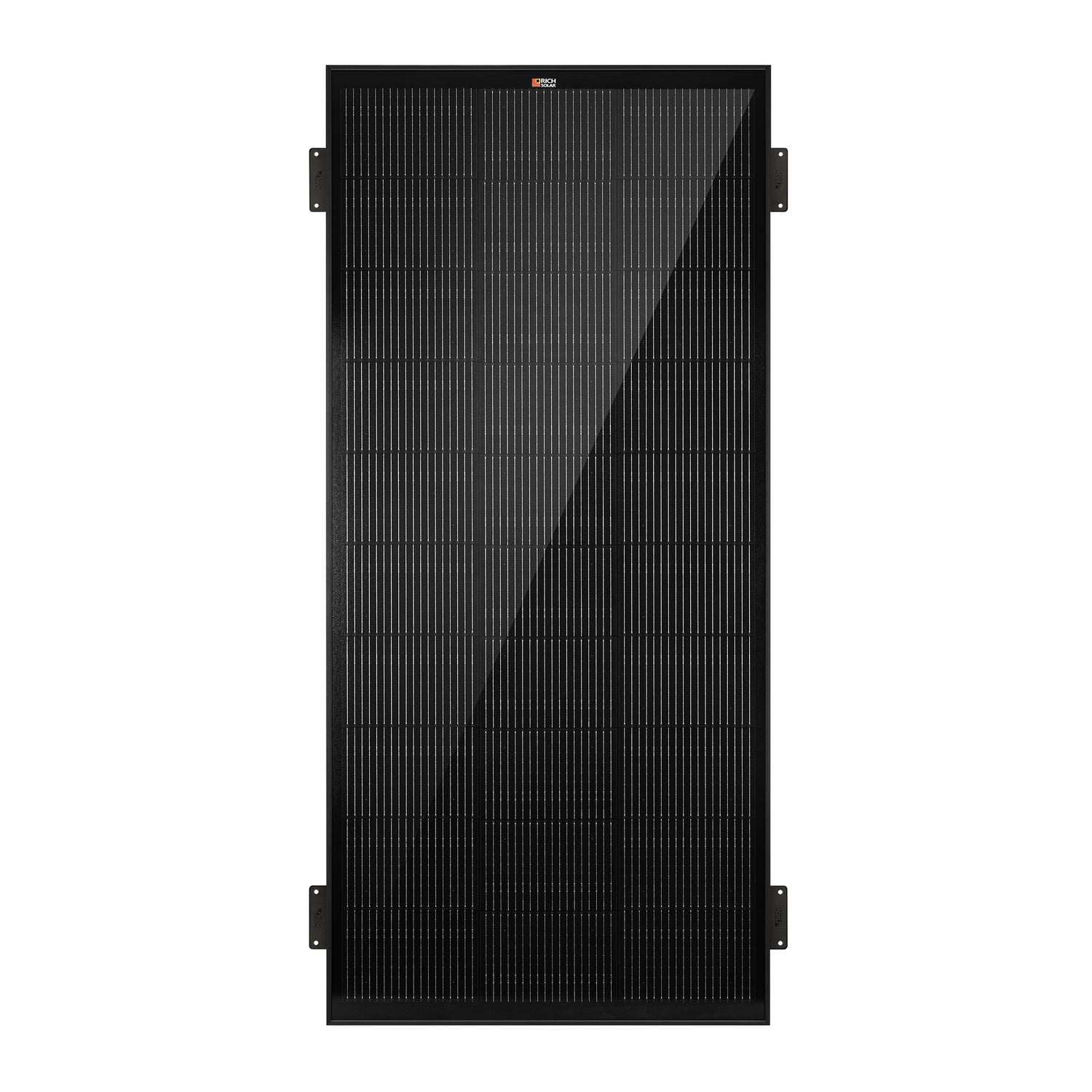

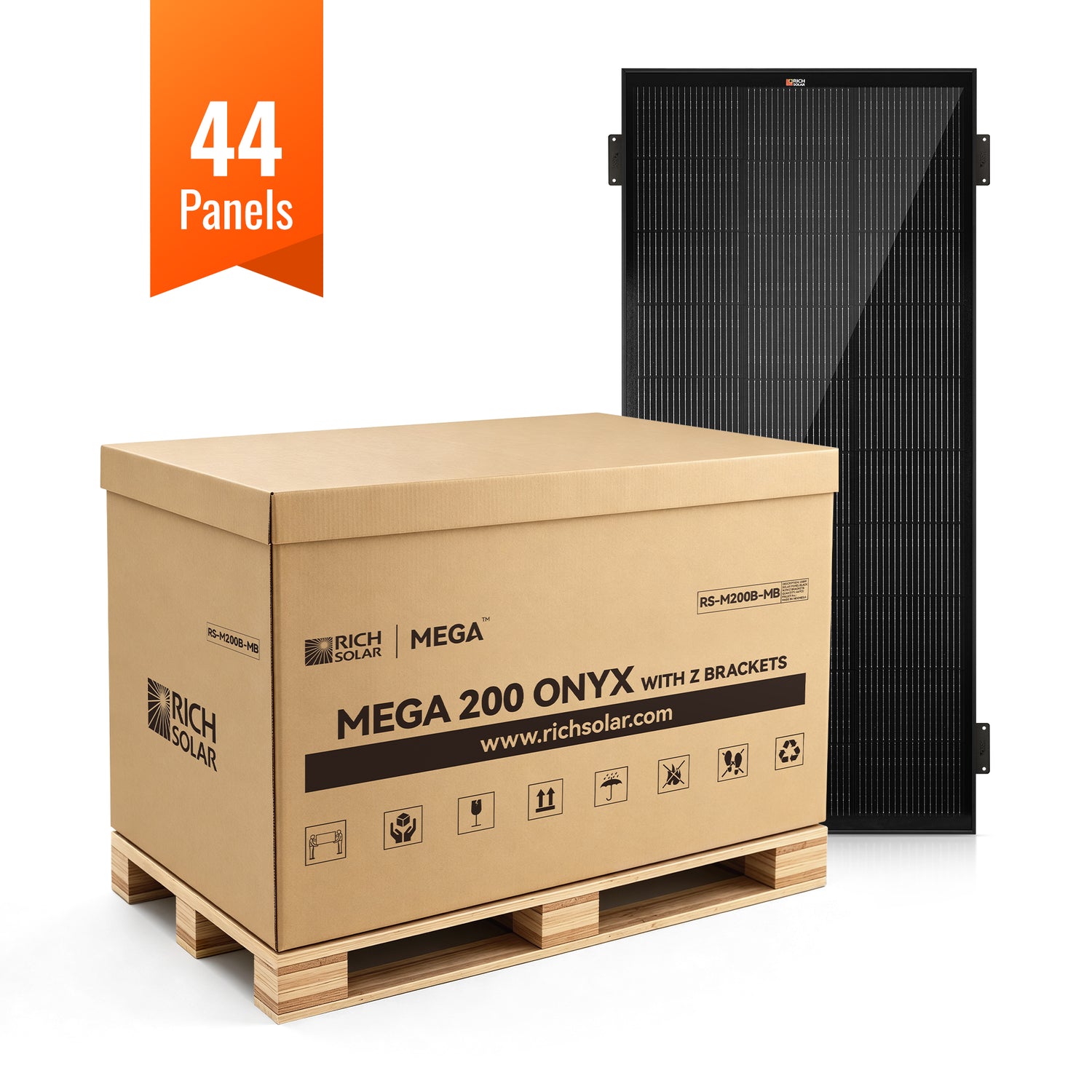

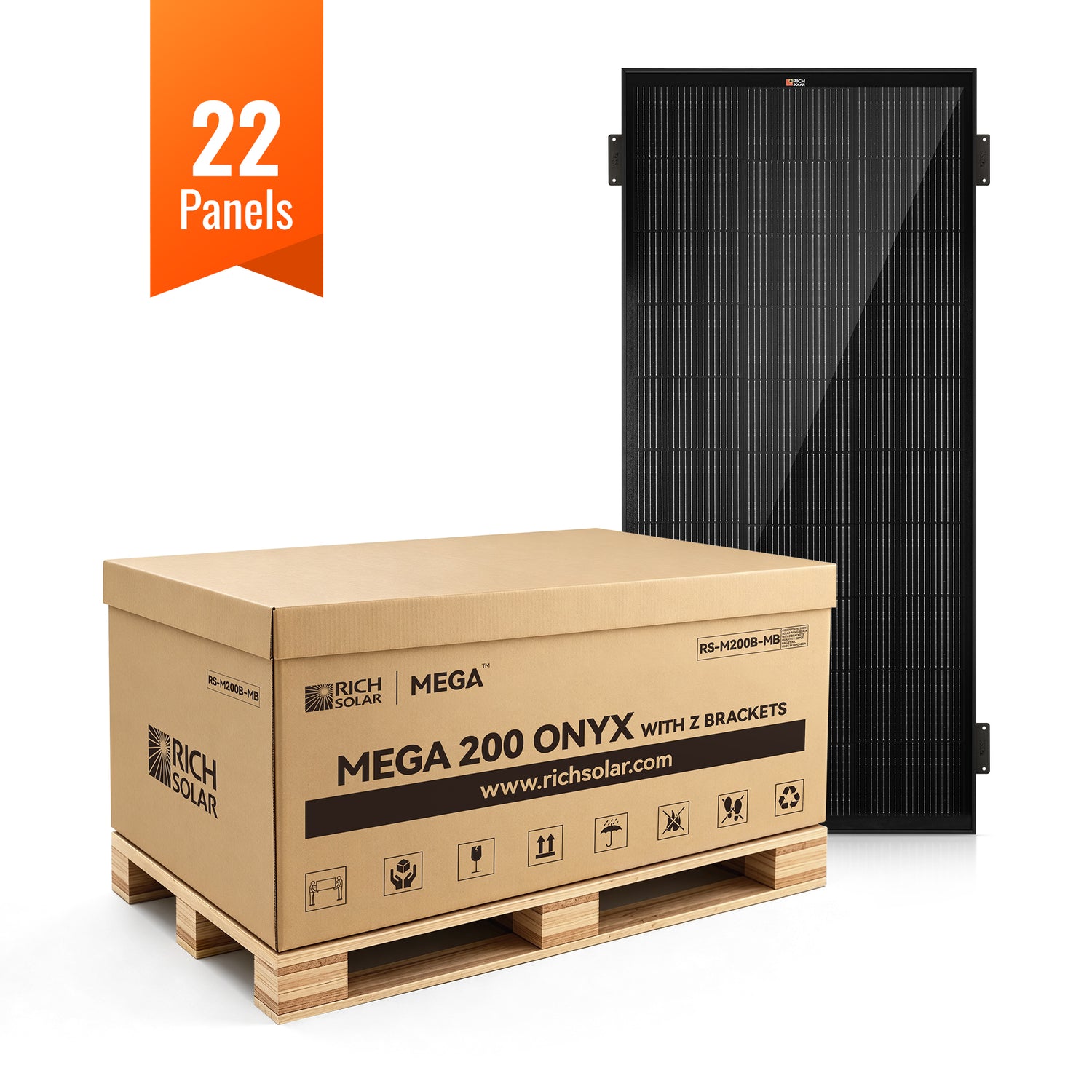

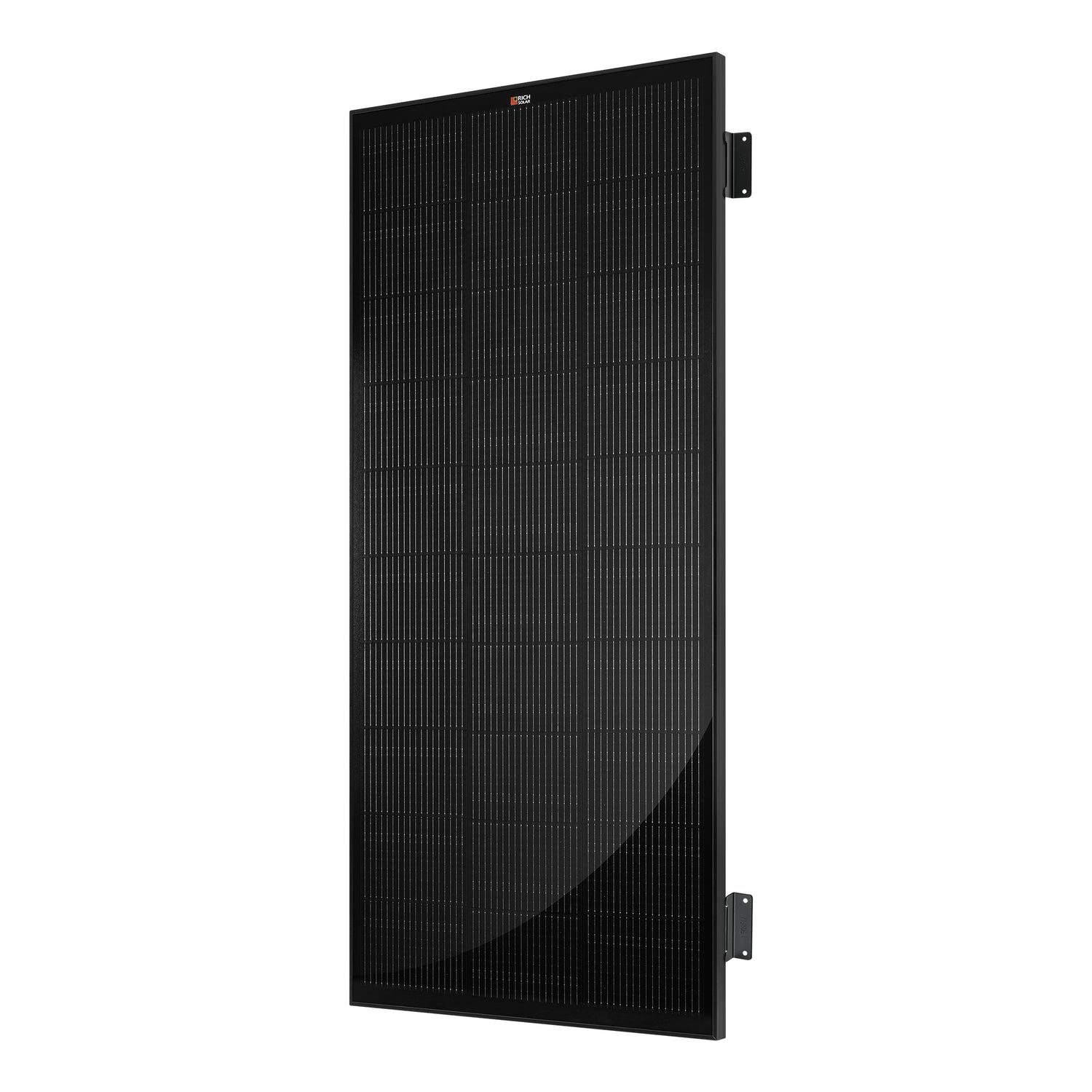

MEGA 200 ONYX WITH 3/4" Z BRACKETS | 12V 200W Solar Panel for RV, Boat, Cabins | 25.3% Efficiency, 25-Year Warranty | Pallet Orders Only (22/44/66 PCS)

Features

1. Unmatched Efficiency

• 25.3% High Conversion Rate: Delivers 800–1000Wh daily with just 4–5 hours of sunlight (theoretical max).

• Performs in Low Light: Bypass diodes ensure consistent output, even on cloudy days or partial shading.

2. Built for Extreme Durability

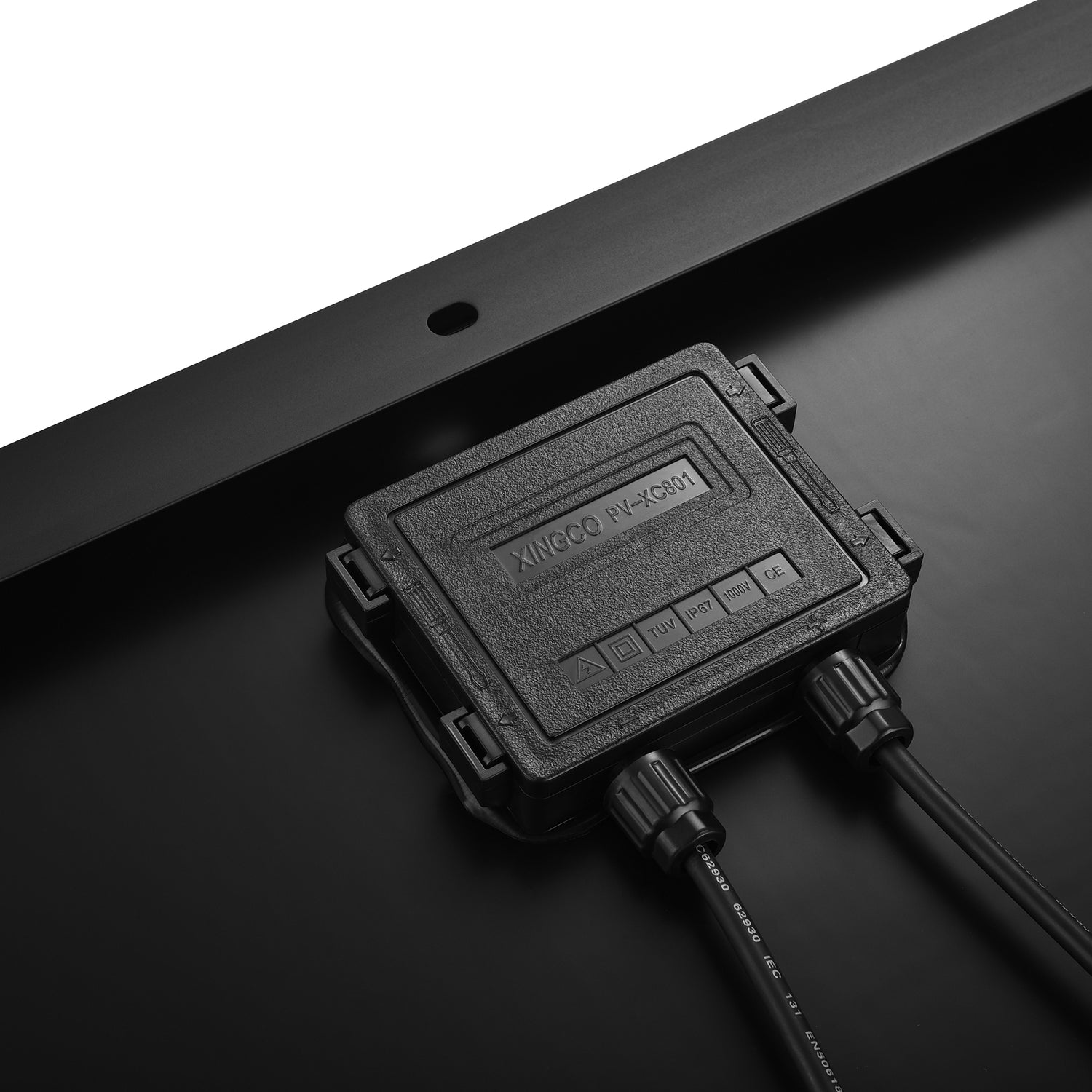

• All-Weather Protection: IP67-rated junction box and anti-corrosion frame resist rain, snow, and salt spray.

• Heavy-Duty Strength: Withstands 2400Pa wind and 5400Pa snow loads with ease.

• Hail Tested: Endures 35mm hail impacts at 97 km/h (60 mph) without damage.

3. Quick & Easy Installation

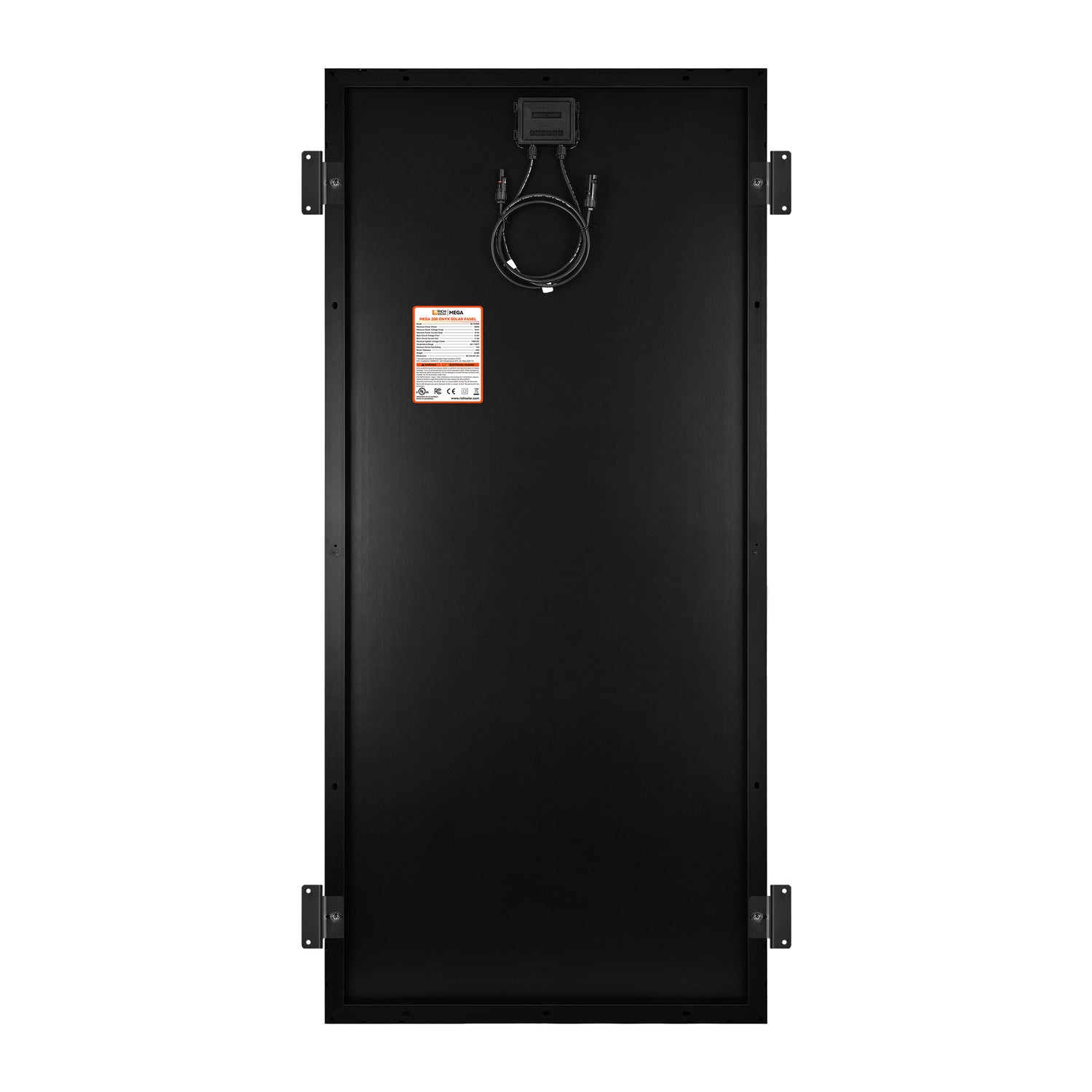

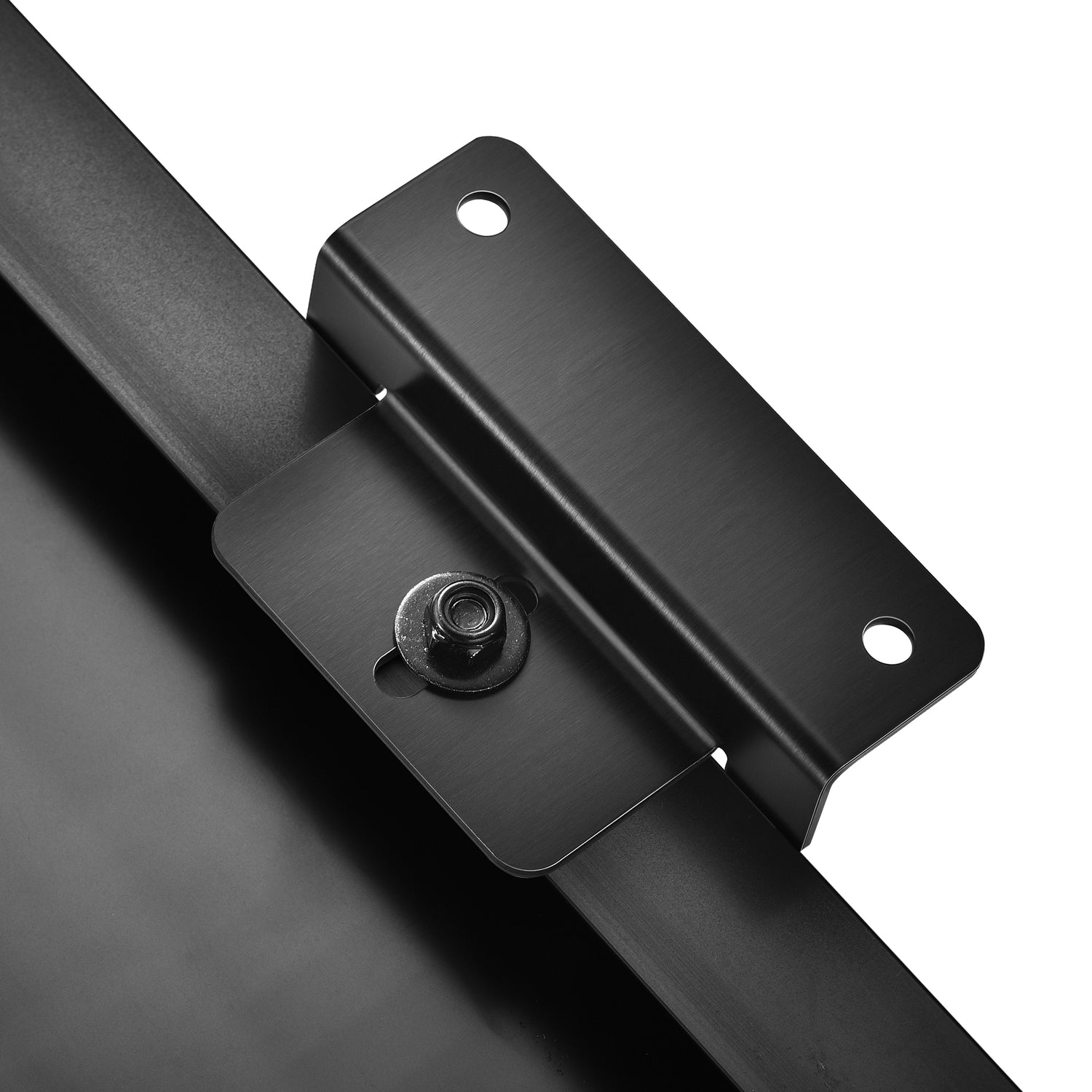

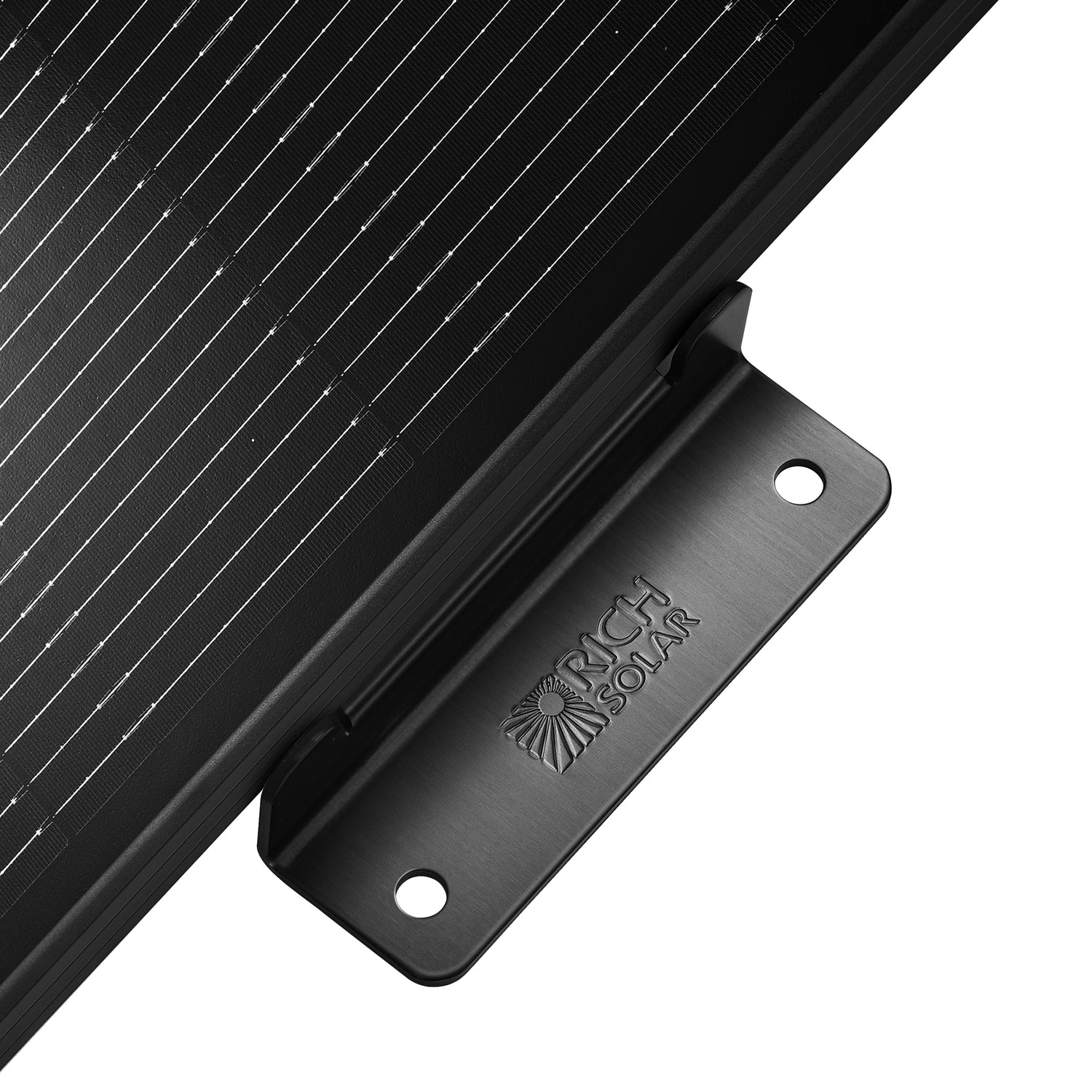

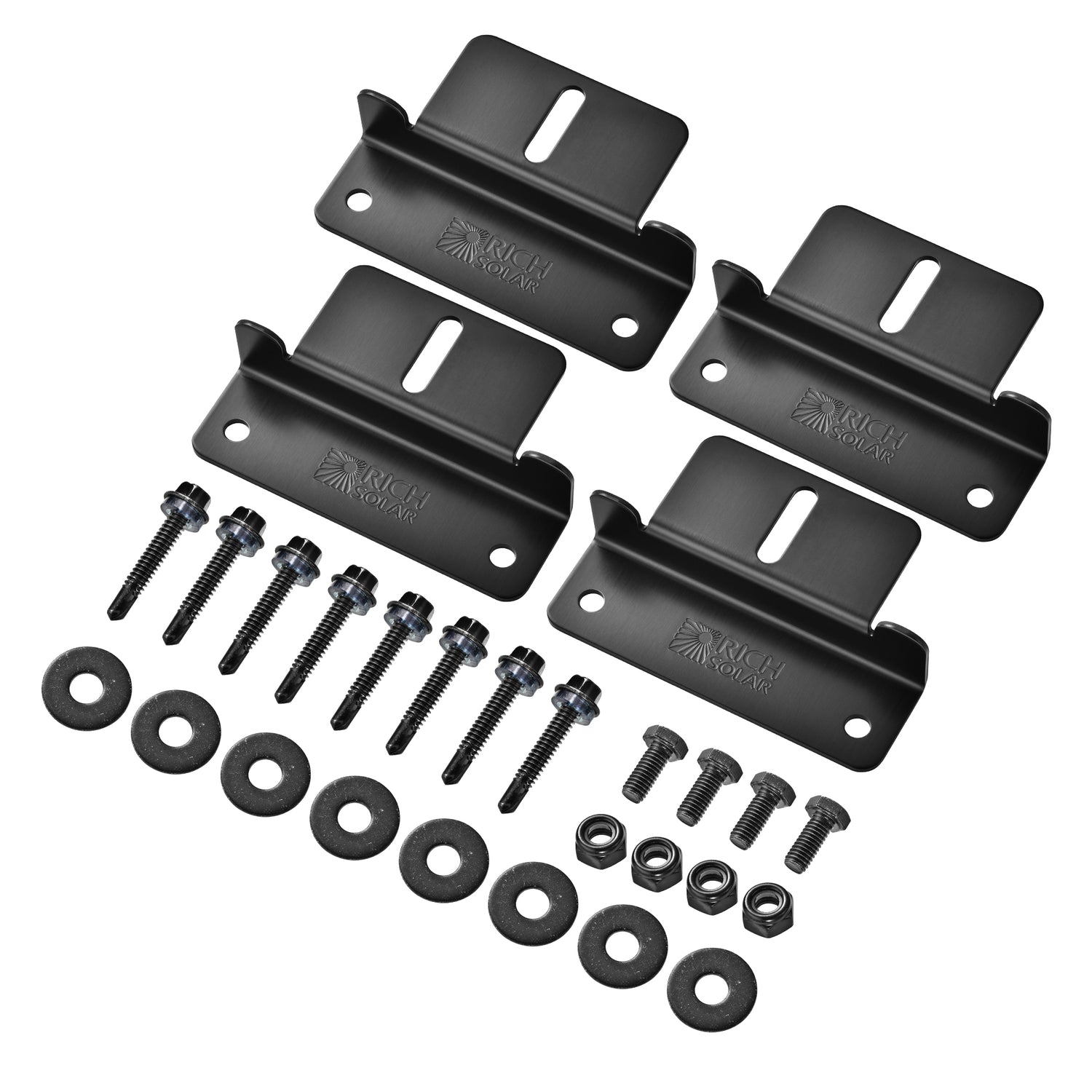

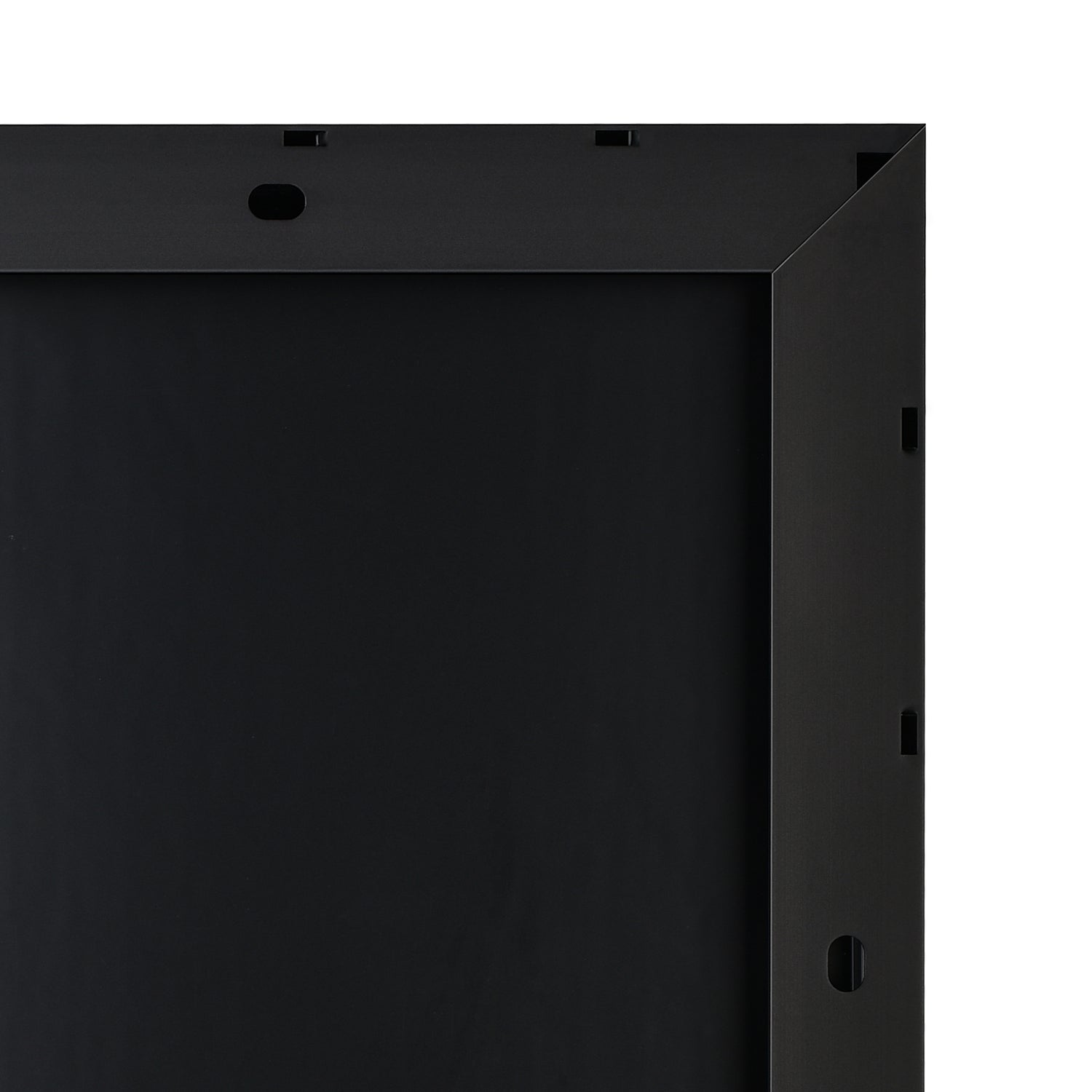

• Ready to Mount: Pre-drilled holes compatible with Z-brackets, tilt mounts, or ground racks.

• Tool-Free Wiring: MC4 connectors make series or parallel setups fast and simple.

4. Long-Term Reliability

• EL-Tested, PID-Resistant Cells: Guaranteed for zero microcracks and stable output.

• 25-Year Performance Warranty: Ensures low degradation and long-term performance.

• Proven Quality: Over 30 reliability tests passed, including UV, thermal cycling, and humidity freeze.

5. Versatile Applications

• Mobile: Ideal for RVs, boats, and golf carts.

• Off-Grid: Great for cabins, sheds, or backup power.

• Commercial: Supports remote systems and backup infrastructure.

Specifications

• Peak Power: 200W
• Max Efficiency: 25.3%
• Max Power Voltage (Vmp): 18.4V
• Max Power Current (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Max Series Fuse Rating: 15A
• Cell Type: N-Type TOPCon
• Number of Cells: 3 x 10 (30 cells total)
• Front Glass: 3.2 mm Tempered Glass
• Frame Material: Anodized Aluminium Alloy
• Operating Temperature: -40°F to 185°F (-40℃ to +85℃)

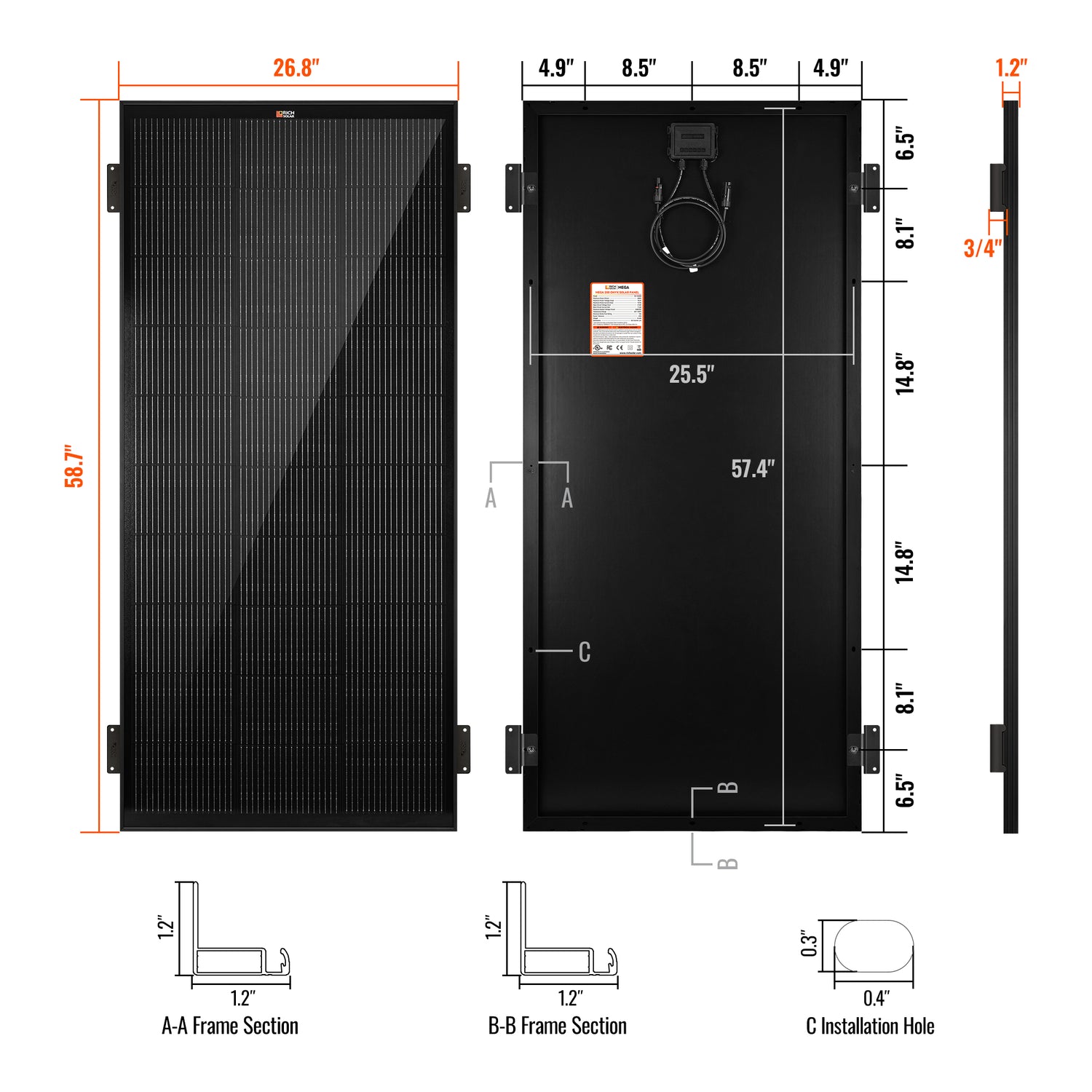

• Dimensions: 58.7" L × 26.8" W × 1.2" H
• Weight: 24 lb
