MEGA 130 SLIM | 130 Watt Slim Solar Panel | Compact 12V Narrow Panel for Vans, Campers, Boats | UL Certified BACKORDER

Features

• 16-busbar N-Type TOPCon monocrystalline cells with up to 25.1% efficiency
• 34-cell configuration delivers a reliable 130W output
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
• Power tolerance 0 to +5W ensures at least the rated output
• Excellent low-light performance on cloudy days and at dawn/dusk
• Rigorously tested for UV, thermal cycling, humidity freeze, and more
• PID-resistant and double EL-inspected to prevent microcracks
• Certified to withstand 2400 Pa wind and 5400 Pa snow load
• Perfect for off-grid systems, RVs, boats, and mobile power setups

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• Pre-attached 3 ft solar cables with connectors for fast setup
• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year output warranty

• 10-year workmanship warranty

Built-in Components

• Panel leads (pair): 3 feet each

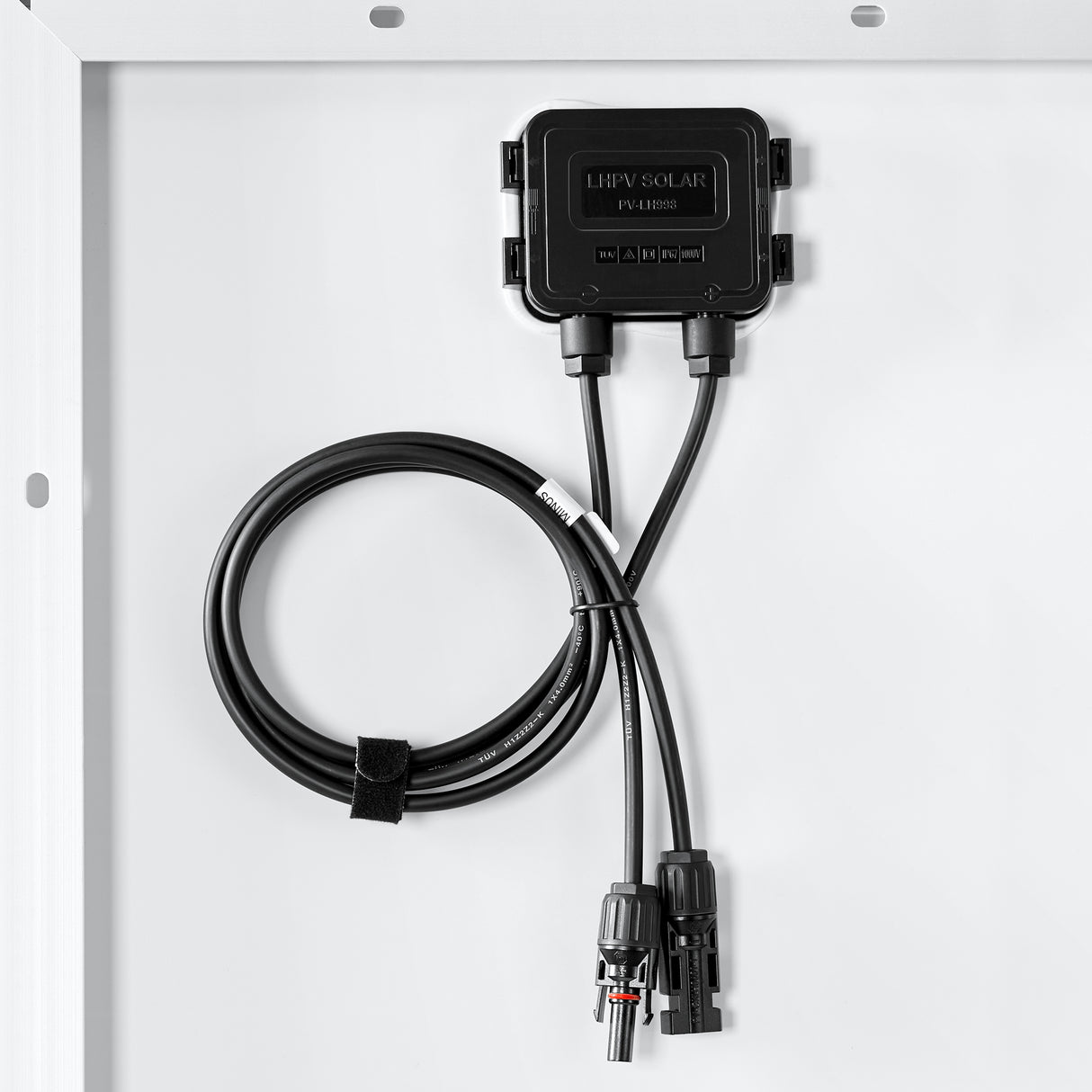

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Model: RS-M130SL
• Maximum Power(Pmax): 130W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 6.63A
• Open Circuit Voltage(Voc): 23.6V
• Short Circuit Current(Isc): 6.92A
• Maximum System Voltage(Vmax): 1000 VDC
• Maximum Series Fuse Rating: 15A
• Module Efficiency: 19.8%
• Temperature Range: -40℉ to +185℉
• Weight: 13.9 lb

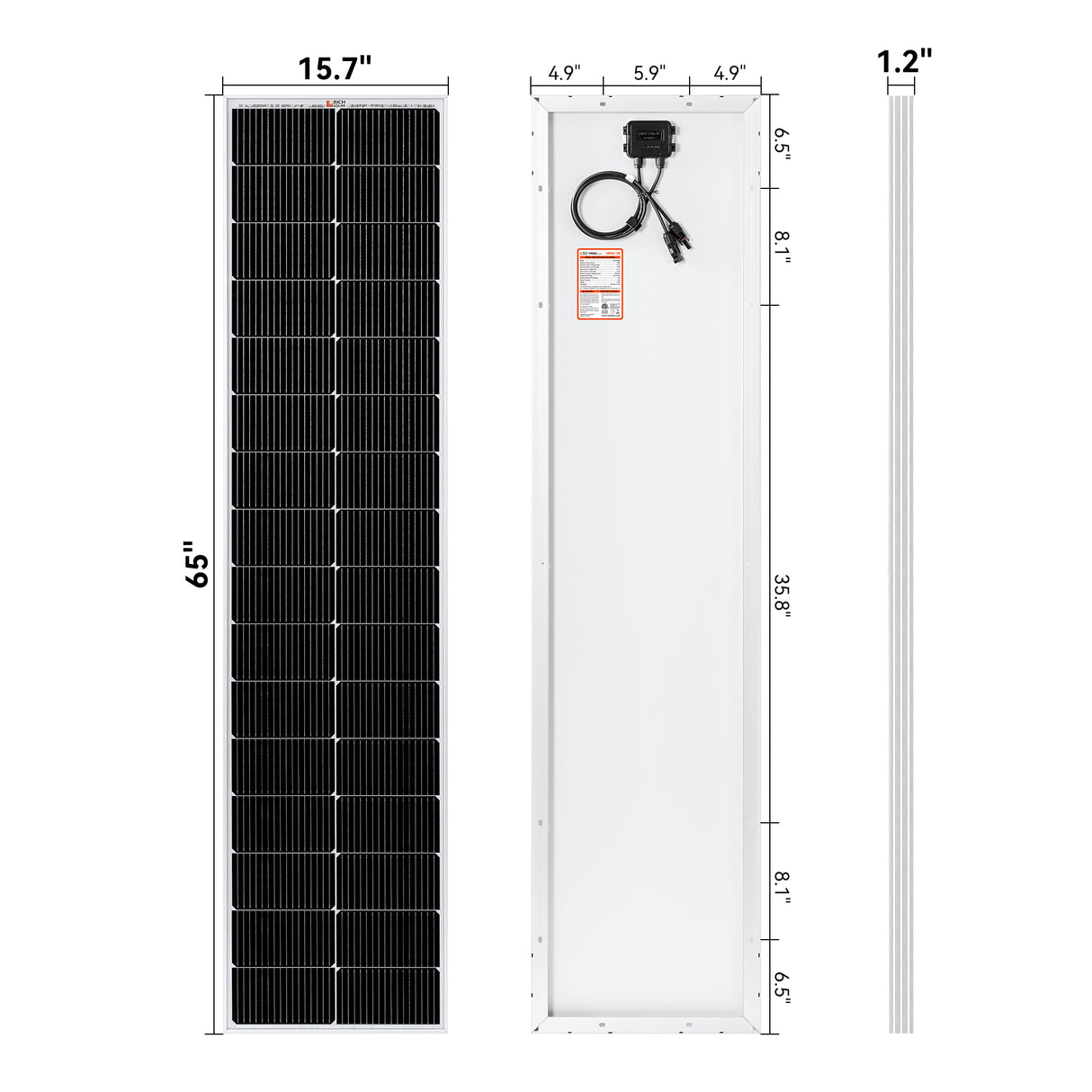

• Dimensions: 65.0in x 15.8in x 1.2in (1650mm x 400mm x 30mm)
