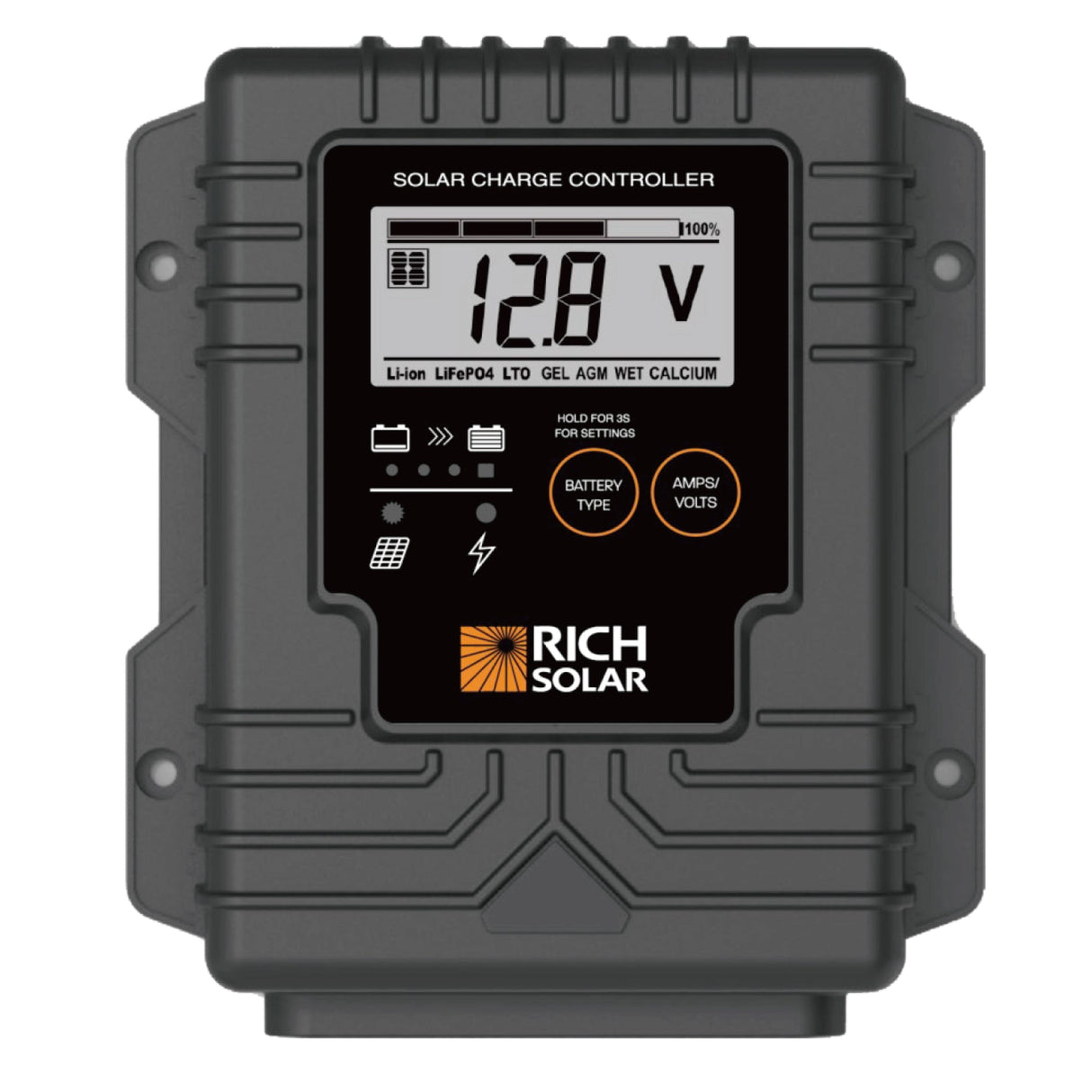

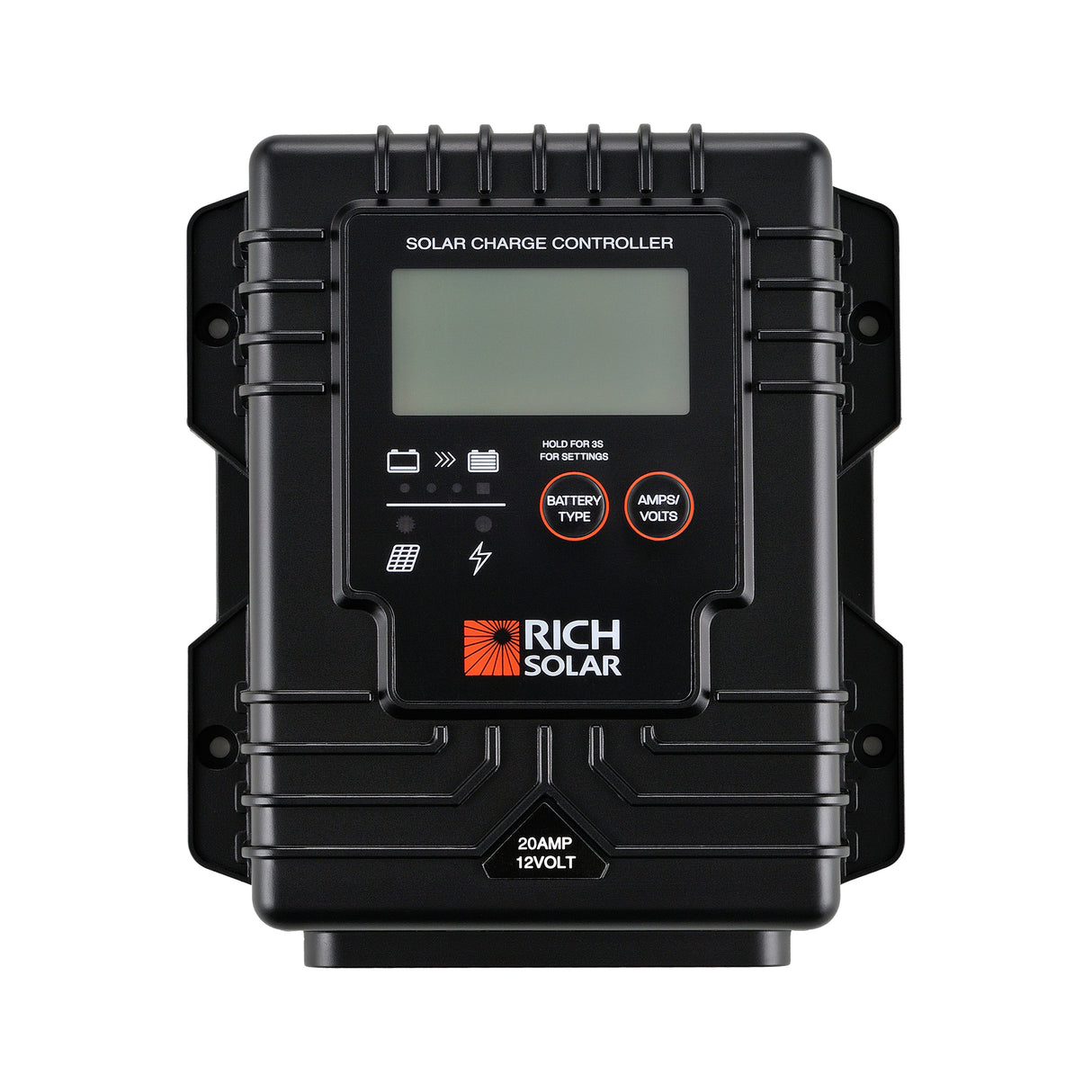

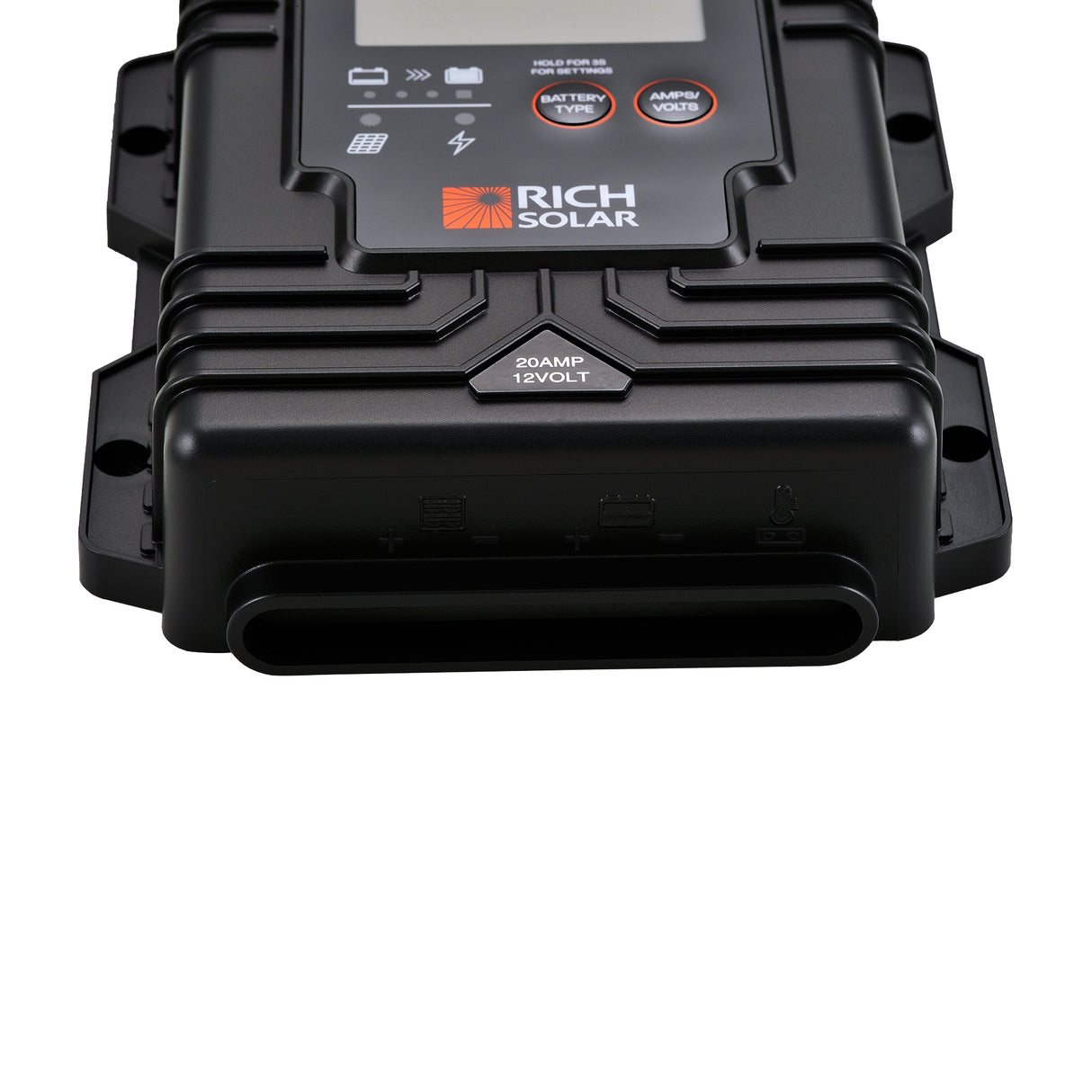

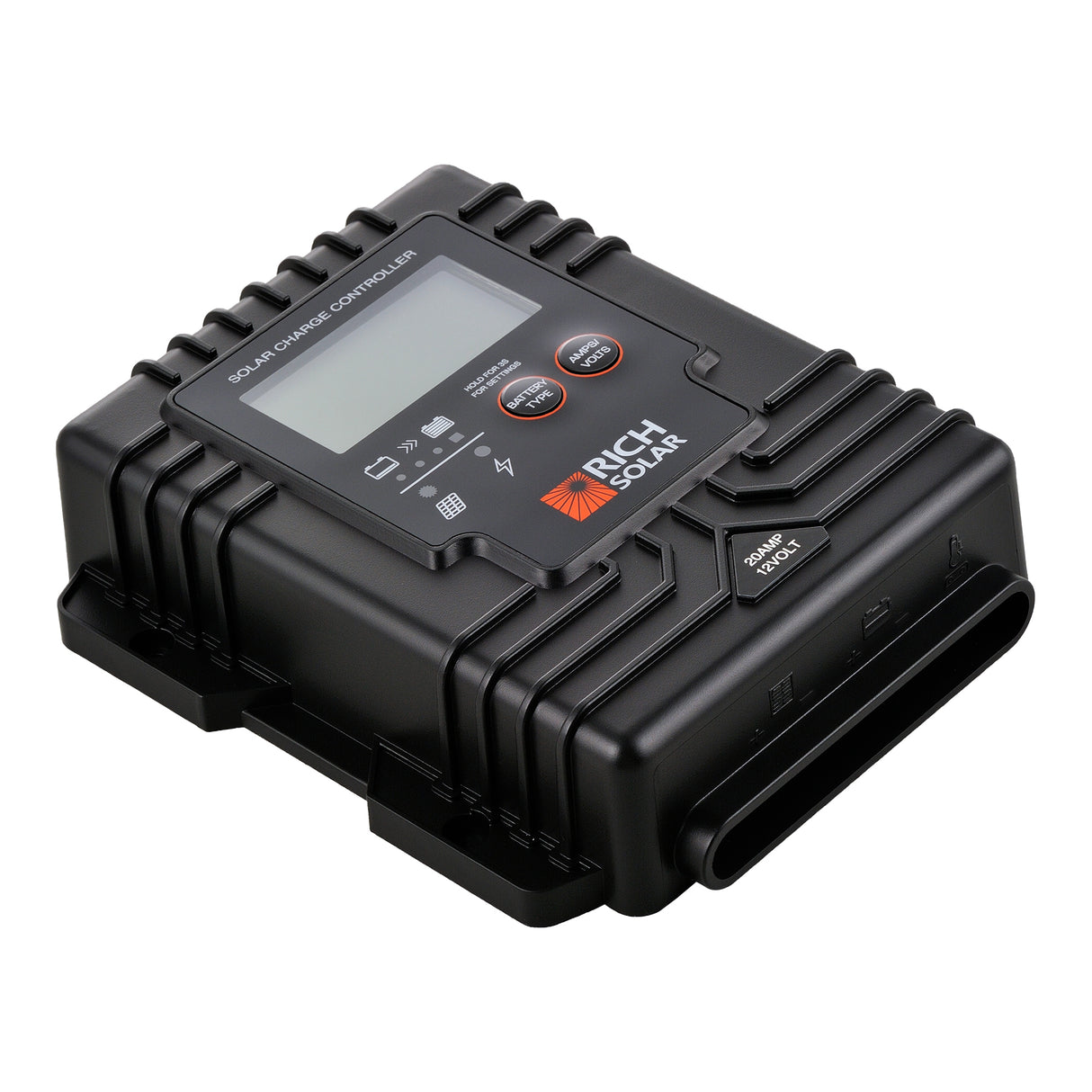

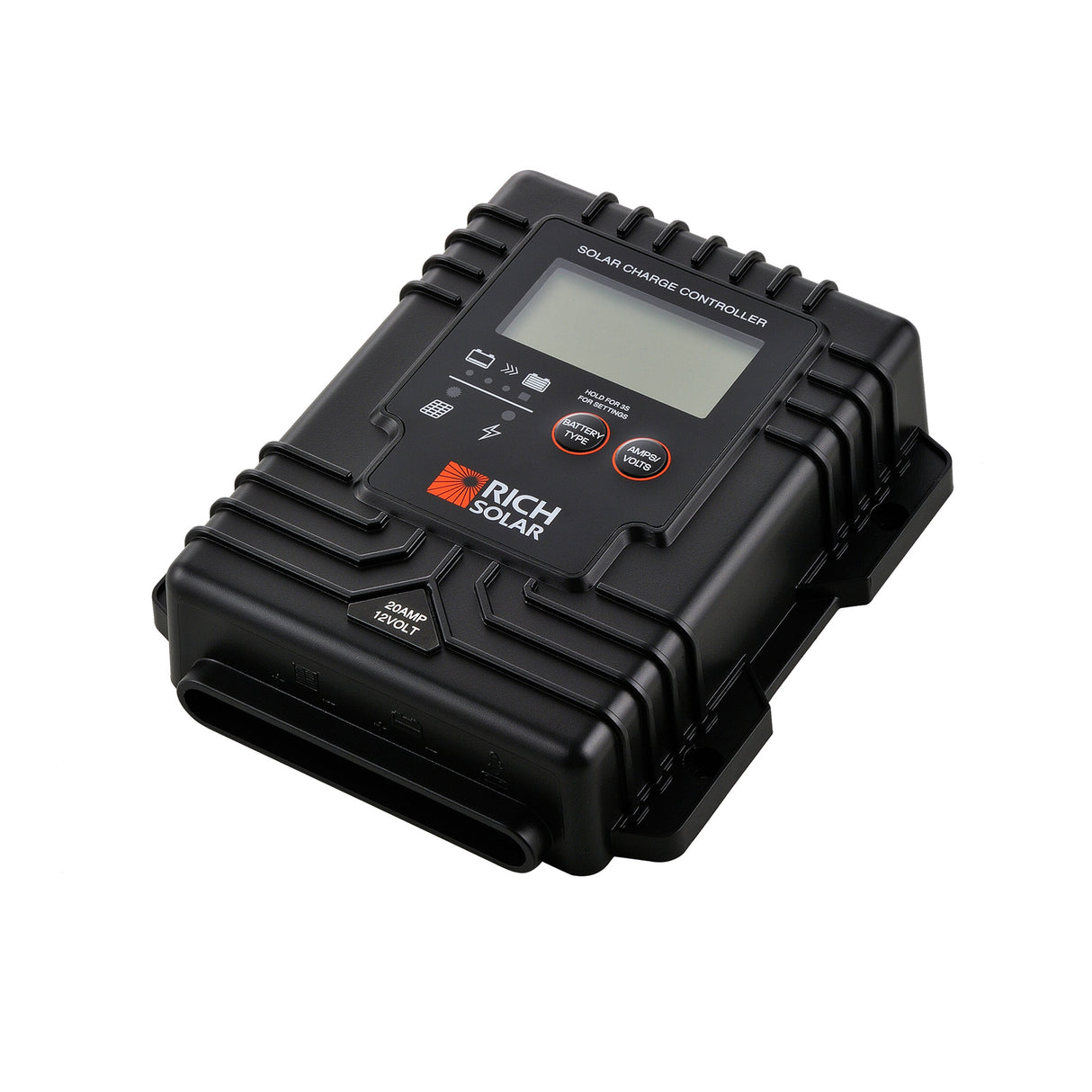

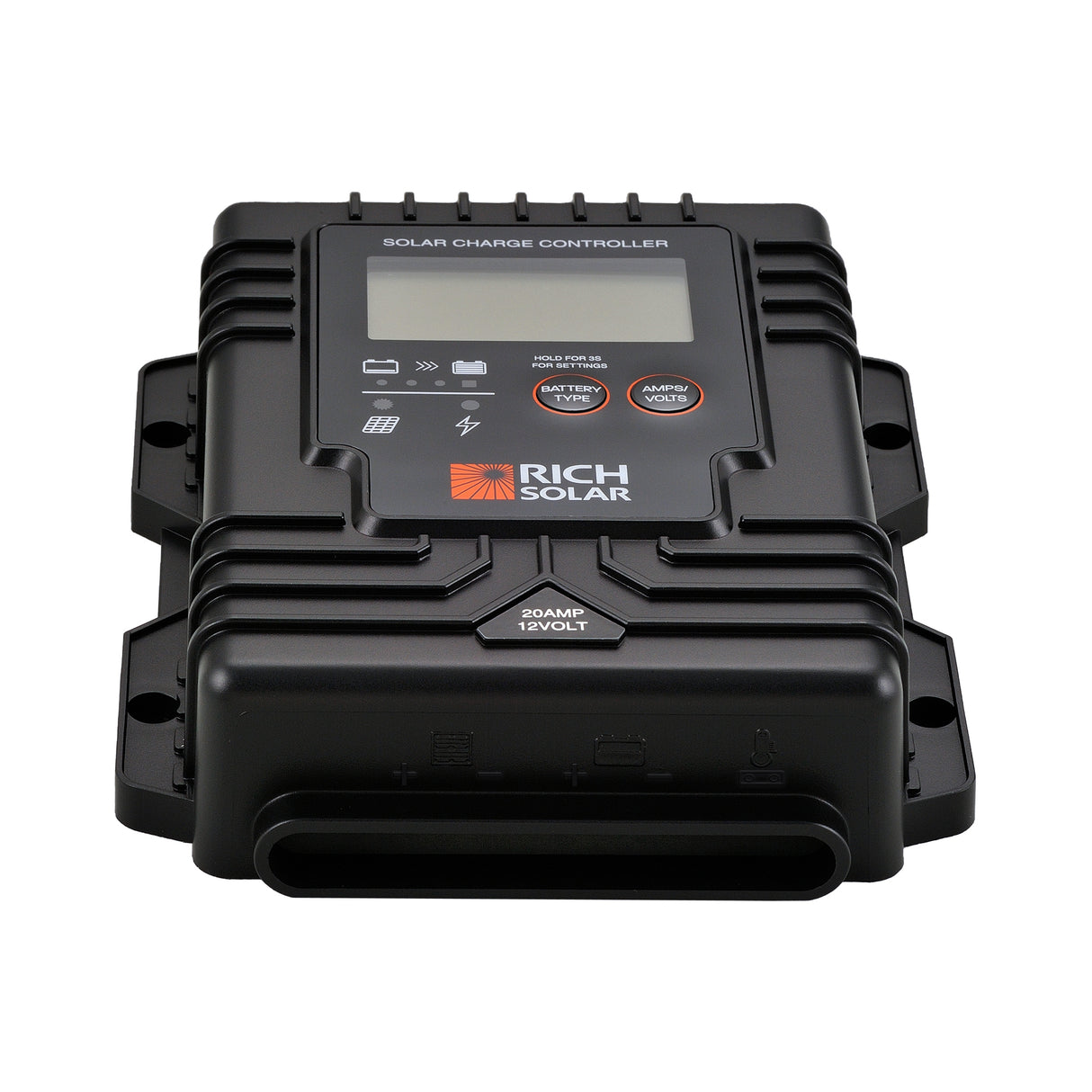

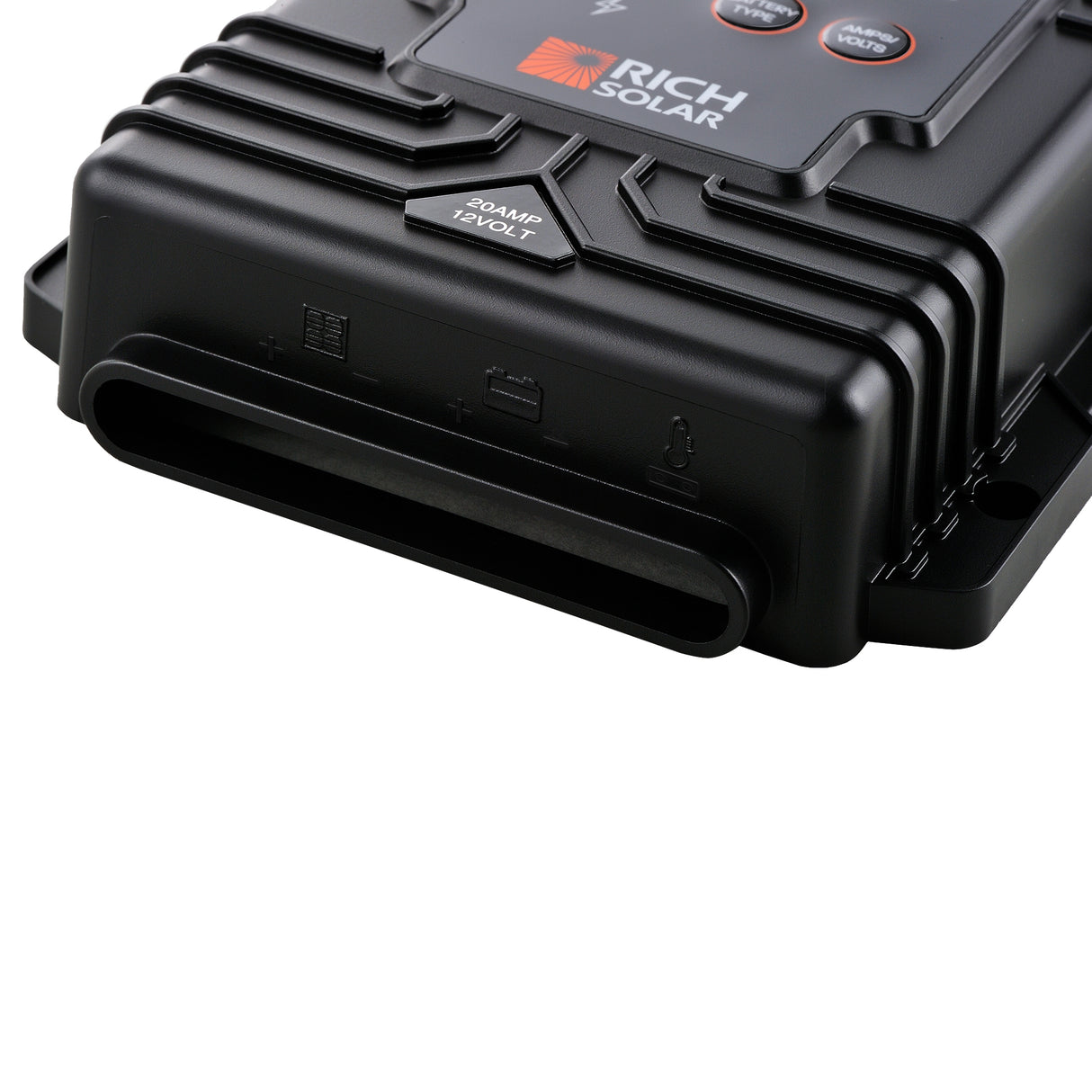

BRAVO Waterproof 20 | 20 Amp Waterproof PWM Solar Charge Controller | Waterproof 20A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Waterproof Solar Controller

Features

• PWM technology, switching control by MOSFET
• Common Positive Grounding connection
• High efficiency and low power consumption
• Battery type setting via DIP switch
• Smart charging control
• Charging time management
• LED indication for the battery condition and charging status
• Thermal protection
• No sparks
• Waterproof
• Solid-duty cables
• Corrosion-resistant terminals and connectors
• Conformal coating supplied to the inside board against moisture
• Includes a port for an external battery temperature sensor (BTS - optional)
• Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
• Designed according to CE standard, EMC, FCC compliance
• Overvoltage protection, short circuit protection, reverse polarity protection

Mounting the Device

The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.

Specifications

• Electrical Parameters

• Rated solar panel amps: Max. 20AMP
• Normal input solar cell array voltage: 15-22VDC
• Max. solar cell array voltage (output has no load): Max. 25VDC
• Lowest operating voltage (at solar or battery side): Min. 8VDC
• Standby current consumption at night: Max. 5mA
• Maximum voltage drop-solar panel to battery: Max. 0.25VDC

• Charging Characteristics

• Minimum battery start charging voltage: Min. 3VDC
• Soft start charging voltage: 3-10±0.2VDC
• Soft start charging current (50% PWM duty): Up to 10AMP
• Bulk charge voltage: 10-14±0.2VDC
• Equalization charging voltage at 25 ℃: 15.5±0.2VDC
• Equalization charging timer timeout: 2 Hours
• Battery temperature compensation coefficient: -24mV/°C
• Temperature compensation range: -4°F~+122°F

• Protection

• Over temperature protection during charging: 149°F

• Electrical Parts

• Input-output terminal: M5 terminals

• Physical Parameters

• Controller material: Plastic, Standard ABS
• Power terminal maximum stranded wire size: #10AWG stranded-5mm²
• Mounting: Vertical wall mounting
• IP grade: IP65
• Net weight: Approx. 0.3kg/0.66lb

• Environmental Characteristics

• Operating temperature: -25~50°C (-13～122℉)
• Storage temperature: -40~85°C (-40～185℉)
• Operating Humidity range: 100% no condensation
