Basic 800 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

SKU: RS-K8004
$1,399.99

Specifications & Downloads

Full Specification:

MEGA 200 Solar Panel

Download

BRAVO 60 60A MPPT Solar Charge Controller

Download

User Manual:

BRAVO 60 60A MPPT Solar Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Our Basic 800 Watt Solar Kit includes four high-efficiency 200W Monocrystalline panels with 18 busbars and a 60A MPPT controller. One of the best 200W solar panel kits in the market, this can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your travel trailer solar system!

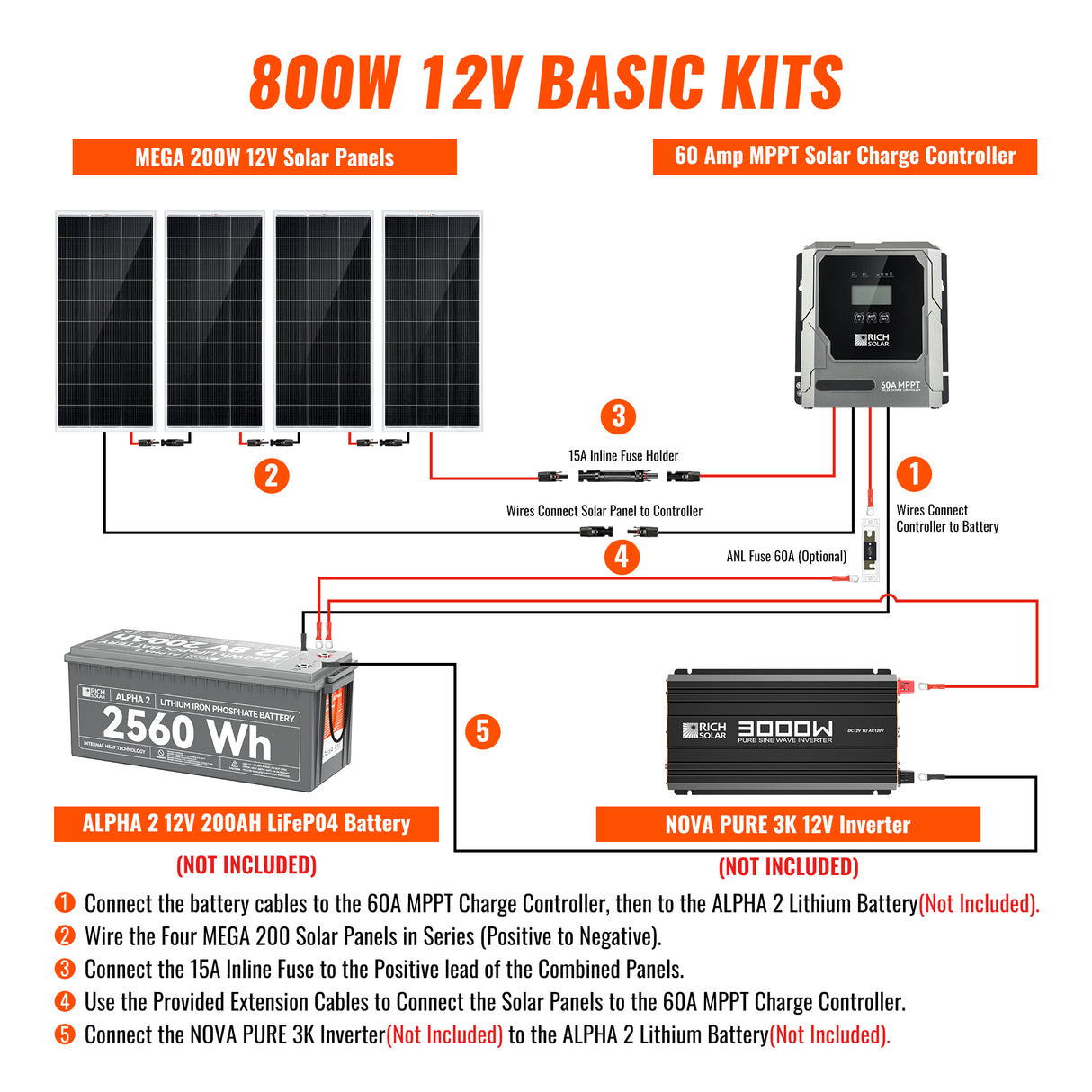

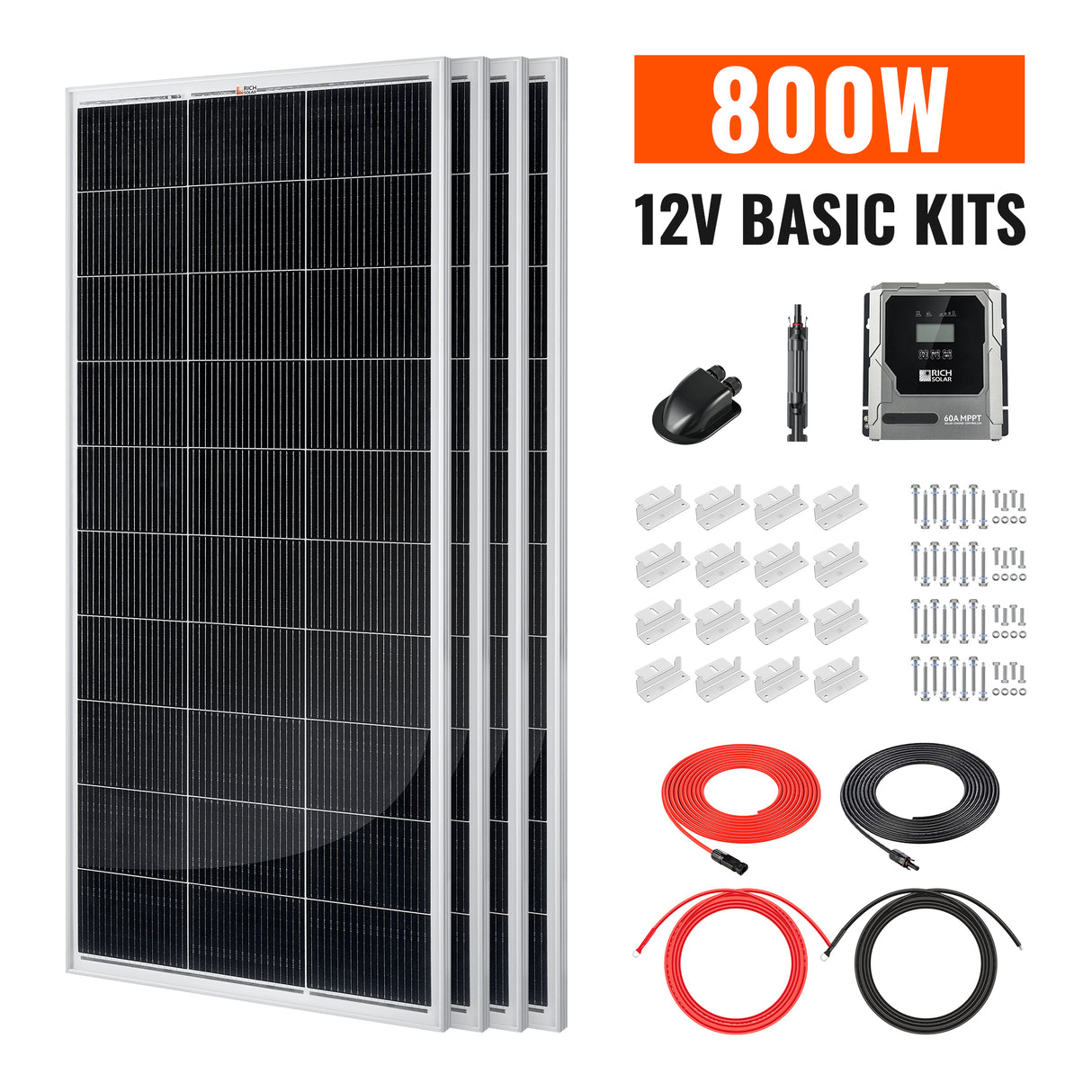

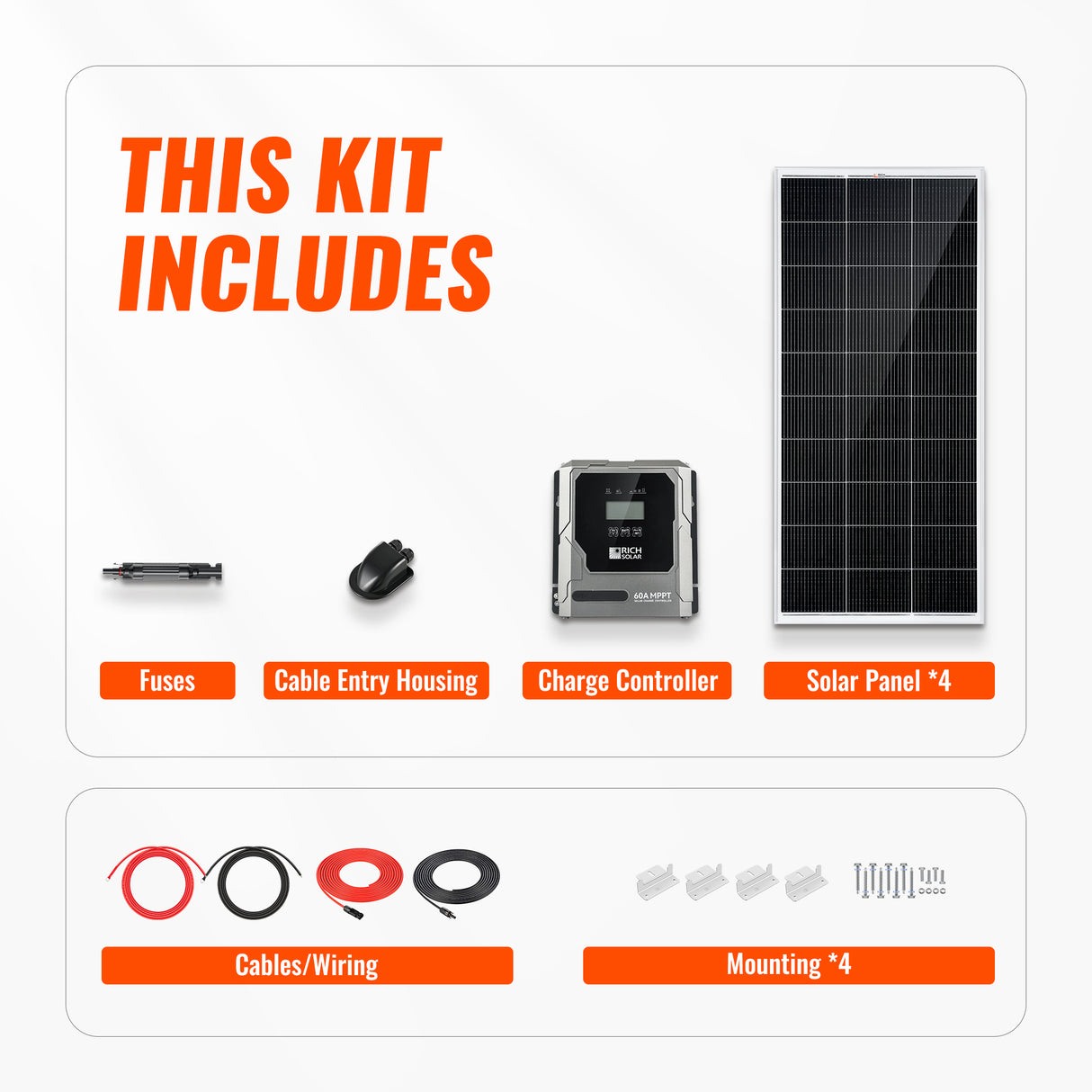

Kit Includes:

  • 4 x 200 Watt Monocrystalline Solar Panel(RS-M200)
  • 1 x Bravo 60A MPPT Charge Controller (RS-MPPT60PB)
  • 4 x Mounting Z Brackets (one set)(RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
  • MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

    MEGA 200

    12V 200W Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features:

    • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Temperature Range: -40 ~ +185°F
    • Maximum Series Fuse Rating: 15A
    • Weight: 24 lb
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • BRAVO 60 | 60A MPPT Solar Charge Controller | Premier 60A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RICH SOLAR

    BRAVO 60

    60A MPPT Solar Charge Controller

    Features:

    • True MPPT
    • Tracking Efficiency Above 99.5%
    • Charge Conversion Efficiency as High as 98%
    • 12V/24V DC System Self-Adaptation
    • Reverse Discharge Protection
    • Targeted for Accuracy
    • Overvoltage Protection
    • Common Negative Connection
    • Charging Data Storage
    • External Battery Temp Sensor-Optional
    • Conformal Coating for Inside Board
    • External Digital Remote Display-Optional
    • In-house Design and Manufacture
    • Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
    • Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
    • Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

    Specifications:

    • System Nominal Voltage: 12/24V Auto
    • Max PV Open Circuit Voltage: 100V DC
    • Charging Technology: MPPT
    • Max PV Charging Current: 60A
    • Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)
    • Charge Conversion Efficiency: ≤98%
    • MPPT Tracking Efficiency: >99.5%
    • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    • Housing Case Color: Black / Grey
    • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    • Net Weight: 1.90kg / 4.18lb
    • Dimensions (L×W×H): 201×195×85mm (7.9×7.7×3.3in)
