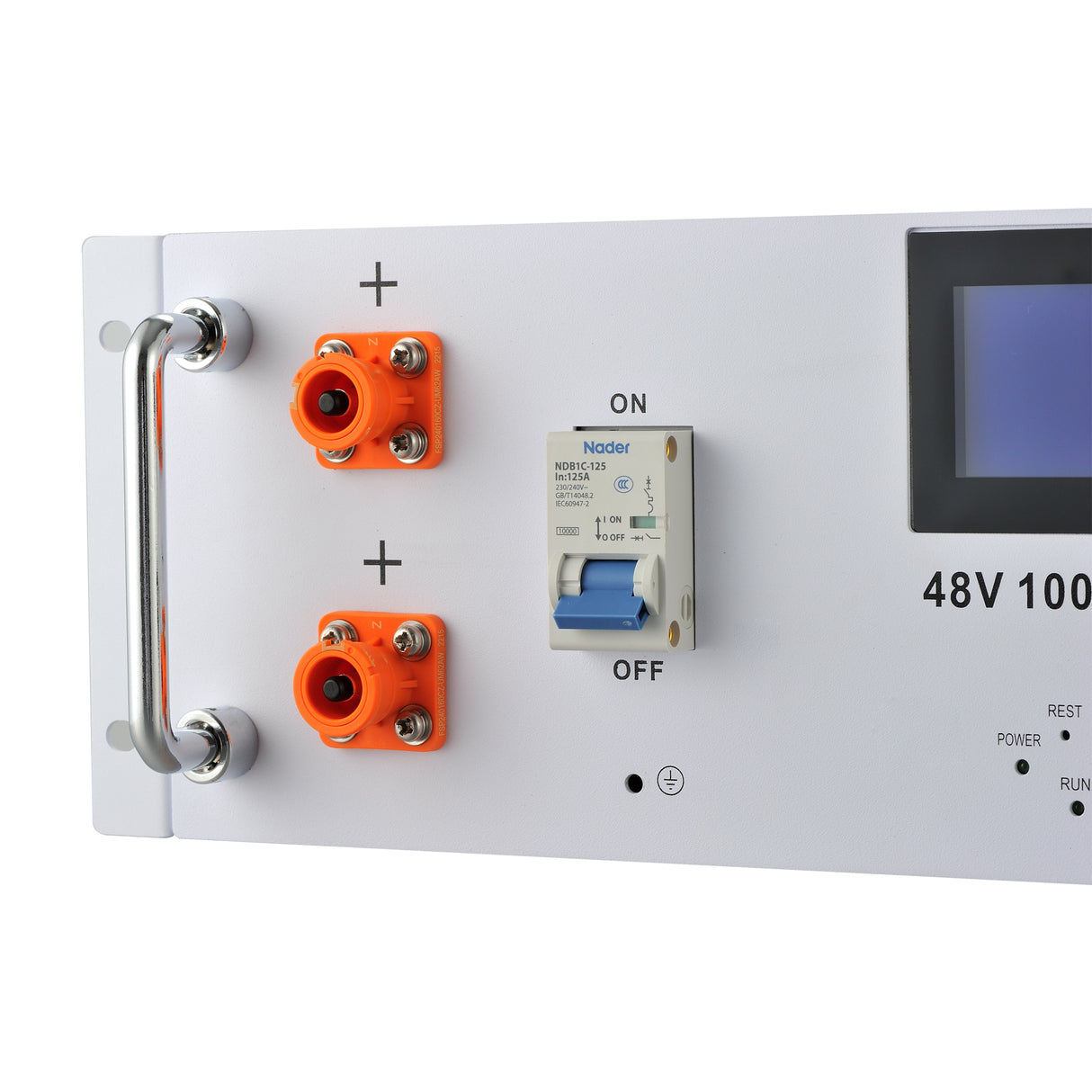

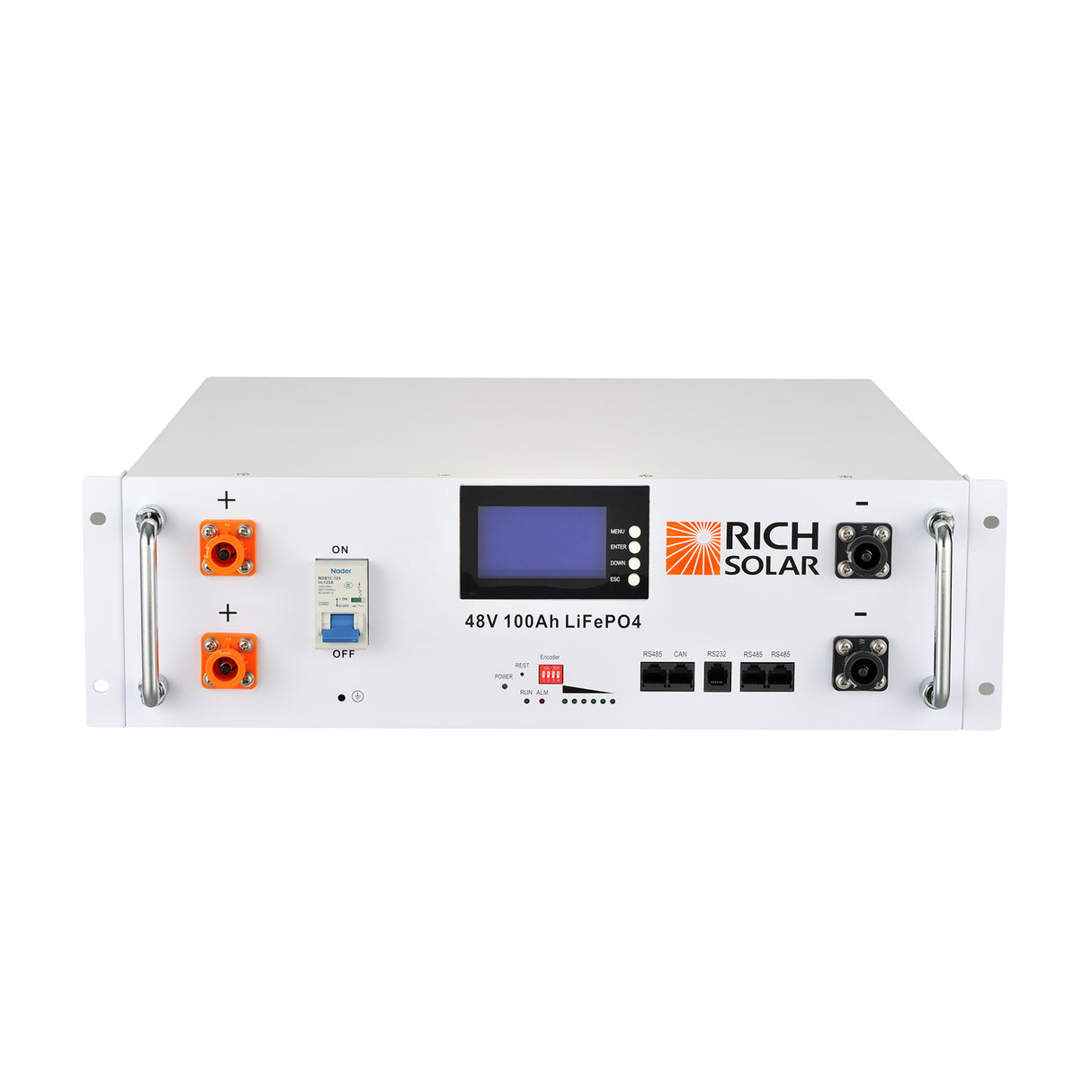

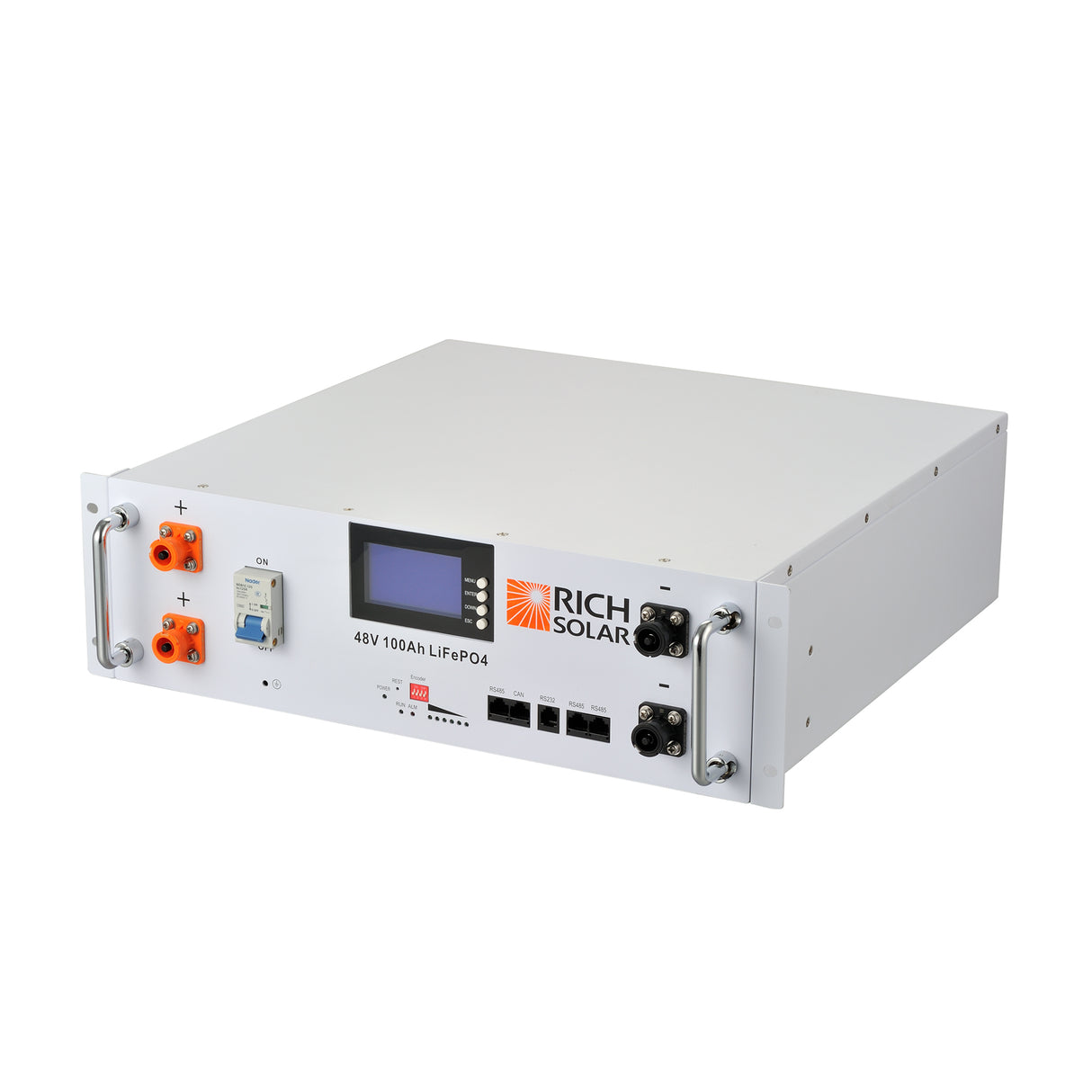

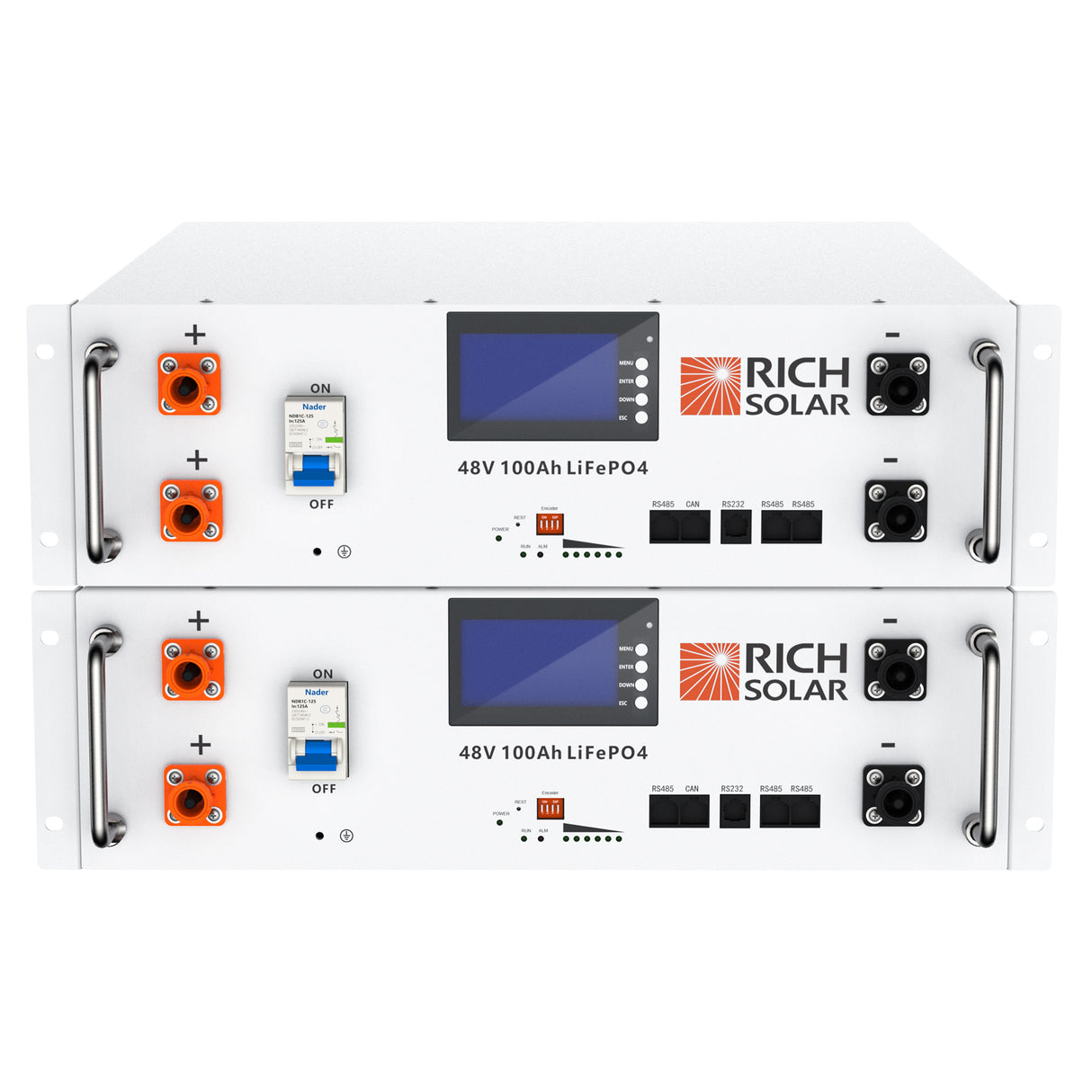

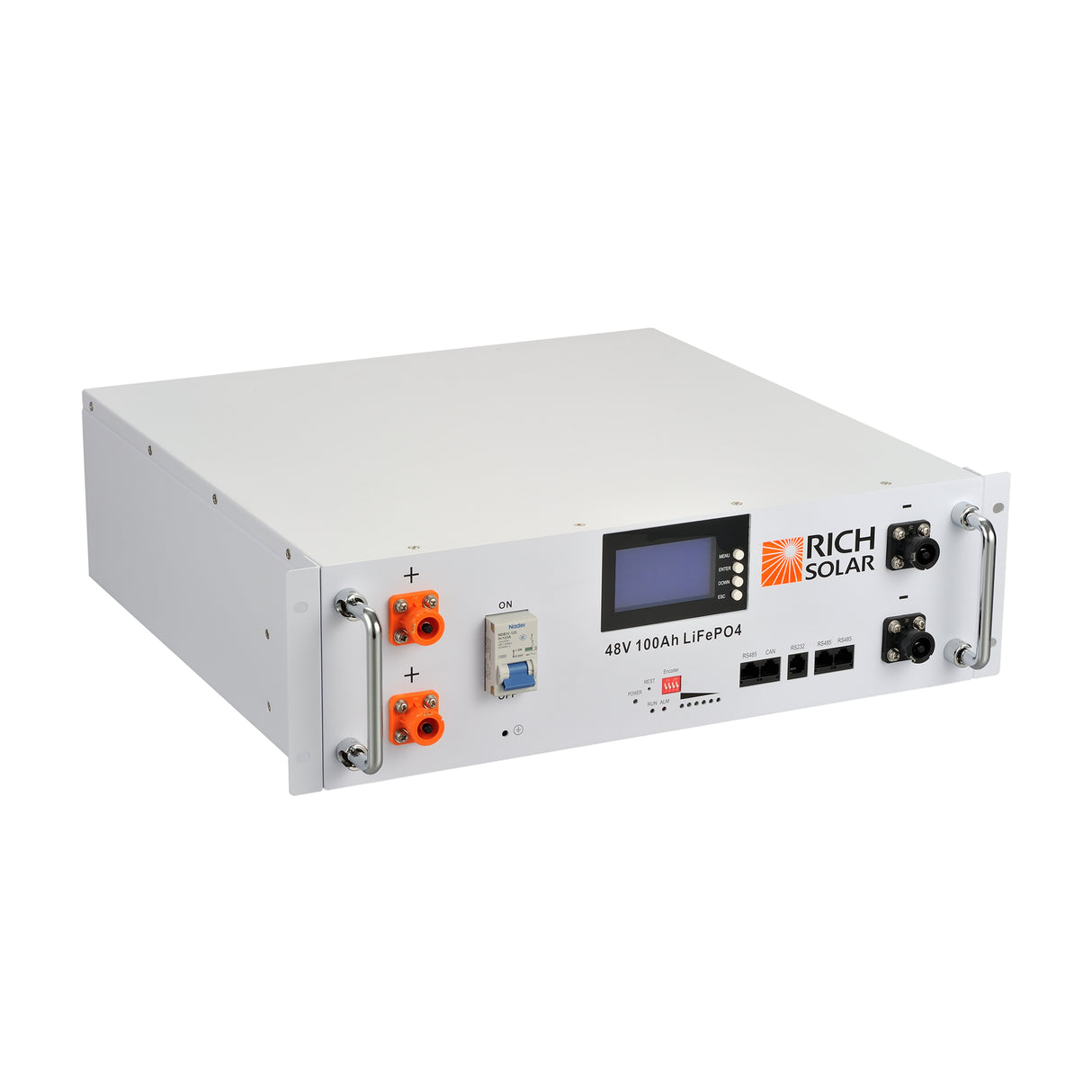

ALPHA 5 | 48V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, Off-Grid | 7,000 Lifetime Cycles | Pre-Order Only

SKU: RS-B4811
Dimensions: 19″L x 17.7″W x 5.2″H
$1,599.99
COUPON 20% OFF
Black Friday Limited Offer
code: BFCM20
Quantity

ALPHA 5 | 48V 100Ah LiFePO4 Battery | Premium 48V Server Rack Lithium Battery for Residential, Commercial, Off-Grid | 7,000 Lifetime Cycles | Pre-Order Only - 1 Battery Only is backordered and will ship as soon as it is back in stock.

Item Specification

Specifications:

Download

User Manual:

Download
  • Battery Type
    LiFePO4 Battery
  • Weight
    42kg/92.6 lb
  • Dimensions
    19″L x 17.7″W x 5.2″H
  • Material
    High-quality cold-rolled steel plate
  • Warranty
    10 Year Manufacturer Defect
  • Voltage
    48V
  • Nominal Capacity
    100Ah
  • Nominal Energy
    4800 Watt Hours
  • Customer Support

    Call 800-831-9889 to speak with one of our representatives.

    Email: support@richsolar.com

    Phone Hours: Mon-Fri 9am-5pm PST or Order Online Now!

    Warranty

    LIMITED WARRANTY

    This LIMITED WARRANTY from RICH SOLAR warrants to the original consumer purchaser that this RICH SOLAR product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in Paragraph 2, below, subject to the exclusions outlined in Paragraph 5, below. The preceding provisions state RICH SOLAR's entire liability, and your exclusive remedy, for any breach of warranty, express or implied. RICH SOLAR will not assume, nor authorize any person to assume for it, any other liability in connection with the sales of RICH SOLAR products.

    WARRANTY PERIOD

    Solar Panels


    Batteries

    ALPHA LITE Series

    *5-Year Warranty

    ALPHA Series

    *5-Year Warranty


    ALPHA PRO Series

    *10-Year Warranty

    LiFePO4 Battery Bank (Black)

    *5-Year Warranty


    Inverters


    Controllers

    MPPT Controllers

    2-Year Warranty

    PWM Controllers

    1-Year Warranty


    *Prorated Warranty

    The warranty period for all other RICH SOLAR products and components is one (1) year from the date of original purchase by the original consumer. A sales receipt from the original consumer purchase, or other reasonable documentary proof, is required in order to establish the start of the warranty period. If you completed the online RICH SOLAR Product Registration Form within thirty (30) days after purchasing your product, that registration can also establish the start date of the warranty period. Warranty coverage is not conditioned upon such registration.

    If a customer rejects a package, they may be responsible for return shipping costs and storage fees. Some carrier insurance policies may not cover the cost of return shipping if the customer refuses the package.

    Prorated Warranty

    Prorated warranty products from RICH SOLAR are warranted to be free from defects in workmanship and materials under normal use and service. The prorated warranty is effective from the date of purchase by the customer and follows the guidelines of the Limited Warranty with the addition of the following list detailing exchange costs for warranty replacements for prorated warranty items.

    10-Year Prorated Warranty Rates

    • Years 1-3: Full replacement (100% coverage)
    • Year 4: 85% coverage (customer pays 15% of replacement cost)
    • Year 5: 70% coverage (customer pays 30% of replacement cost)
    • Year 6: 55% coverage (customer pays 45% of replacement cost)
    • Year 7: 40% coverage (customer pays 60% of replacement cost)
    • Year 8: 25% coverage (customer pays 75% of replacement cost)
    • Year 9: 10% coverage (customer pays 90% of replacement cost)
    • Year 10: 5% coverage (customer pays 95% of replacement cost)

    5-Year Prorated Warranty Rates

    • Year 1: Full replacement (100% coverage)
    • Year 2: 80% coverage (customer pays 20% of the cost)
    • Year 3: 60% coverage (customer pays 40% of the cost)
    • Year 4: 40% coverage (customer pays 60% of the cost)
    • Year 5: 20% coverage (customer pays 80% of the cost)


    Please note that failure to properly install or operate the battery will void the Limited Warranty. Please refer to the product manual for detailed installation and operation instructions.

    Post 30-Day Replacement and Defect Assessment Policy

    If you encounter any issues with your product, please contact our Tech Support Team at tech@richsolar.com or 1-800-831-9889 . Our representatives will assist you in troubleshooting your product.

    1. Troubleshooting and Tech Approval:

      • Our technicians will first attempt to troubleshoot the issue with the customer.
      • If the issue cannot be resolved over the phone and further testing is needed, we will send a return shipping label for the unit to be shipped to us.
      • Customer Responsibility: If the customer cannot be available for the troubleshooting call, they will be responsible for shipping the unit to us for testing.
      • Before sending the return label, customer support will inform customers that if the unit is found to be functioning correctly or has been damaged due to customer misuse, the customer will be responsible for the cost of returning the unit to them.
    1. Defective Units:
    • If the unit is confirmed to be defective after testing, we will replace the unit and cover the shipping cost to send the replacement to the customer.
    1. Non-Defective or Customer-Damaged Units:
    • If the unit is found to be functioning properly or has been damaged due to customer misuse, we will repair the unit and invoice the customer for the return shipping label.
    • The unit will be returned to the customer after the invoice is paid.
    1. Change of Mind After 30 Days:
    • If a customer wishes to return a unit without any defect after 30 days, they will be responsible for all return shipping costs.

    For B2B & B2C Customers Outside of Warranty:

    • Customers are responsible for shipping the unit to us and providing a return label for the return shipment.
    • Our technicians will assess the unit. If repairs are possible, we will invoice the repair costs.
    • Once the customer approves and pays the invoice, we will proceed with the repair.
    • The customer must provide a return label to ship the repaired unit back to them.

    REMEDY

    RICH SOLAR will, at its option, (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. A replacement product/part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes RICH SOLAR’s property.

    LIMITED TO ORIGINAL CONSUMER BUYER. This warranty is not transferable to any subsequent owner of a RICH SOLAR product.

    EXCLUSIONS AND LIMITATIONS. This Limited Warranty applies only to hardware products manufactured by or for RICH SOLAR that can be identified by the "RICH SOLAR" trademark, trade name, or logo affixed to them.

    The Limited Warranty does not apply to any non-RICH SOLAR products, even if packaged or sold with RICH SOLAR products. Non-RICH SOLAR manufacturers or suppliers may provide their own warranties. This warranty does not apply to (i) damage caused by accident, abuse, misuse, misapplication, or non-RICH SOLAR products; (ii) damage caused by service performed by anyone other than RICH SOLAR; (iii) a product or a part that has been modified without the written permission of RICH SOLAR; (iv) a product where any RICH SOLAR serial number has been removed or defaced, or (v) any product purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged by you within seven (7) days after your purchase of the product and at least once every 6 months thereafter.

    THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES, AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. RICH SOLAR SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF RICH SOLAR CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. NO RICH SOLAR RESELLER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. IN NO EVENT WILL RICH SOLAR BE LIABLE FOR ANY DIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING FROM ANY USE OR MALFUNCTION OF ANY RICH SOLAR PRODUCT, OR FROM ANY BREACH OF WARRANTY, INCLUDING DAMAGE TO OTHER DEVICES. IN NO EVENT WILL RICH SOLAR'S LIABILITY FOR ANY CLAIM, WHETHER IN CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY), OR UNDER ANY OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT PAID BY YOU FOR THE RICH SOLAR PRODUCT.

    Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

    To obtain warranty service, you must contact our customer service team via telephone at 1-800-831-9889, or via email at sales@richsolar.com. If our customer service team determines that this is a warranty matter, they will give you a Return Material Authorization ("RMA") number. You must properly package the product, clearly marking the RMA number on the package and including proof of your purchase date with the product. You must then send the product by mail or courier, with shipping costs paid by you, to RICH SOLAR at 5550 Jurupa St Ontario, CA 91761. We will process your return and send your repaired or replacement product to you at our expense for the product being shipped to locations in North America. For products purchased or being shipped outside of North America, please contact the local distributor from whom you purchased the product, or email sales@richsolar.com to obtain further distributor information.

    In Store Pick Up

    If you're local, you can order over the phone and pick up your order at:

    5550 Jurupa St
    Ontario, CA 91761

    Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

    Payment & Security

    Payment methods

    • Amazon
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


    PRE-ORDER ONLY

    Available for pre-order only. Please allow up to 60 days for delivery, as we produce these batteries based on demand.

    If you have any questions, please call us at 1-800-831-9889.



    7,000 Cycles. LiFePO4 Lithium Battery. 20 Years Lifespan.

    RICH SOLAR 48V 100Ah lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

    Features:

    • Extremely high number of charge/discharge cycles
    • 20 Year lifespan with proper maintenance
    • Built-in smart battery management system
    • Wide operating temperature range
    • Unsurpassed high temperature performance
    • Green energy without metal contaminant
    • Low maintenance
    • High amp capacity
    • Stable output voltage
    • Little self-discharge
    • Lifetime customer support
    • Over charging or discharging protection.
    • Over current & short circuit protection.
    • High & low temperature disconnects
    • Charge Voltage: 52.5V
    • Max Charge Current: 100 A
    • Max Discharge Current: 100 A
    • Battery Dimensions: 19"L x 18 3/4"W x 5 1/4"H
    • Weight: 92.6 lb

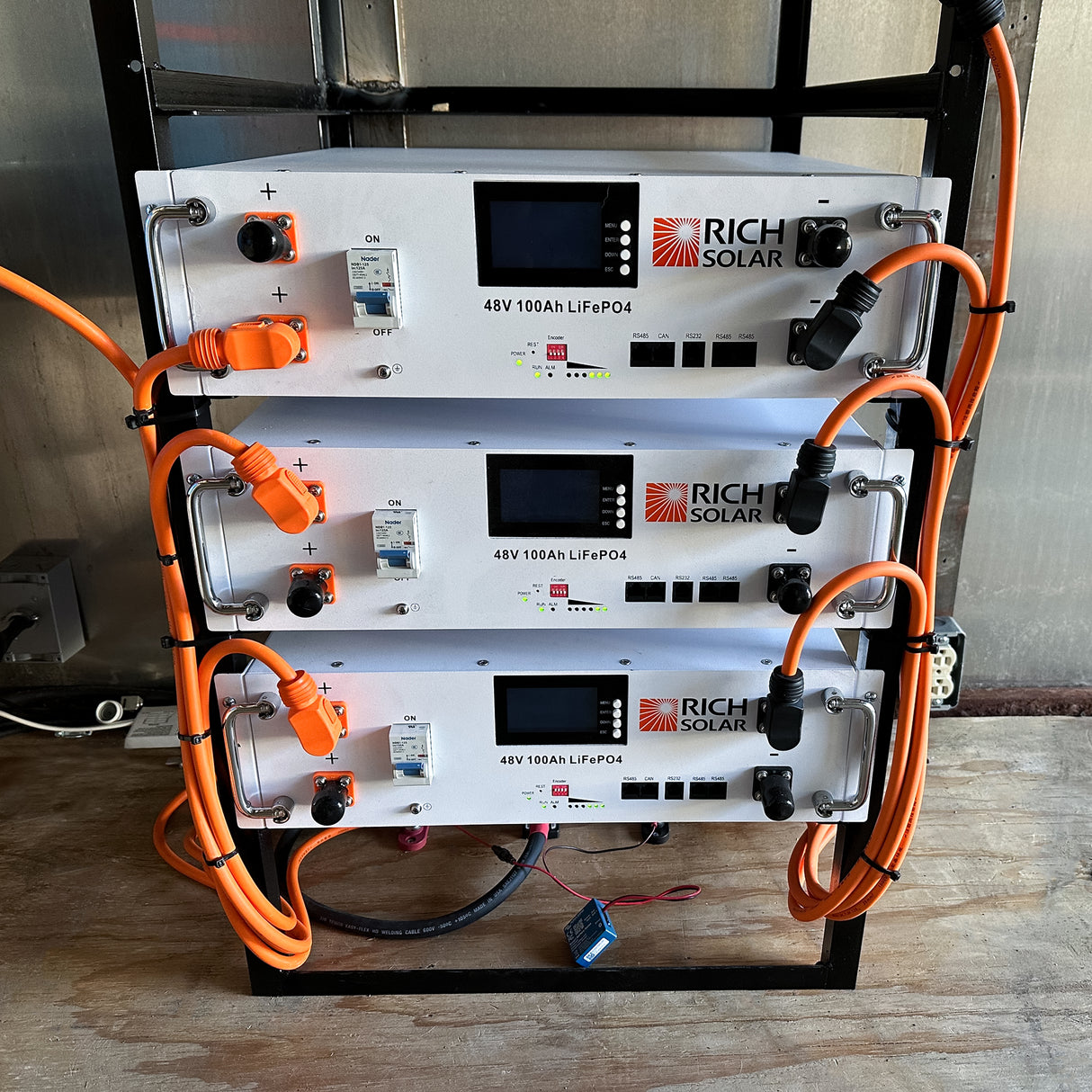

    • Connect in Parallel for Larger Capacity

    BMS Safety Protection

    • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
    • Convenient removable carry handle
    • Lightweight
    • Short circuit protected
    • Physical damage to battery case will not cause fire
    • Excessive thermal exposure will not cause a fire
    • Able to withstand over-charge/over-discharge without damage to the battery
    • Sophisticated Battery Management System (BMS)

    Included:

    • 1 foot RS485 communication cable
    • Set of parallel cables per battery
    • 4.8kWh (48V 100Ah) lithium iron phosphate battery

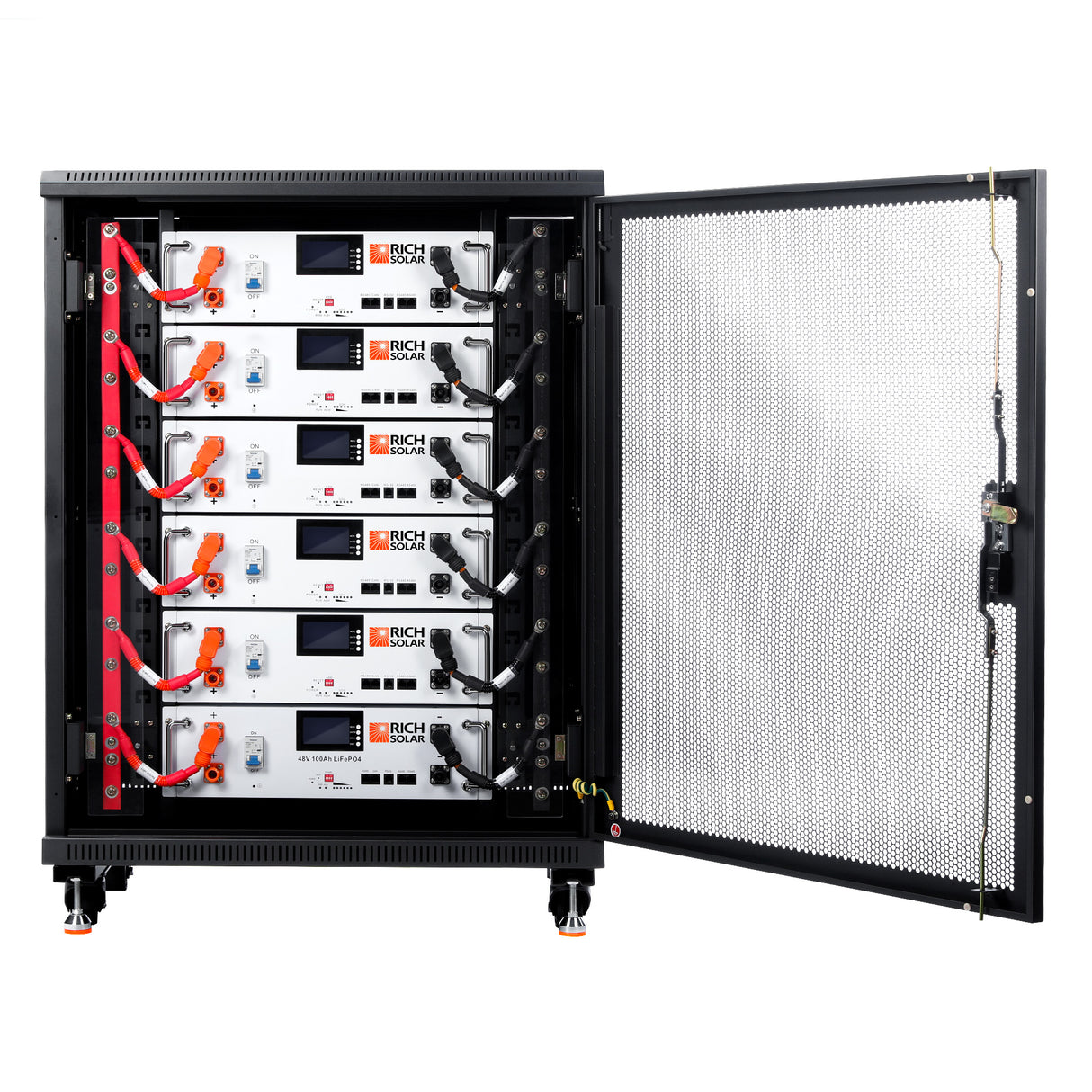

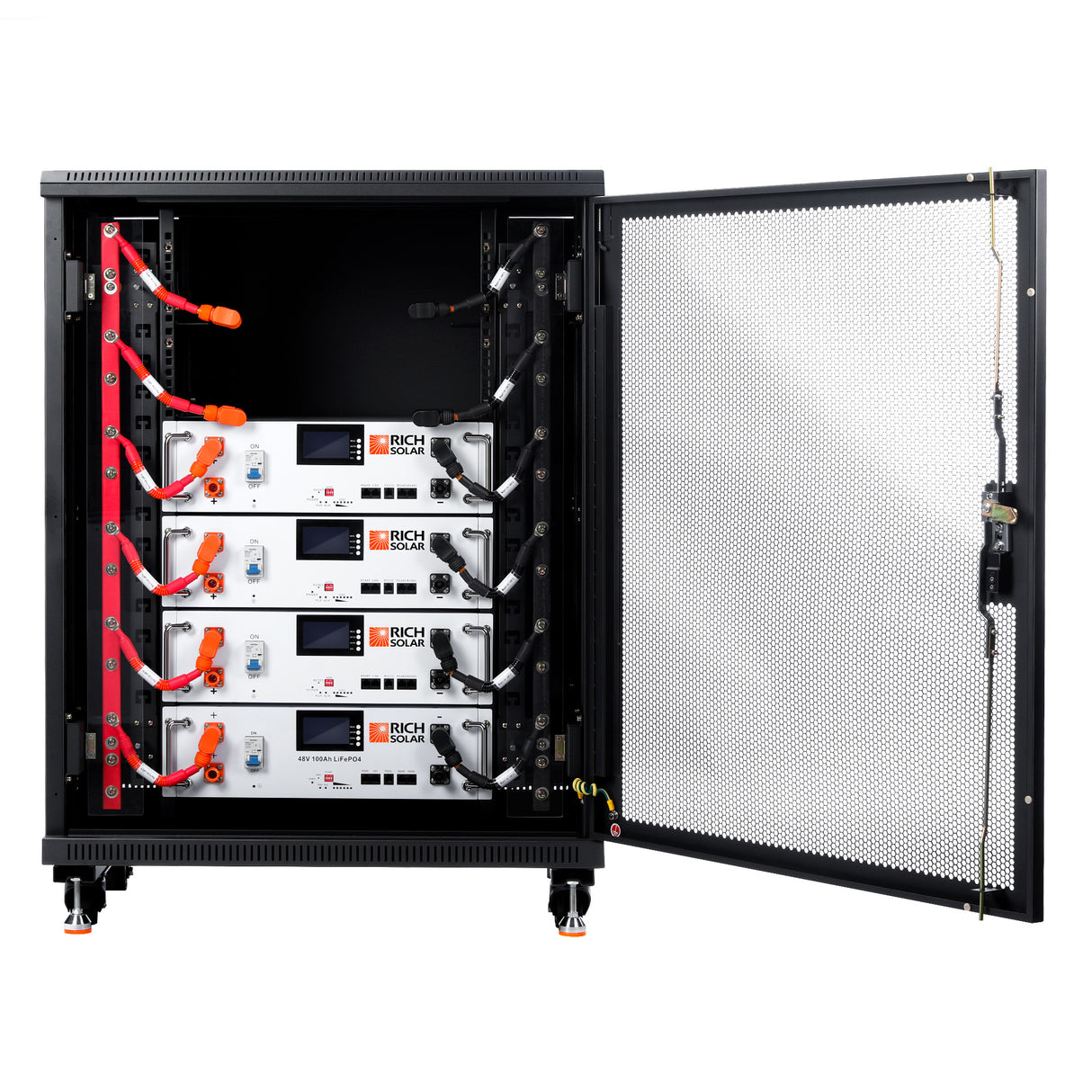

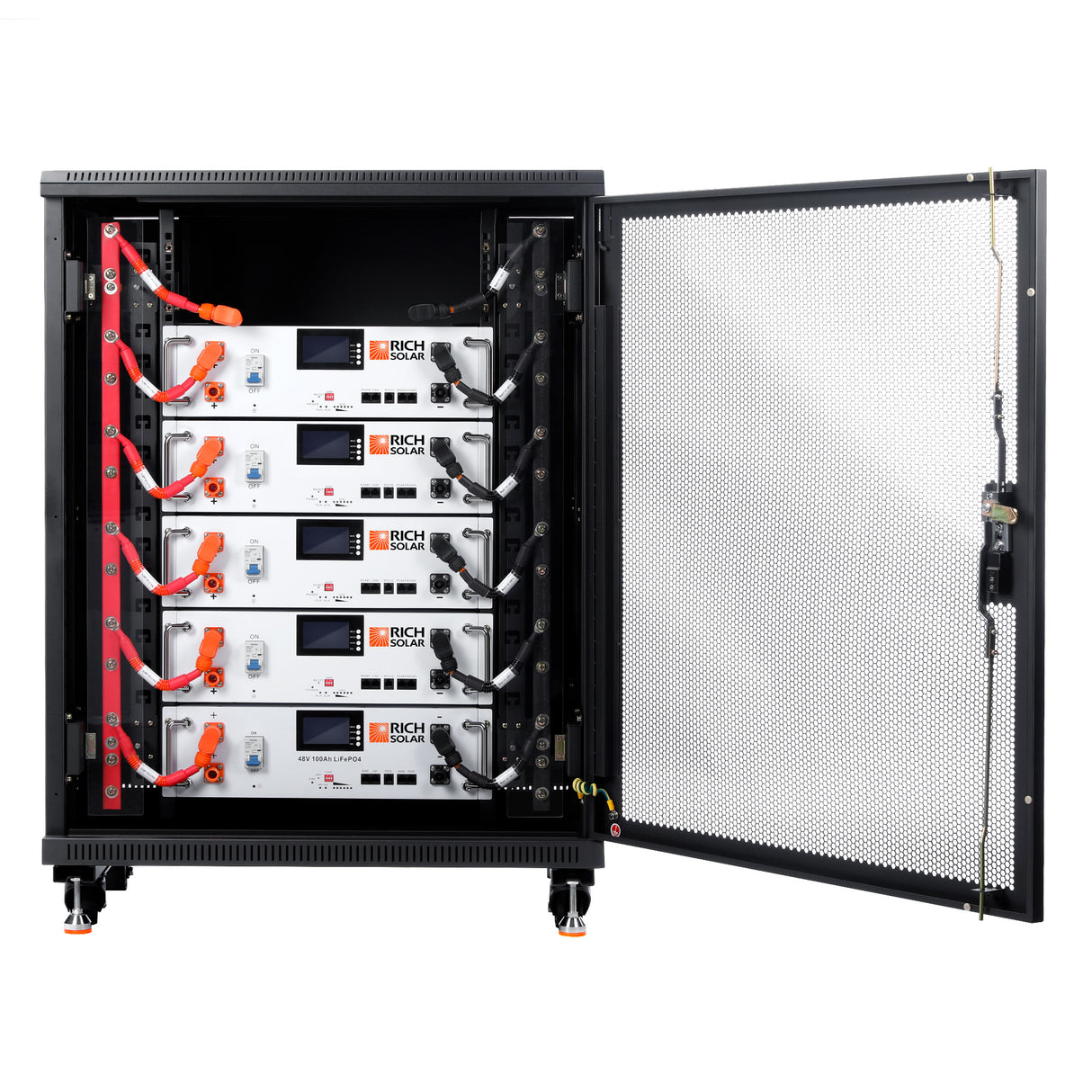

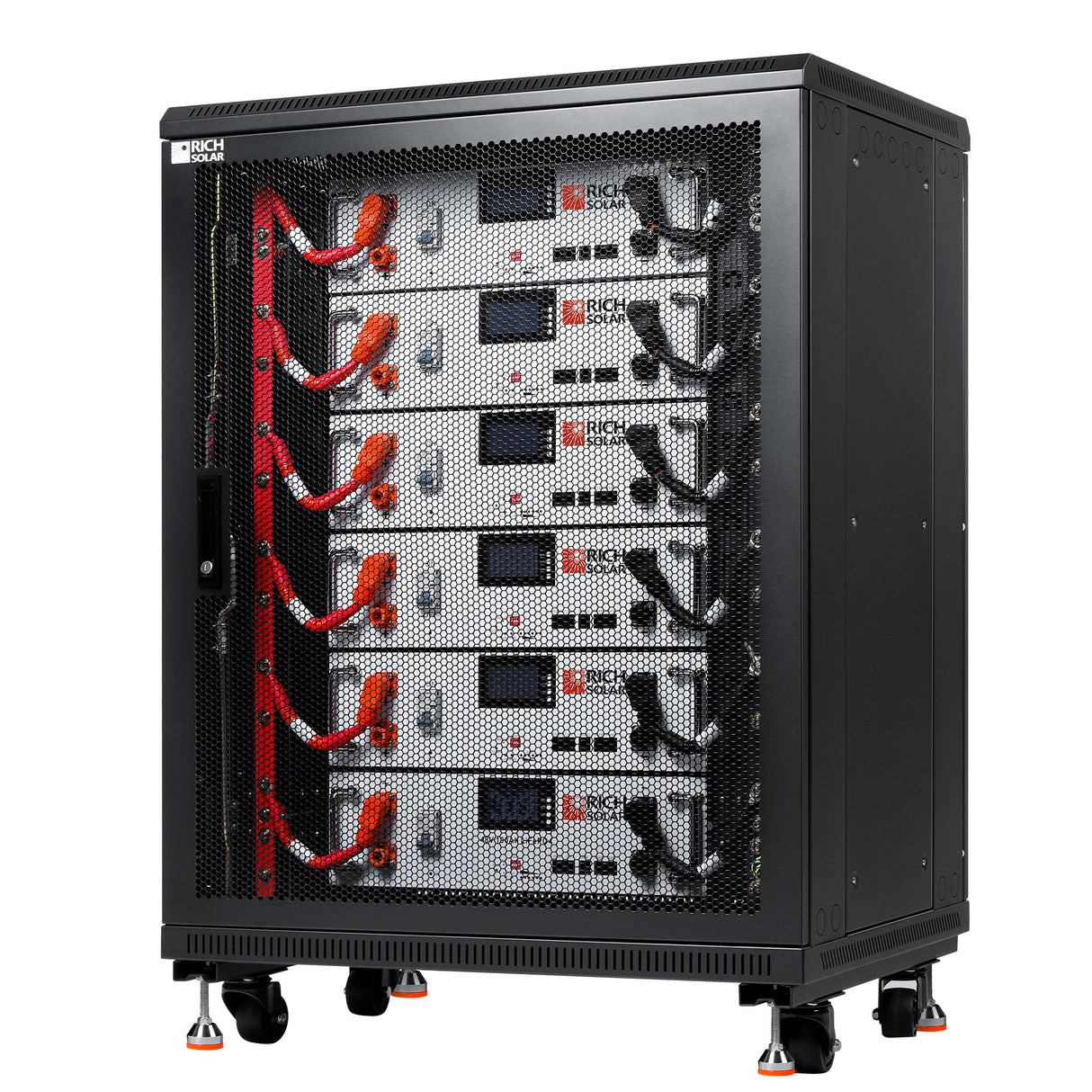

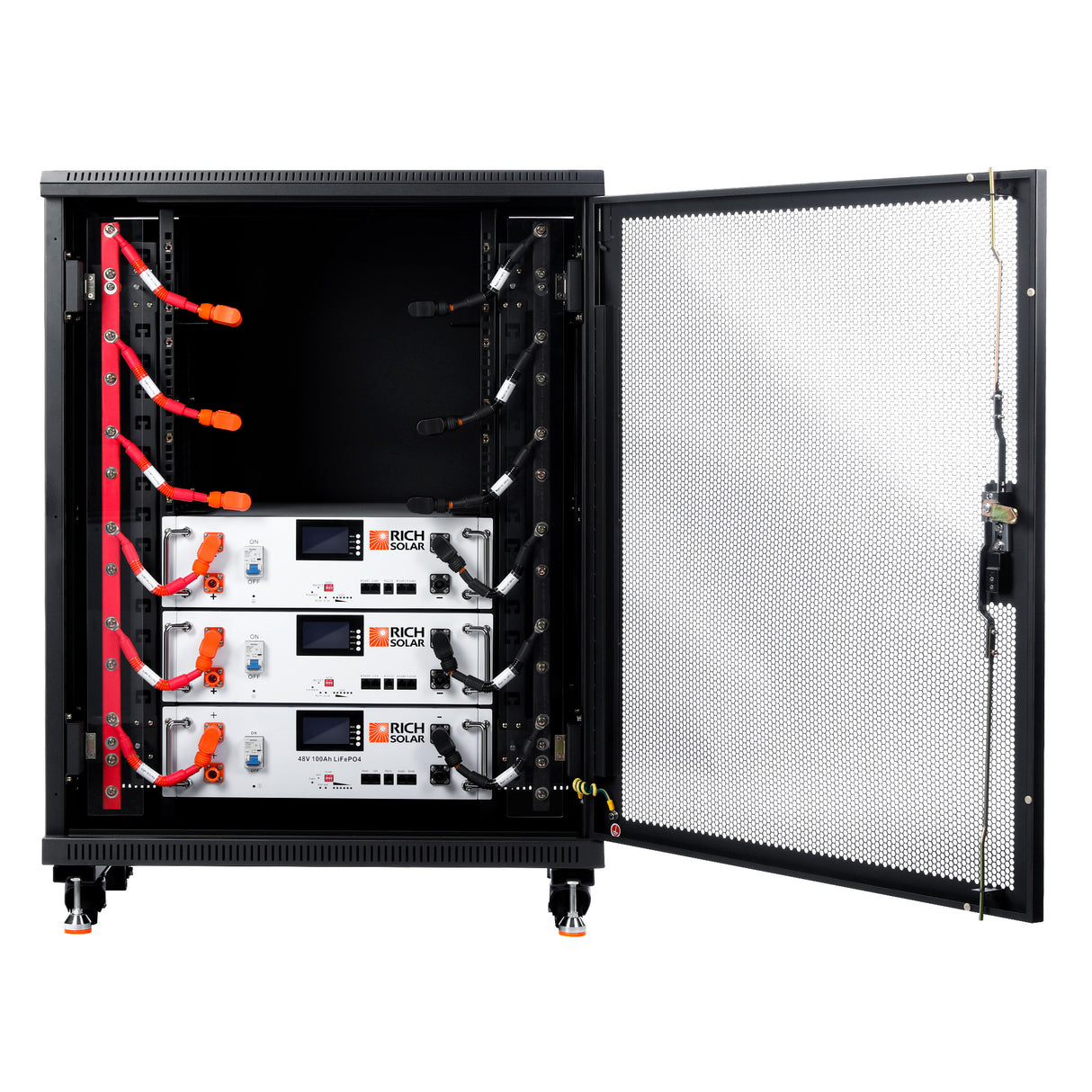

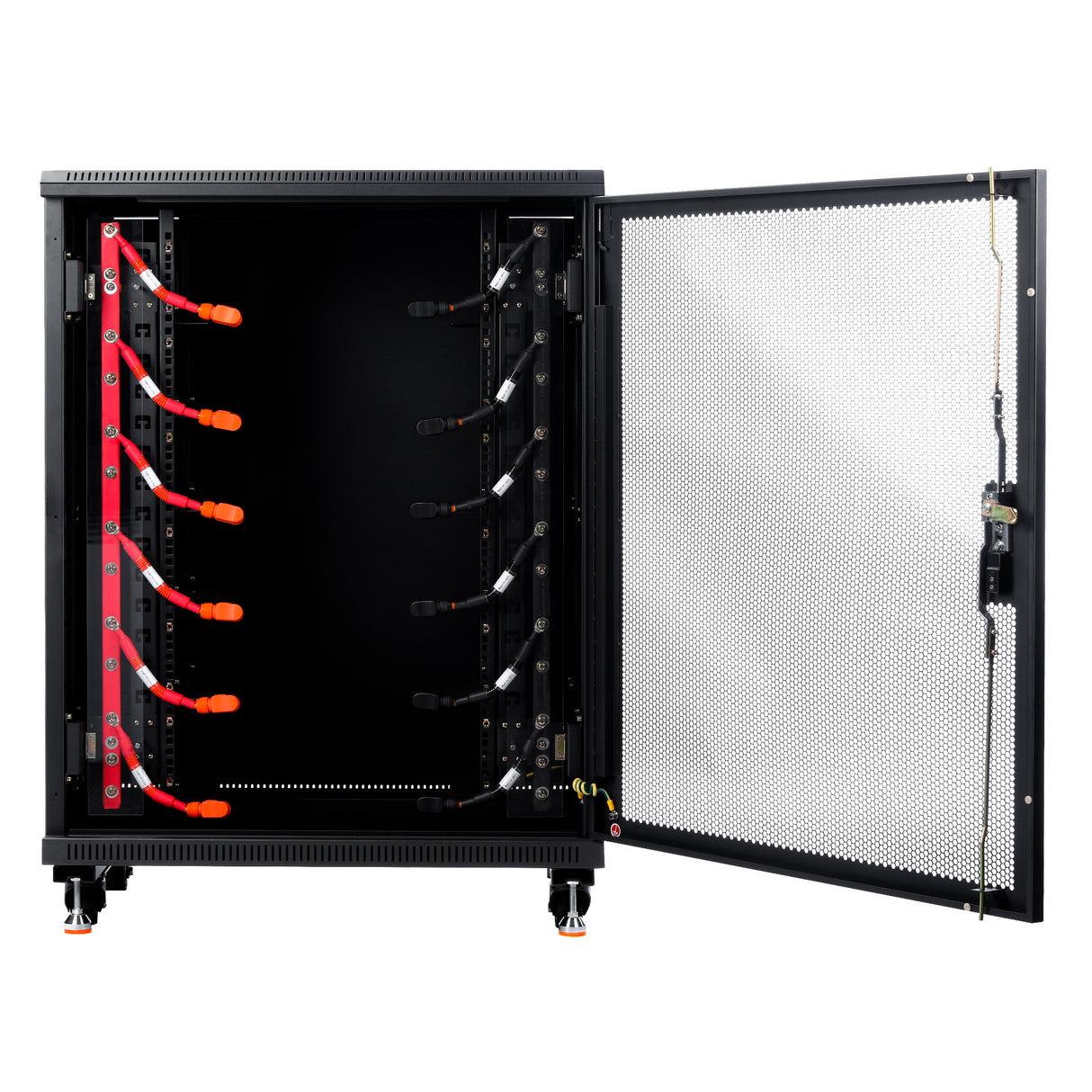

    Battery Server Rack

    • Battery Server Rack Dimensions39"L x 32"W x 24"H
    • Weight: 159 lb
    • Material: High-quality cold-rolled steel plate
    • Protection level: IP20
    • Packaging: Carton + wooden pallet

    Specifications

    Electrical Specifications

    Nominal Voltage:

    48V

    Nominal Capacity (at .5C, 77°F):

    100Ah

    Minimum Capacity (at .5C, 77°F):

    99.5Ah

    Expected Cycle Life:

    >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

    Operating Specifications

    Charge Method:

    Smart charger, constant current, constant voltage

    Operating Voltage:

    48 V

    Capacity:

    100 Ah

    Energy:

    4800 Watt Hours

    Charge Voltage Range (Max 52.5V):

    52.0 -52.5V

    Continuous Charge Current:

    100A

    Continuous Discharge Current:

    100A

    Over Voltage Shutdown:

    52.5 +/-0.2V

    Discharge Cut-off Voltage:

    42V =/- 0.5V

    Self Discharge (stored at 50% SOC):

    <3%/month

    Waterproof:

    IP65

    Temperature Performance

    Charge Temperature:

    32° F to 113° F

    Discharge Temperature:

    -4° F to 122° F

    Storage Temperature:

    -4° F to 122° F

    BMS High Temperature Cut-off:

    149°F

    BMS Low Temperature Cut-off:

    32°F

    Physical Specifications

    Battery Dimensions(L*W*H):

    19x 17.7x 5.2 in

    Weight:

    42kg/92.6 lb

    Battery Server Rack Specifications

    Battery Server Rack Dimensions(L*W*H):

    27.6 x 27.6 x 44 in

    Weight:

    196 lb

    Thickness:

    Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;

    Material:

    High-quality cold-rolled steel plate

    Protection level:

    IP20

    BMS Operation


    Over Charge Protection

    Over charge detection voltage:

    3.9 +/- 0.05V

    Over charge detection delay time:

    0.96 – 1.4s

    Over charge release voltage:

    3.80 +/-0.05V

    Maximum charge voltage:

    3.65 +/-0.05V

    Over Discharge Protection

    Over discharge detection voltage:

    2.0V +/- 0.05V

    Over discharge detection delay time:

    115-173ms

    Over discharge release voltage:

    2.3V +/- 0.10V

    Over Current Protection Over current detection delay time:

    9 +/- 2ms

    Over current release condition:

    Cut load

    Polarity Reverse Protection: Yes

    Short Circuit Protection: Yes

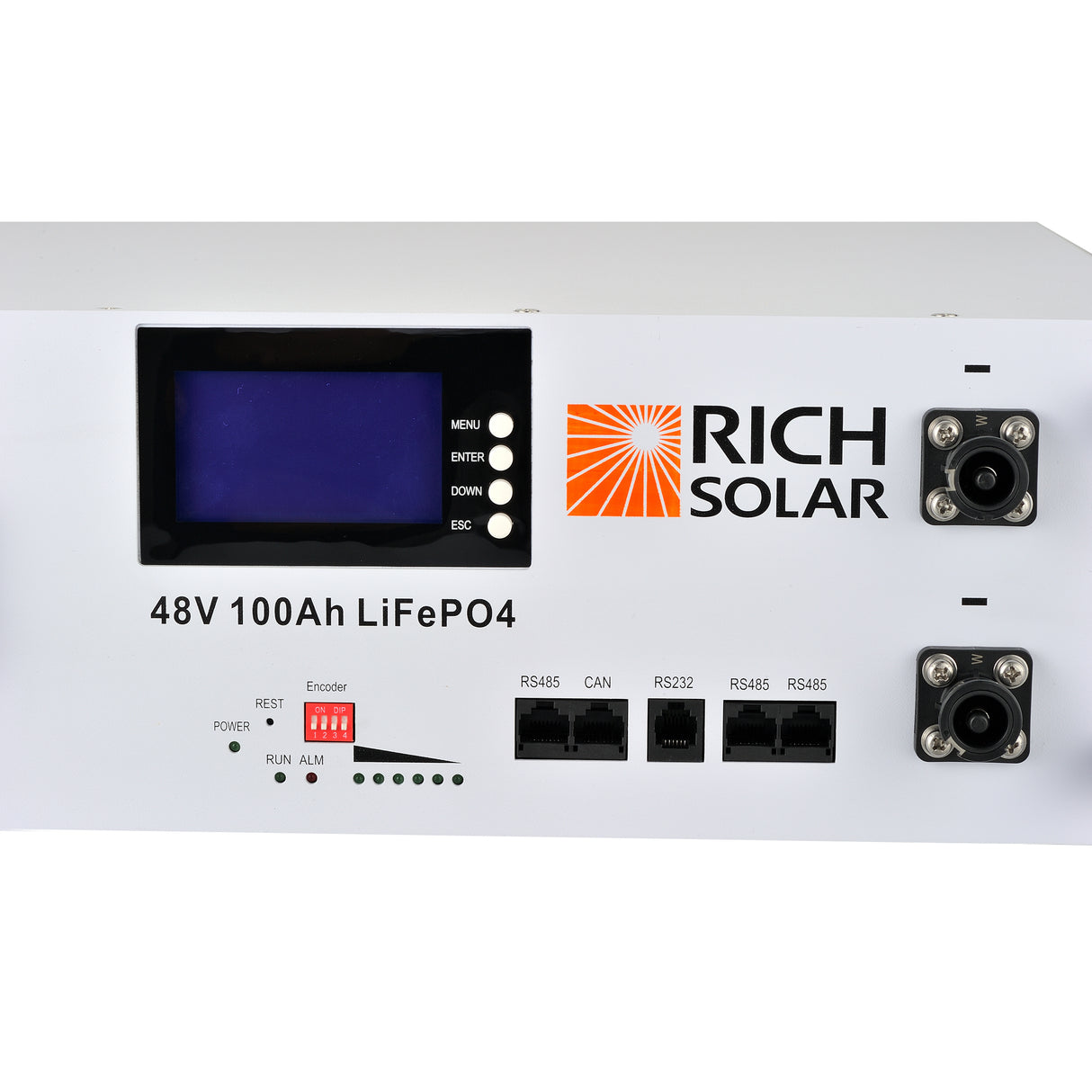

    Communication Ports: RS485/CAN

    Warranty: 10 Year Manufacturer Defect
