50 Watt Solar Kit | Includes 50W Solar Panel + 30A PWM Solar Controller + Wires and Brackets | DIY Complete Solar Kit without Batteries

SKU: RS-K502
$199.99

Specifications & Downloads

Product Images

Full Specification:

MEGA 50 Solar Panel

Download

BRAVO LEGEND 30 30 Amp PWM Solar Charge Controller

Download

User Manual:

BRAVO LEGEND 30 30 Amp PWM Solar Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

  • 50W Solar Array: Includes one 50W monocrystalline solar panel, producing approximately 0.2kWh of energy per day under 4 peak sun hours.
  • 12V Solar Charging System: Designed around a 12V solar charging system for compatible battery banks.
  • 30A PWM Charge Controller: Automatically detects 12V/24V systems and supports multiple battery types for reliable solar charging.
  • Solar Charging Kit: Includes professionally matched solar panel, PWM charge controller, and installation accessories for efficient battery charging.
  • Expandable System: Easily add compatible RICH SOLAR panels as your energy needs grow.
  • Versatile Applications: Ideal for RVs, trailers, boats, cabins, sheds, and other small off-grid solar charging systems.

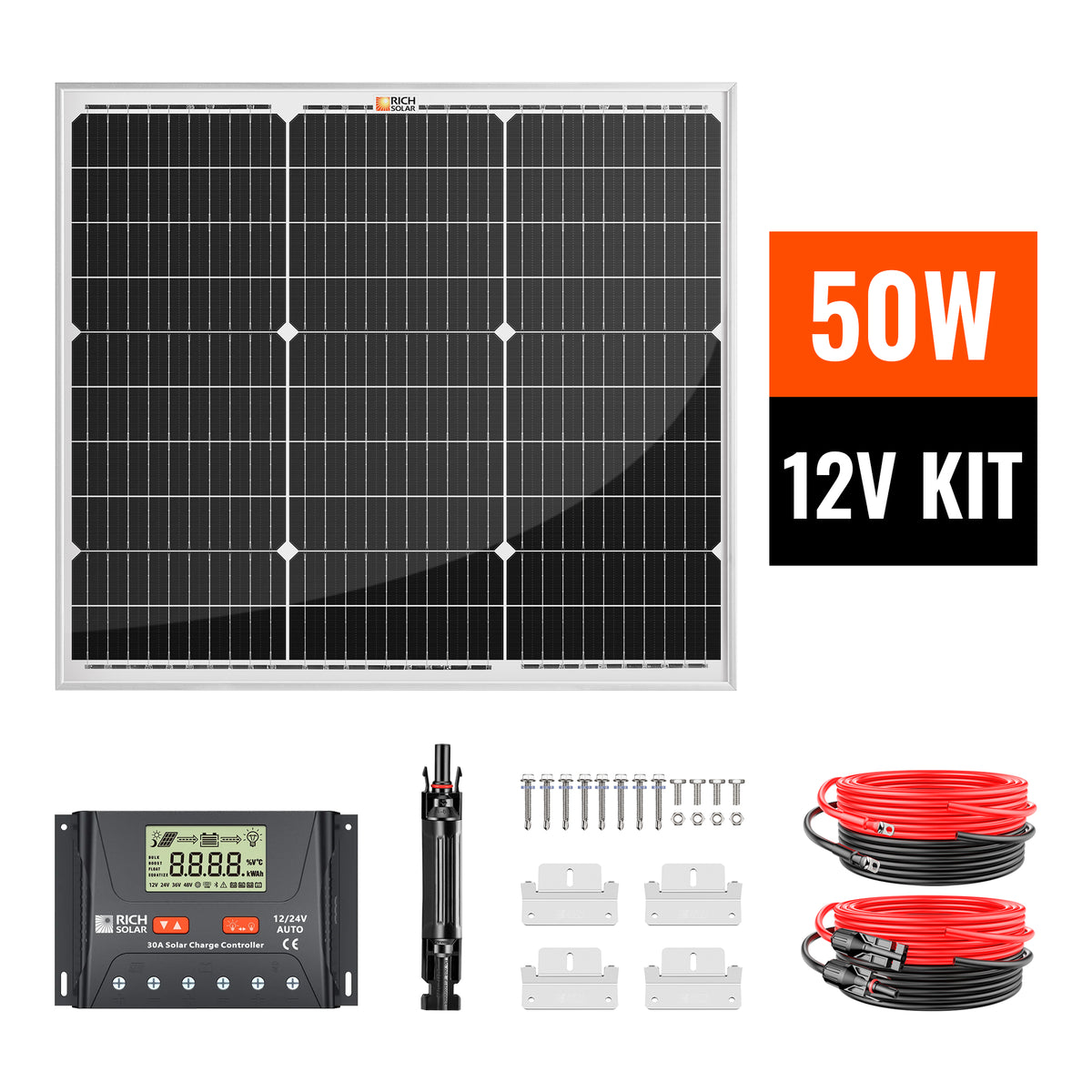

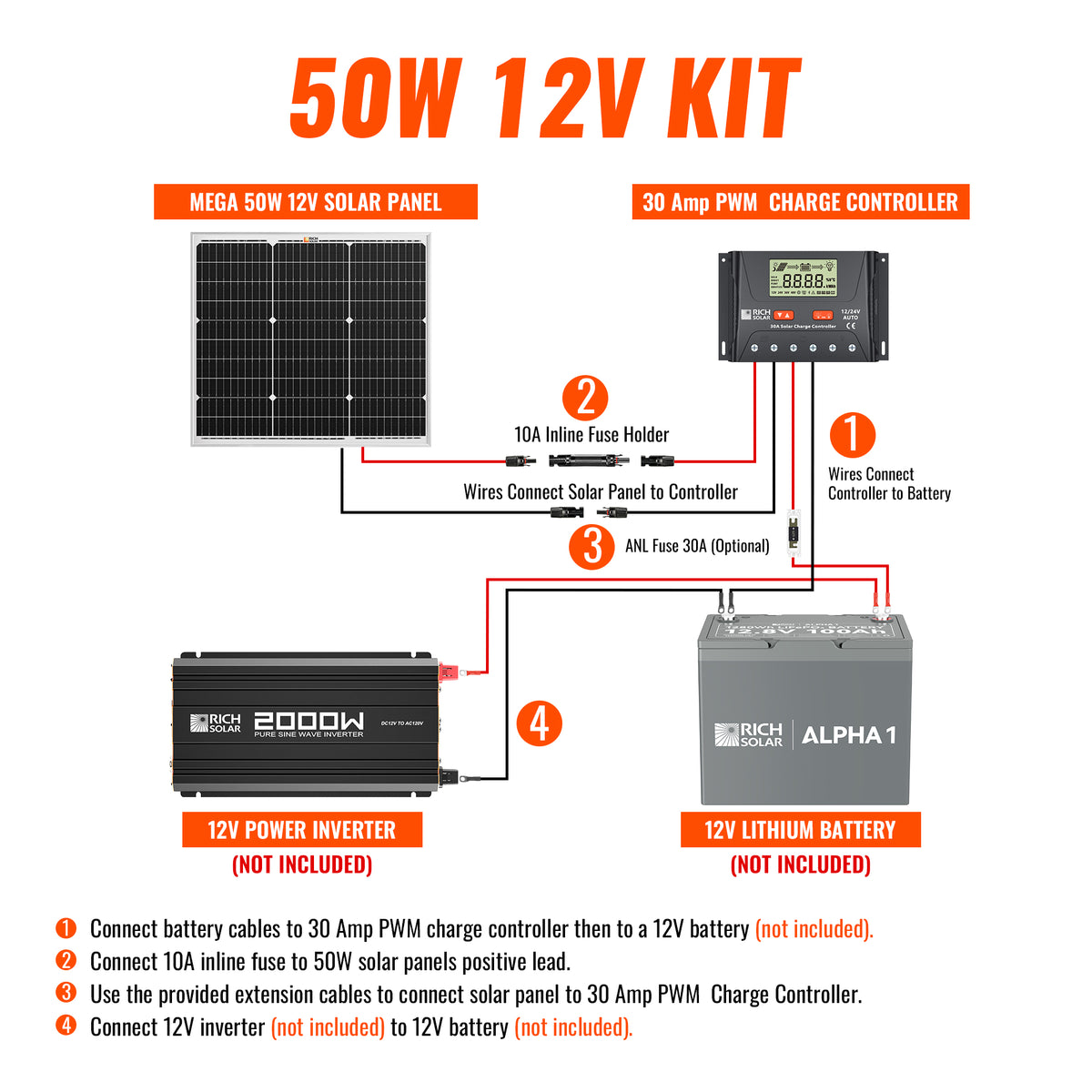

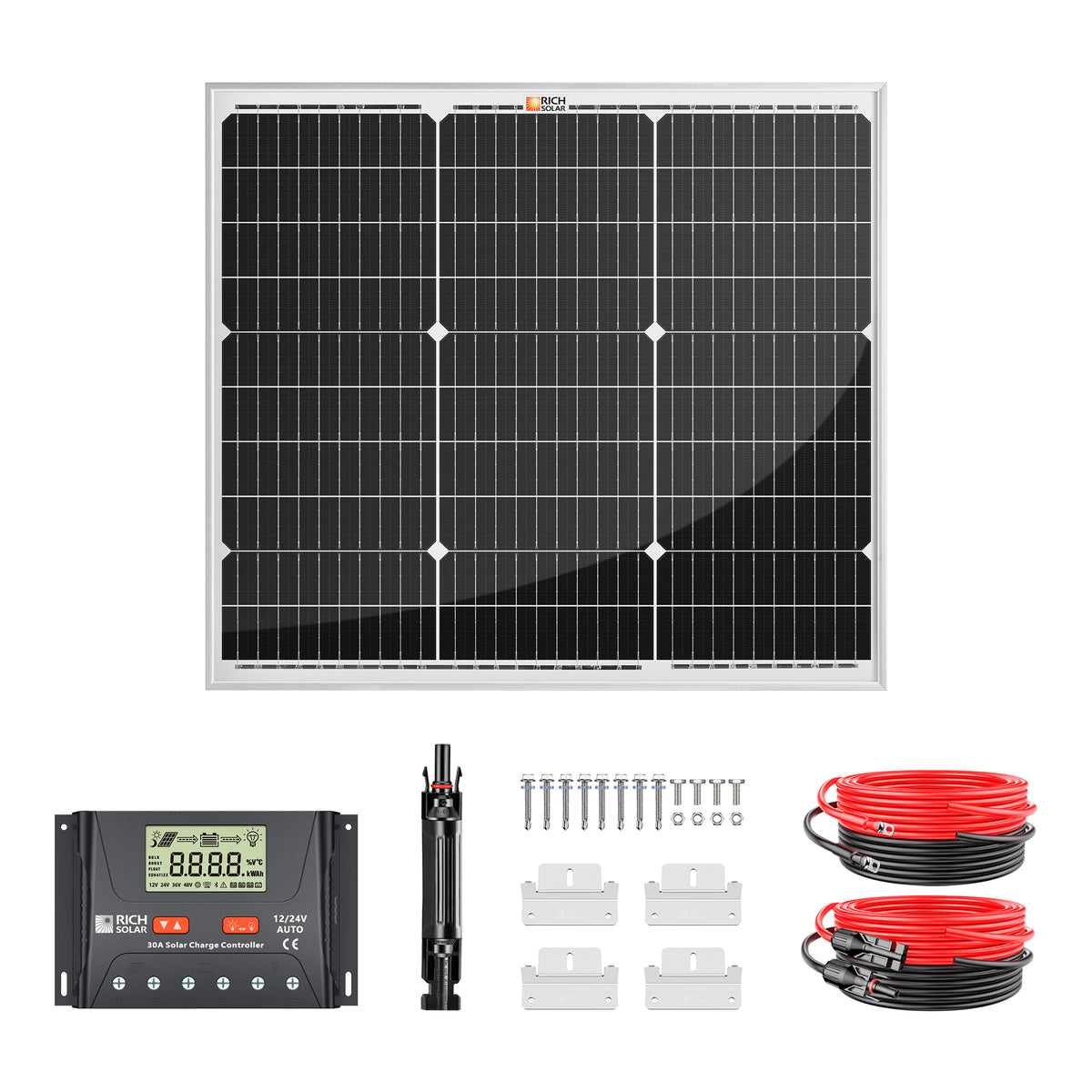

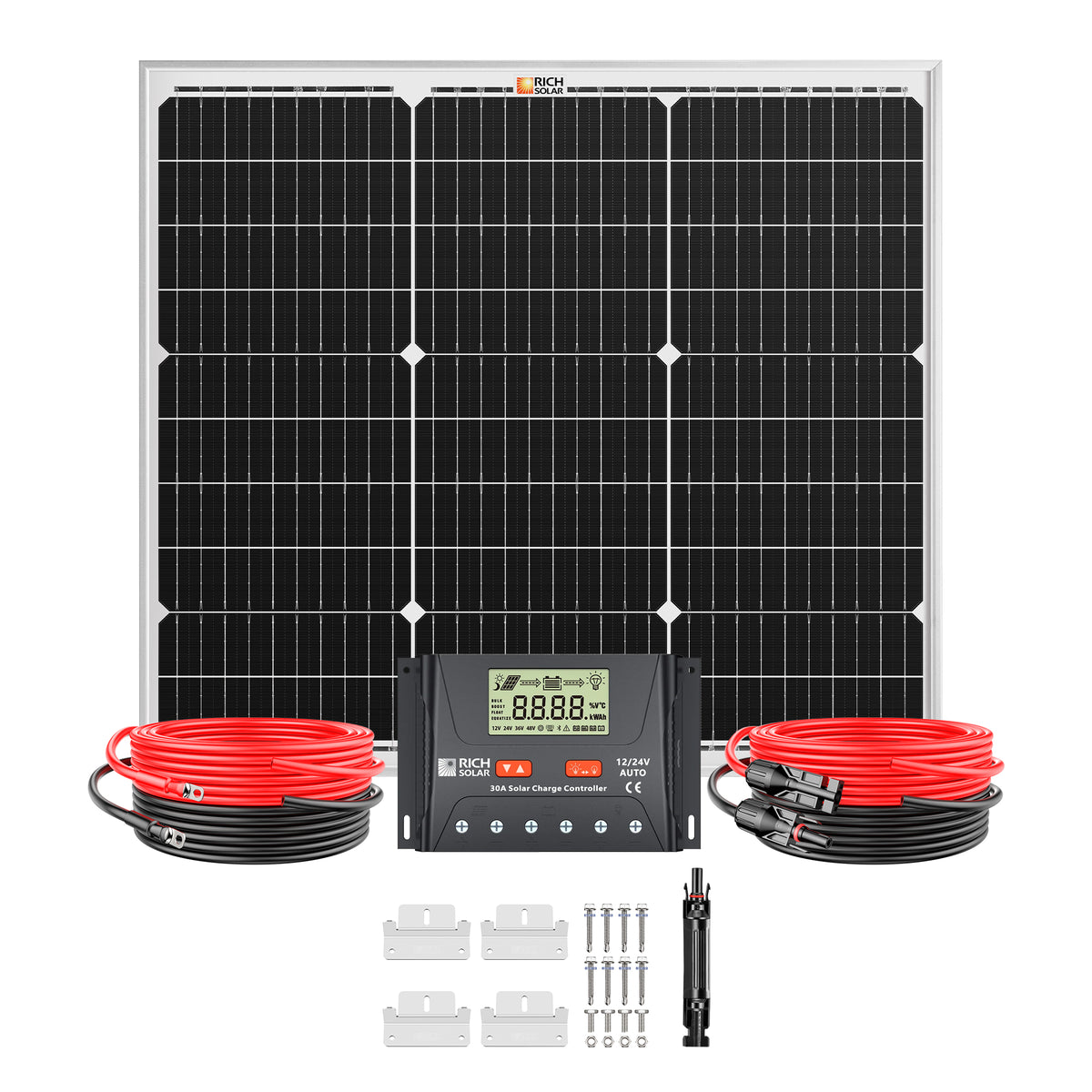

Kit includes

  • 1 x 50 Watt Monocrystalline Solar Panel (RS-M50)
  • 1 x 30A PWM Solar Charge Controller (RS-PWM30P)
  • 1 x 20 ft  10 AWG Solar Cable (Red), connects the solar panel to the controller
  • 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller
  • 1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery
  • 1 x 10 ft  10 AWG Battery Cable (Black), connects controller to battery
  • 1 x Mounting Z Brackets (one set of 4)
  • 1 x 10A Inline Fuse Holder with Fuse

  • MEGA 50

    50 Watt Solar Panel

    Features:

    • 12V off-grid solar panel.
    • 0~+5W guaranteed positive power output.
    • IP67 rated.
    • Built with strong tempered glass and an aluminum frame.
    • Certified to withstand challenging environmental conditions.

    Installation:

    • Easy installation and handling for various applications.
    • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
    • Compatible with on-grid and off-grid inverters.

    Warranty:

    • 25-year power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 50W
    • Maximum Power Voltage(Vmp): 17.6V
    • Maximum Power Current(Imp): 2.84A
    • Open Circuit Voltage(Voc): 20.8V
    • Short Circuit Current(Isc): 3.13A
    • Maximum System Voltage(Vmax): 1000VDC
    • Maximum Series Fuse Rating: 10A
    • Weight: 8lb
    • Dimensions: 22.8x20.5x1.2in
  • BRAVO LEGEND 30 | 30 Amp PWM Solar Charge Controller | 12V/24V Auto 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid - RICH SOLAR

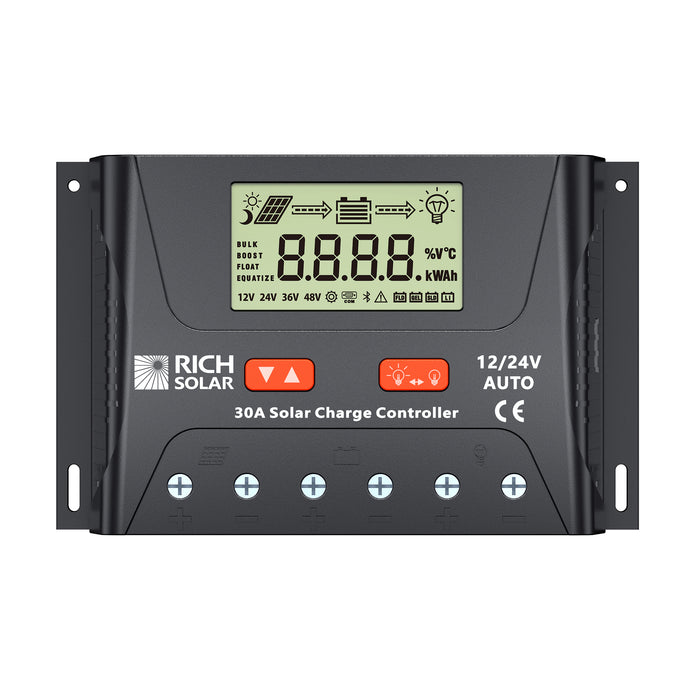

    BRAVO LEGEND 30

    30 Amp PWM Solar Charge Controller

    Features:

    Efficient Solar Charging

    • Advanced 3-Stage PWM Charging: Boost, Float, and Equalization charging; Equalization helps prevent sulfation in lead-acid batteries (excluding GEL and lithium).
    • Automatic Temperature Compensation: Automatically adjusts charging voltage based on ambient temperature (-3.0 mV/°C/2V; excludes lithium).

    Flexible System Compatibility

    • 12V/24V Auto Detection: Automatically detects 12V or 24V battery systems.
    • Supports Multiple Battery Types: Compatible with Sealed, GEL, Flooded, and lithium batteries.
    • 55V Max Solar Input Voltage: Supports solar panel configurations with up to 55V PV input.

    Safe & Reliable Operation

    • Five Operating Modes: Light Control (10-min Delay), Light Control + Timer Control (1–14 h), Manual, Debug, and Normal On.
    • Electronic Protection: Protects against overcharge, over-discharge, overload, short circuit, and reverse polarity.
    • TVS Lightning Protection: Helps protect the controller from lightning-induced voltage surges.
    • UL 1741 Certified: Certified for trusted safety and reliable performance.

    Specifications:

    • Rated Current: 30A
    • System Voltage: Auto recognition: 12V / 24V (Manual setup optional)
    • Rated Power: 450W @12V / 900W @24V
    • Max. Solar Input Voltage: < 55V
    • Max. Battery Voltage: < 34V
    • No-load Loss: <13mA @12V / <15mA @24V
    • Battery Compatibility: Lithium/Sealed/GEL/Flooded
    • Operating Temperature: –13°F to +131°F (–25°C to +55°C)
    • Protection Rating: IP30 (Dust/Splash Resistant)
    • Grounding: Positive Ground
    • Dimensions: 164×103×47mm (6.46×4.07×1.85in)
    • Net Weight: 0.39kg (0.86lb)
    • Package Dimensions: 8 × 6 × 4 in
    • Gross Weight: 2 lb
