160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER
160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Product Images
-
Maximum Power (Pmax)160W
-
Maximum Power Voltage (Vmp)18.9V
-
Maximum Power Current (Imp)8.40A
-
Open Circuit Voltage (Voc)23.4V
-
Short Circuit Current (Isc)9.60A
-
Maximum System Voltage (Vmax)1000VDC
-
Weight7.1 lb
-
Dimensions67.3 Ć 26.0 in
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave,
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER
160 Watt Flexible Solar Kit with 20A MPPT Controller BACKORDER is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
- 160W Flexible Solar Panel: Includes one 160W CIGS flexible solar panel, producing approximately 0.6kWh of energy per day under 4 peak sun hours.
- 12V Solar Panel: Built with a 12V nominal flexible solar panel, ideal for charging compatible battery systems.
- 20A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency and 98% peak conversion efficiency.
- Flexible Solar Charging Kit: Includes a flexible solar panel, MPPT charge controller, and pre-assembled installation cables for fast, tool-free installation.
- Versatile Applications: Ideal for RVs, vans, boats, curved rooftops, and other portable off-grid solar systems.

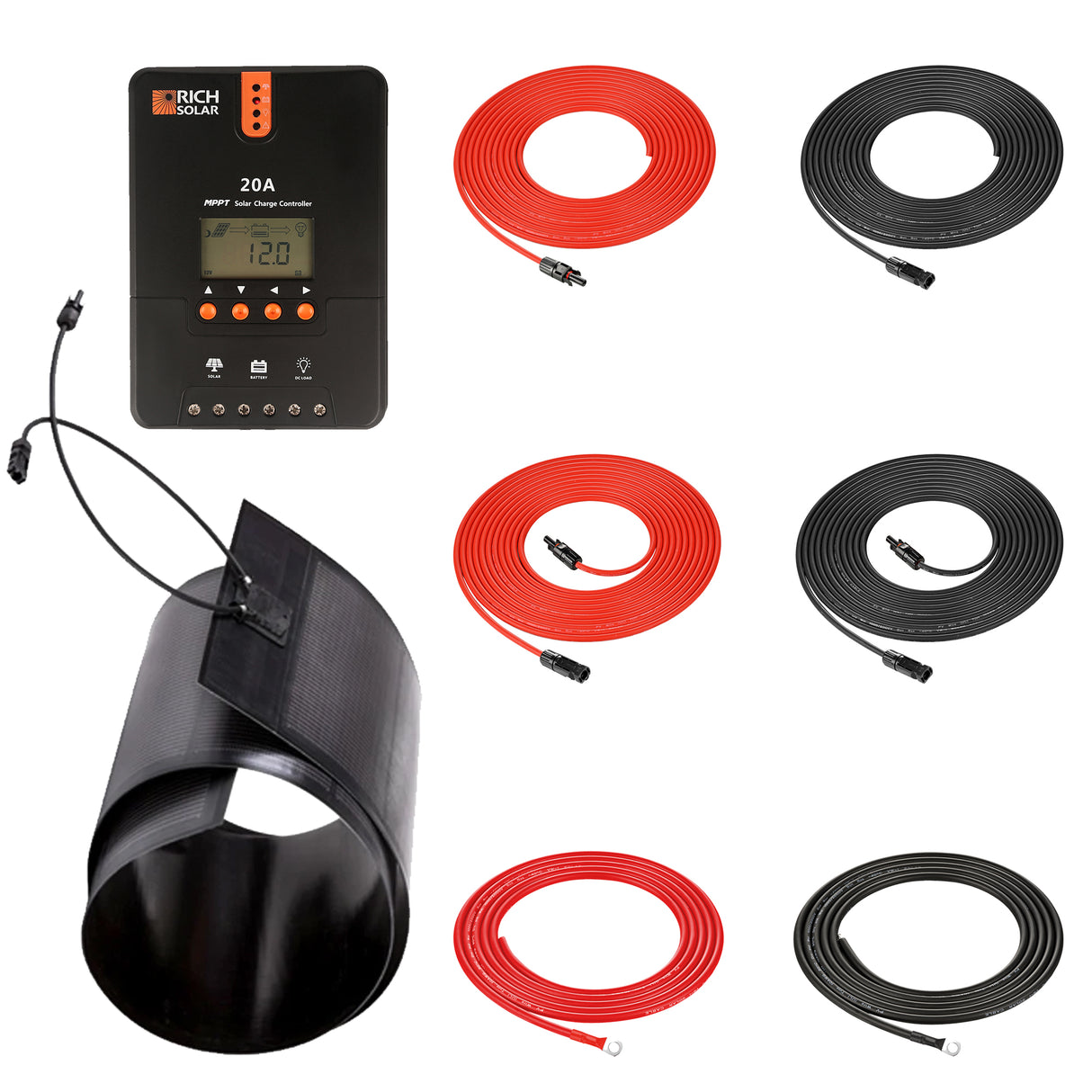

Kit Includes
- 1 Ć 160W CIGS Flexible Solar Panel
- 1 Ć 20A MPPT Solar Charge Controller
- 1 Ć 20 ft 10 AWG Solar Extension Cable (Red), Pre-Assembled Female MC4 Connector (Panel to Controller)
- 1 Ć 20 ft 10 AWG Solar Extension Cable (Black), Pre-Assembled Male MC4 Connector (Panel to Controller)
- 1 Ć 20 ft 10 AWG Solar Extension Cable (Red), Pre-Assembled Male & Female MC4 Connectors
- 1 Ć 20 ft 10 AWG Solar Extension Cable (Black), Pre-Assembled Male & Female MC4 Connectors
- 1 Ć 10 ft 10 AWG Battery Cable (Red), Pre-Assembled Battery Lug (Controller to Battery)
- 1 Ć 10 ft 10 AWG Battery Cable (Black), Pre-Assembled Battery Lug (Controller to Battery)
Specifications
- Maximum Power (Pmax): 160W
- Maximum Power Voltage (Vmp): 18.9V
- Maximum Power Current (Imp): 8.40A
- Open Circuit Voltage (Voc): 23.4V
- Short Circuit Current (Isc): 9.60A
- Maximum System Voltage (Vmax): 1000VDC
- Weight: 7.1 lb
- Dimensions: 67.3 Ć 26.0 in
