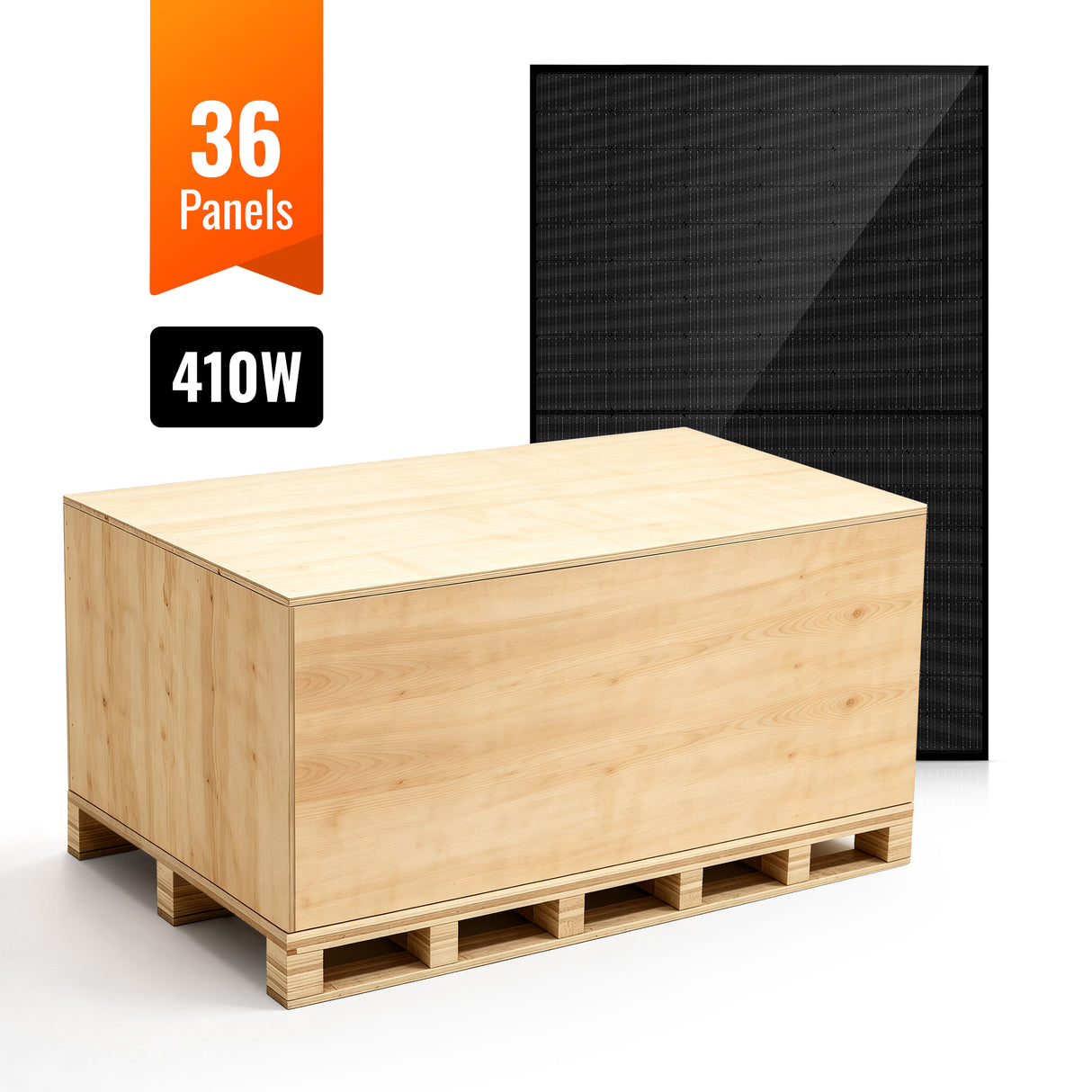

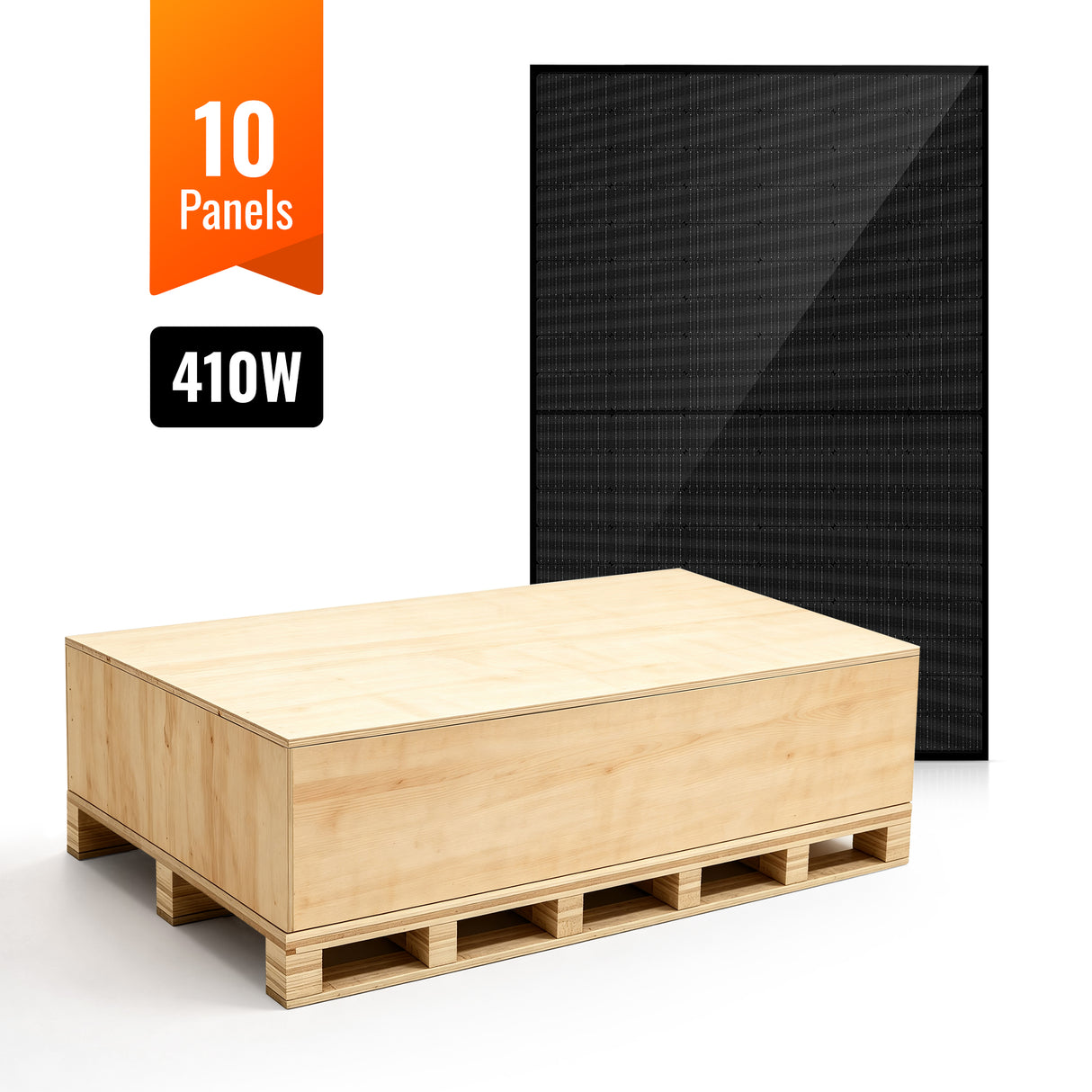

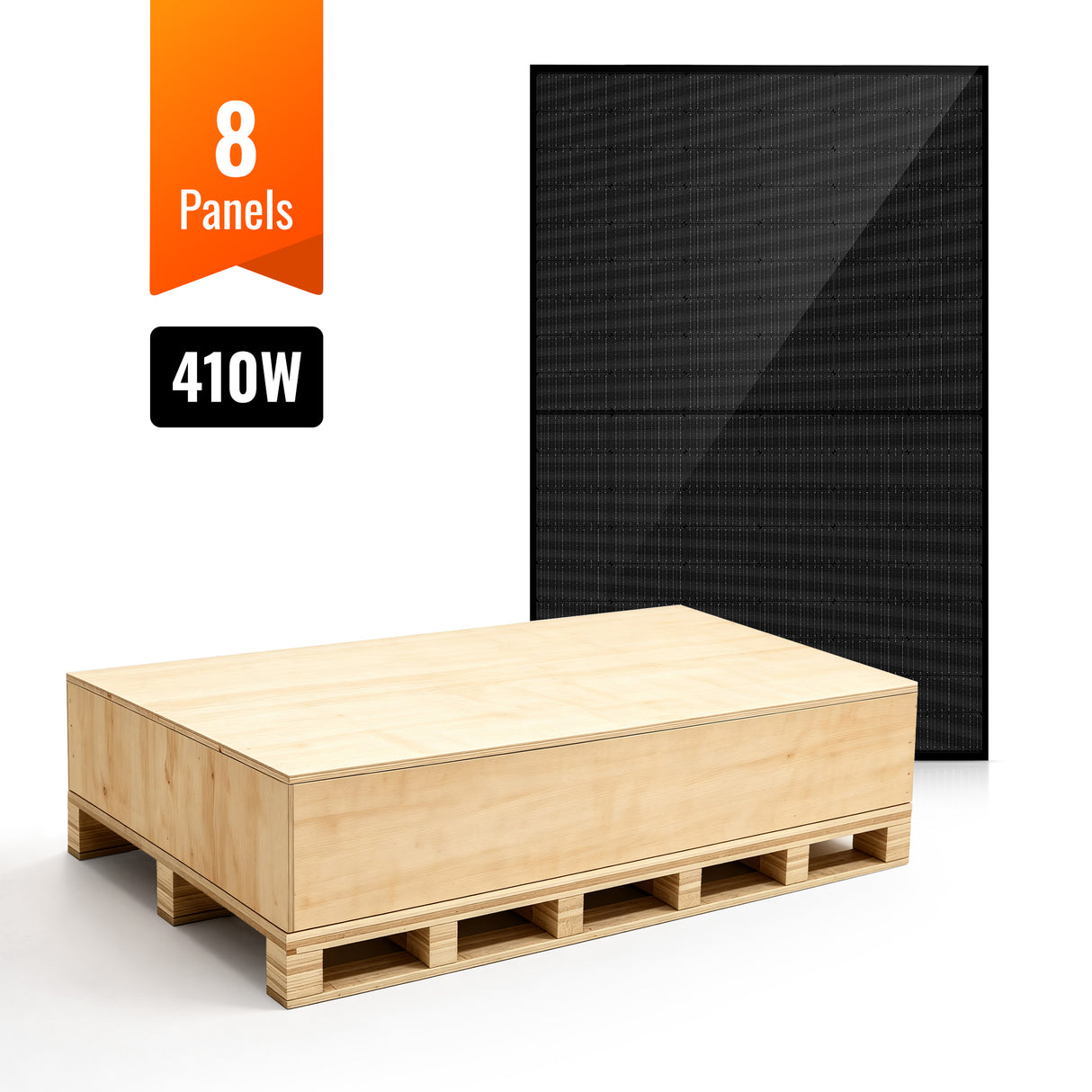

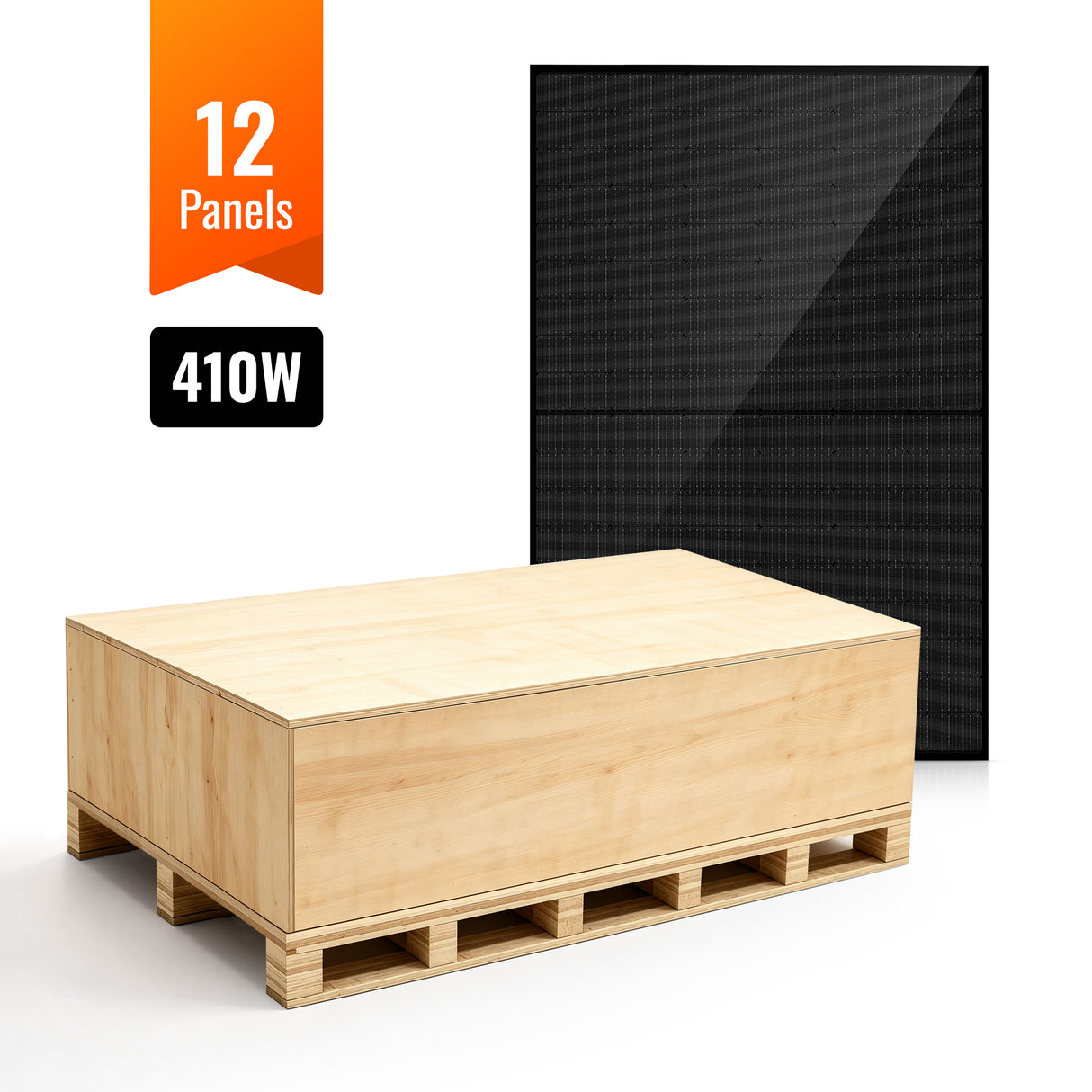

MEGA 410 | 410 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
MEGA 410 | 410 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified - 8 Solar Panels is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
-
Panel Cable Length≈ 14 in
-
Dimensions67.9 x 44.6 x 1.2 in
-
Weight45.2 lb
-
Maximum Power (PMAX)410W
-
Maximum Power Voltage (VMP)31.3V
-
Maximum Power Current (IMP)13.1A
-
Open Circuit Voltage (VOC)37.5V
-
Short Circuit Current (ISC)13.8A
-
Maximum System Voltage (VMAX)1500VDC
-
Temperature Range-40°F ~ 185°F
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 410 | 410 Watt Solar Panel | Premium Grid-tie or Off-grid Sola...
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
PALLET SHIPPING ONLY!
For any other quantities, please call our sales team at 1-800-831-9889 or email at sales@richsolar.com.The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
Features
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year limited power output warranty
- 10-year workmanship warranty
Built-in Components
- Panel leads (pair): 2 feet each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
Specifications
- Maximum Power(Pmax): 410W
- Maximum Power Voltage(Vmp): 31.3V
- Maximum Power Current(Imp): 13.1A
- Open Circuit Voltage(Voc): 37.5V
- Short Circuit Current(Isc): 13.8A
- Maximum System Voltage(Vmax): 1500VDC
- Temperature Range: -40°F ~ 185°F
- Max Series Fuse Rating: 25A
- Weight: 45.2 lb
- Dimensions: 67.9 x 44.6 x 1.2 in
