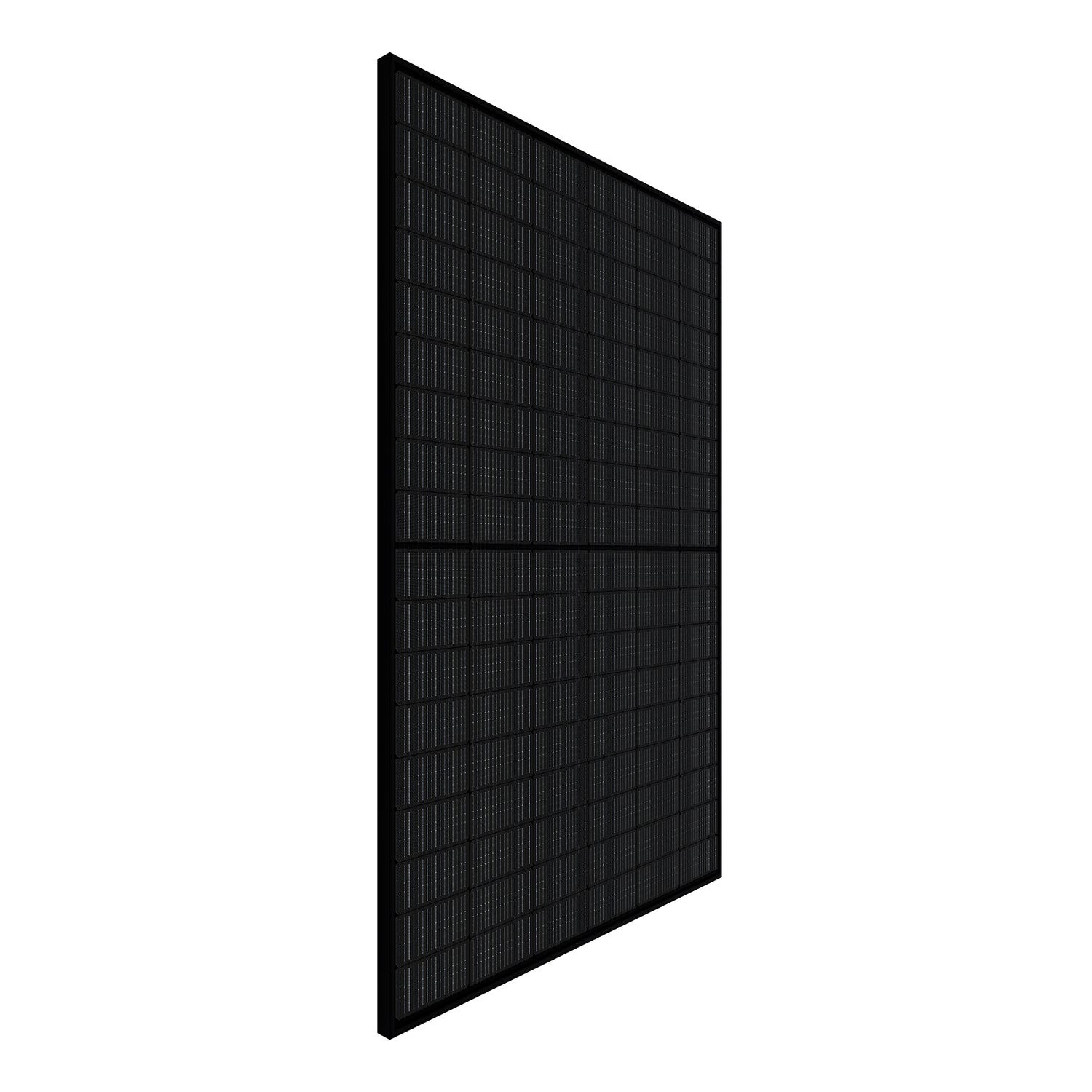

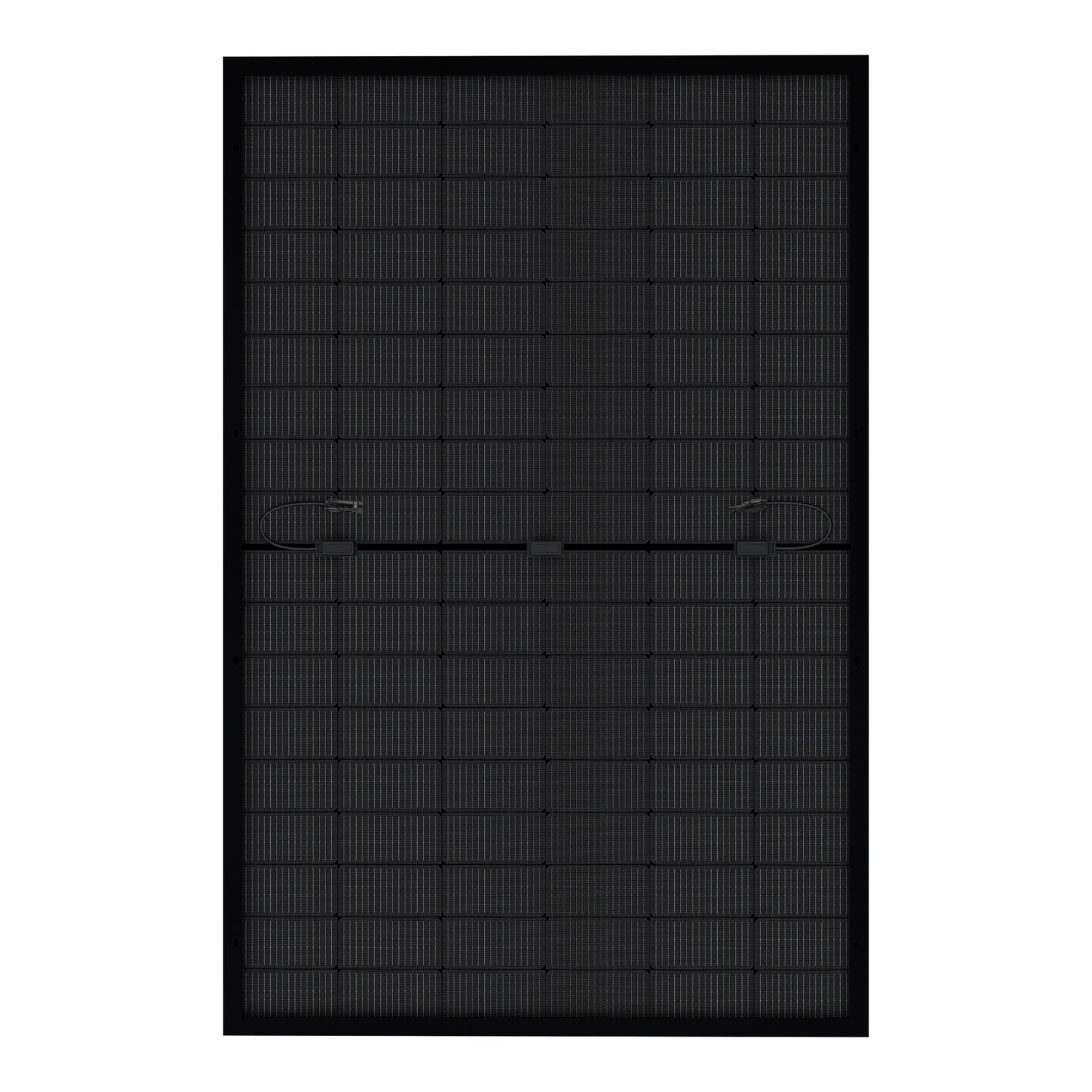

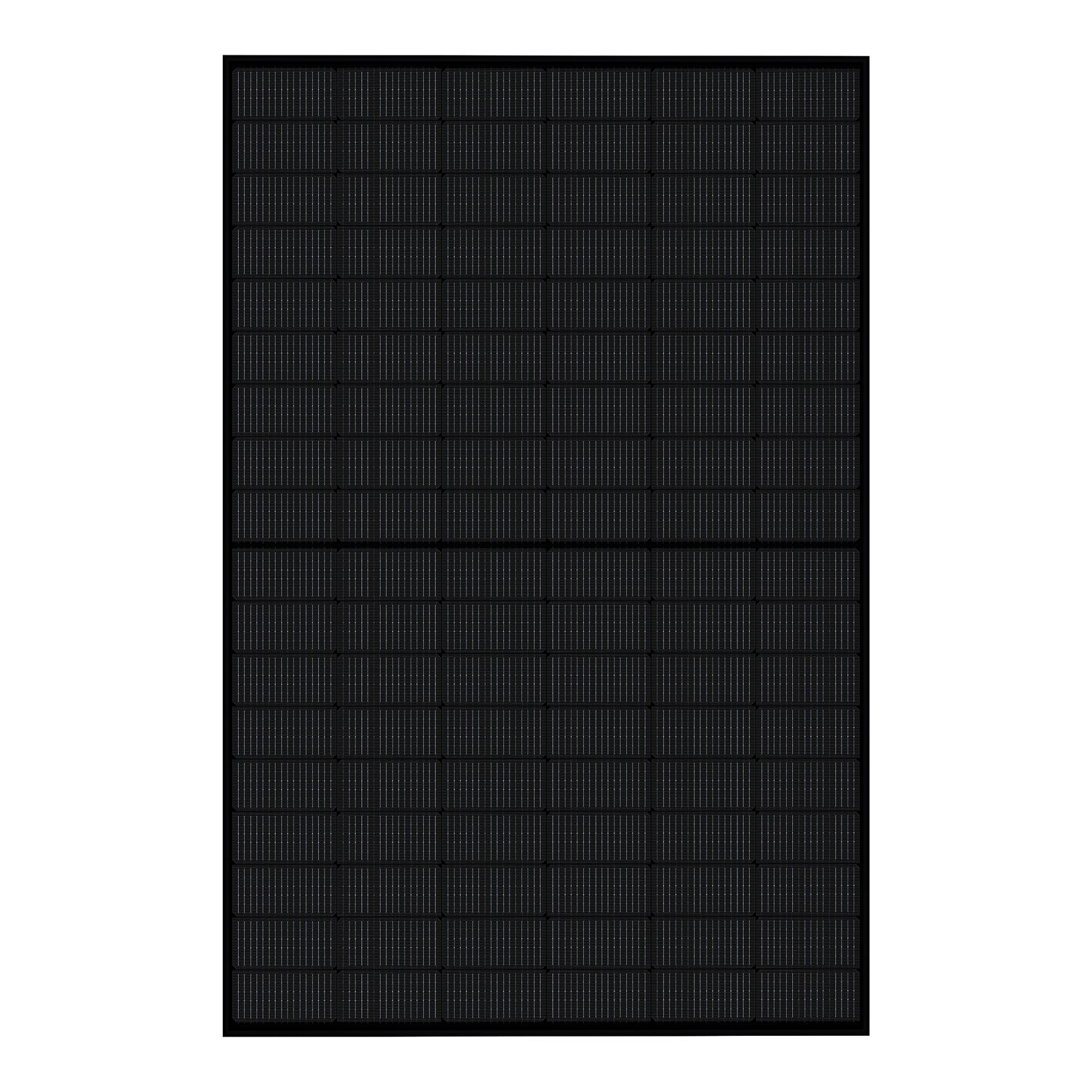

MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified - 8 Solar Panels is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Product Images
-
Peak Power430W
-
Module Efficiency22.0%
-
Max Power Voltage (Vmp)31.9V
-
Max Power Current (Imp)13.5A
-
Open Circuit Voltage (Voc)37.4V
-
Short Circuit Current (Isc)14.7A
-
Max Series Fuse Rating30A
-
Maximum System Voltage1500VDC
-
Number of Cells108 cells
-
Front Glass2.0 + 2.0 mm Tempered Glass
-
Frame MaterialAnodized Aluminum Alloy
-
Operating Temperature-40°F to 185°F
-
Dimensions67.8" × 44.7" × 1.2"
-
Weight50.9 lb
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V ...
MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified - 8 Solar Panels is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

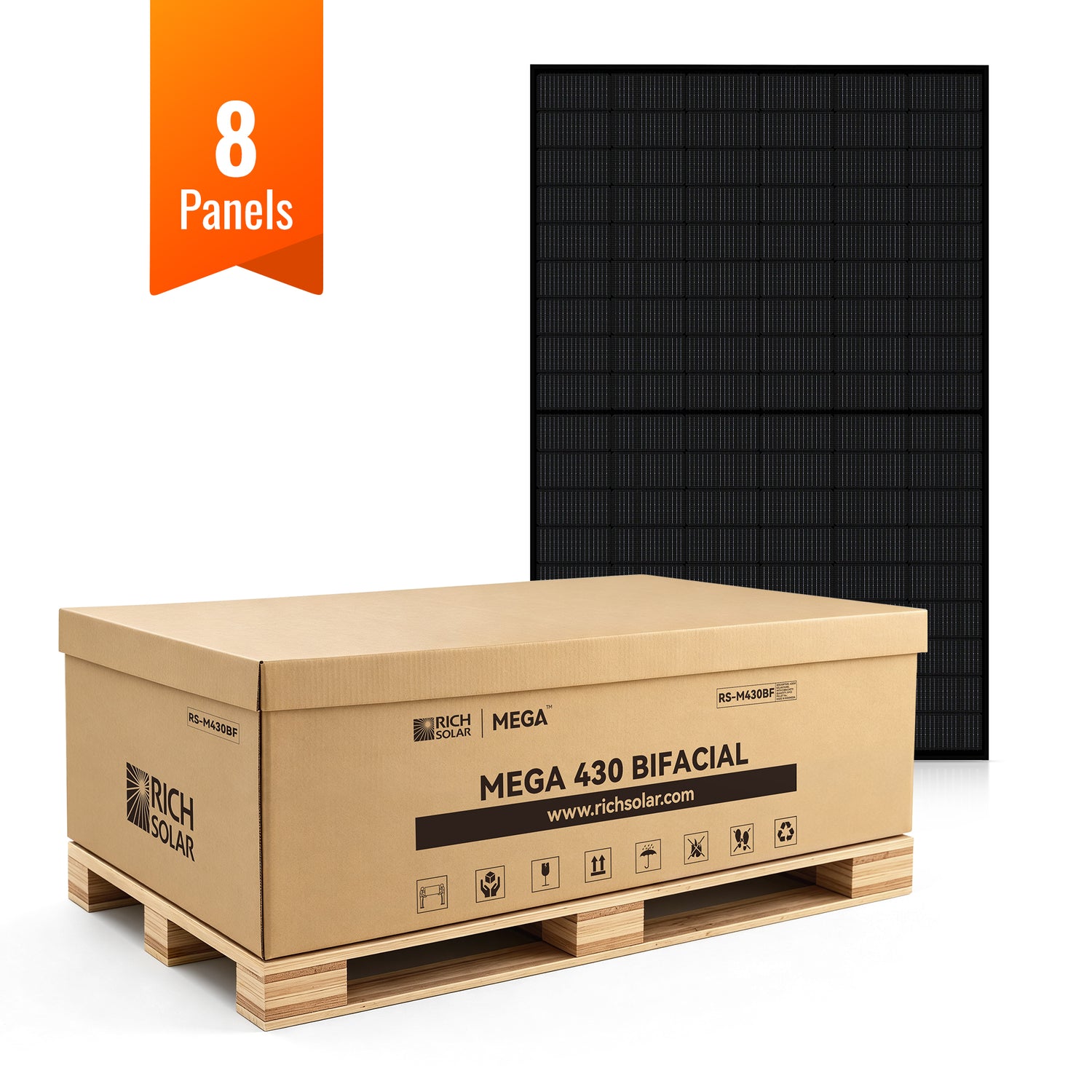

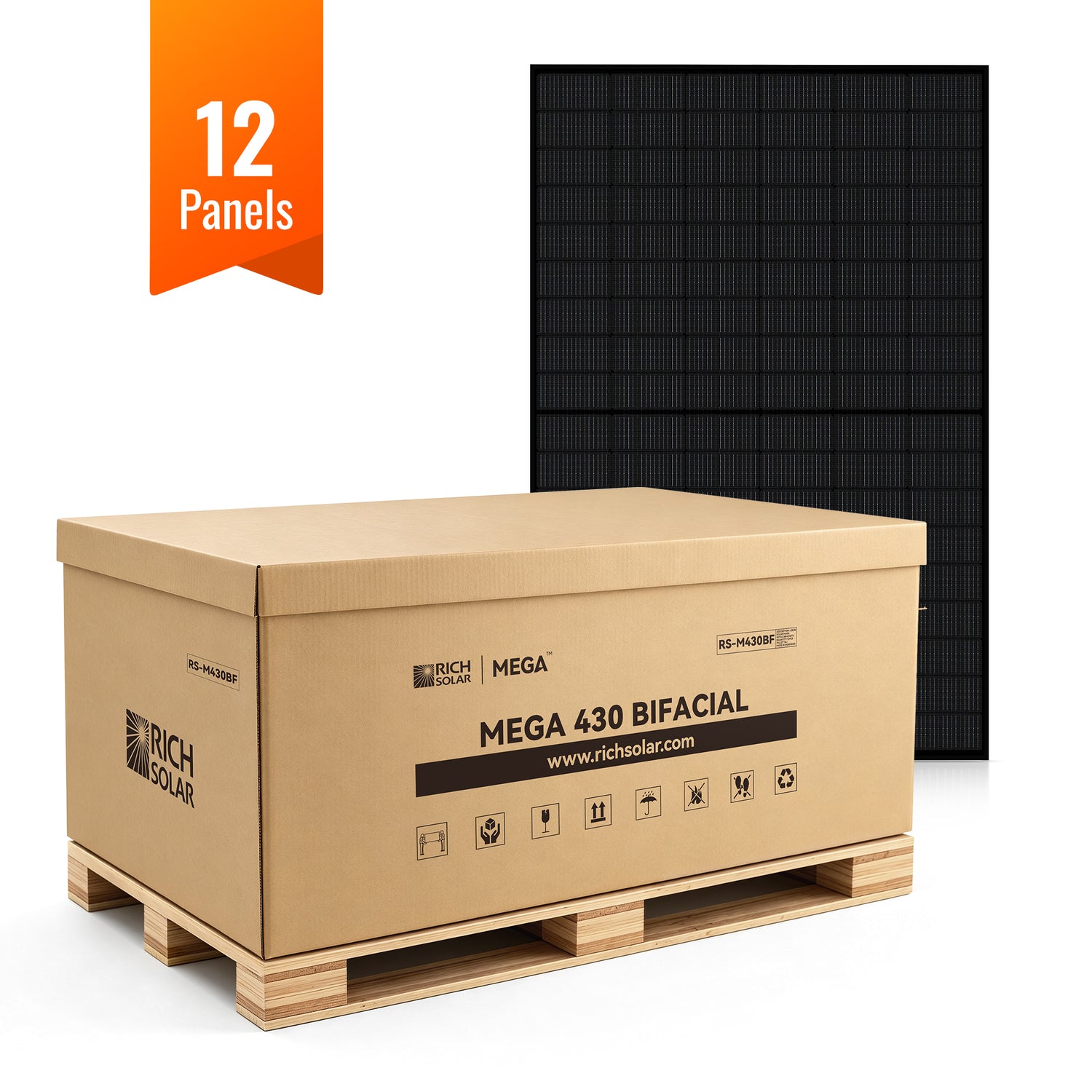

PALLET SHIPPING ONLY!
For any other quantities, please call our sales team at 1-800-831-9889 or email us at sales@richsolar.com.
Features
- 24V off-grid solar panel.
- 14-busbar N-Type TOPCon cells with up to 25.1% efficiency.
- Excellent IAM and low-light performance for reliable energy production.
- Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo.
- 108-cell configuration delivers a reliable 430W output.
- 2.0 mm front and rear tempered glass maximizes durability and bifacial performance.
- Power tolerance 0 to +5W ensures at least the rated output.
- Excellent low-light performance on cloudy days and at dawn/dusk.
- PID-resistant and 100% EL-inspected to help prevent microcracks.
- Rated for 5400 Pa snow loads and 2400 Pa wind loads.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
- Ideal for residential, agricultural, and commercial off-grid.
Installation
- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- MC4 connectors with 4 ft pre-attached cables for quick and easy installation
- Compatible with both on-grid and off-grid inverters
Warranty
- 25-year output warranty.
- 10-year workmanship warranty.
Built-in Components
- Panel Leads (Pair): 12 AWG, 4 ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Peak Power: 430W
- Module Efficiency: 22.0%
- Max Power Voltage (Vmp): 31.9V
- Max Power Current (Imp): 13.5A
- Open Circuit Voltage (Voc): 37.4V
- Short Circuit Current (Isc): 14.7A
- Max Series Fuse Rating: 30A
- Maximum System Voltage: 1500VDC
- Number of Cells: 108 cells
- Front Glass: 2.0 + 2.0 mm Tempered Glass
- Frame Material: Anodized Aluminum Alloy
- Operating Temperature: -40°F to 185°F
- Dimensions : 67.8" × 44.7" × 1.2"
- Weight: 50.9 lb
