Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

Name: Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins
Brand: RICH SOLAR
SKU: RS-G05
Price: 28.99 USD
Availability: InStock

SKU: RS-G05

$28.99

Model

10AWG Cable 8AWG Cable

Specifications & Downloads

Full Specification:

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

High Power Capacity

Rated for 37.7A / 600V with UL1015-certified 8AWG tin-plated copper wires
Tin-plated conductors ensure stable, corrosion-resistant performance

Certified Fire Safety

MC4 connectors are UL Listed and UL94V0 flame-retardant
VW-1 rated PVC insulation resists heat up to 221°F (105°C)

Outdoor-Ready Durability

IP68 waterproof MC4 connectors, pre-installed for secure sealing
Flame-retardant PP housing operates from -40°F to 185°F
Reinforced design resists vibration, ideal for mobile and RV use

Quick Flexible Installation

Small and light (5.9×4.3×1.6 in, 0.34 lb), requires no extra roof support

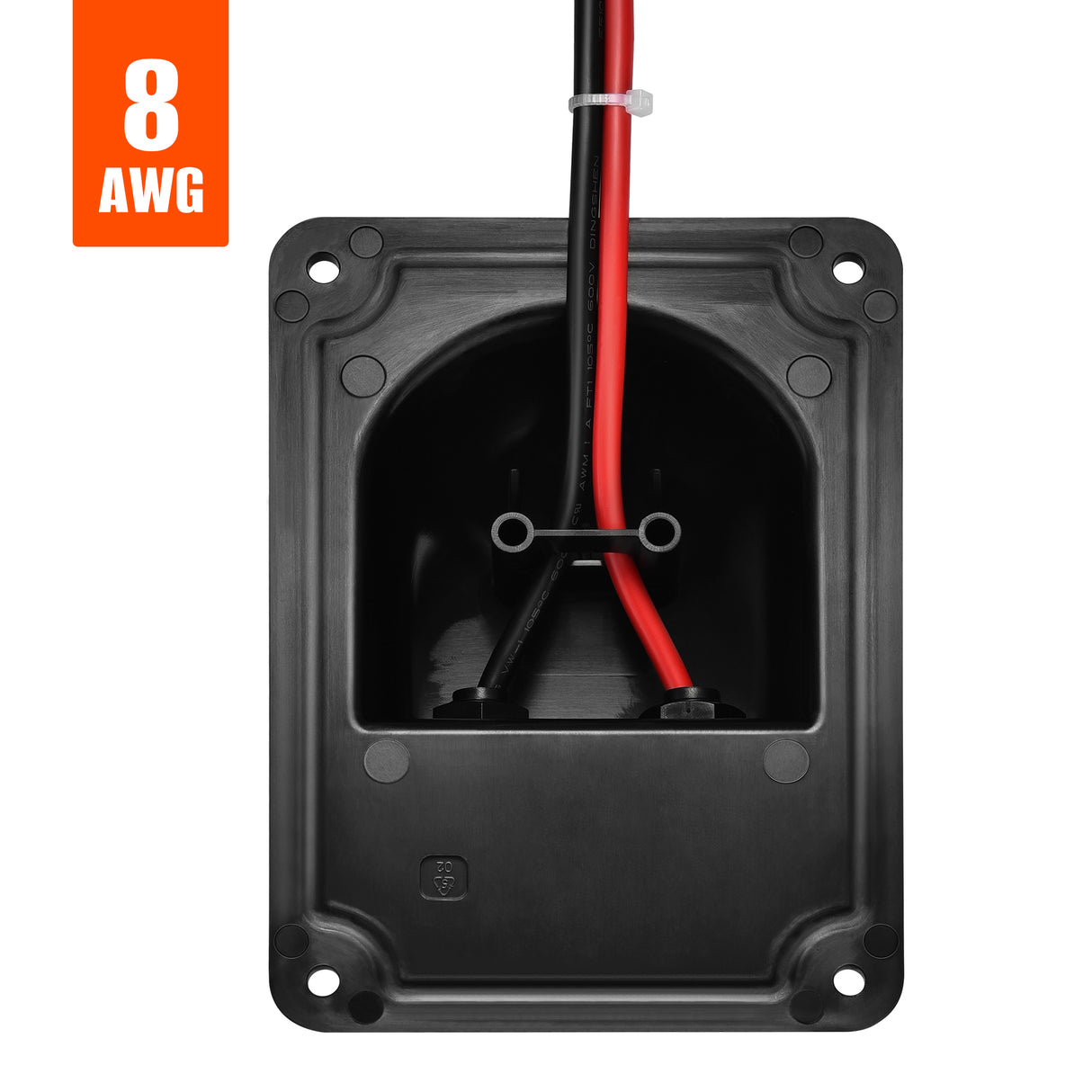

Red/black 8AWG wires with polarity markings
Mount with adhesive, sealant, or screws (not included)

Specifications

General

Dimensions (L × W × H): 5.9 × 4.3 × 1.6 in
Weight: 0.34 lb
Material: Flame-Retardant Polypropylene (PP)
Color: Black
Operating Temperature: -40°C to 85°C (-40°F to 185°F)

MC4 Connector Details

Material: PC Shell
Waterproof Rating: IP68
Flame Retardant: UL94V0 Certified
Certification: UL Listed

Electrical Ratings

Maximum Current: 50A
Continuous Current: 37.7A
Maximum Voltage: 600V (Wire Rating)
Wire Standard: UL 1015 8AWG (Red/Black)
Wire Conductor: Tin-Plated Copper
Wire Insulation: PVC (VW-1 Fire Rated)
Wire Temperature Range: -15°C to 105°C (5°F to 221°F)
