1600 Watt 24V Complete Solar Kit

SKU: RS-CK1600
$4,999.99

Warranty

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST


Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

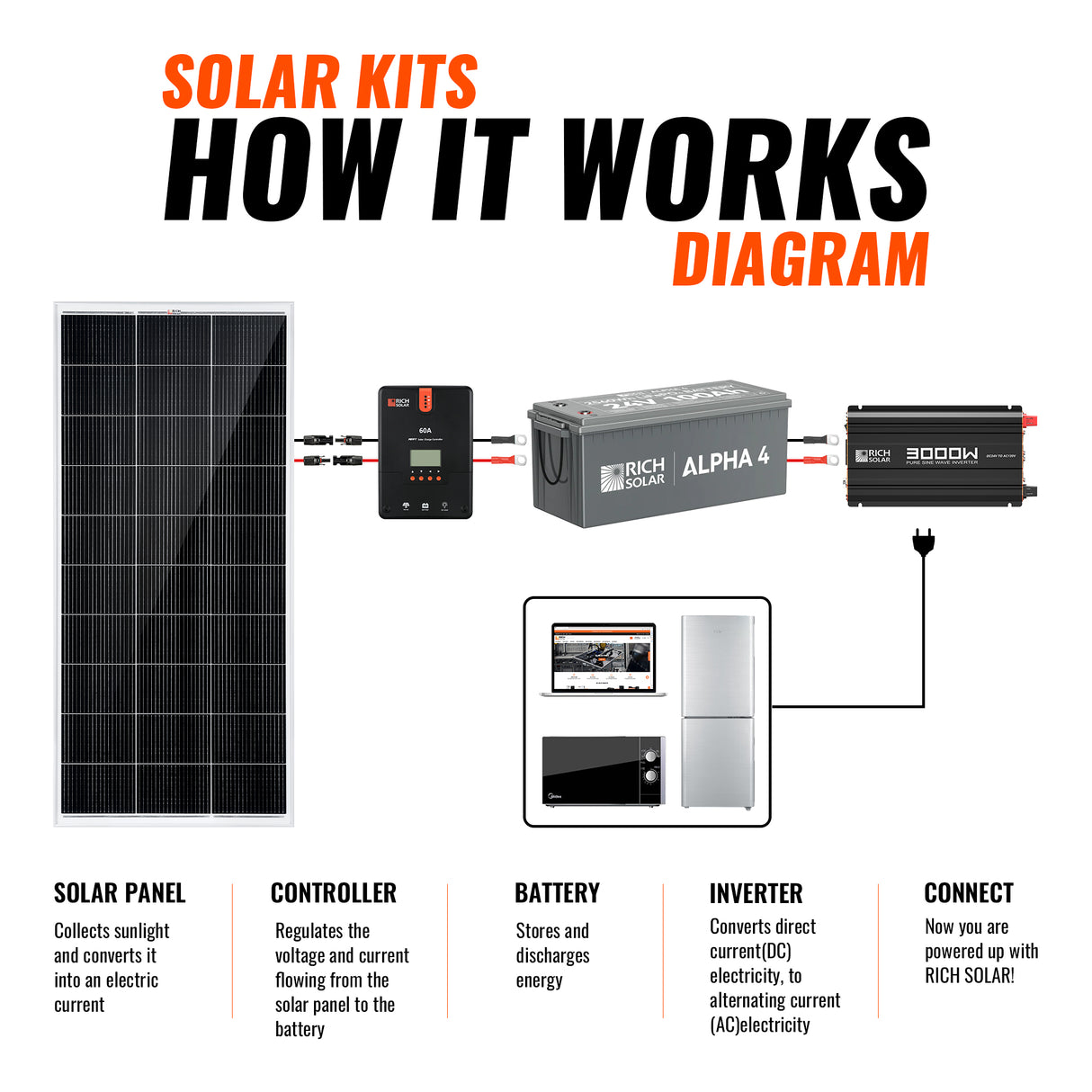

Dreaming of the ultimate solar-powered travel trailer? Our 1600W 24V Complete Solar Kit has everything you need to harness, store, and utilize solar energy efficiently. This kit includes eight high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 3000W 24V inverter, and two ALPHA 4 Lithium batteries. Perfect for your RV or tiny home, this kit will launch your solar adventure today!

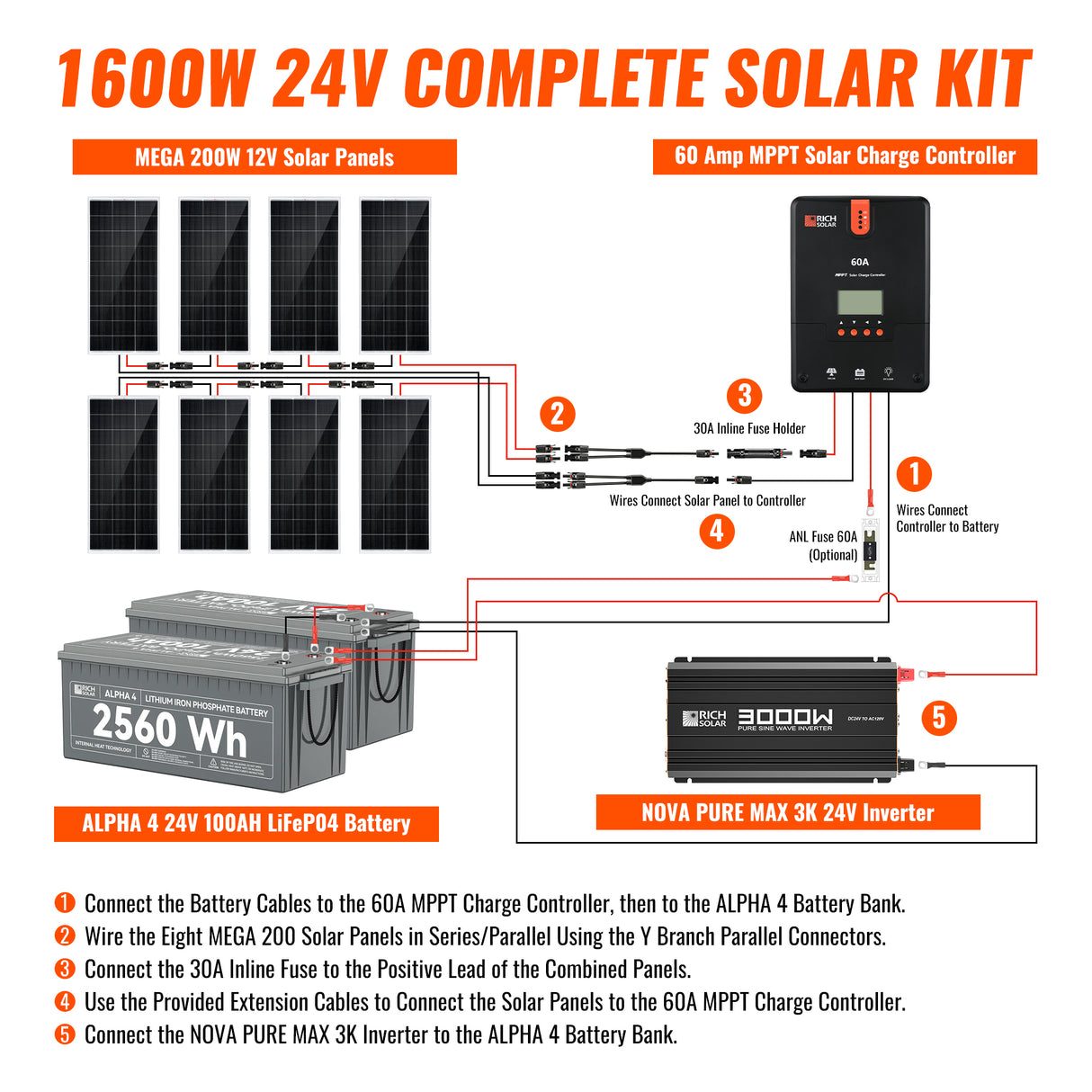

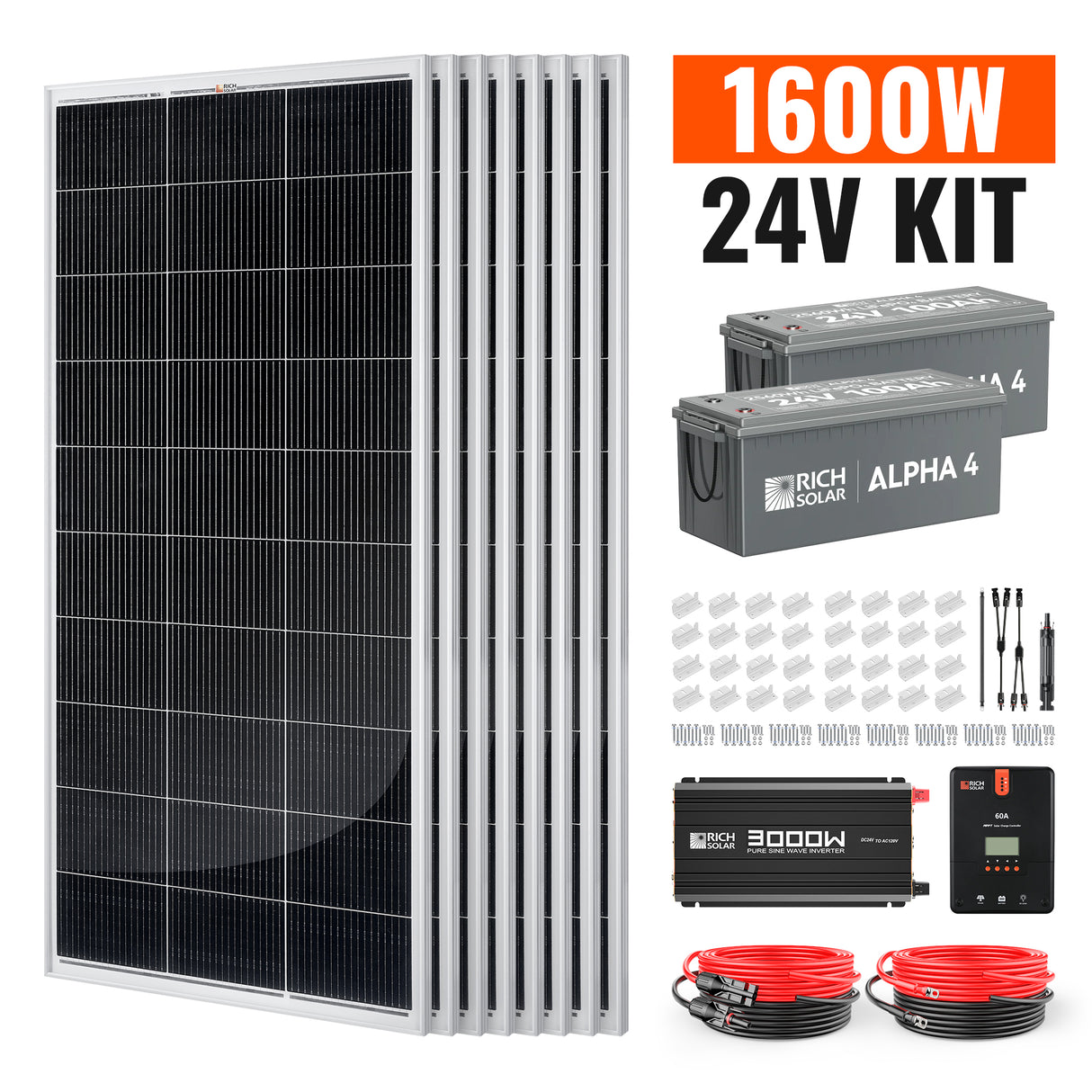

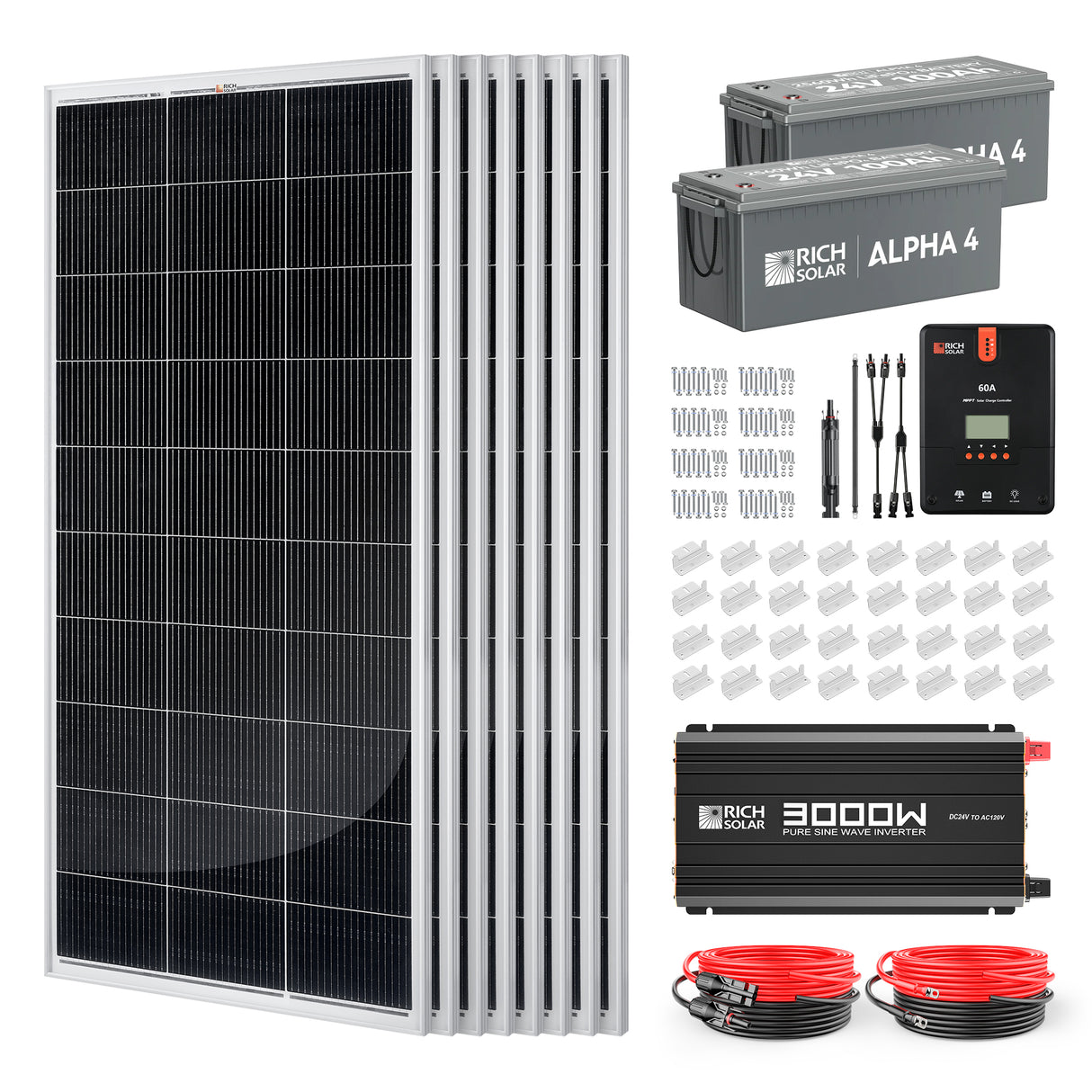

Kit Includes:

  • 8 x MEGA 200W 12V Panel (RS-M200)
  • 2 x ALPHA 4 Lithium Battery (RS-B241S)
  • 1 x NOVA 3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 8 x Z Bracket Set (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC15F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8 4 AWG Battery Cable Set (RS-C48R & RS-C48B)
  • MEGA 200 Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    • No. of Panels: 8 x MEGA 200 Watt Solar Panels
    • Wattage Per Panel: 200W
    • Total Wattage of Panels: 1600W

    Features:

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Nominal Operating Cell Temp (NOCT): 113 +/-35° F
    • Temperature Range: -40 ~ +185°F
    • Weight: 23.6 lbs
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • Alpha 4 24V 100Ah LiFePO4 Battery

    Features:

    • Stay powered in low temps with advanced internal heating tech
    • Track battery health in real time from your phone
    • Over 5,000 cycles with UL94 V-0 flame-retardant protection
    • IP65 waterproof, dustproof, and tested for extreme safety
    • Free of toxic metals—safe for you and the planet
    • Lightweight design, heavy-duty performance
    • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

    Warranty:

    • *5-Year Warranty

    Specifications:

    Battery

    • Cell Type: Lifepo4 Battery
    • Nominal Voltage: 25.6v
    • Nominal Capacity: 100ah
    • Nominal Energy: 2560wh
    • Cycle Life: 5000 Cycles
    • Maximum Expansion (Parallel & Series): 4p4s

    BMS

    • BMS: 100a
    • Maximum Charging Current: 100a
    • Maximum Continuous Discharge Current: 100a
    • Maximum Discharge Current 10 Seconds: 110a

    Charge

    • Charge Method: Cc/cv
    • Charge Voltage: 14.4v ± 0.2v
    • Recommend Charge Current: 50a (0.2c)

    Temperature

    • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
    • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
    • Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

    Self-heating

    • External Power Draw: 100w
    • Internal Heating Starts: < 41℉ (5℃)
    • Internal Heating Stops: > 50℉ (10℃)

    Others

    • Net Battery Weight: 48.5lb
    • Size(L*w*h): 20.9x8.1x8.5in
    • Housing Material: Abs (Flame Retardant Plastic)
    • Protection Class: Ip65
    • Warranty: 5 Years
    • Certifications: Ul1973, Fcc, Un38.3, Etl
  • NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

    Features:

    • Electronic overload protection with automatic shutdown.
    •  Built-in internal backup DC fuse provides added safety.
    • Low battery voltage protection with automatic shutdown.
    • Over-temperature protection with automatic shutdown.
    • Output short-circuit protection.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Model: RS-V3P24
    • Rated Voltage: 24V DC
    • Continuous Power: 3000W
    • Peak Surge: 6000W
    • Waveform: Pure Sine Wave
    • Input Voltage: 24V DC
    • Output Voltage: 120V AC
    • Output Frequency: 60 Hz
    • Output Efficiency: >88%
    • AC Output Sockets: 3
    • USB Power Port: 5V / 2.1A
    • Power Output Control: AC On/Off Switch
    • Operating Temperature: 14°F to 122°F
    • Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
    • Weight: 12.1 (lb) / 5.5 (kg)
  • 60 Amp MPPT Solar Charge Controller

    Features:

    • Automatically detects 12V/24V/36V/48V DC system voltages.
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
    • Features diverse load control; also capable of charging over-discharged lithium batteries.
    • Die-cast aluminum design allows for efficient heat dissipation.
    • RS232 port for communicating with BT-1 Bluetooth module.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Rated Battery Current: 60A
    • Rated Load Current: 20A
    • Max Solar Input Voltage: 150V
    • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
    • Charge Circuit Voltage Drop: = 0.26V
    • Discharge Circuit Voltage Drop: = 0.15V
    • Operating Temperature: -31 °F to 113 °F
    • Max Terminal Size: 4AWG
    • Overall Dimensions: 11.2 x 8.1 x 4.0 in
    • Net Weight: 7.9 lb
