100 Watt Solar Kit

SKU: RS-K1002
$299.99

Warranty

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST


Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Our 100W Kit is the perfect way to start your off-grid adventure! One of the best RV off-grid solar system kits, this includes a high-efficiency 100W Monocrystalline panel with 9 busbars and a 20A MPPT controller that can handle up to 300W while charging a 12V battery bank. This kit can be paired with our 100AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your camper solar setup whether it’s on an RV, boat, or trailer!

Kit Includes:

  • 1 x 100 Watt Monocrystalline Solar Panel
  • 1 x 20A MPPT Solar Charge Controller
  • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
  • 1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery (RS-1010)
  • 1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery (RS-1010)
  • 1 x Mounting Z Brackets (one set) (RS-ZB4C)
  • 1 x 10A Inline Fuse Holder with Fuse (RS-SC10F)
  • 100w_12v_monocrystalline_solar_panel_-_rich_solar_-_1__PID:fbc9c043-3388-4ca5-bf16-3361827b1f79

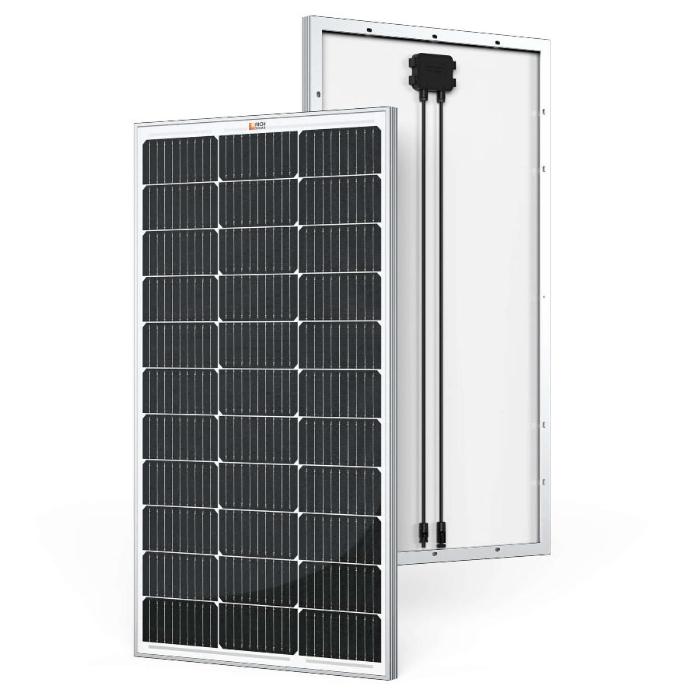

    MEGA 100 Watt Solar Panel

    The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 is UL Certified and can handle whatever you throw at it.

    Features

    • 12V off-grid solar panel.
    • 0~+5W guaranteed positive power output.
    • IP67-rated.
    • Built with strong tempered glass and aluminum frame.
    • Certified to withstand challenging environmental conditions.
    • Excellent low light performance on cloudy days, mornings and evenings.

    Installation

    • Easy installation and handling for various applications.
    • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
    • Compatible with on-grid and off-grid inverters.

    Warranty

    • 25-year output warranty.
    • 10-year workmanship warranty.

    Specifications

    • Maximum Power(Pmax): 100W
    • Maximum Power Voltage(Vmp): 18.6V
    • Maximum Power Current(Imp): 5.38A
    • Open Circuit Voltage(Voc): 22.8V
    • Short Circuit Current(Isc): 5.78A
    • Maximum System Voltage(Vmax): 1000VDC
    • Weight: 15 lb
    • Dimensions: 39.0 x 21.3 x 1.2 in

  • 20 Amp MPPT Solar Charge Controller - RICH SOLAR

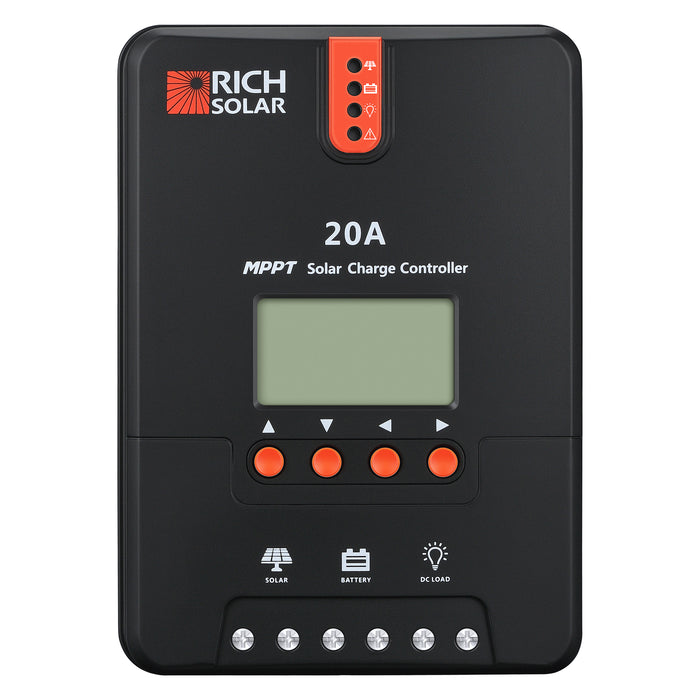

    20 Amp MPPT Solar Charge Controller

    Features

    • Automatically detects 12V or 24V DC system voltages
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
    • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
    • Features diverse load control; also capable of charging over-discharged lithium batteries
    • Die-cast aluminum design allows for efficient heat dissipation
    • RS232 port to communicate with BT-1 Bluetooth module

    Warranty

    • 2-Year Warranty

    Specifications

    • Nominal System Voltage: 12V/24V Auto Recognition
    • Rated Battery Current: 20A
    • Rated Load Current: 20A
    • Max. PV Input Short Current: 25A
    • Max. Battery Voltage: 32V
    • Max Solar Input Voltage: 100 VDC
    • Mounting Oval: 0.30 x 0.18 in
    • Net Weight: 3.08 lb
    • Discharge Circuit Voltage Drop: = 0.15V
    • Overall Dimensions: 8.27 x 5.94 x 2.34 in
