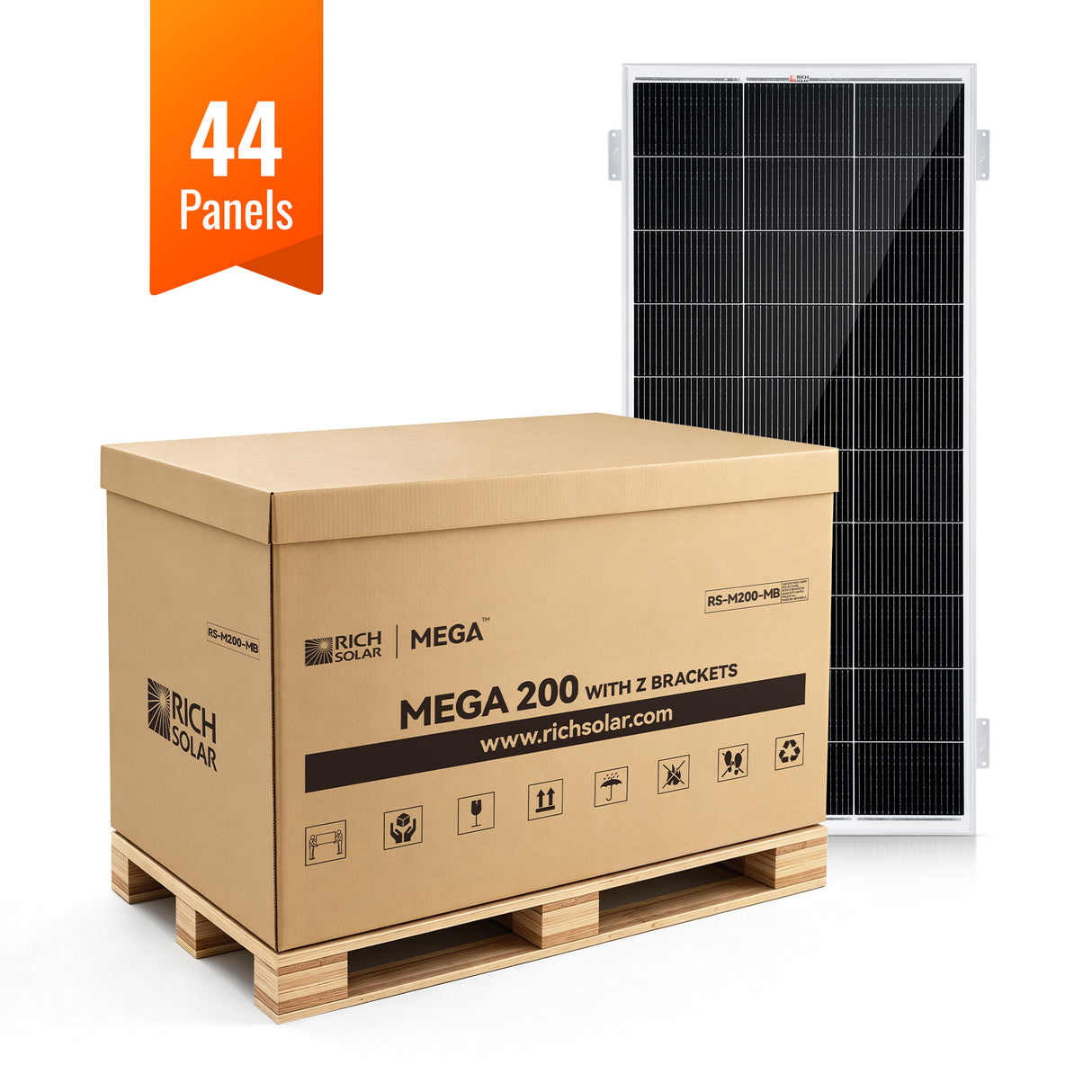

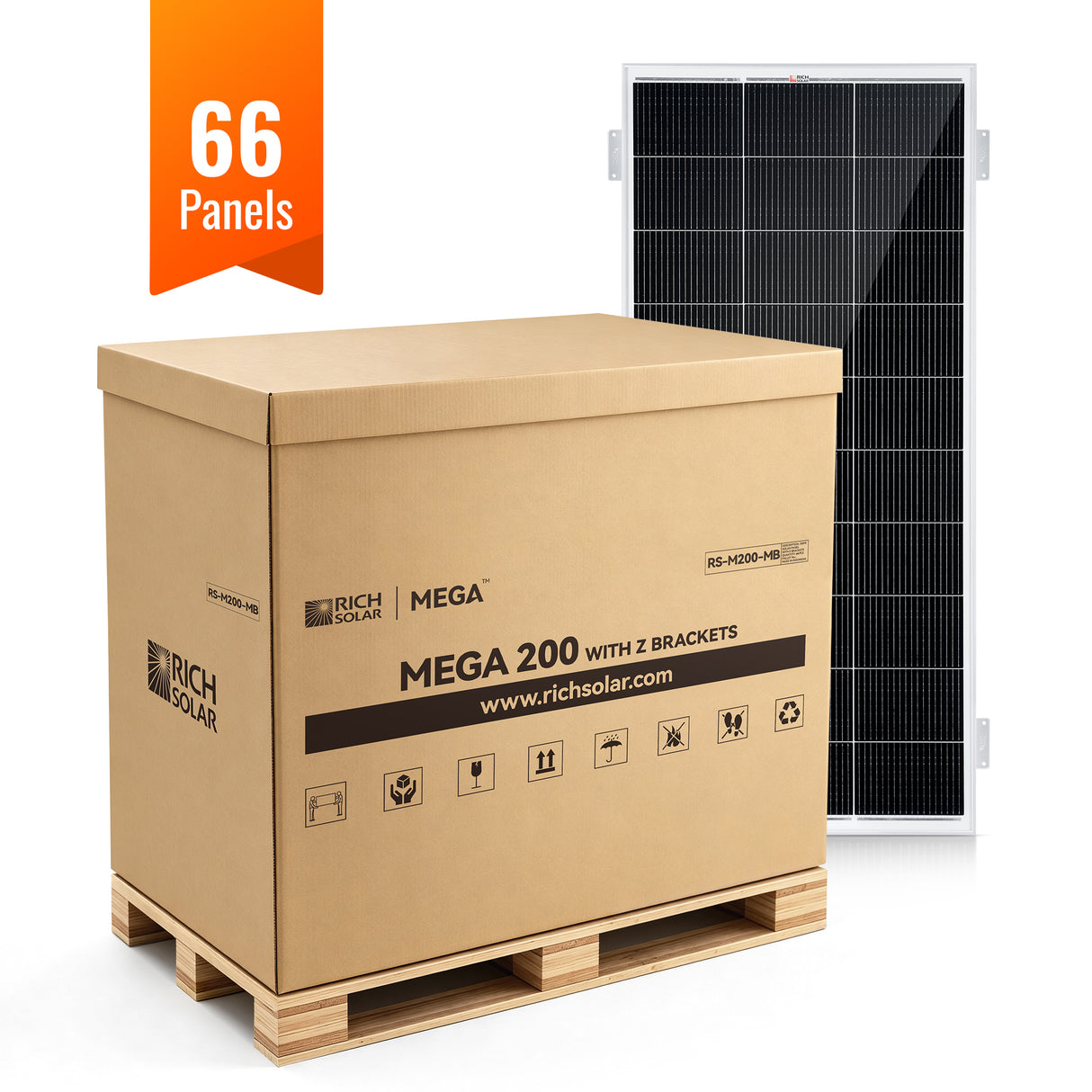

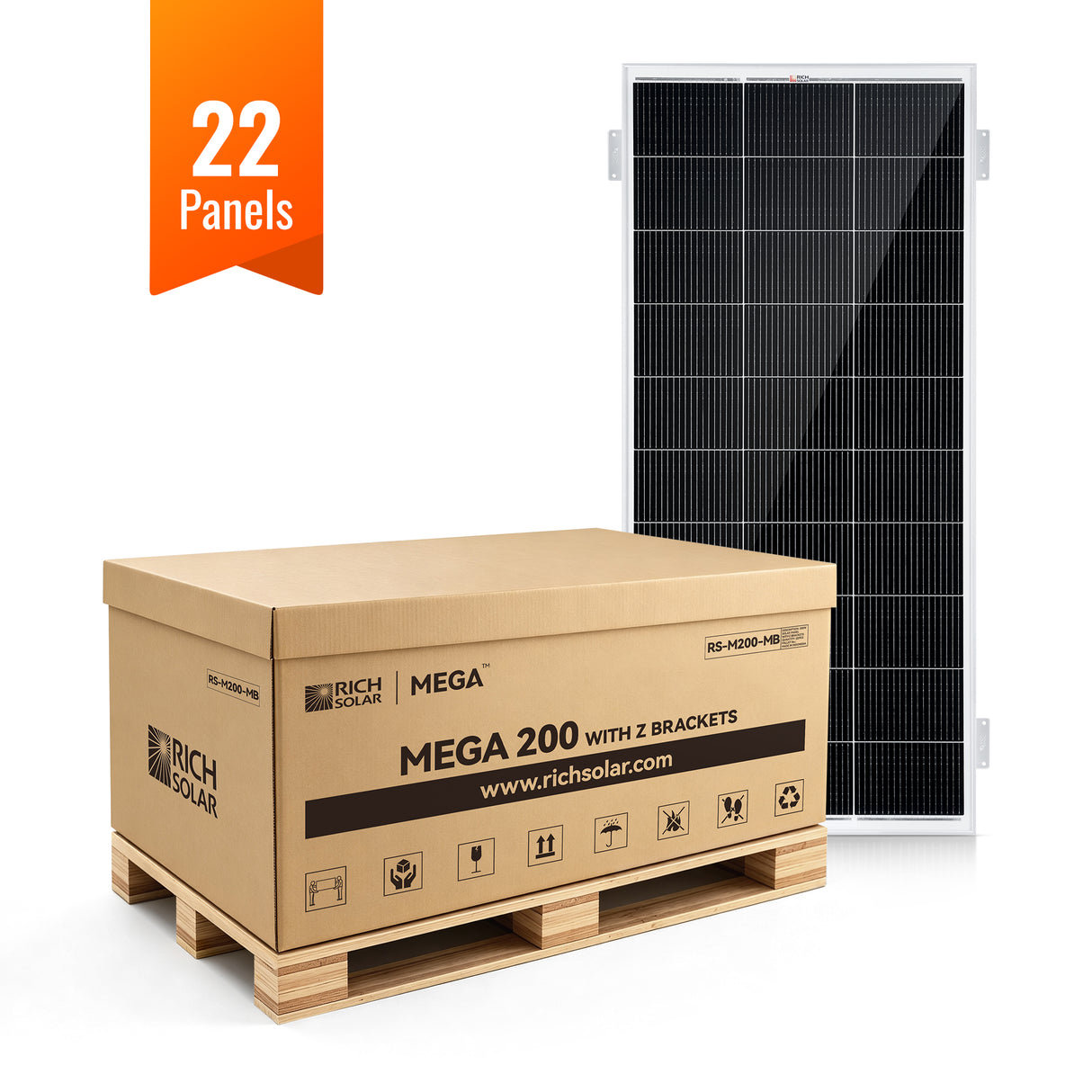

MEGA 200 WITH 3/4" Z BRACKETS | 12V 200W Solar Panel for RV, Boat, Cabins | 25.3% Efficiency, 25-Year Warranty | UL Certified | Pallet Orders Only (22/44/66 PCS)

Features

• 12V off-grid solar panel.
• 18-busbar N-Type TOPCon cells with up to 25.3% efficiency.
• 30-cell configuration delivers a reliable 200W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• Rigorously tested for UV, thermal cycling, humidity freeze, and more.
• PID-resistant and double EL-inspected to prevent microcracks.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, boats, cabins, and off-grid power systems.

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 3/4 in. anodized aluminum Z-brackets for quick and secure installation.
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year output warranty.
• 10-year workmanship warranty.

Built-in Components

• Panel Leads (Pair): 12AWG, 3 ft each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Peak Power: 200W
• Max Power Voltage (Vmp): 18.4V
• Max Power Current (Imp): 10.9A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 11.6A
• Max Series Fuse Rating: 15A
• Cell Type: Monocrystalline
• Number of Cells: 3 x 10 (30 cells total)
• Front Glass: 3.2 mm Tempered Glass
• Frame Material: Anodized Aluminium Alloy
• Operating Temperature Range: -40°F to 185°F
• Dimensions: 58.7" L × 26.8" W × 1.2" H
• Weight: 24 lb (10.9 kg)
• Z-Bracket Height: 3/4 in
