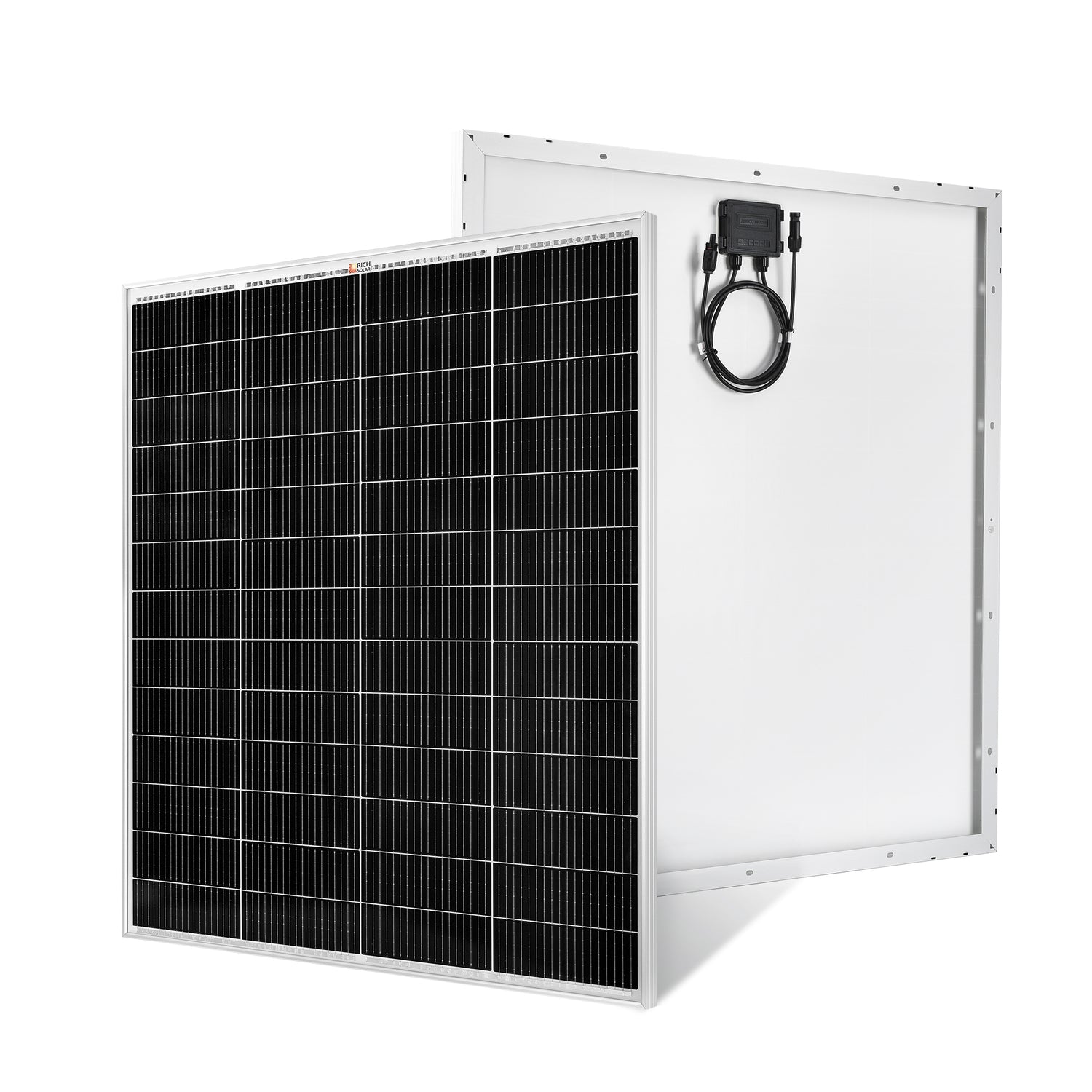

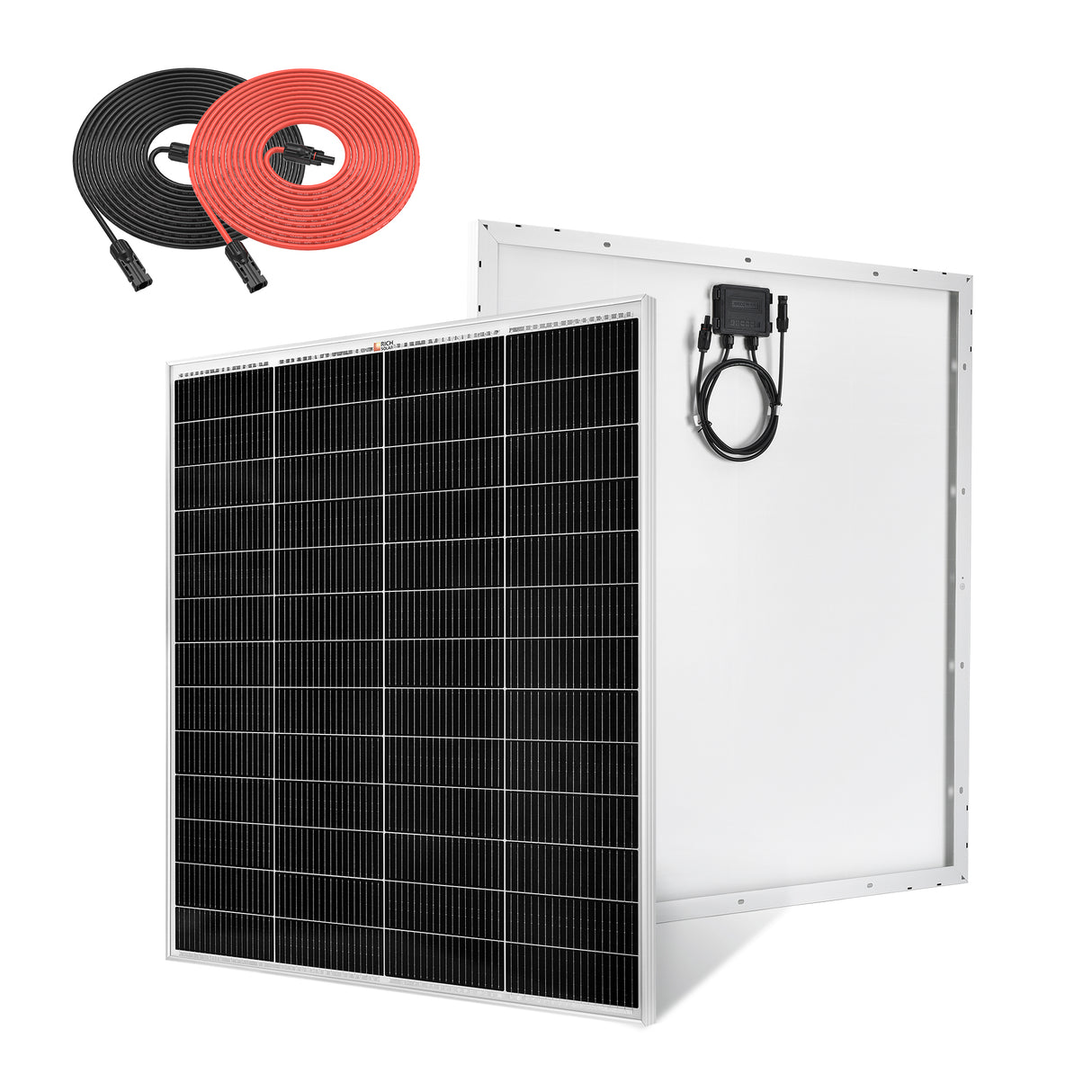

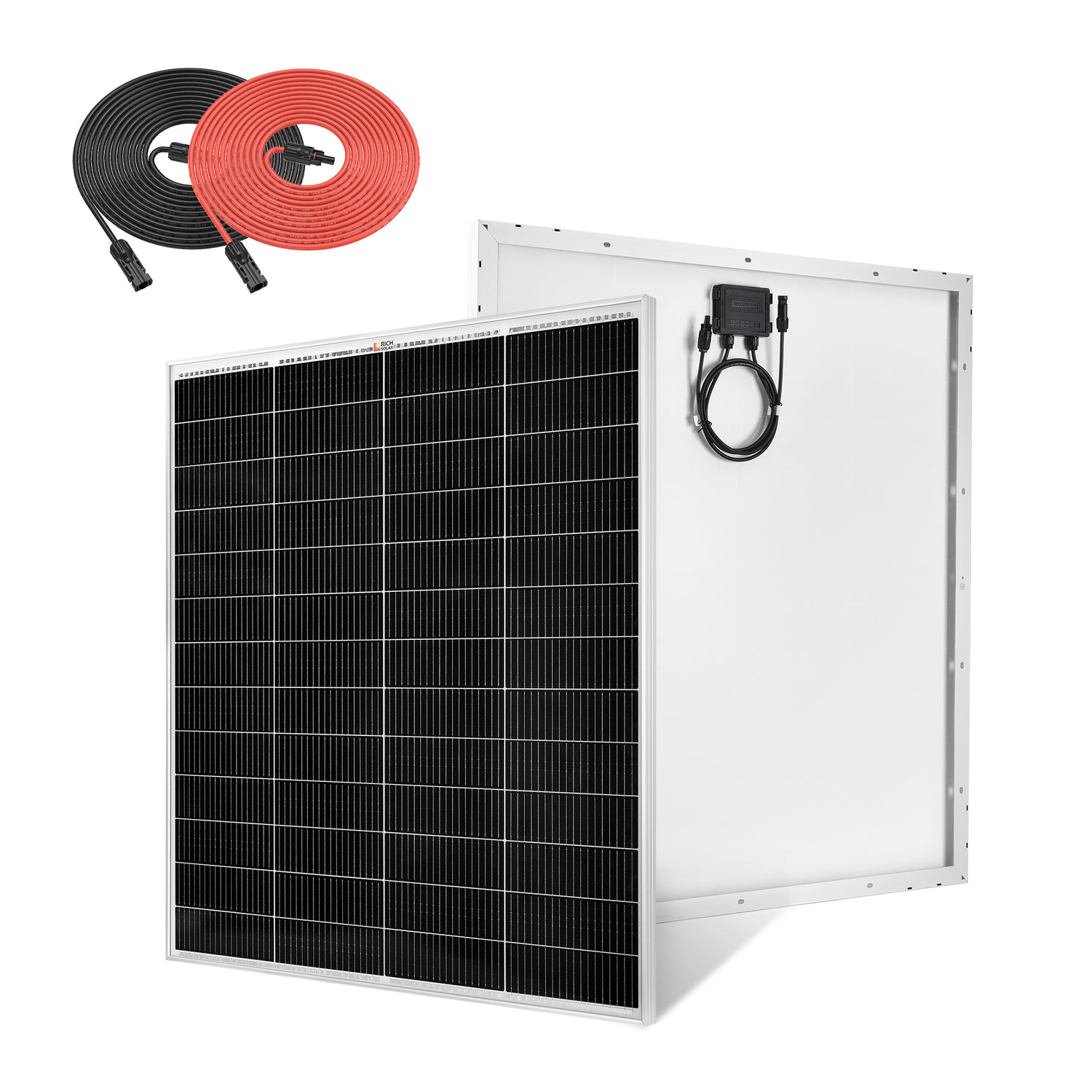

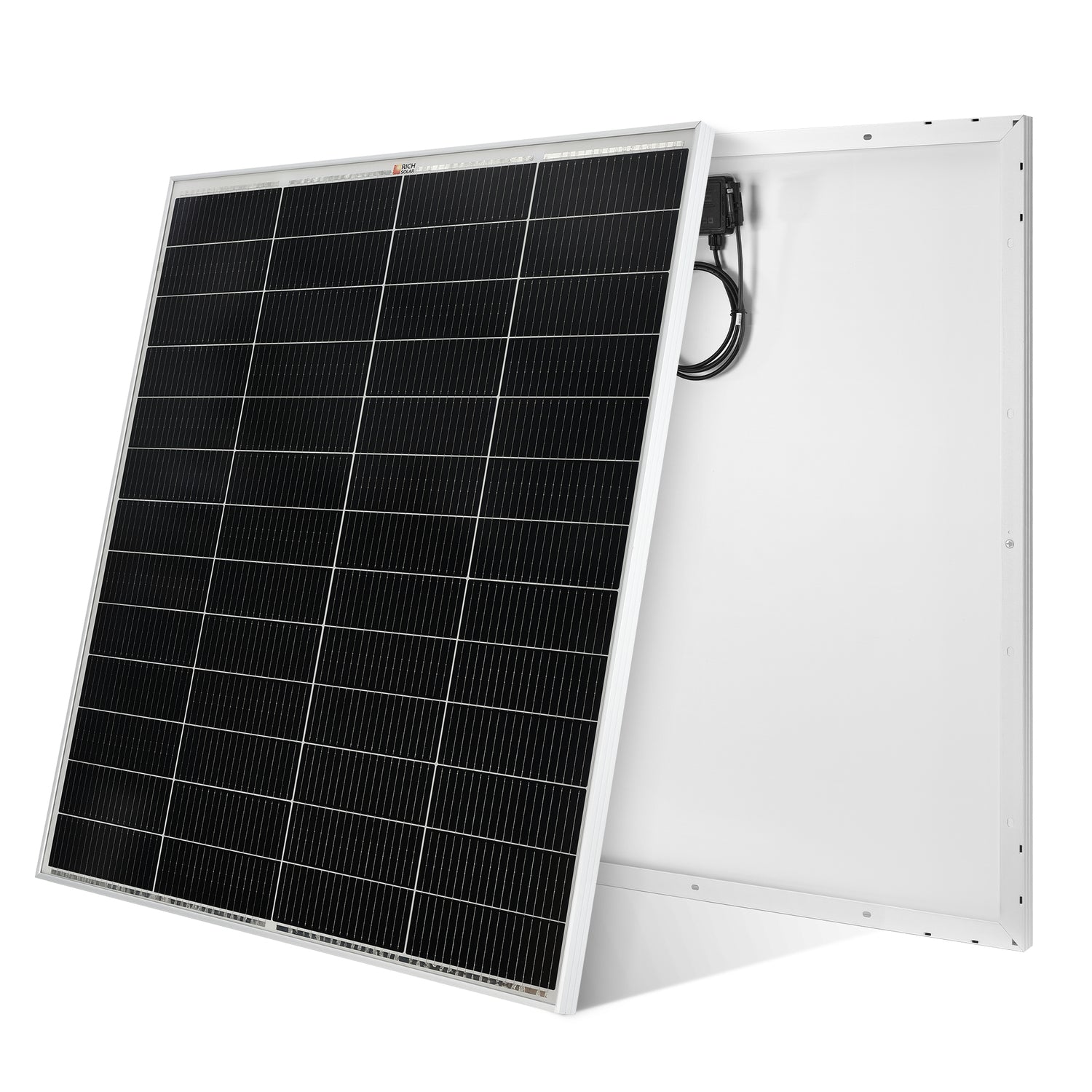

MEGA 175 PRO | 175 Watt Solar Panel with 20 FT MC4 Extension Cable Set | 24V Off-Grid Solar Panel for Vans, Campers & Boats | 25-Year Output Warranty

Features

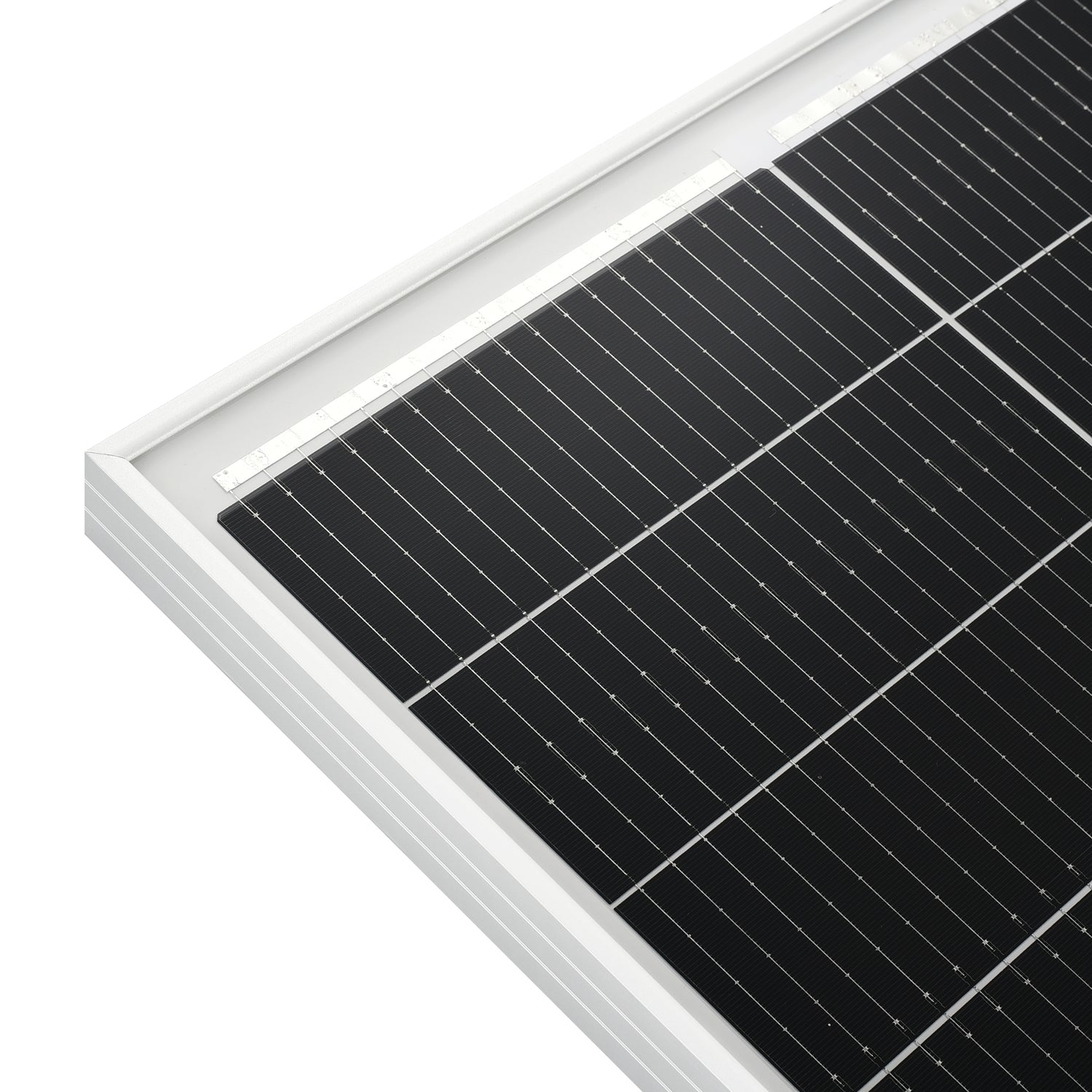

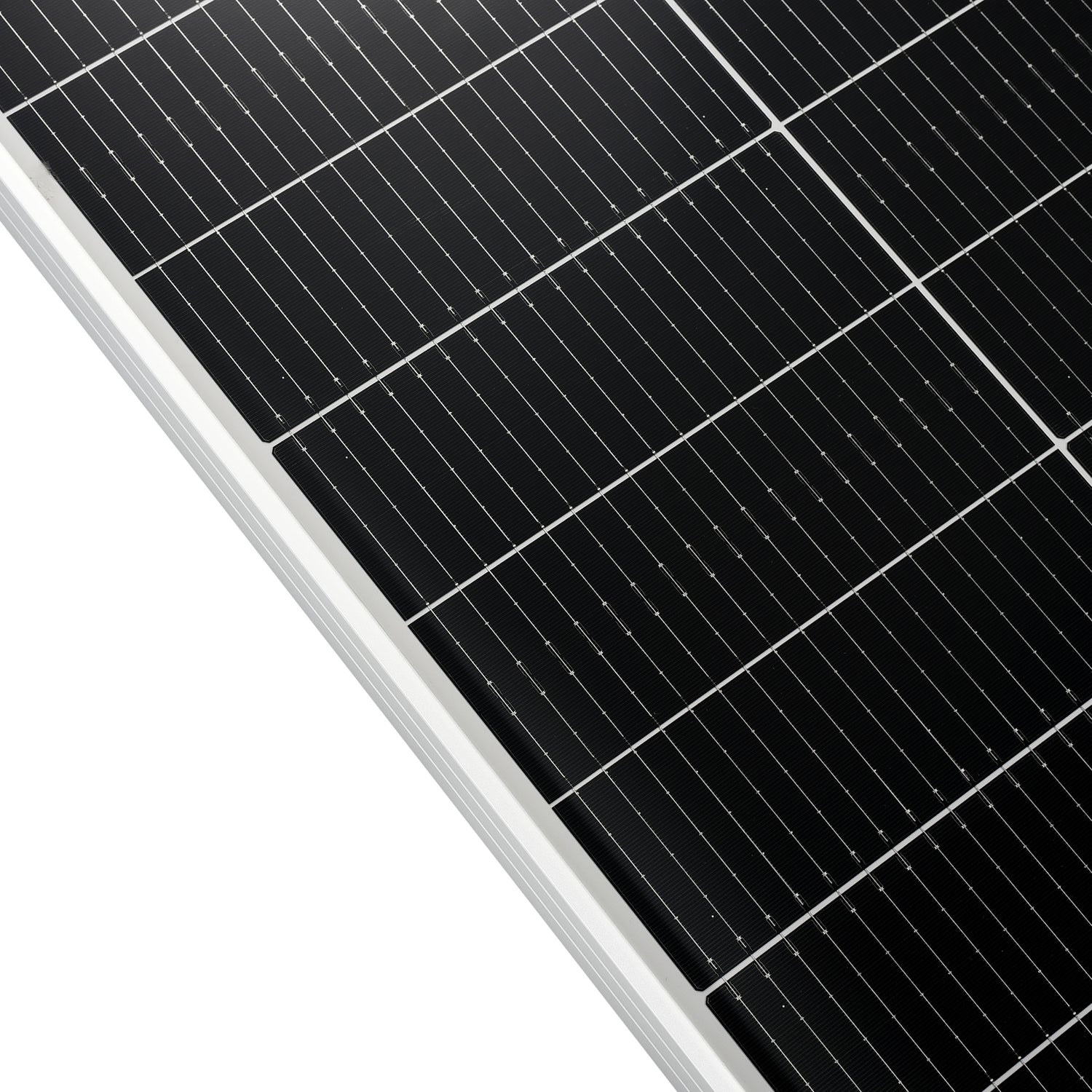

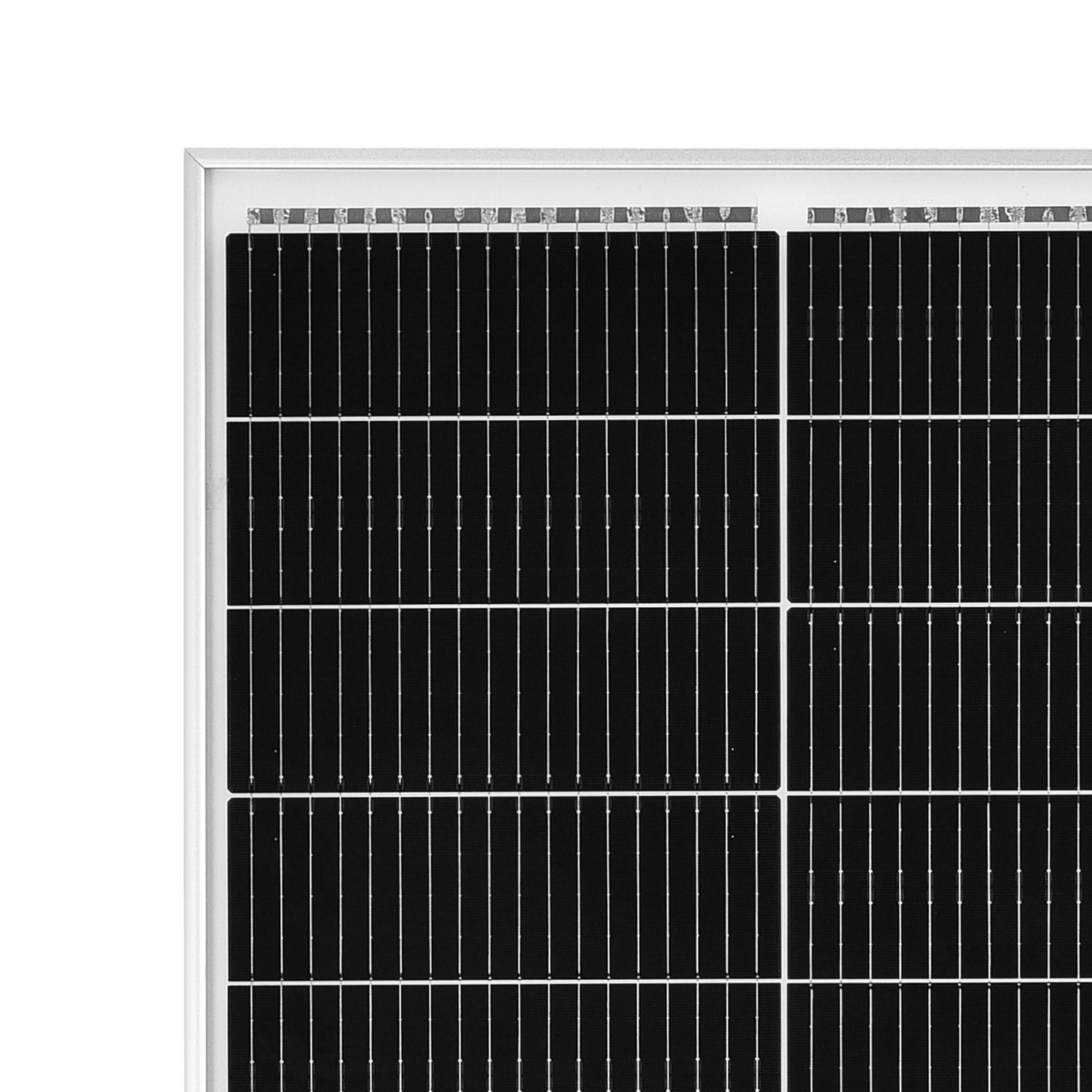

• 18-busbar N-Type TOPCon monocrystalline cells with up to 25.3% efficiency

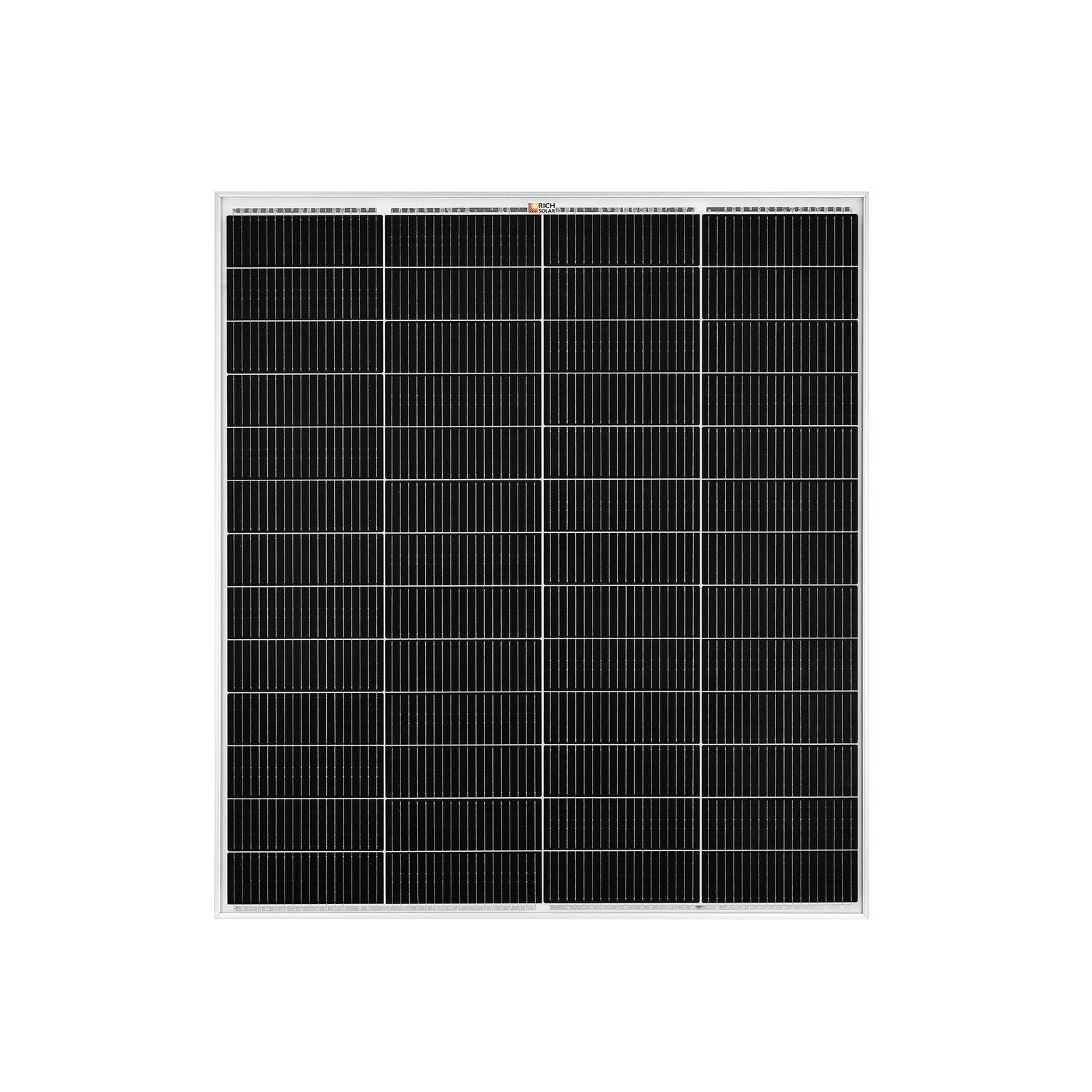

• 52-cell configuration delivers a reliable 175W output
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
• Power tolerance 0 to +5W ensures at least the rated output
• Excellent low-light performance on cloudy days and at dawn/dusk
• Rigorously tested for UV, thermal cycling, humidity freeze, and more
• PID-resistant and double EL-inspected to prevent microcracks
• Certified to withstand 2400 Pa wind and 5400 Pa snow load
• Includes a 20-foot solar extension cable for flexible installation
• Perfect for off-grid systems, RVs, boats, and mobile power setups

Installation

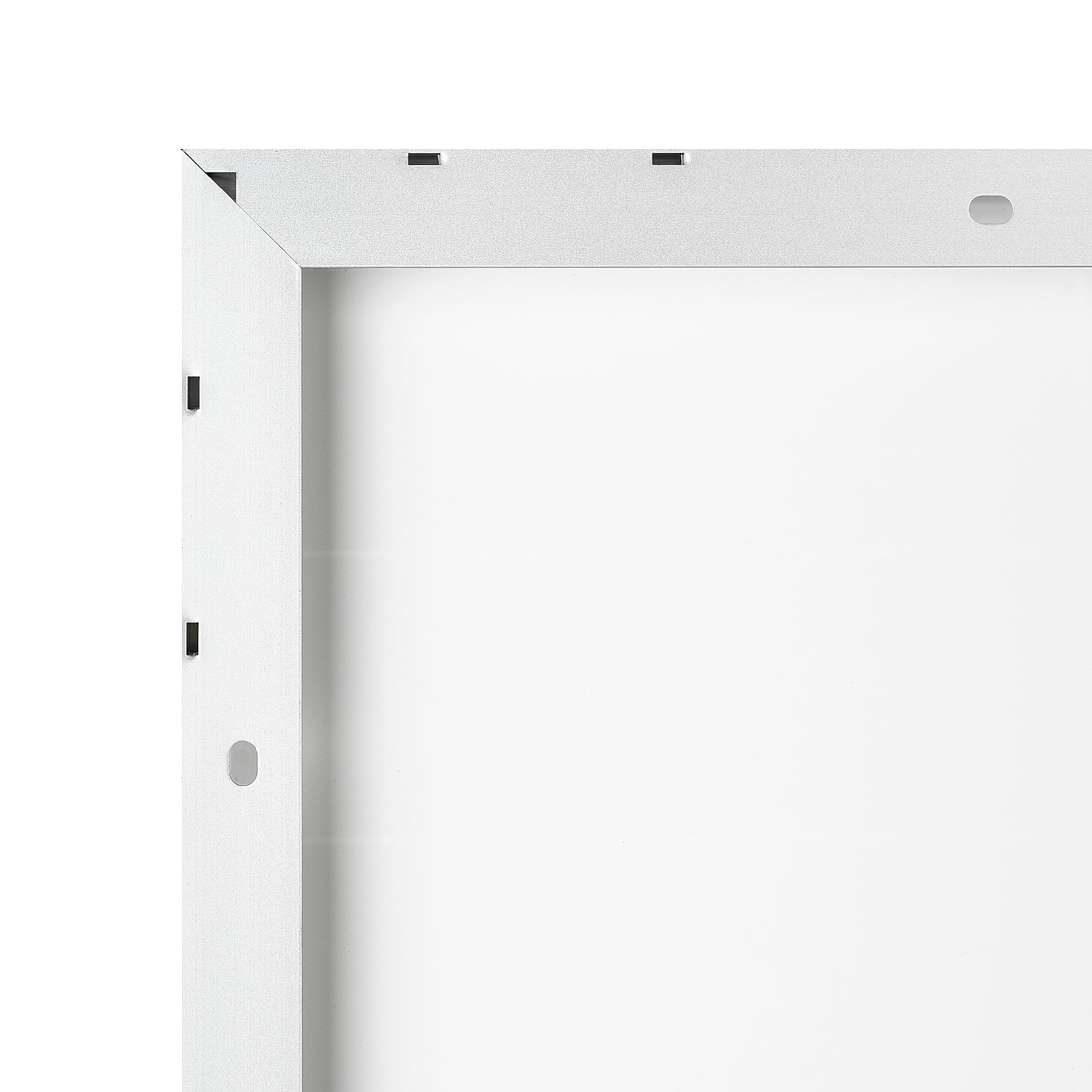

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

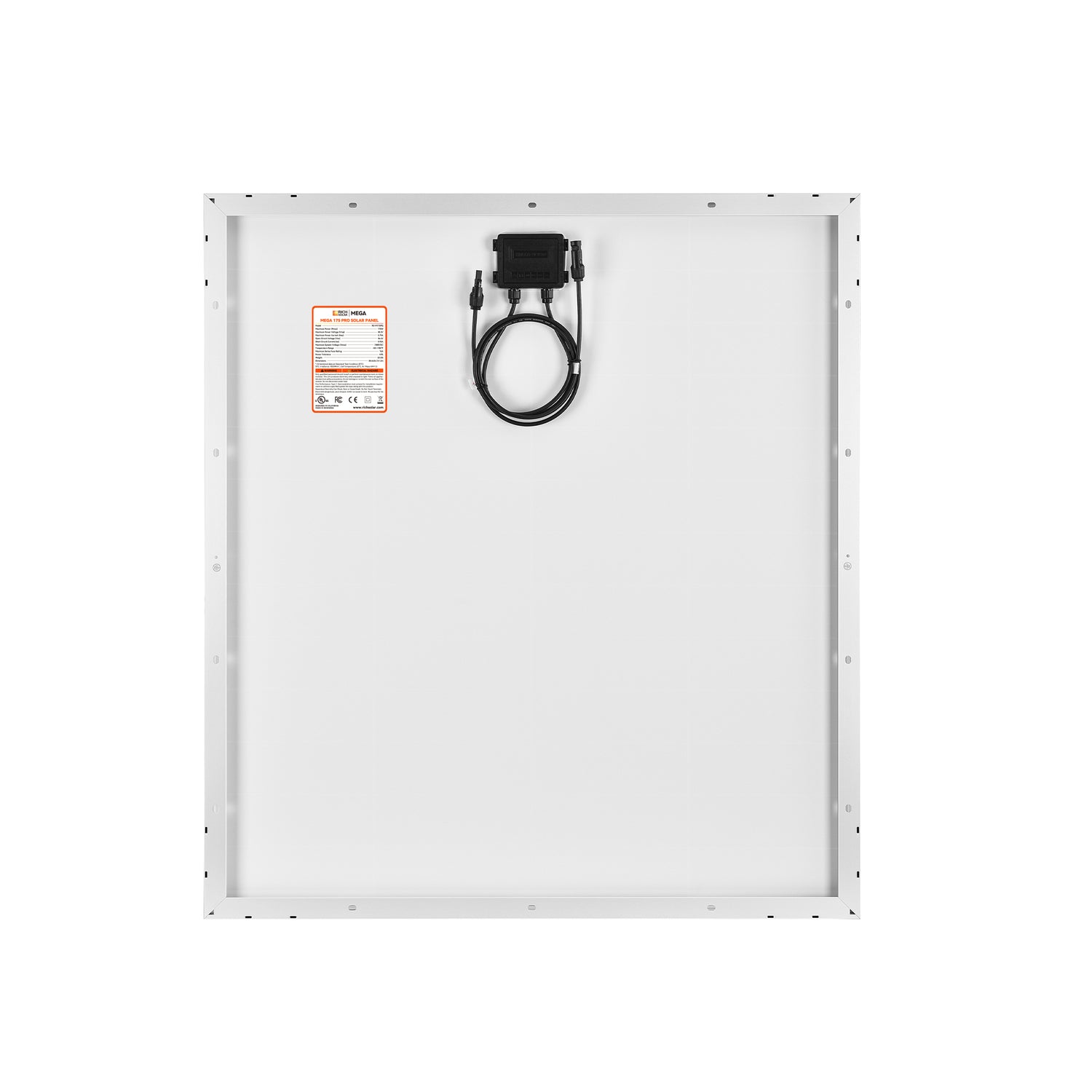

• 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

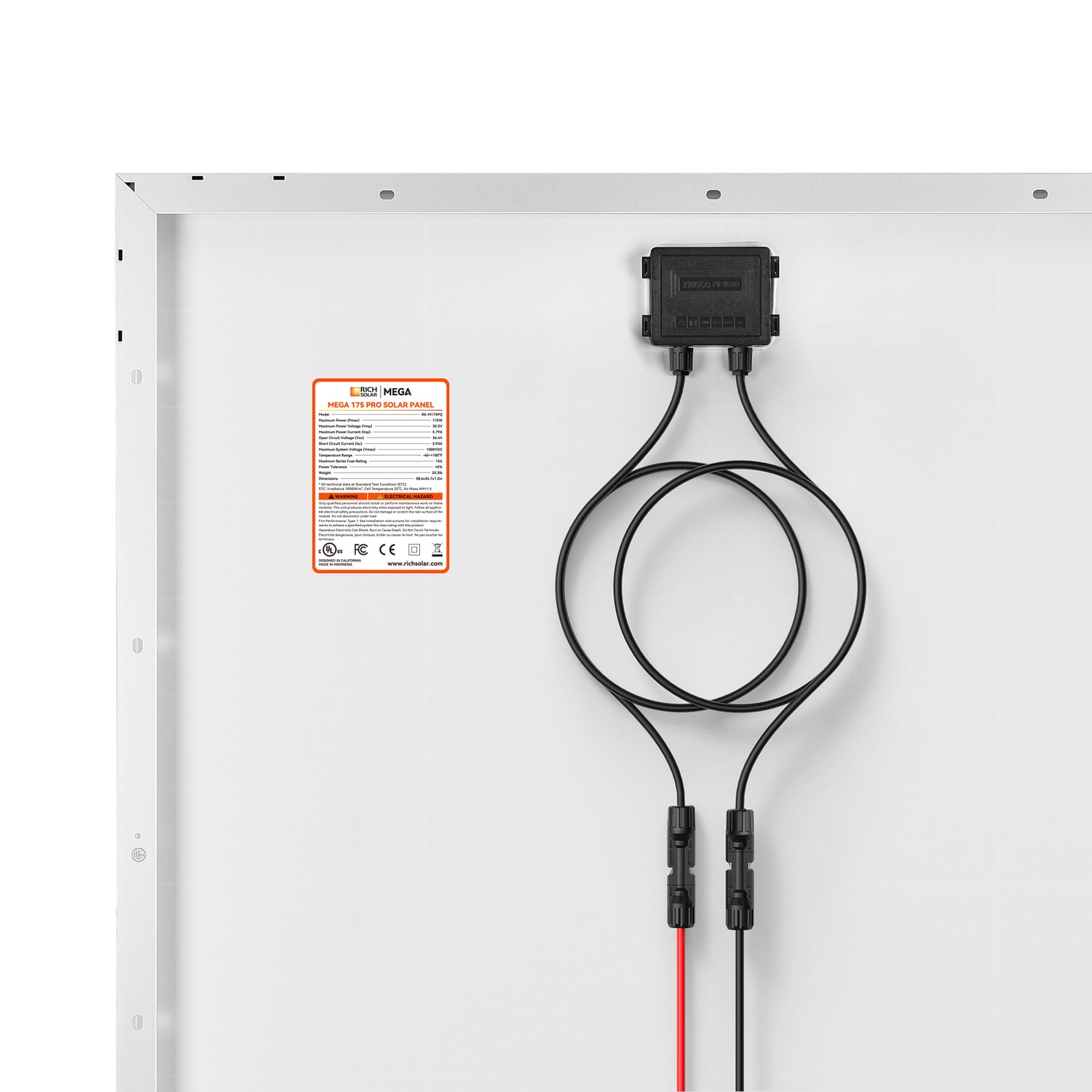

• Pre-attached 3 ft solar cables with connectors for fast setup
• Compatible with both on-grid and off-grid inverters


Warranty

• 25-year output warranty
• 10-year workmanship warranty

Built-in Components

• Panel Leads (Pair): 12 AWG, 3 ft each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Maximum Power(Pmax): 175W
• Maximum Power Voltage(Vmp): 30.3V
• Maximum Power Current(Imp): 5.79A
• Open Circuit Voltage(Voc): 36.4V
• Short Circuit Current(Isc): 5.93A
• Maximum System Voltage(Vmax): 1500VDC
• Maximum Series Fuse Rating: 15A
• Weight: 20.3 lb

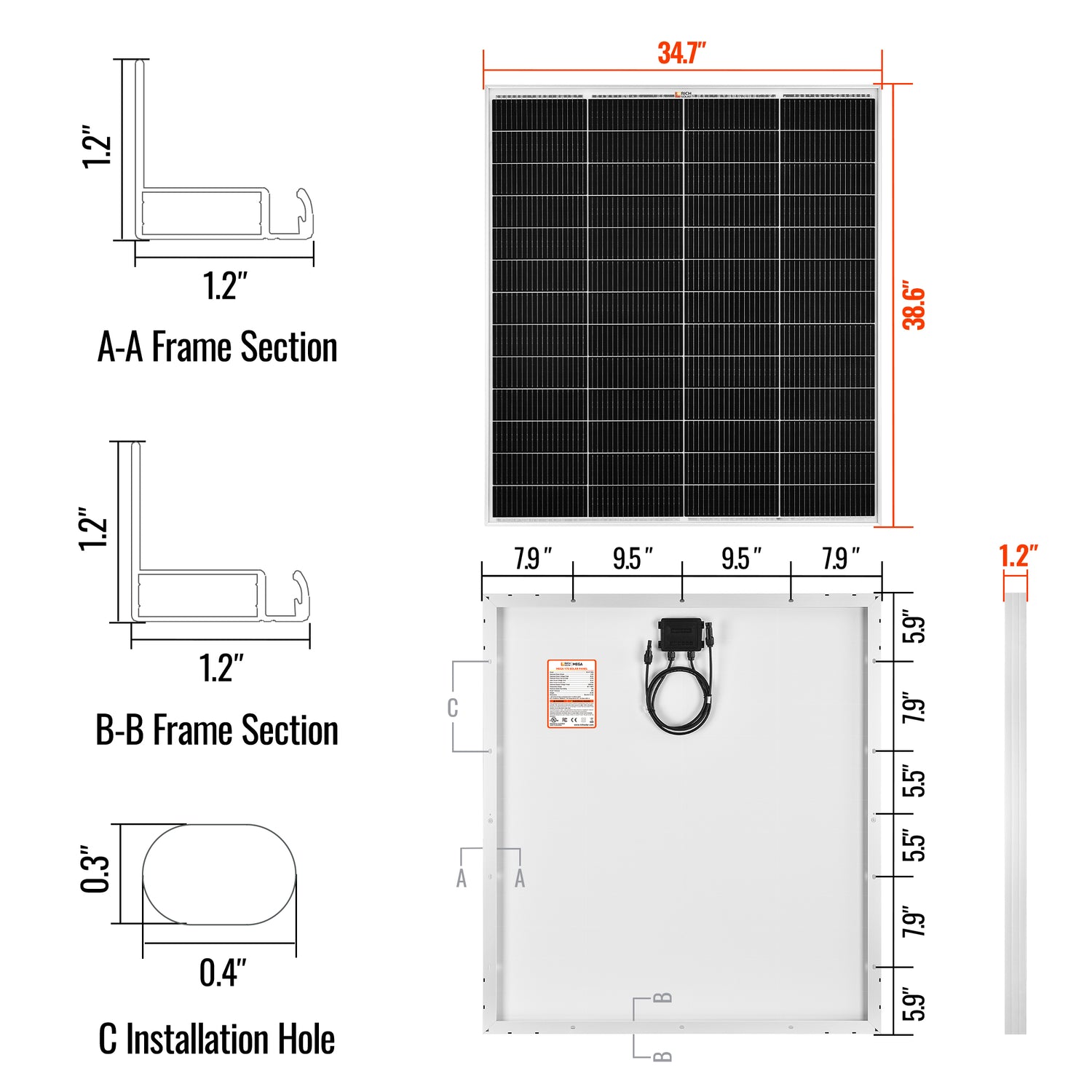

• Dimensions: 38.6 x 34.7 x 1.2 in

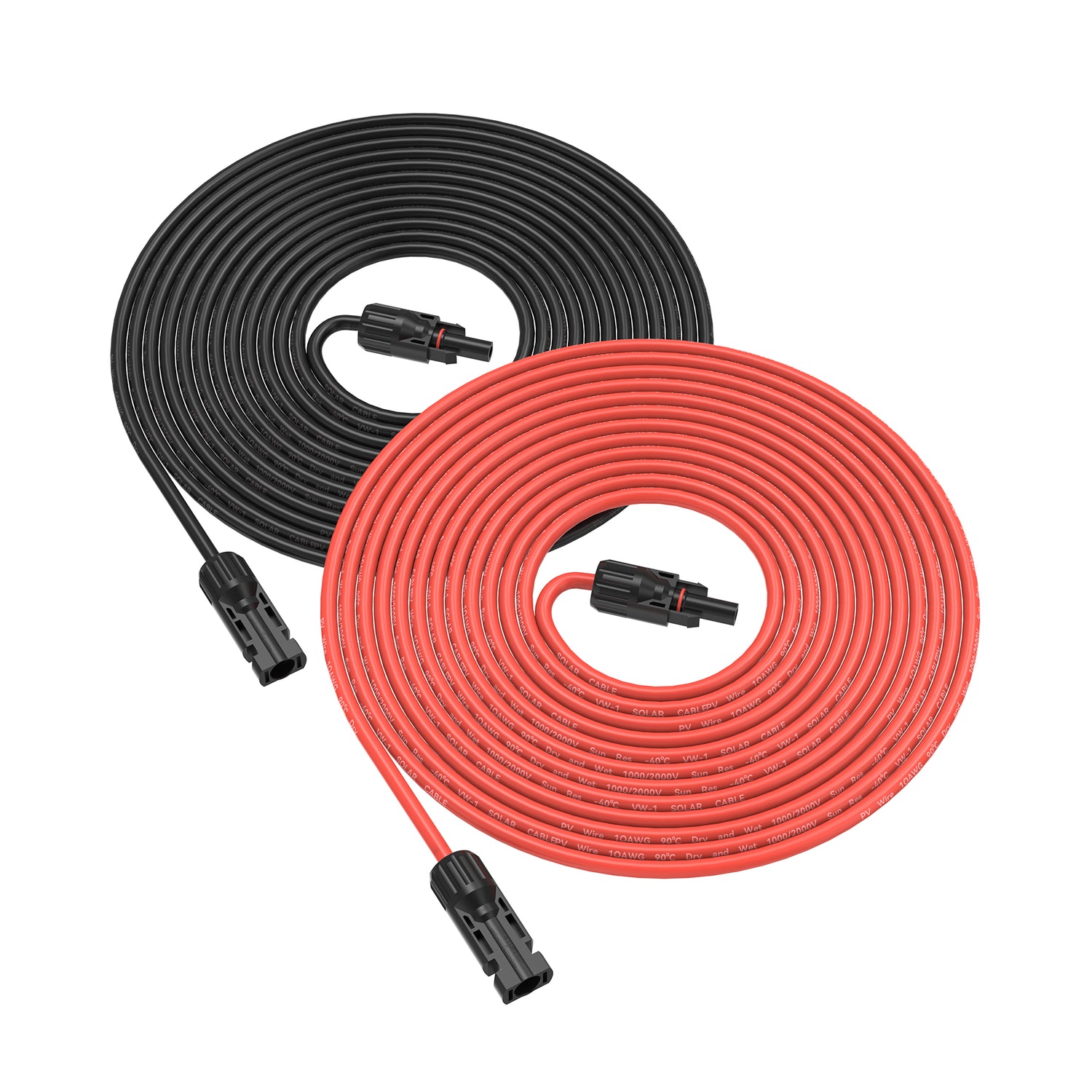

• Extension Cable: 20 FT Solar Extension Cable with MC4 Connectors

Package Includes

• 1 × MEGA 175 PRO Solar Panel
• 1 × 20 FT Solar Extension Cable Set (Black & Red)
