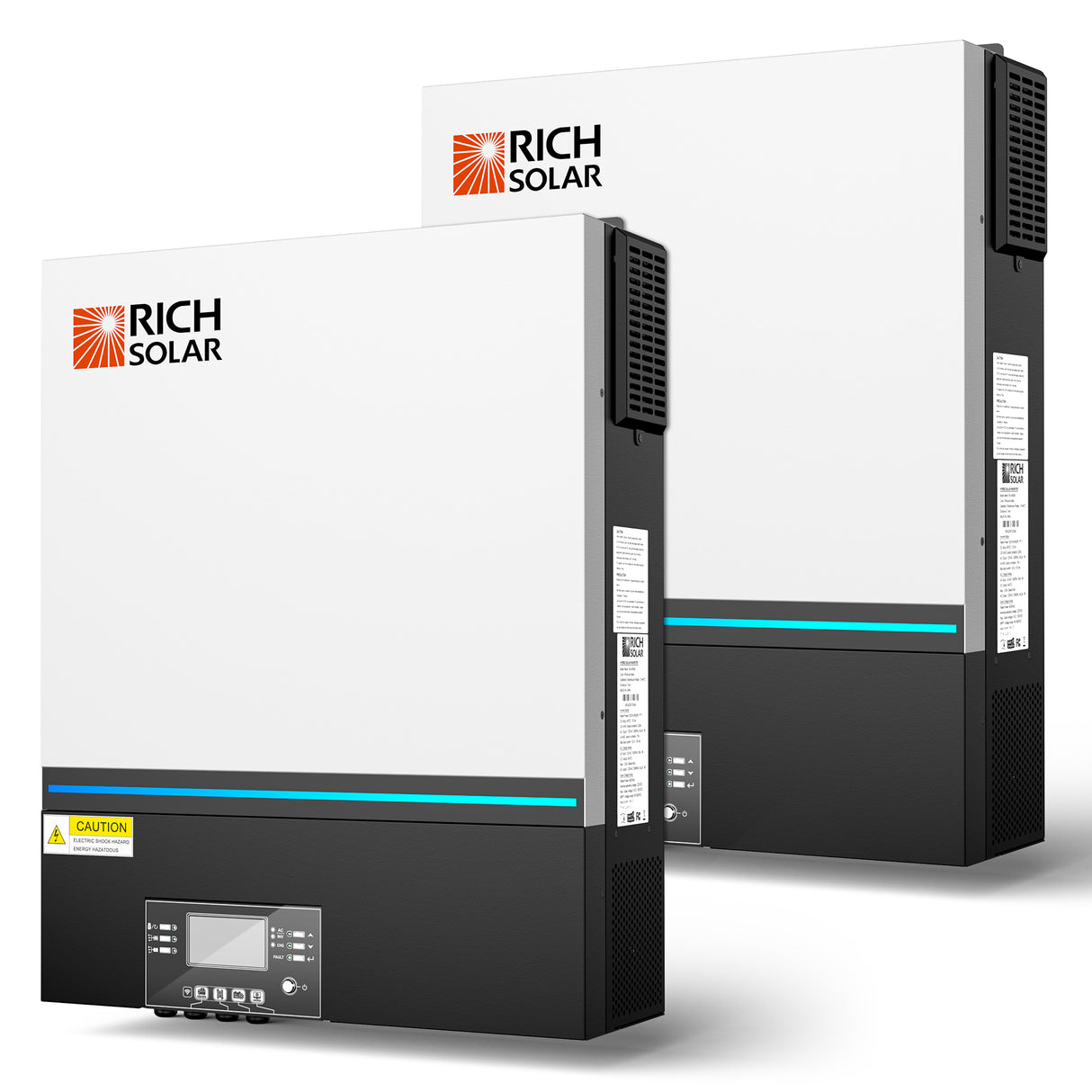

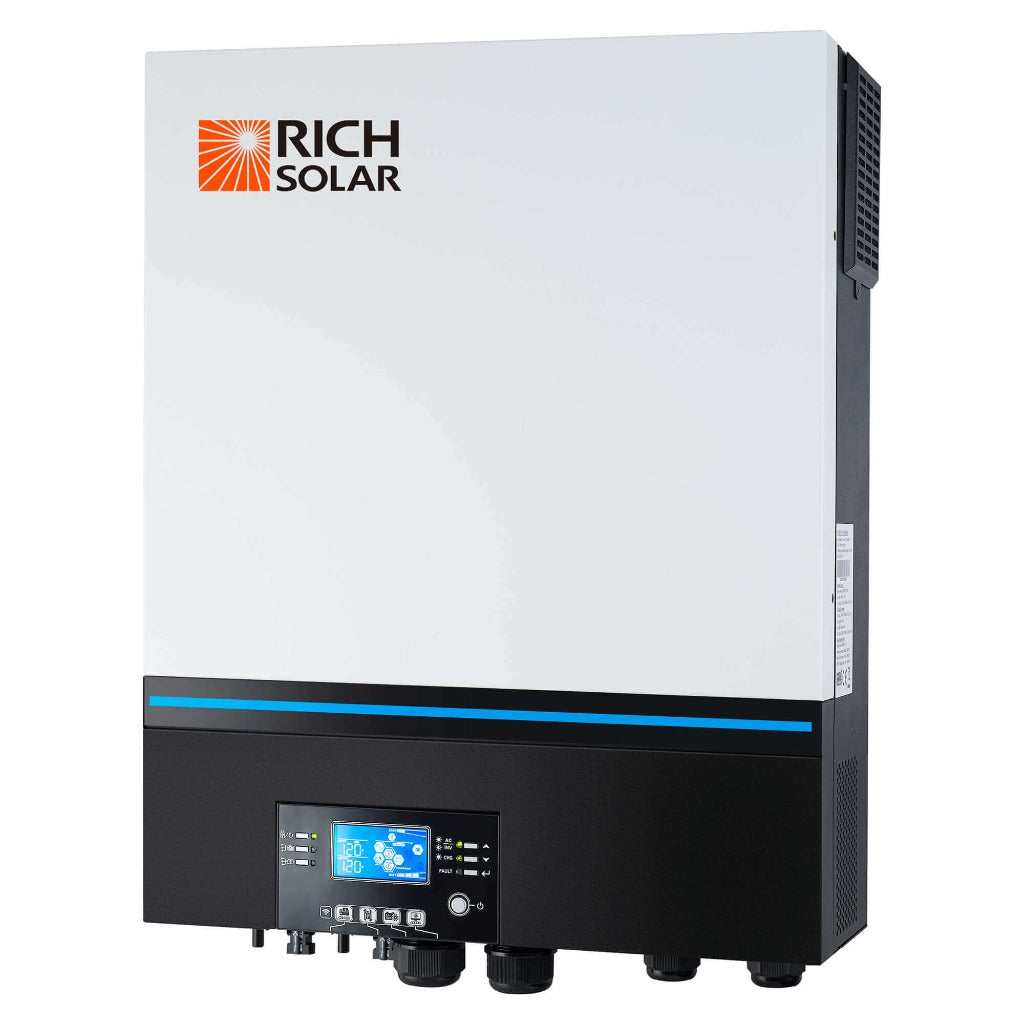

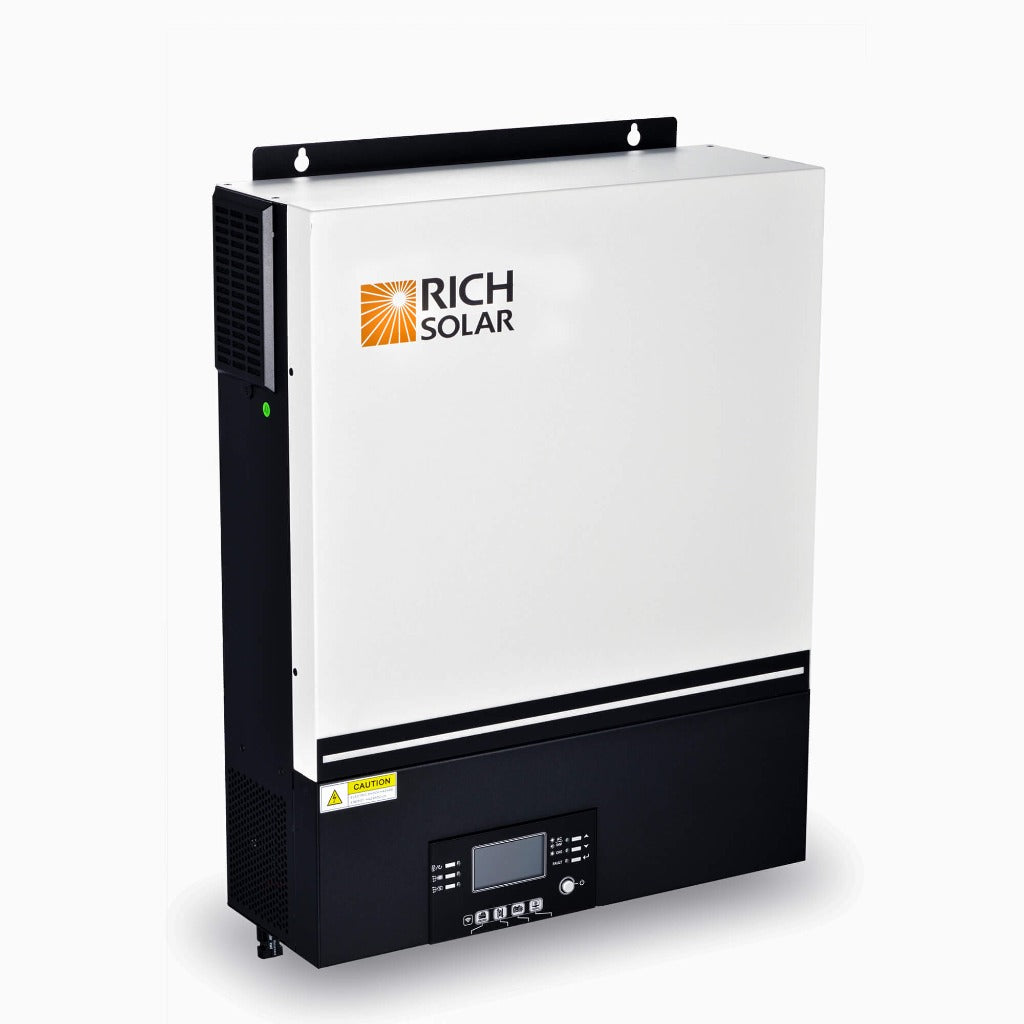

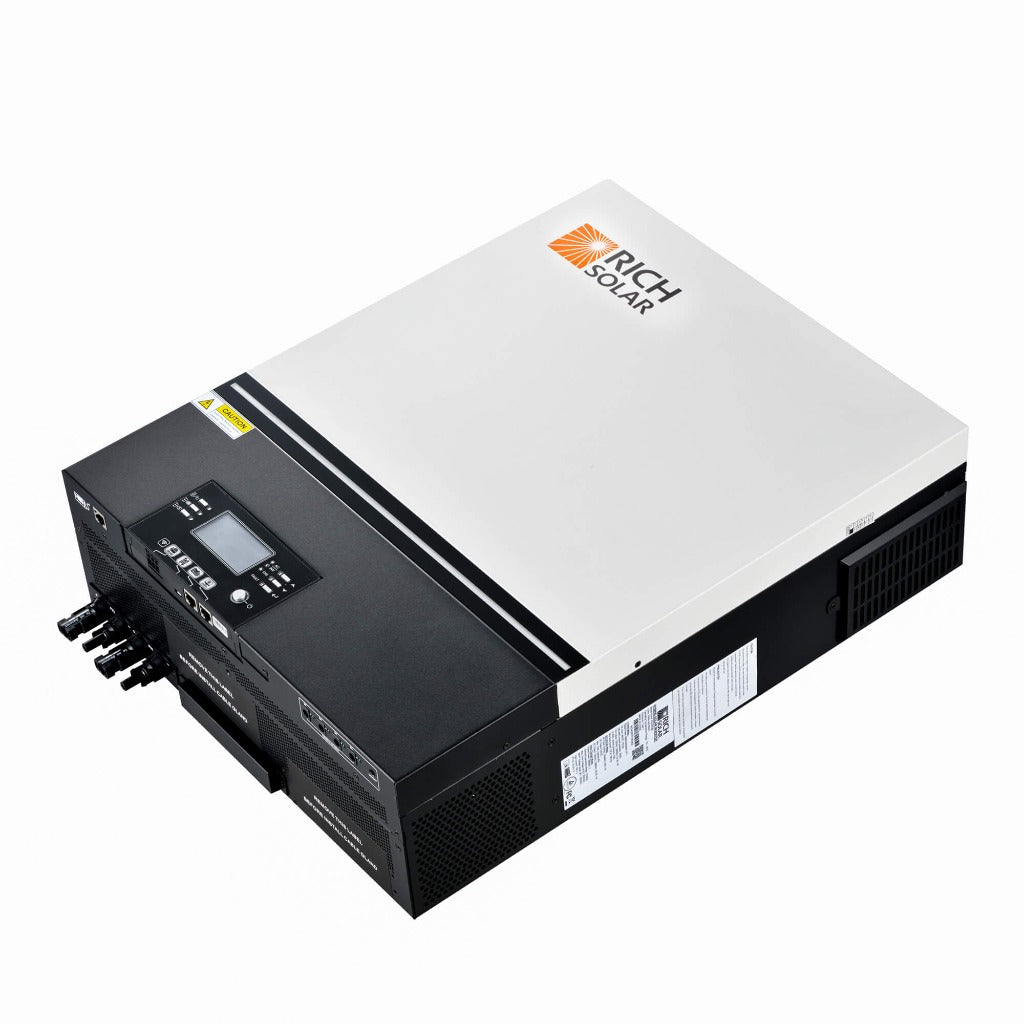

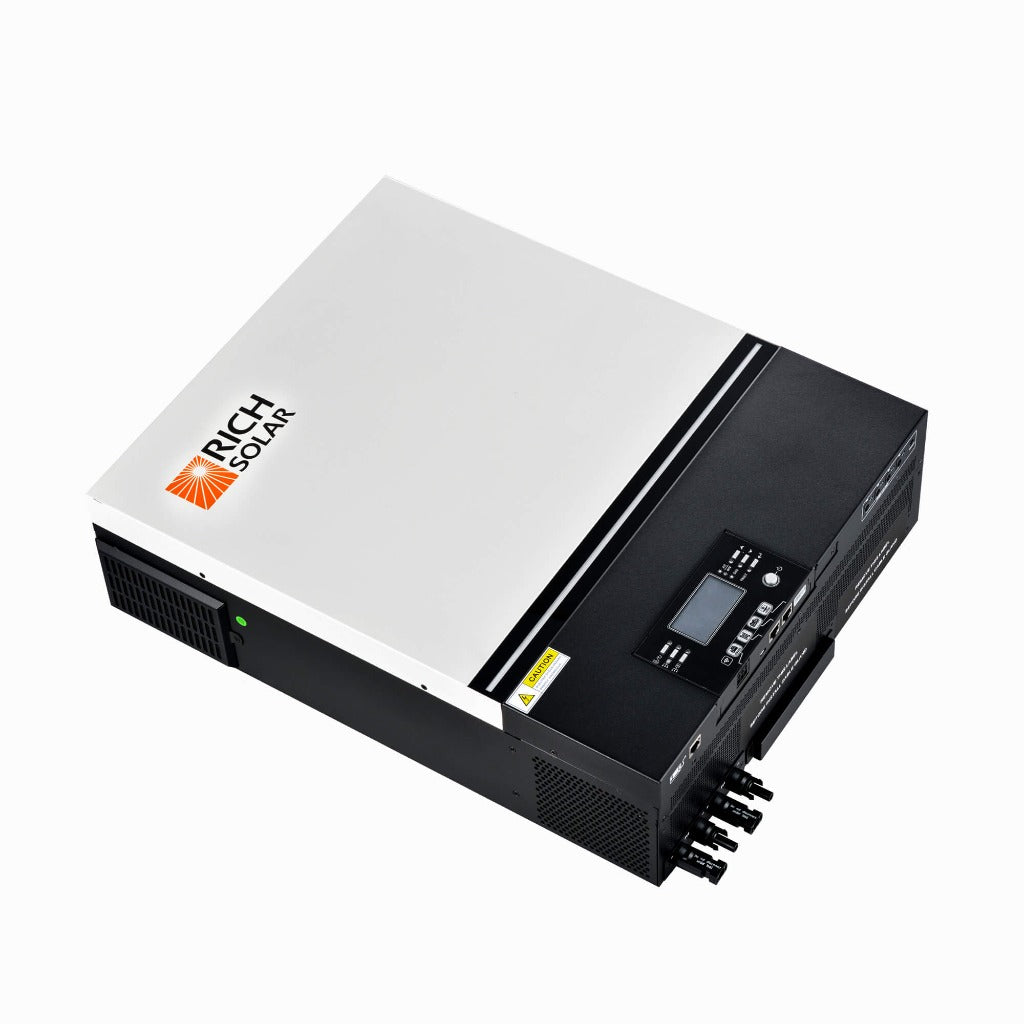

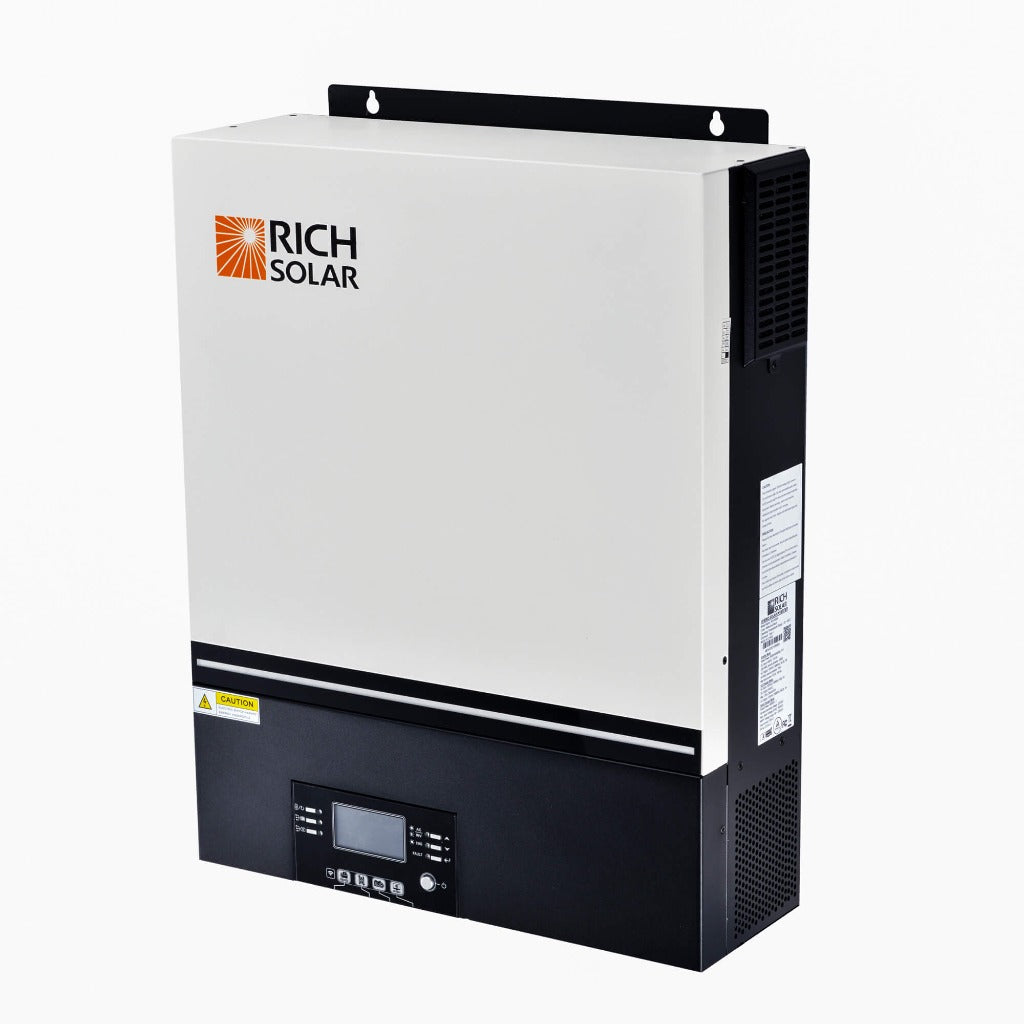

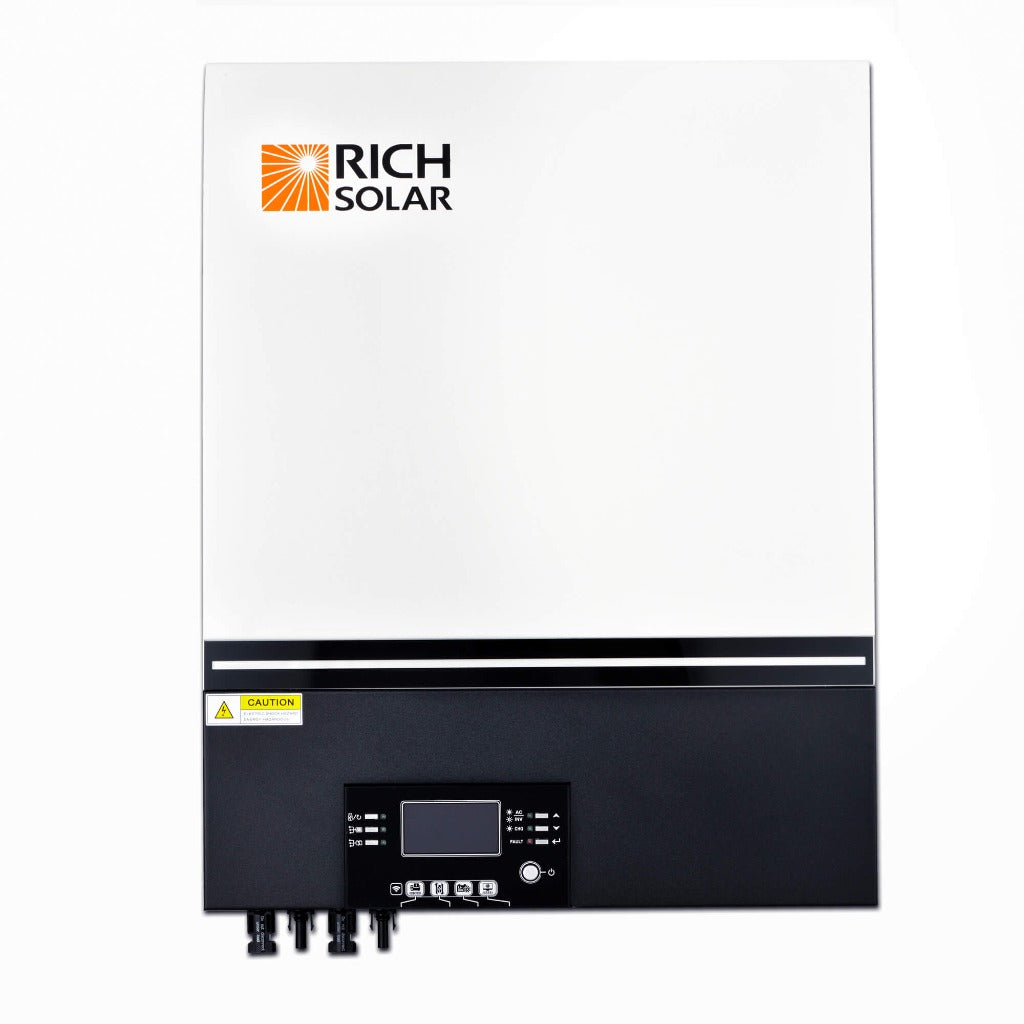

NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified

FEATURES

• Pure Sine Wave Inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible with utility mains or generator power
• Auto restart while AC is recovering
• Overload/over temperature/short circuit protection
• Parallel operation with 6 units
• Smart battery charger design for optimized battery performance
• Cold start function

How to Set up 6548 Hybrid Inverter in Split-Phase or Parallel Operation

When Not to Update the Firmware for the 6548 Hybrid Inverter

Tech Specs

Specifications:

Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
• Surge Power: 15000VA
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• No Load Power Consumption: <70W
• Optional DC Voltage: 12 VDC ± 5%, 100W
• Dual Outputs: Yes

BATTERY

• Battery Voltage: 48 VDC
• Float Charging Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -14°F to 122°F
• Storage Temperature: 5°F to 140°F

STANDARD

• Compliance Safety: UL
