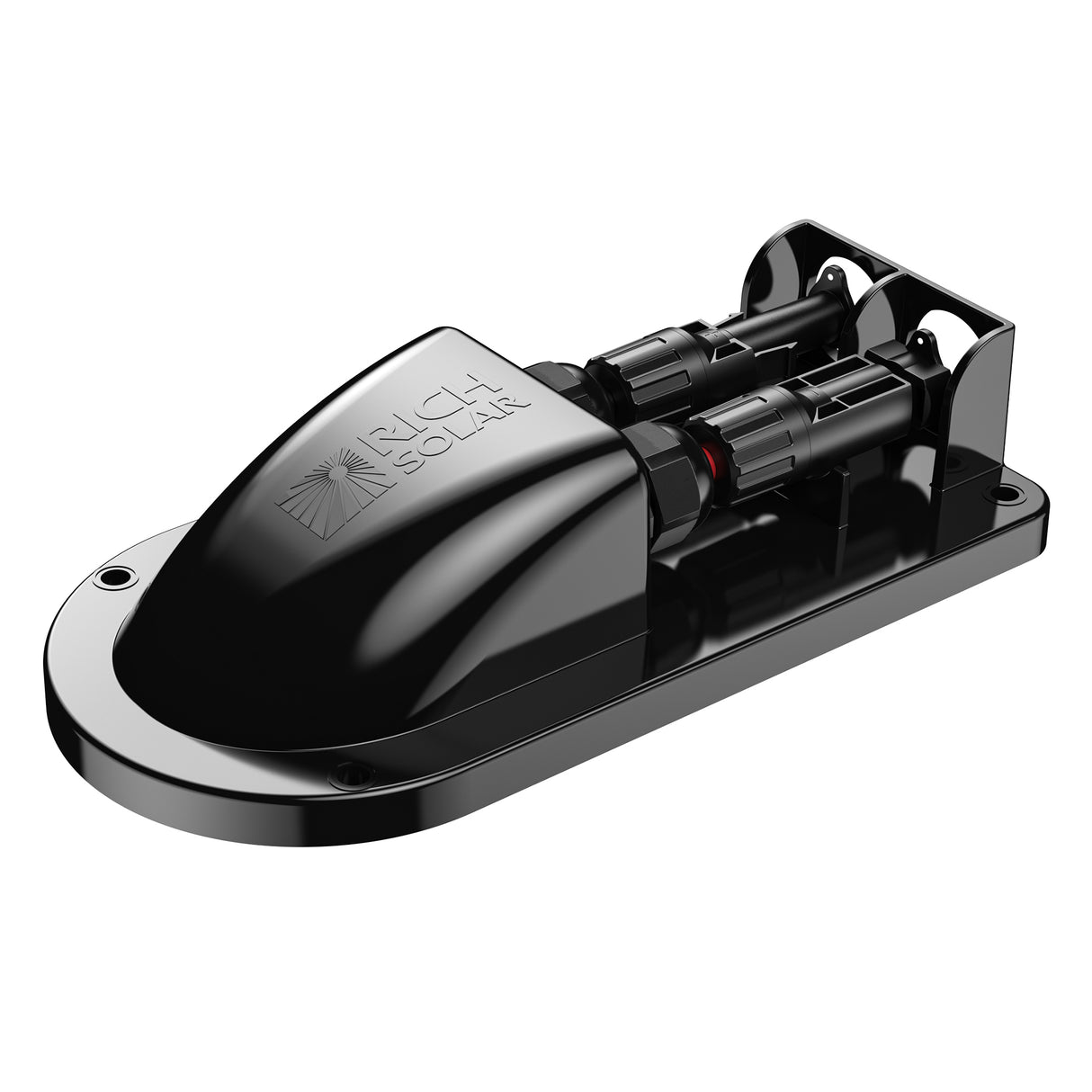

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install

SKU: RS-G02
$25.99

Specifications & Downloads

Full Specification:

Download

Warranty

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST


Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Features

    Durable & Weatherproof

    • Flame-retardant PP housing for long-lasting outdoor use
    • Operates smoothly in extreme temps: -40°F to 185°F

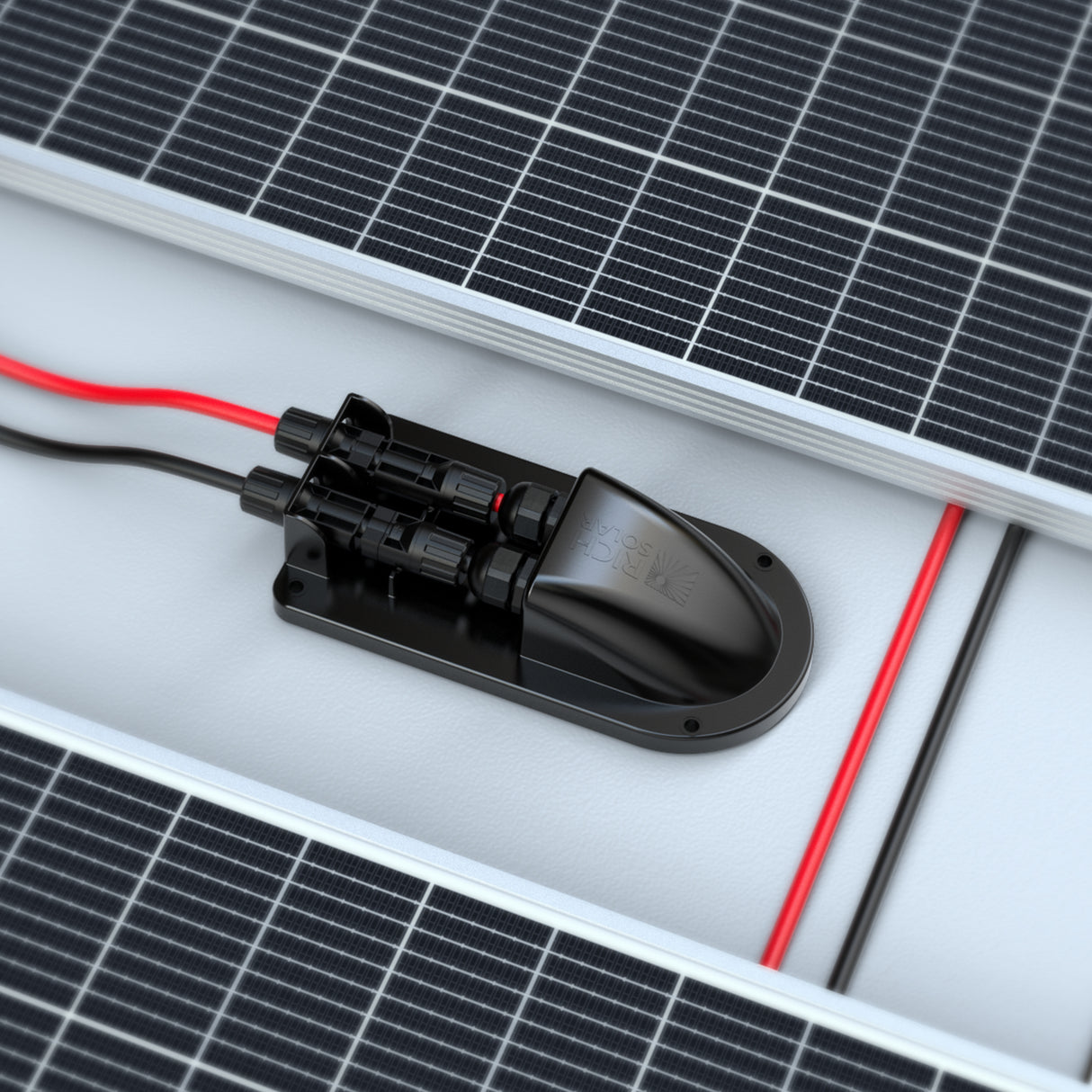

    • Perfect for RVs, boats, cabins, and off-grid solar systems

    High Current Capacity

    • Supports 42A max / 30A continuous load
    • Pre-assembled UL1015, 10AWG tin-plated copper wires for excellent conductivity
    • PVC insulation with VW-1 fire rating for added safety

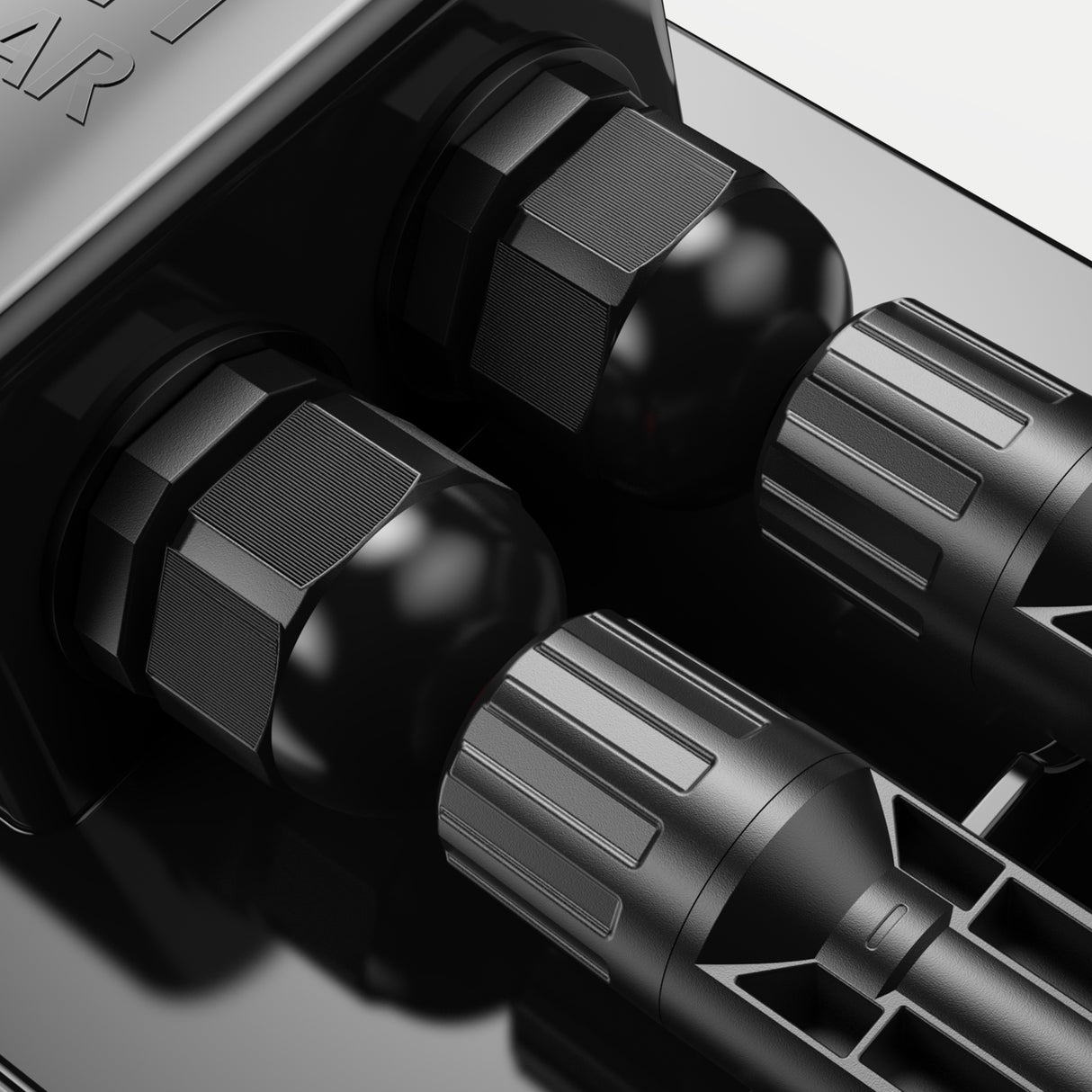

    Reliable PG9 Head

    • PA6 PG9 head with IP68 waterproof & dustproof sealing
    • UL94V-2 flame-retardant, CE certified for reliability

    Quick & Easy Installation

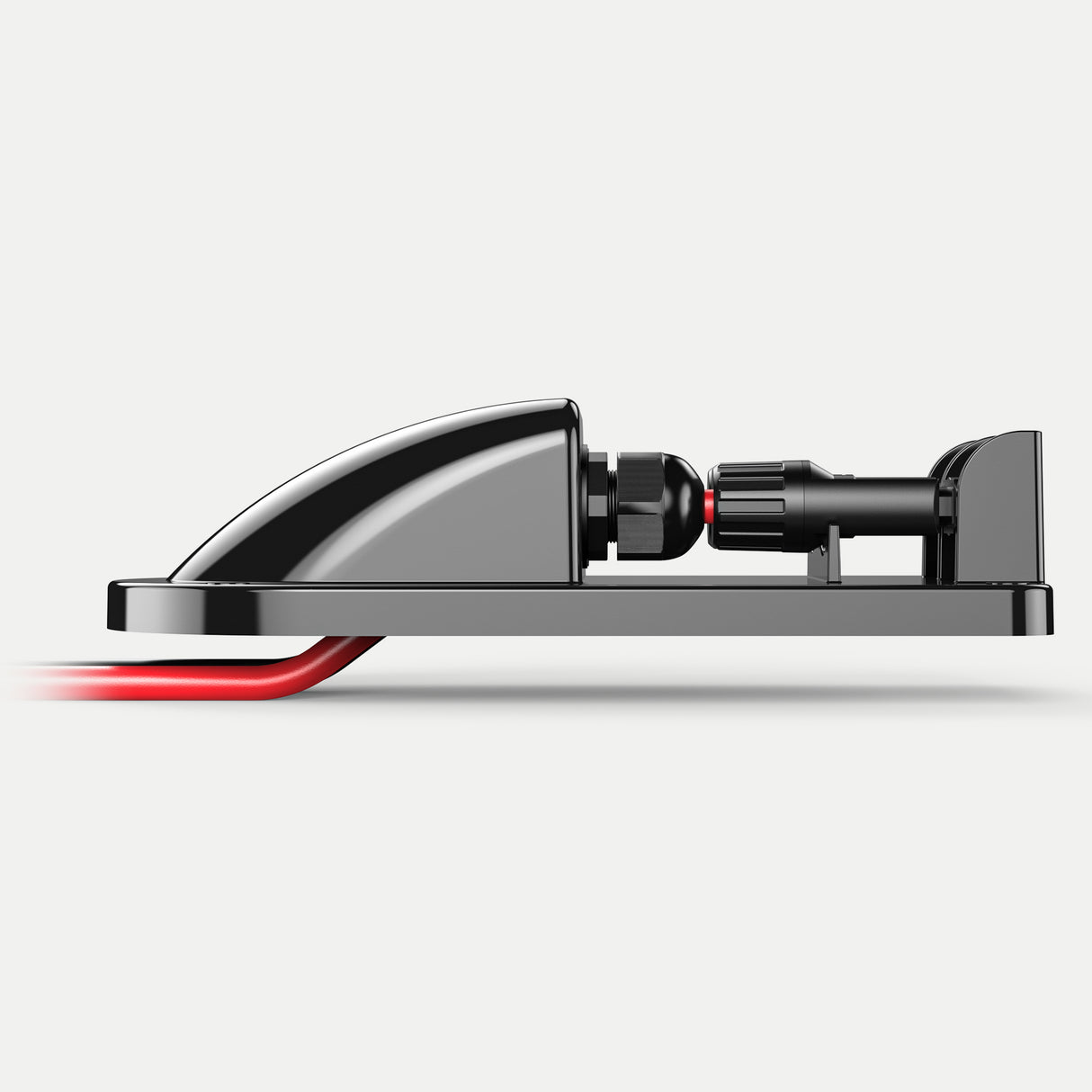

    • Compact, low-profile rooftop mount design
    • Secure with adhesive/sealant and screws (hardware not included)
    • Simplifies cable management for faster, cleaner setup

    Specifications

    General

    • Model: RS-G02
    • Product Size (L x W x H): 7.2 x 3.8 x 2.0 in
    • Weight: 0.34lb
    • Junction Box Material: Polypropylene (PP)
    • Junction Box Flame Retardant: Yes
    • Color: Black
    • Operating Temperature Range: -40℃ to 85℃(-40°F t0 185°F)

    Electrical Ratings

    • Maximum Current: 42A
    • Continuous Current: 30A
    • Maximum Voltage: 600V (Wire Rating)
    • Wire Standard: UL 1015 10AWG (Red/Black)
    • Wire Conductor: Tin-Plated Copper
    • Wire Insulation: PVC (VW-1 Fire Rated)
    • Wire Temperature Range: -15°C to 105°C (5°F to 221°F)

    PG Head

    • PG Head Specification: RNA-PG9
    • PG Head Material: PA6
    • PG Waterproof Rating: IP68
    • PG Flame Retardant Rating: UL94V-2 Cerriffed
    • Certification: CE

    MC4 Connector

    • Material: PC
    • Certification: TUV
