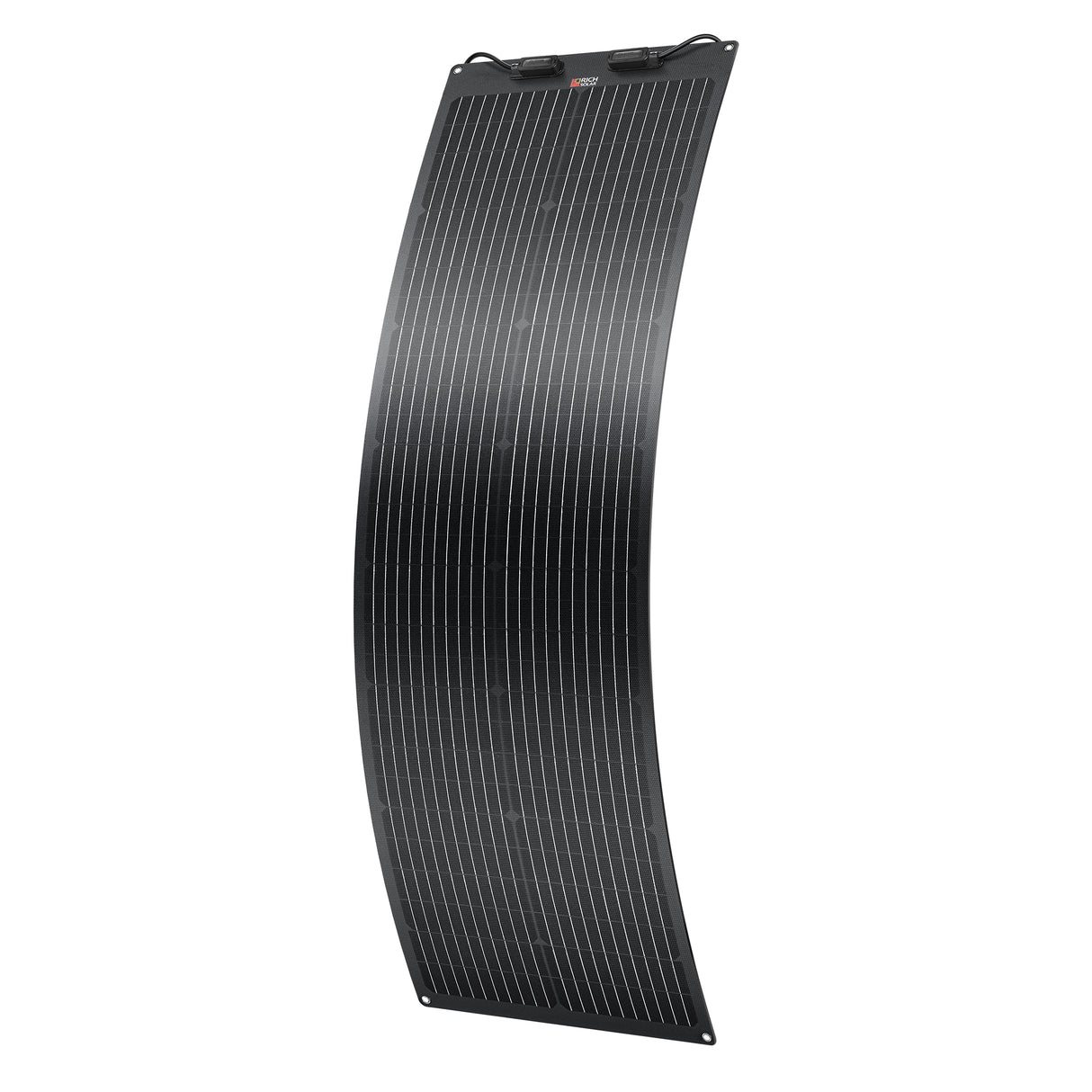

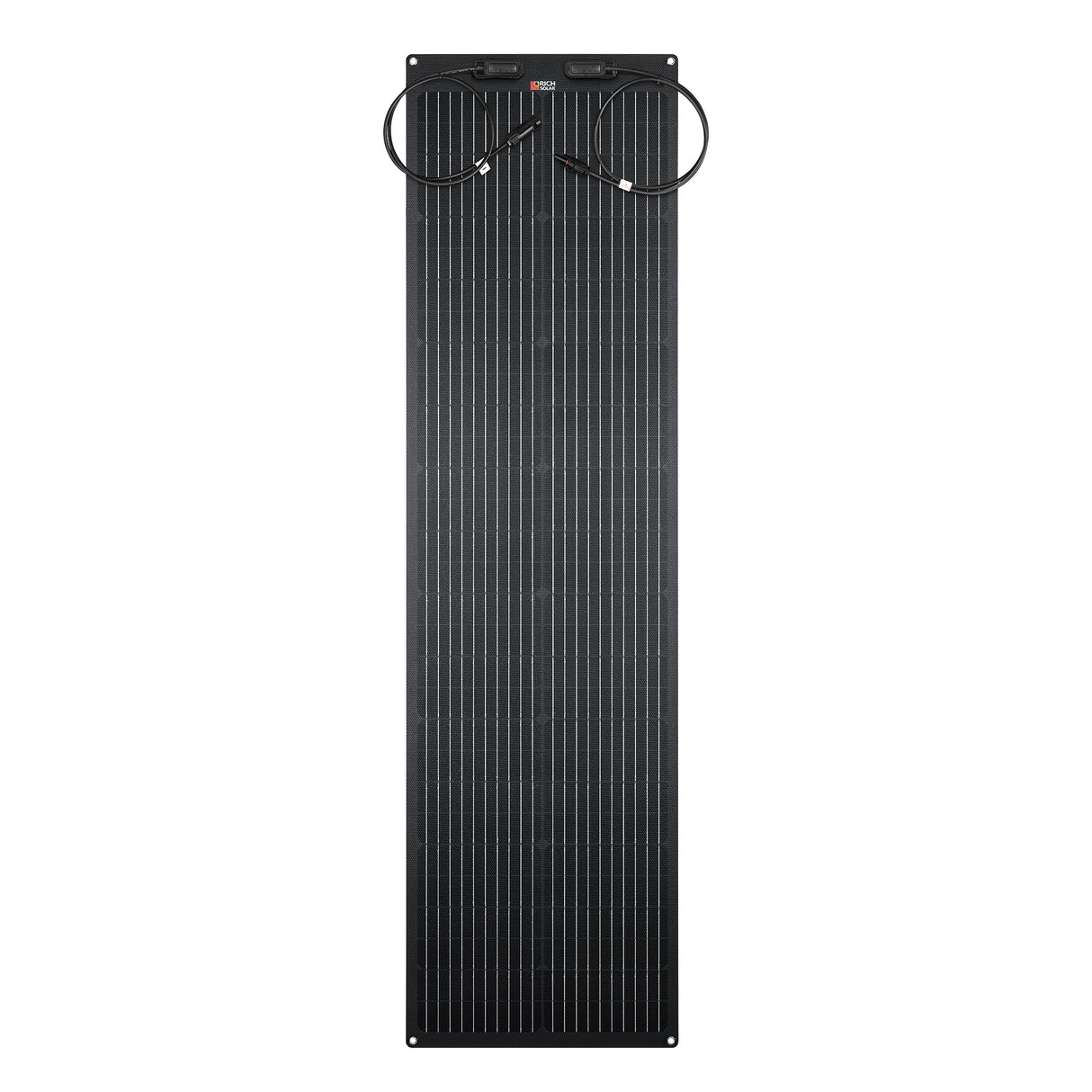

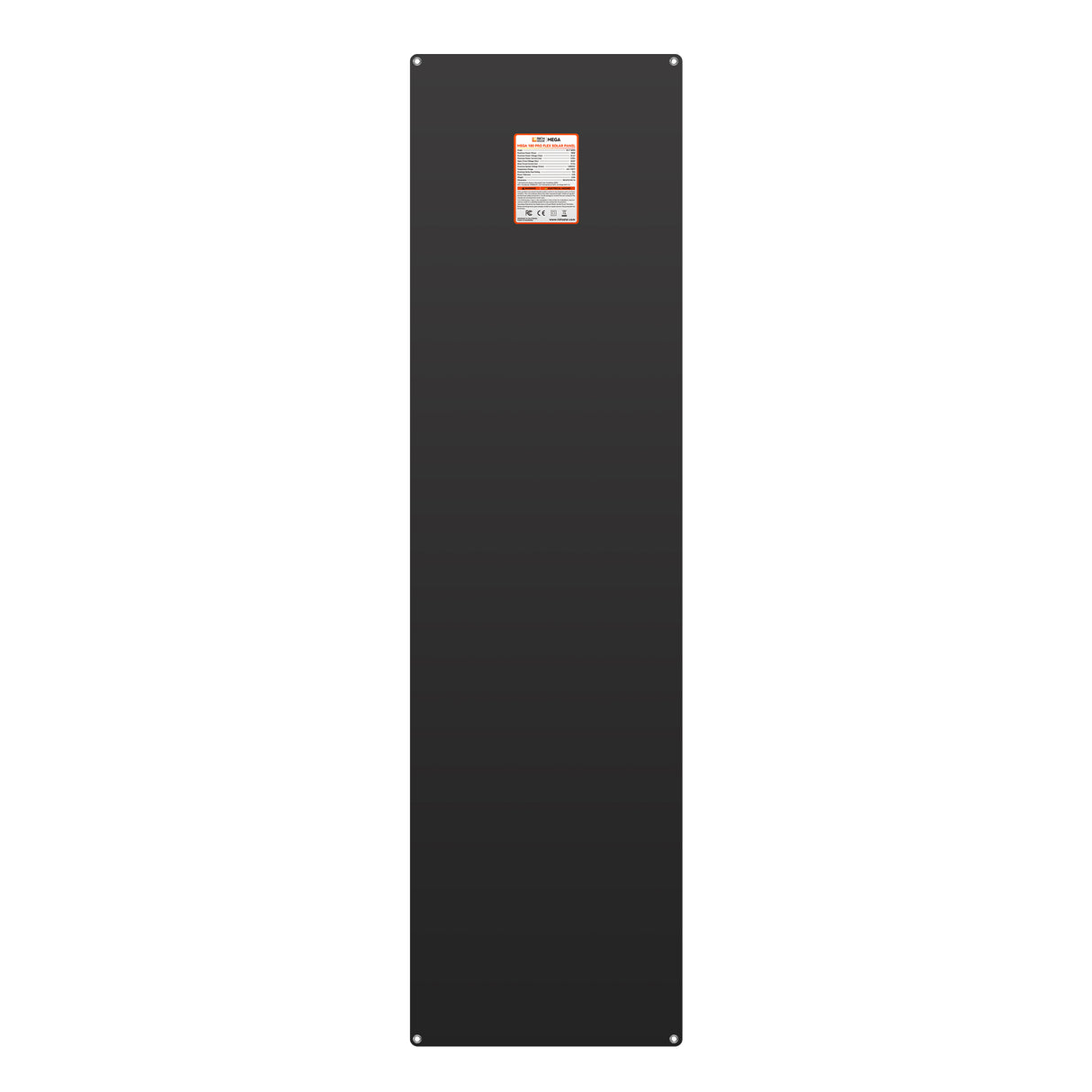

MEGA 100 PRO FLEX | 100W 24V Flexible Solar Panel | Ultra-Lightweight for RV, Marine, Off-Grid & Overland

Features

• 24V off-grid flexible solar panel.
• 10-busbar monocrystalline cells with up to 22.8% efficiency.
• Ultra-thin 0.1 in. profile and bends up to 360° to fit curved surfaces.
• Lightweight design at just 4.8 lb for easy handling and installation.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn or dusk.
• Low temperature coefficient of -0.35%/°C for reliable high-temperature performance
• Non-destructive cell cutting technology minimizes micro-cracks for enhanced durability.
• Advanced manufacturing processes and premium materials improve PID resistance.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Ideal for RVs, boats, trailers, vans, and other curved off-grid applications.

Installation

• Pre-drilled mounting holes and adhesive backing for flexible installation.
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation

Built-in Components

• Panel Leads (Pair): 12 AWG, 3 ft each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 34.2V
• Maximum Power Current (Imp): 2.92A
• Open Circuit Voltage (Voc): 40.8V
• Short Circuit Current (Isc): 3.15A
• Maximum System Voltage (Vmax): 1500V DC
• Maximum Series Fuse Rating: 15A
• Temperature Range: -40~+185°F
• Weight: 4.8 lb

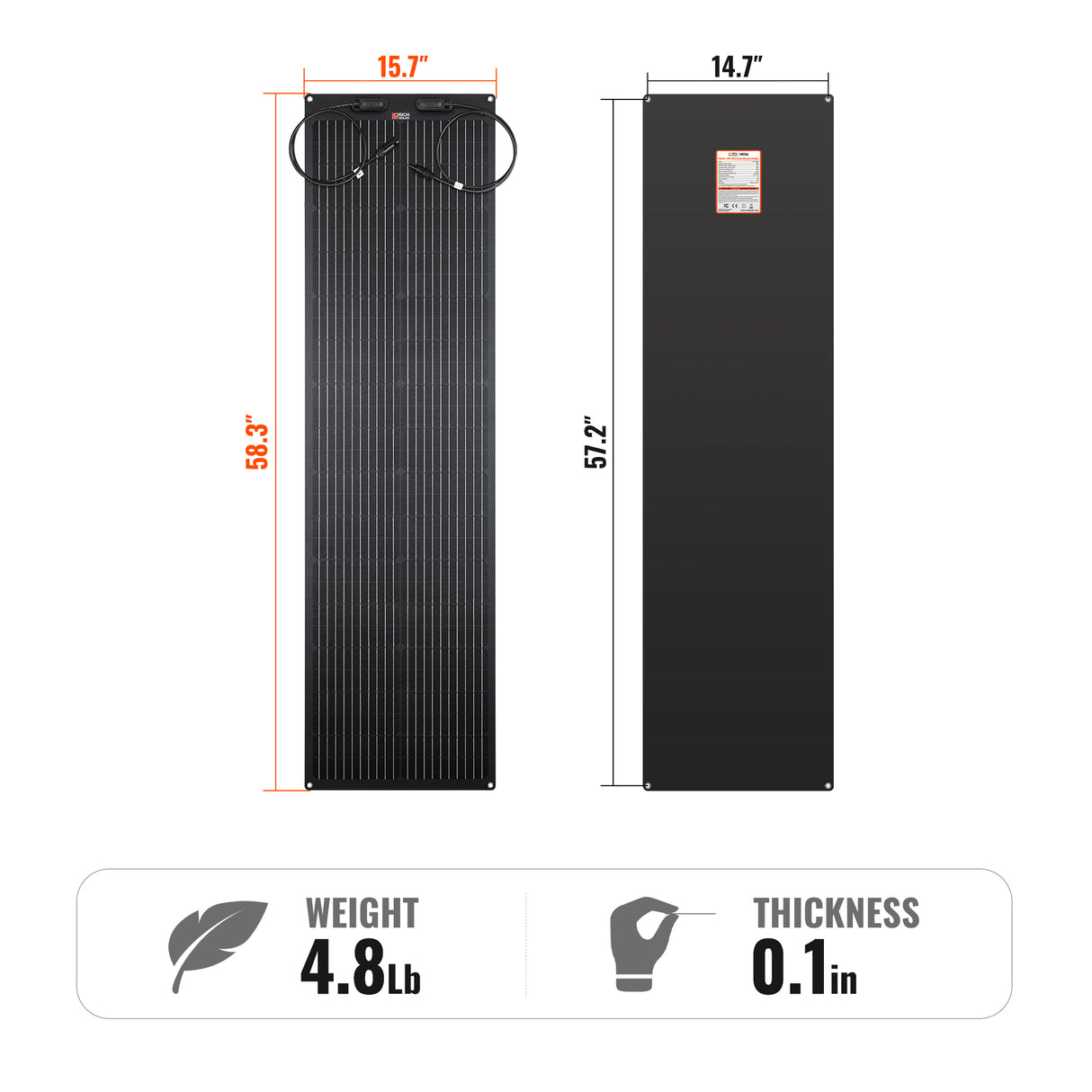

• Dimensions: 58.3 x 15.7 x 0.1 in
• Material and Workmanship Warranty: 1 year
