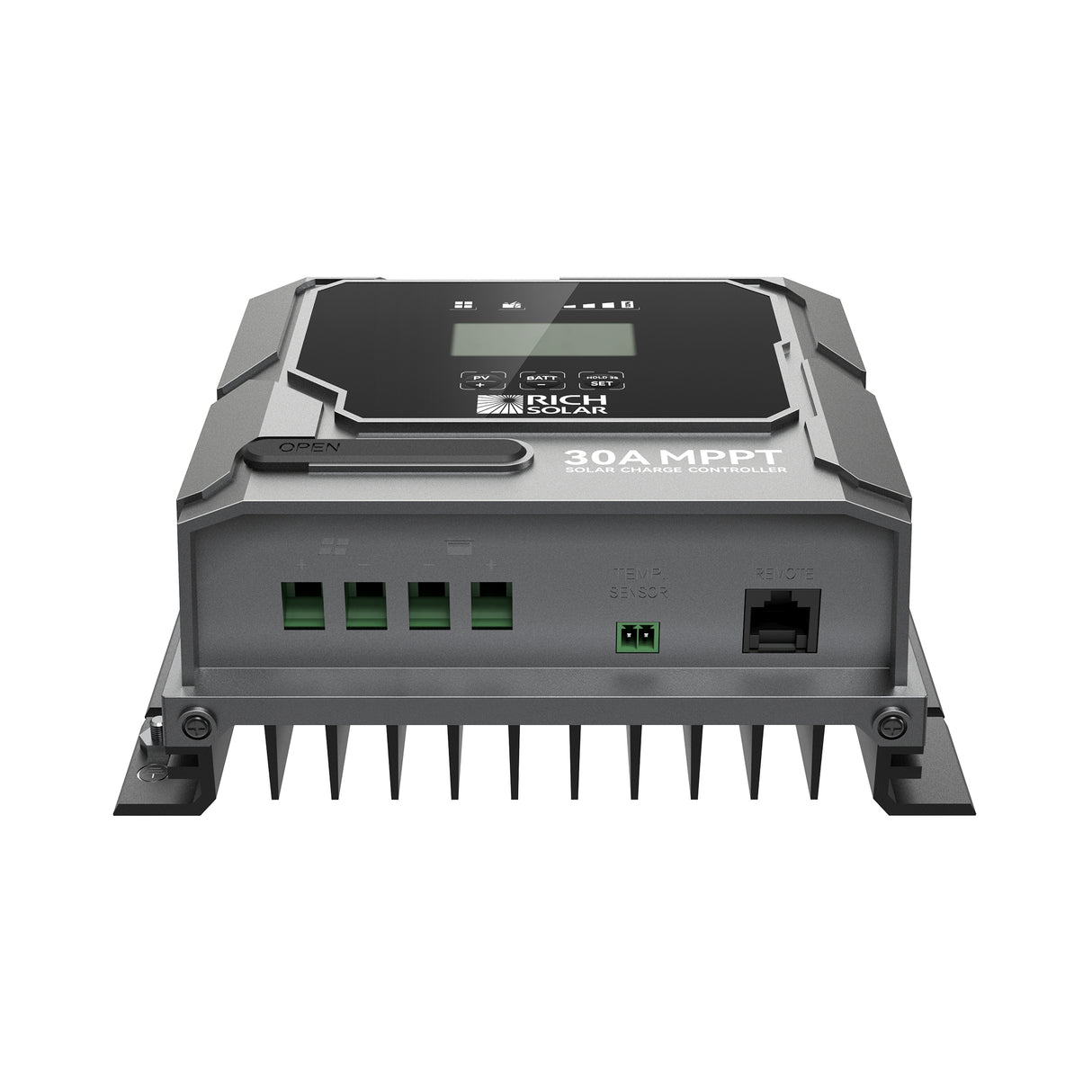

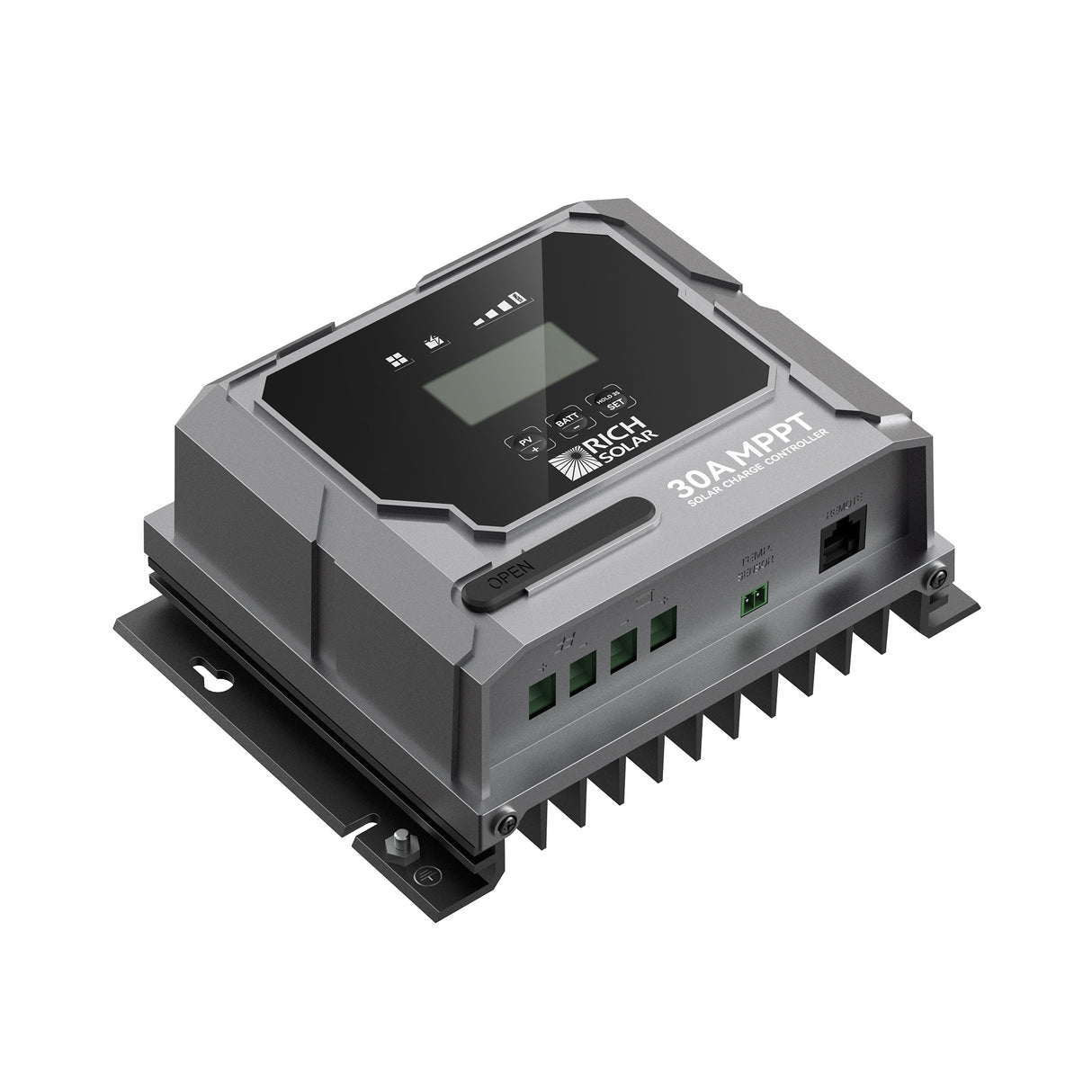

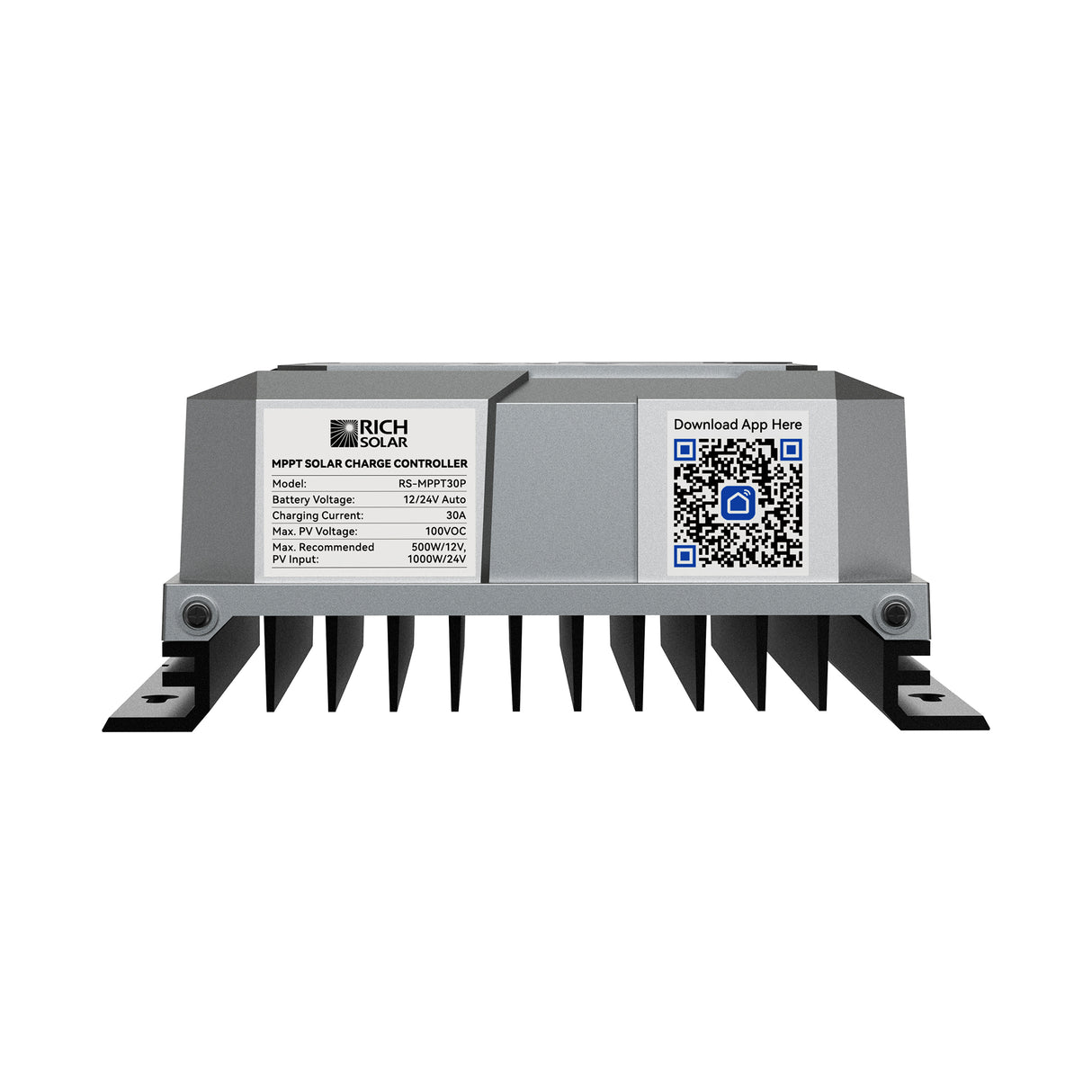

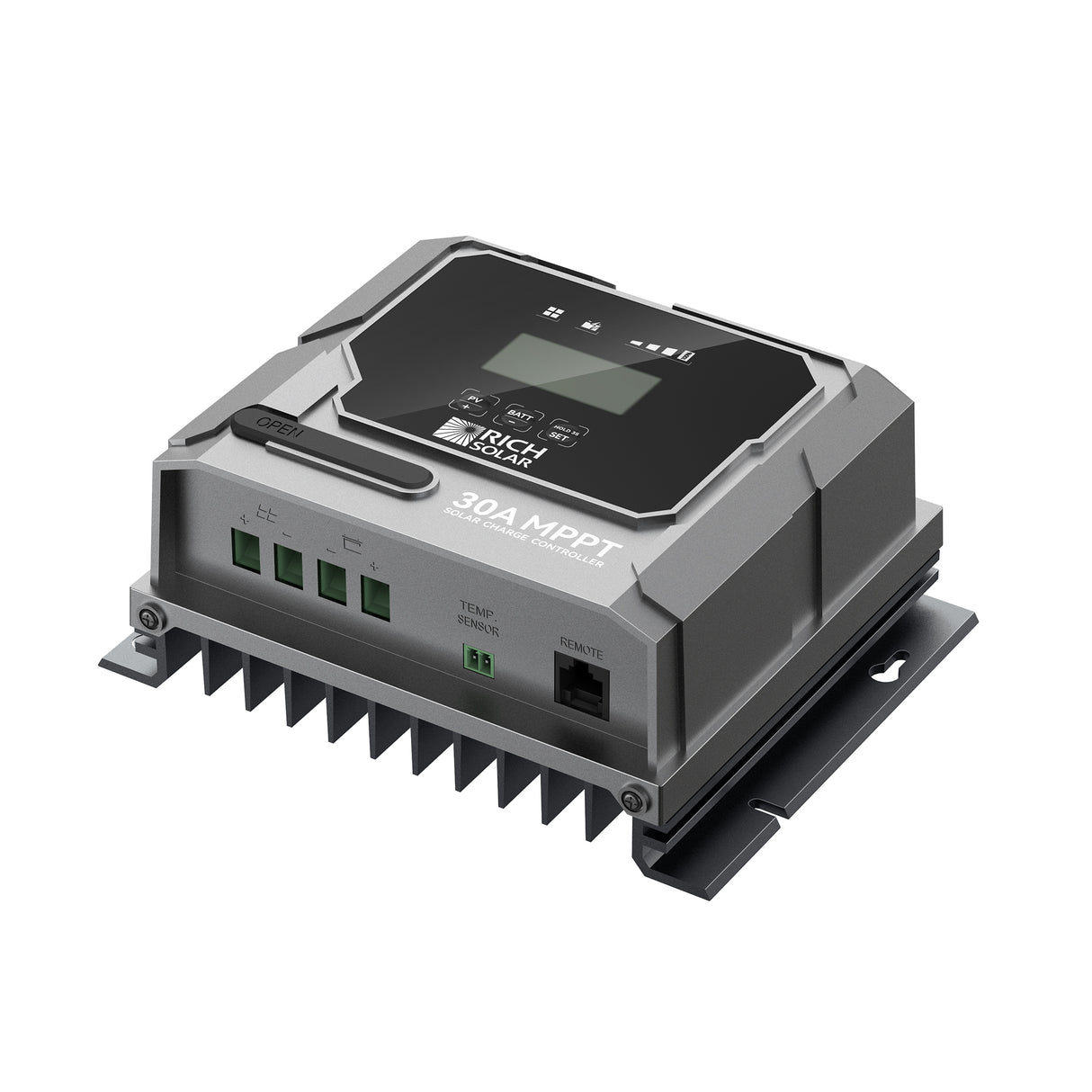

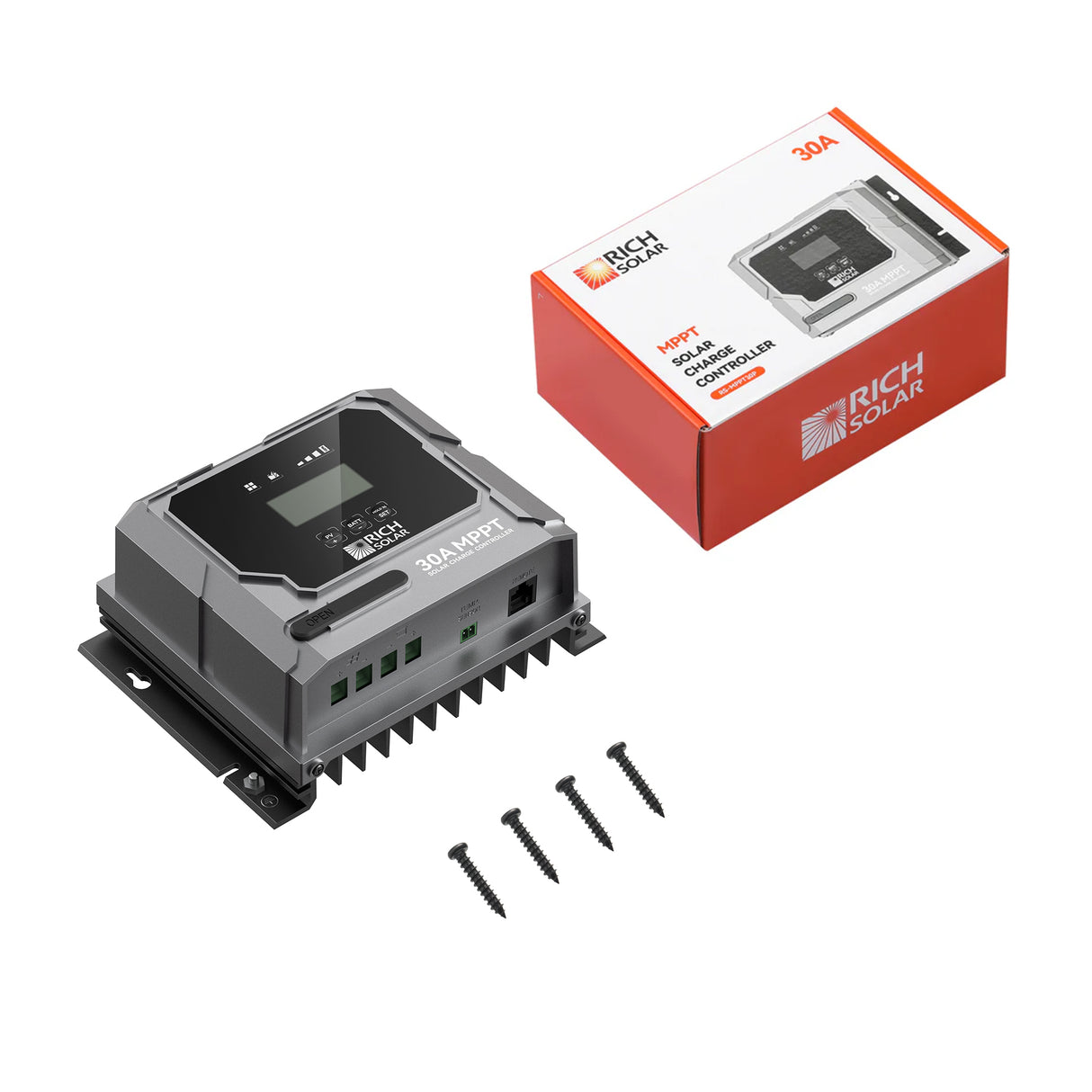

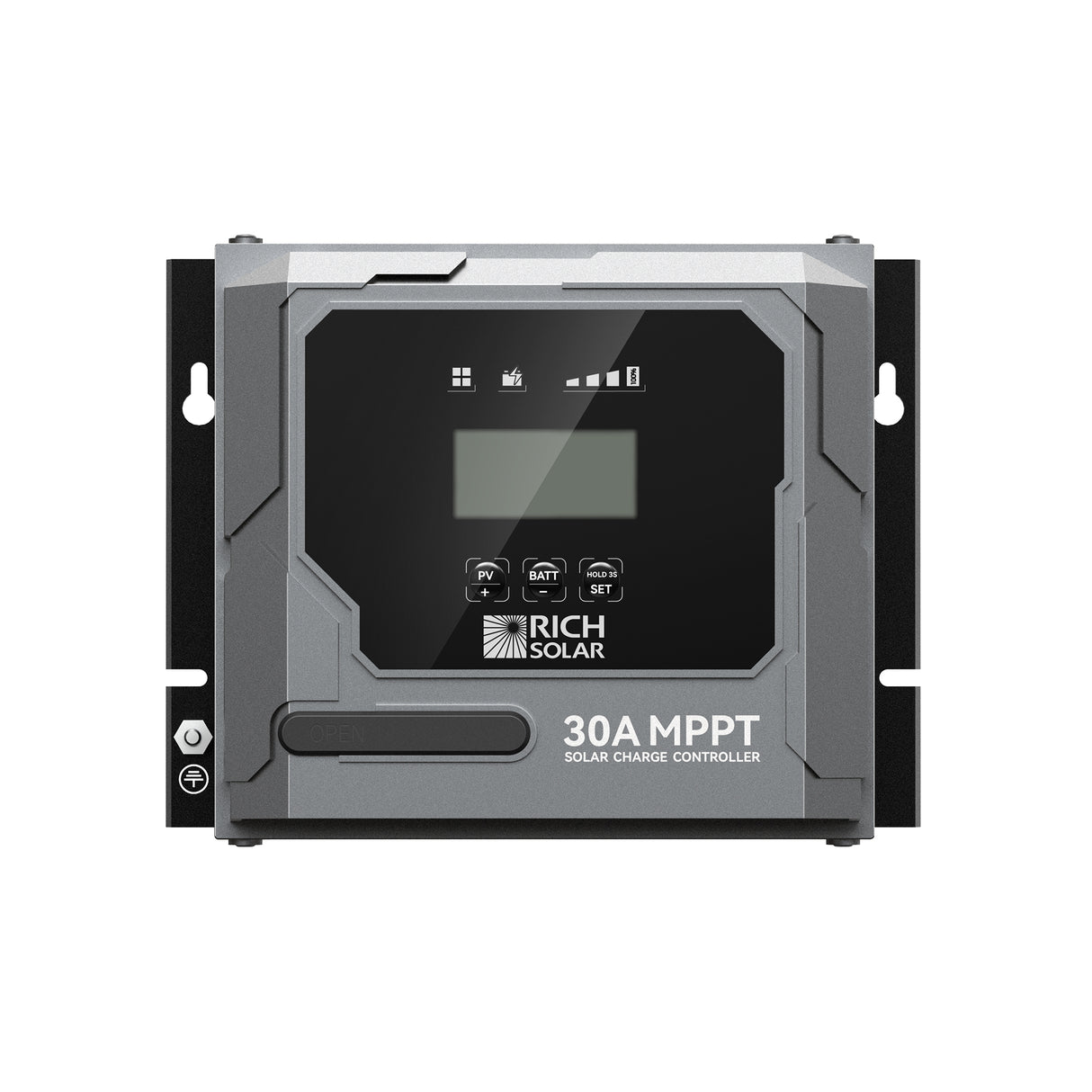

BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025

SKU: RS-MPPT30PB
$139.99 $179.99

BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 is backordered and will ship as soon as it is back in stock.

Specifications & Downloads

Full Specification:

Download

User Manual:

Download

Warranty

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST


Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Features

1. Advanced MPPT Technology

  • Advanced MPPT algorithm with up to 99.5% tracking efficiency
  • 98% conversion efficiency for maximum solar energy utilization
  • Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

  • Auto-detects 12V/24V systems for seamless integration
  • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
  • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

  • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
  • Weather-resistant build with IP43-rated PCBA and IP22 connectors
  • Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

  • LCD + LED display: Real-time solar input, battery status, and customizable parameters
  • Built-in Bluetooth for App monitoring (Rich Solar App)
  • Optional remote meter and temperature sensor for enhanced control

Specifications

  • Maximum Solar Input Current: 30A
  • Maximum Charging Current: 30A
  • Recommended Solar Power: 500W (12V) / 1000W (24V)
  • Nominal System Voltage: 12V/24V Auto-Detect
  • Solar Input Voltage Range: 8V-100V
  • MPPT Voltage Range: 15V-72V
  • Maximum Conversion Efficiency: 98%
  • Maximum MPPT Tracking Efficiency: 99.5%
  • Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
  • Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
  • Protection Rating: IP43 PCBA, IP22 Connection
  • Net Weight: 1.8 lb
  • Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
