4000W 48VDC-240VAC Solar Kit

Name: 4000W 48VDC-240VAC Solar Kit
Brand: RICH SOLAR
SKU: RS-CBK4000240
Price: 13999.99 USD
Availability: InStock

SKU: RS-CBK4000240

$13,999.99

Specifications & Downloads

Full Specification:

MEGA 410W Solar Panel

Download

ALPHA 5 PRO Lithium Battery

Download

NOVA 6500S (6500W) Hybrid Inverter

Download

User Manual:

ALPHA 5 PRO Lithium Battery

Download

NOVA 6500S (6500W) Hybrid Inverter

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Looking for the best off-grid solar system? Our Cabin Kits are perfect for tiny homes, RVs, and many more off-grid applications. Start your solar adventure today with a great camper solar setup today!

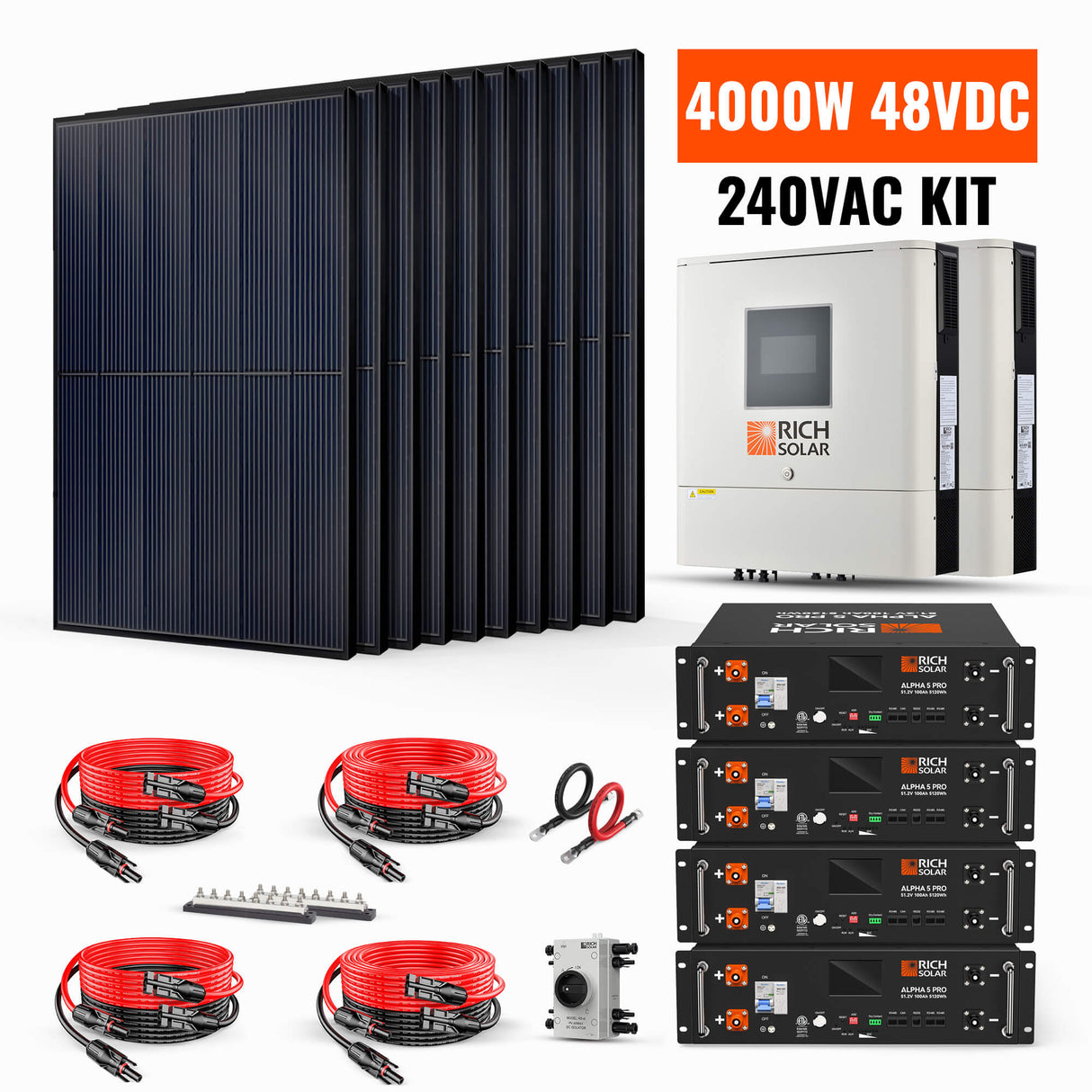

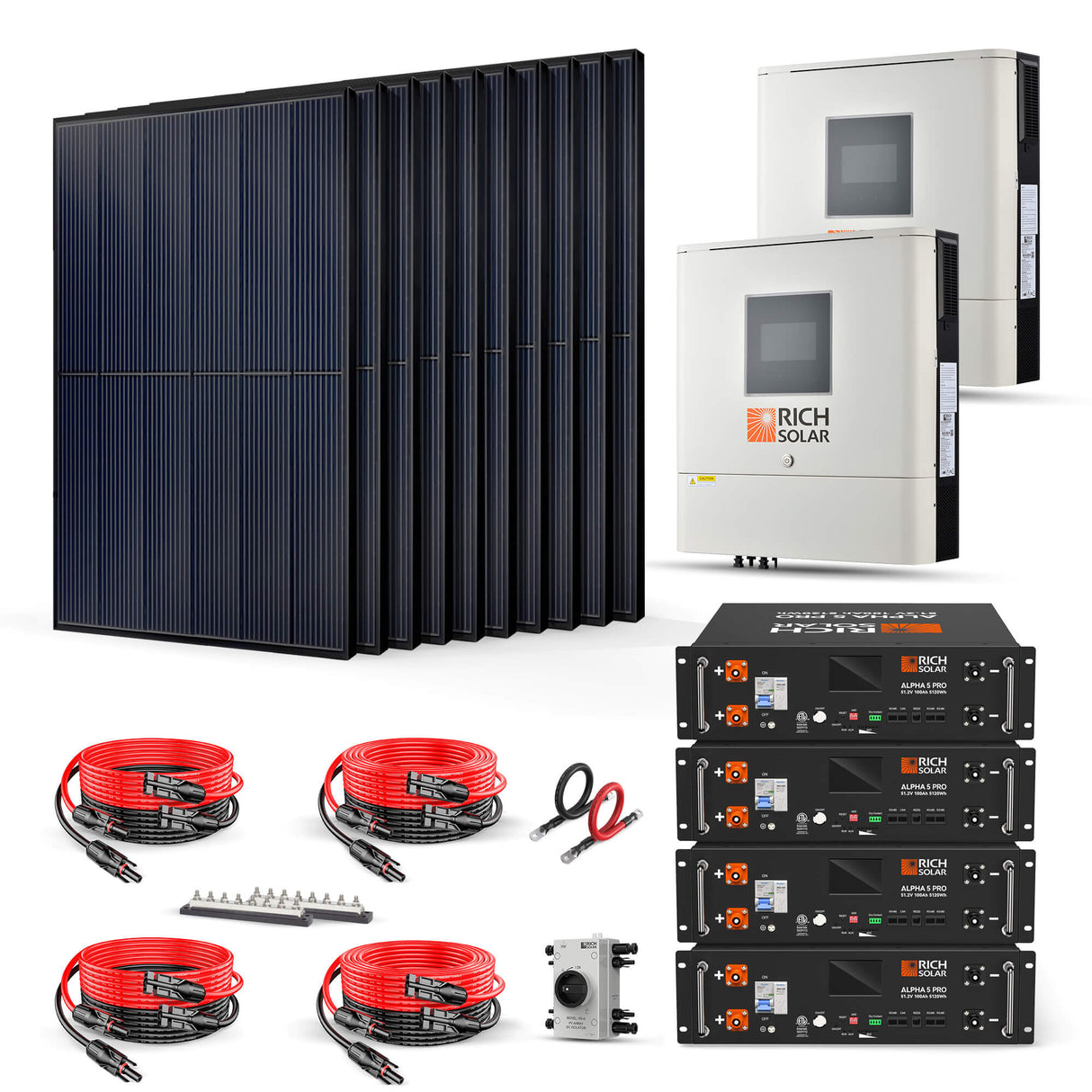

This kit includes:

2 x 6500W 48V Off-grid Solar Inverter (H6548S)
10 x MEGA 410W Solar Panel (RS-M410)
4 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P)
2 x Busbar 600 AMP
2 x 10AWG 30FT Extension Cable (RS-30102)
2 x 10AWG 10FT Extension Cable (RS-10102)
1 x PV DC Quick Disconnect (RS-i4)
1 x 4/0 AWG Battery Cables 5FT (RS-4/0A5F3)

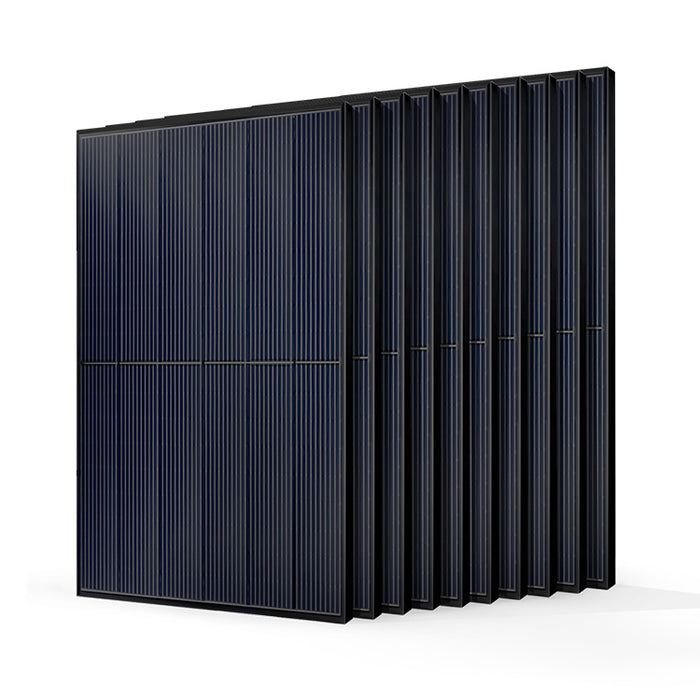

MEGA 410 Watt Solar Panels

The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
No. of Panels: 10 x MEGA 410 Watt Solar Panels
Wattage Per Panel: 410W
Total Wattage of Panels: 4100W
Features:
10-busbar solar cell configuration
Mono PERC Technology
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug-and-play junction box
Industry-standard quick-connect cables work in series or parallel
Certified to withstand challenging environmental conditions
Excellent low-light performance on cloudy days, mornings, and evenings
Installation:
Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters
Warranty:
25-year output warranty
10-year workmanship warranty
Specifications:
Maximum Power(Pmax): 410W
Maximum Power Voltage(Vmp): 31.3V
Maximum Power Current(Imp): 13.1A
Open Circuit Voltage(Voc): 37.5V
Short Circuit Current(Isc): 13.8A
Maximum System Voltage(Vmax): 1500VDC
Temperature Range: -40°F ~ 185°F
Max Series Fuse Rating: 25A
Weight: 45.2 lb
Dimensions: 67.9 x 44.6 x 1.2 in

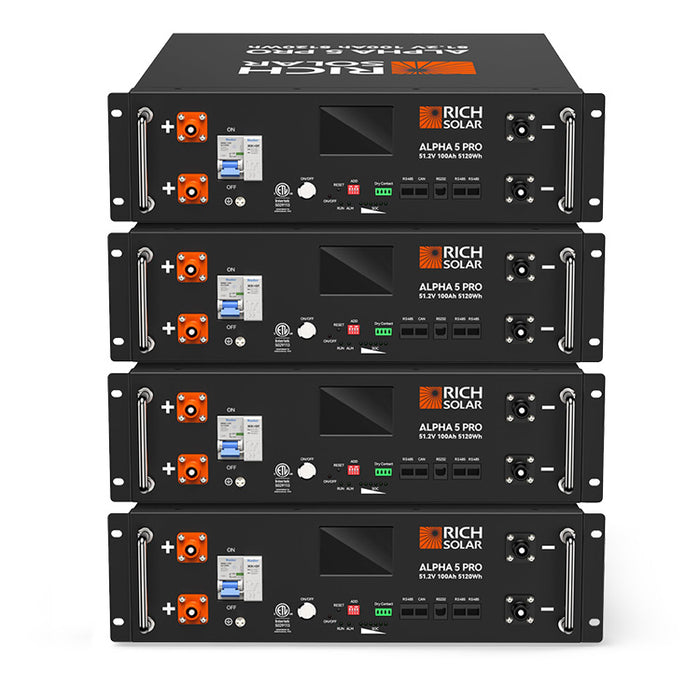

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery
No. of Batteries: 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries
Features:
Certification: UL1973, UL9540A, FCC
7,000 Deep Cycles Life
5120 Watt Hours Energy
100A Continuous Charge Current
Compatible with multiple brands of inverters
Low maintenance
Over charging or discharging protection
Overcurrent & short circuit protection
Parallel up to 15 Batteries
Connect in Parallel for Larger Capacity
With Sophisticated Battery Management System (BMS)
10 Years Lifespan
Warranty:
*10-Year Warranty
Specifications:
Electrical Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Minimum Capacity: 99.5Ah
Nominal Capacity: 5120Wh
Operating Specifications
Charging Voltage: 56V
Discharging Cutoff Voltage: 44.8V
Maximum Charging Current: 100A
Continuous Charge Current: 100A
Maximum Discharge Current: 100A
Physical Specifications
Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
Battery Weight: 99.2 lb
Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight: 196.2 lb
BMS Operation
Operation Voltage: 43.2~58.4V
Maximum Charging Current: 100A
Maximum Discharging Current: 100A
Maximum Charge Voltage (CC/CV): 57.6V
Overcharge Protection Voltage (Battery): 58.4V
Overcharge Protection Release Voltage (Battery): 54V
Over Discharge Protection Voltage (Battery): 43.2V
Over Discharge Protection Release Voltage (Battery): 47.2V
Over Discharge Primary Charge Overcurrent Protection Value: 110A
First Stage Charge Over Current Delay: 1s
Primary Discharge Overcurrent Protection Value: 110A
Primary Discharge Overcurrent Protection Delay: 1s
Secondary Discharge Overcurrent Protection Value: 150A
Secondary Discharge Overcurrent Protection Delay: 500ms
Temperature Performance
Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)
Others
Certification: UL1973, UL9540A, FCC
Max. Expansion: 15 pcs in parallel
Communication Ports: RS485/RS232/CAN
Warranty: 10 Years Manufacturer Defect
NOVA 6500S 48V Off-grid Solar Inverter
No. of Hybrid Solar Inverter: 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverters
Features:
UL Certification
Status indication with RGB lights
Built-in Wi-Fi for mobile monitoring (Android/iOS)
Supports USB on-the-go function
Data log events stored in the inverter
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Adjustable high-power charging current
Adjustable input voltage range for home appliances and personal computers
Compatible with Utility Mains or generator input
Built-in anti-dust kit
Optional DC output for DC fan, LED bulb, router, etc.
6-unit parallel operation capabilities
Warranty:
3-Year Warranty
Specifications:
INPUT
Voltage: 120 VAC
Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
Surge Power: 13000VA
Efficiency (Peak): 91%
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
No Load Power Consumption: <70W
Optional DC Voltage: 12 VDC ± 5%, 100W
Dual Outputs: Yes
BATTERY
Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A
PHYSICAL
Dimension (D X W X H): 5.8 x 17.0 x 21.8 in
Net Weight: 44.09 lb
Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 14°F to 122°F
Storage Temperature: 5°F to 140°F
STANDARD
Compliance Safety: UL
