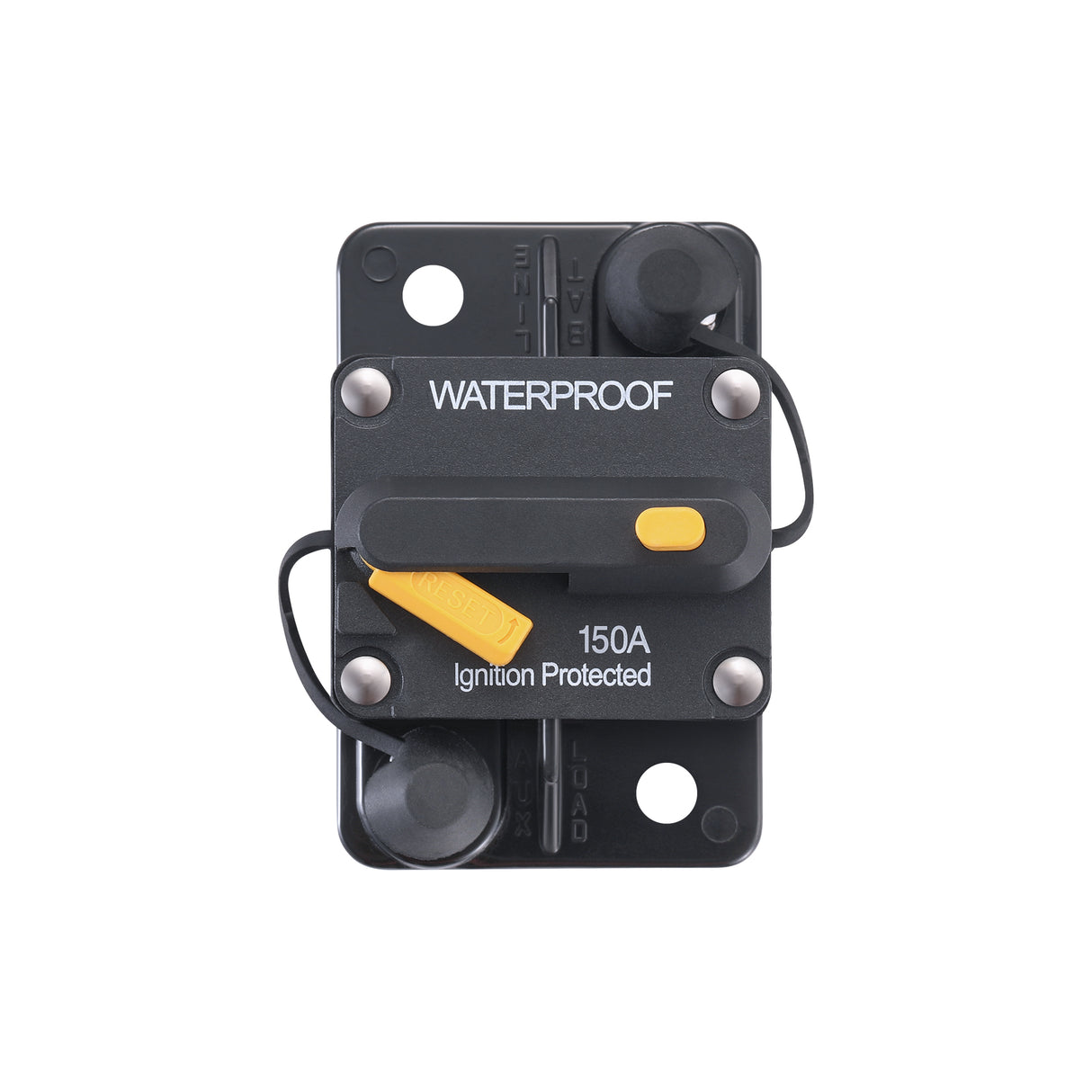

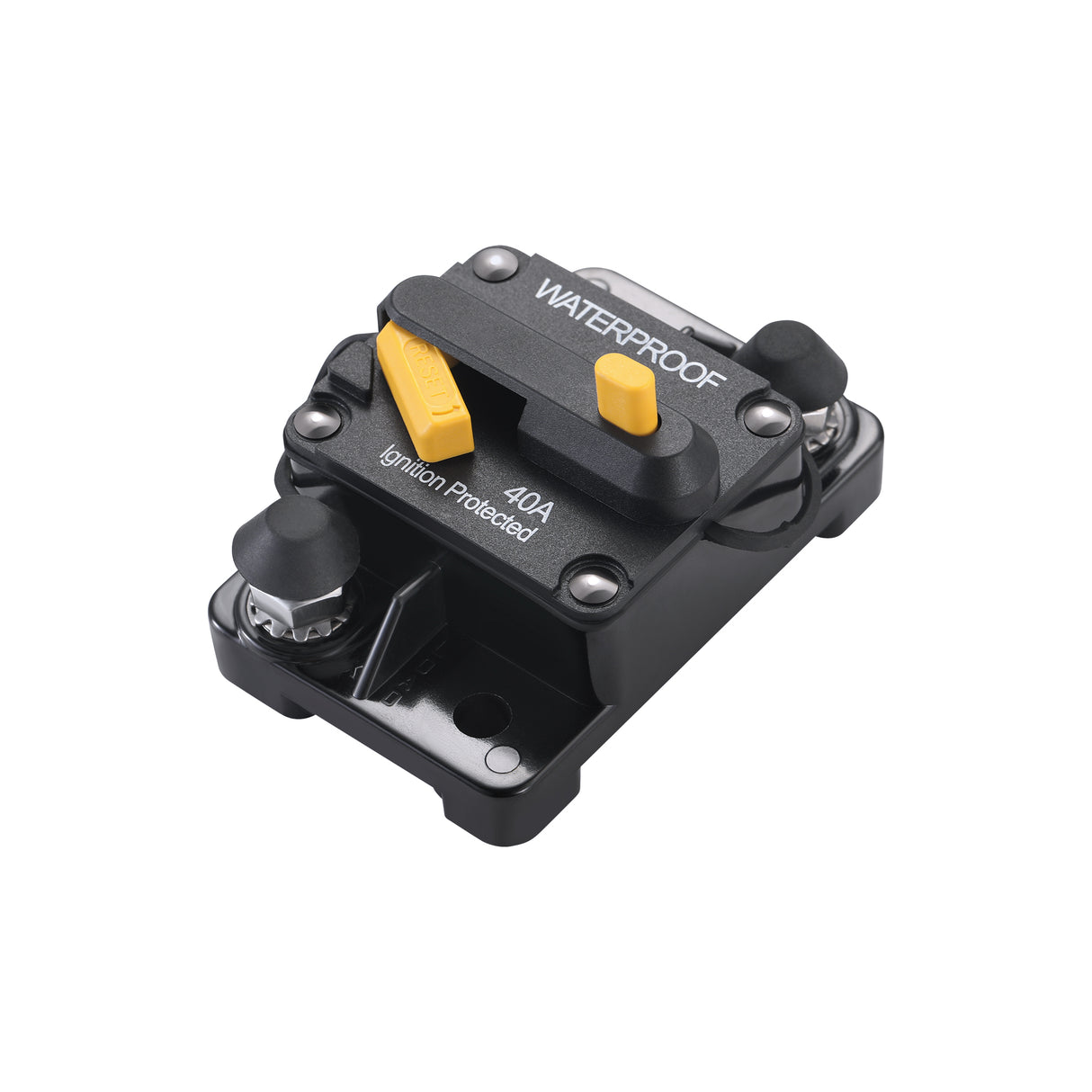

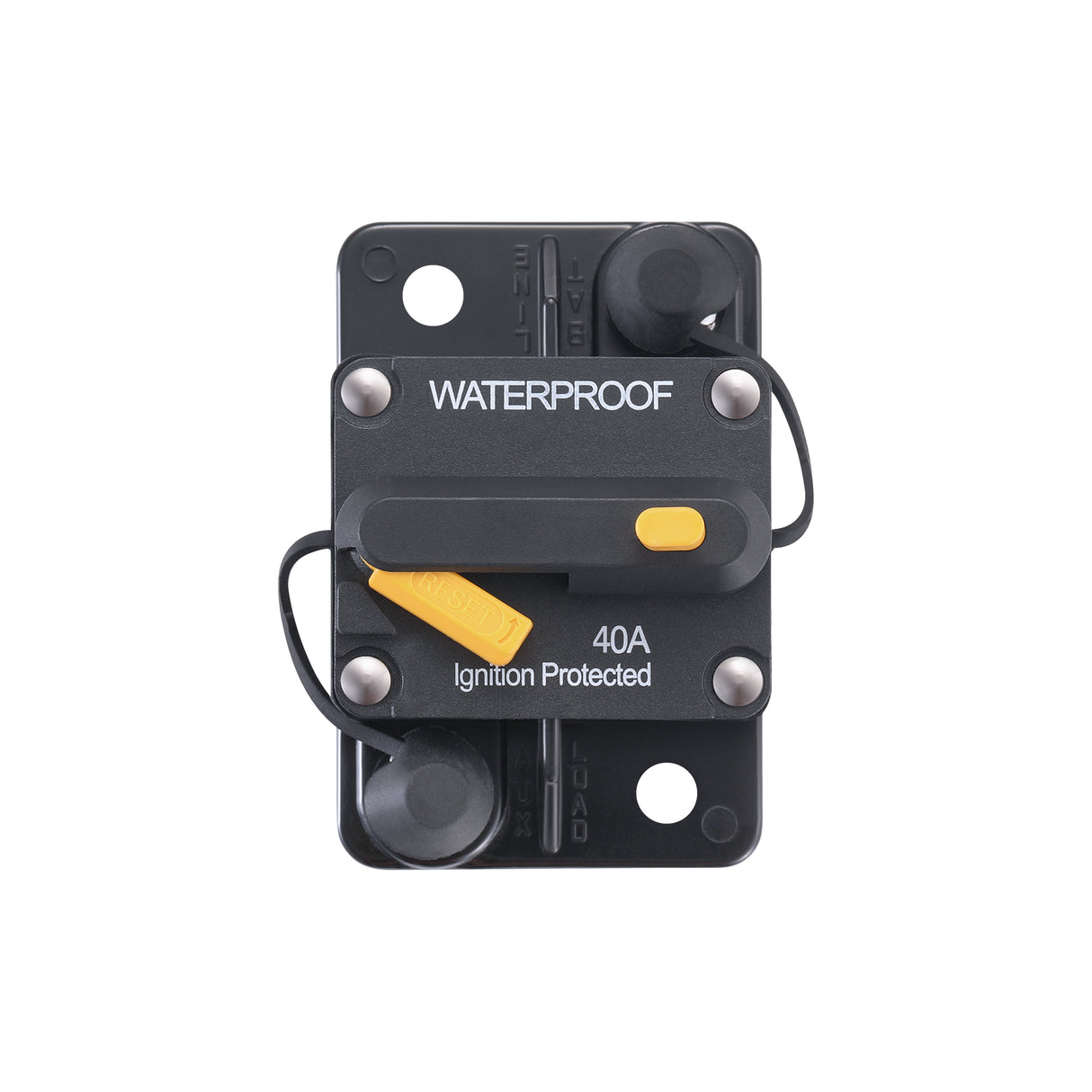

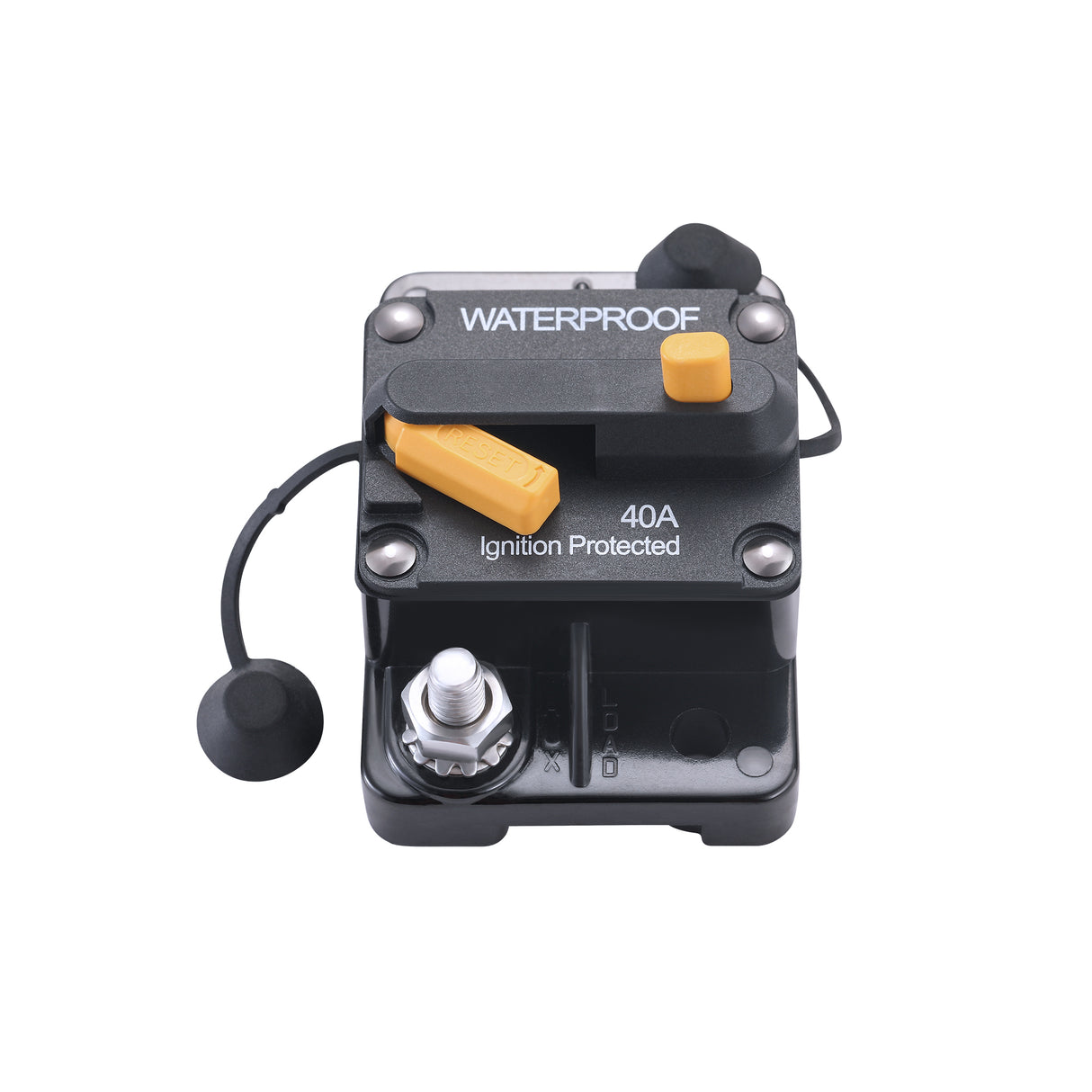

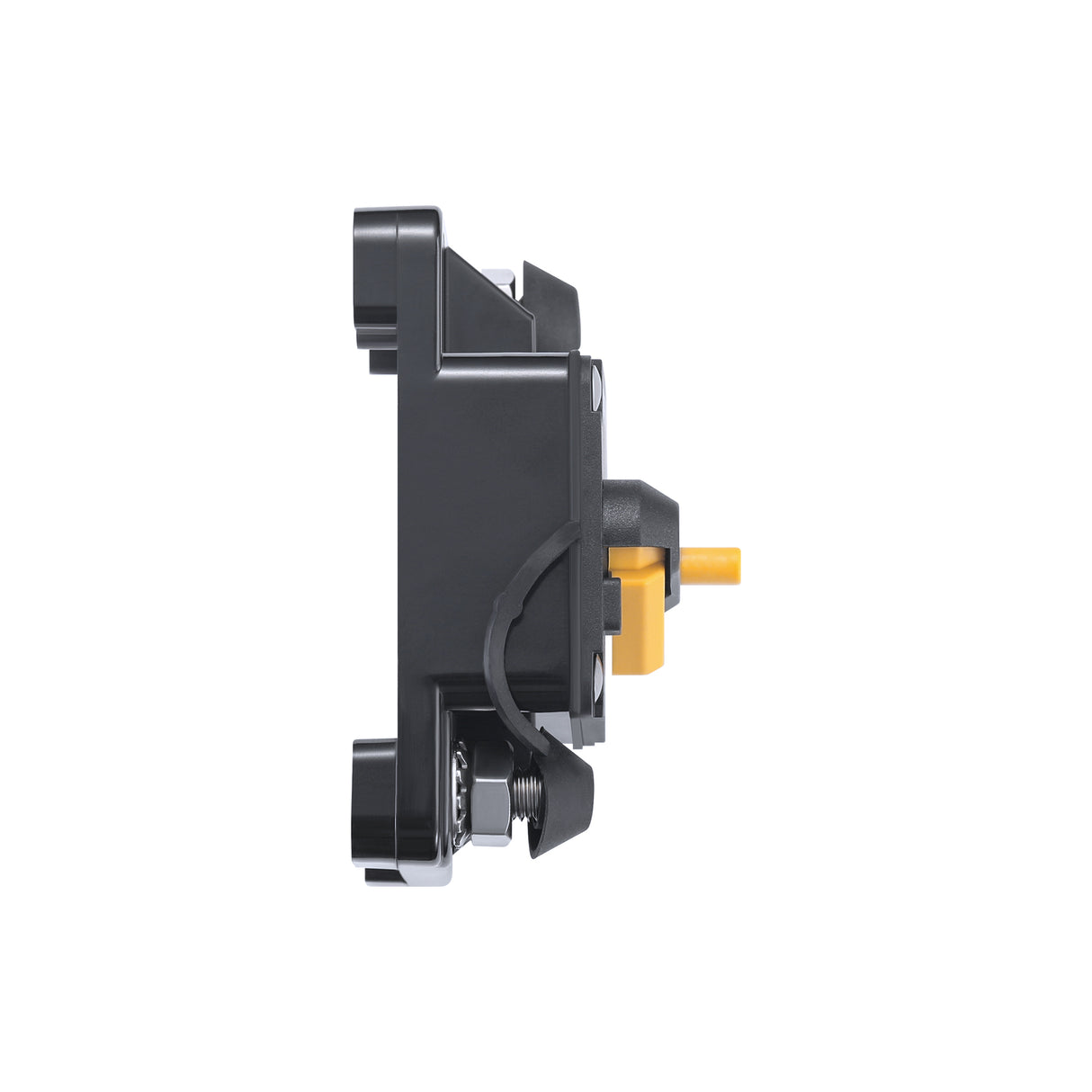

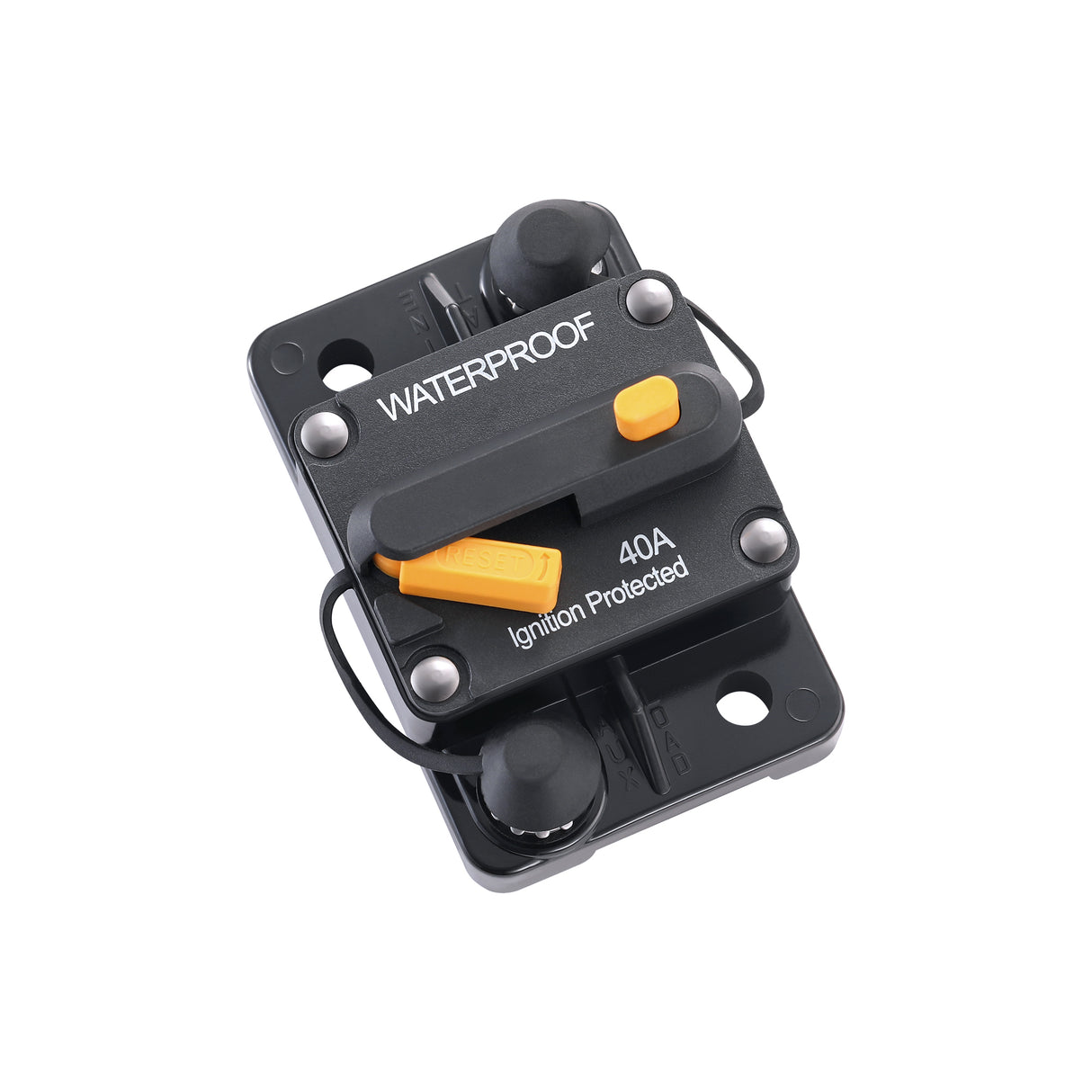

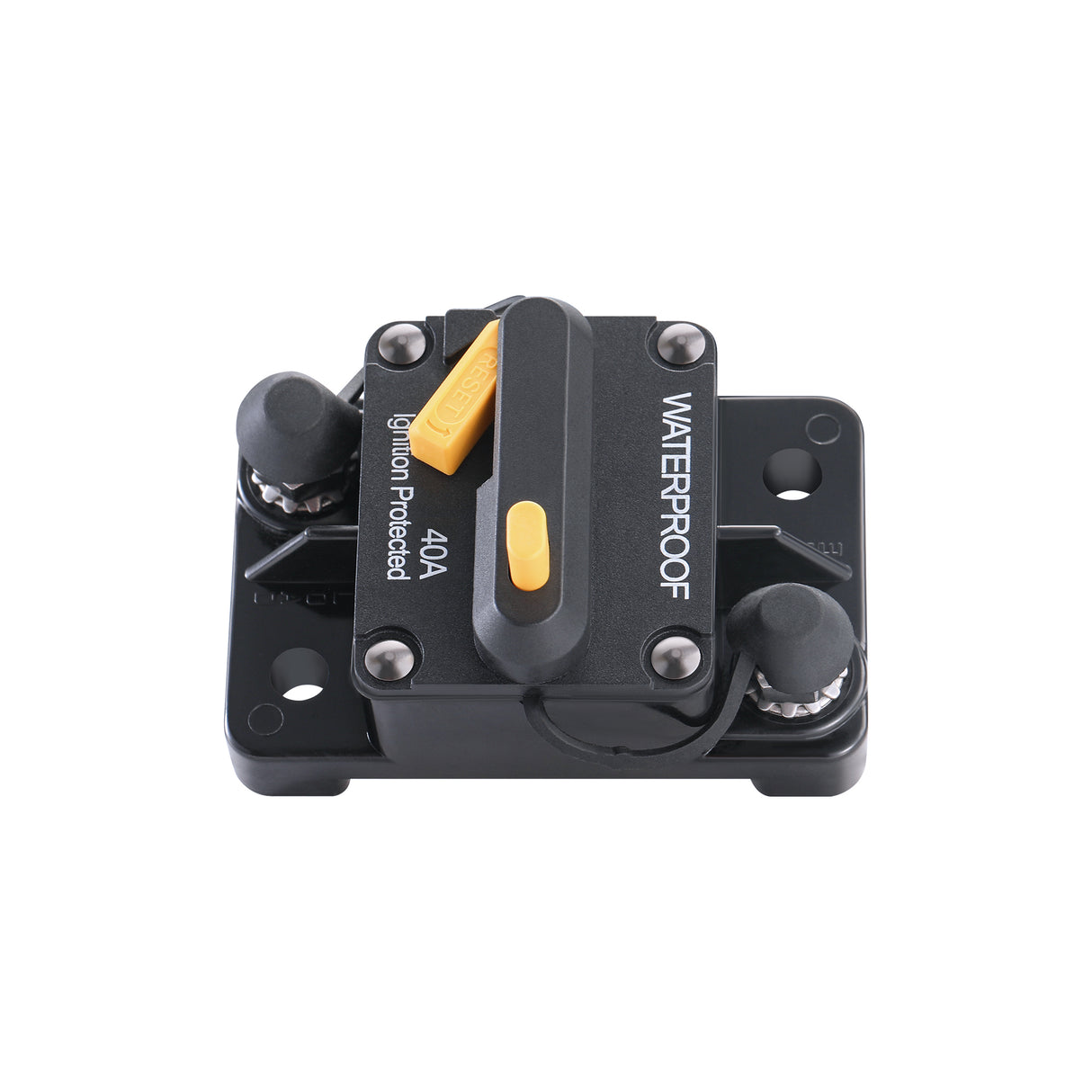

Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 40A, 60A, 80A, 100A, 120A, 150A, 150A, 200A, 250A
Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 40A, 60A, 80A, 100A, 120A, 150A, 150A, 200A, 250A - 40A is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Full Specifications:
DownloadCustomer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
5550 Jurupa St
Ontario, CA 91761
1900 Mountain Ave,
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Br...
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Single Pole Thermal Type Breakers
Applications: Typically used in auxiliary and accessory circuits in truck, bus, RVs and marine systems. Others include battery chargers and DC audio systems, compartment and bilge area applications.
Specifications
- Rating: 25-250A, 30VDC; 48VDC
- Interrupt Rating: 3000A @30VDC
- Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C)
- Storage Temperature Rating: -30°F (-34°C) to 300°F (149°C)
- Materials: Black UL-rated 94V0 thermoses plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
- Marking: Standard marking includes amp ratings and part numbers. Custom markings also available.
- Termination: 1/4-28 or 3/8-16 threaded studs.
- Torque Rating: S 50 in-lbs (5.6N·m) max
- Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N·m) max. Threaded insert option has a max torque of 25 in-lbs (2.8N·m).
- Ingress Protection Rating: IP67 Custom markings also available.
- Compliance: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
