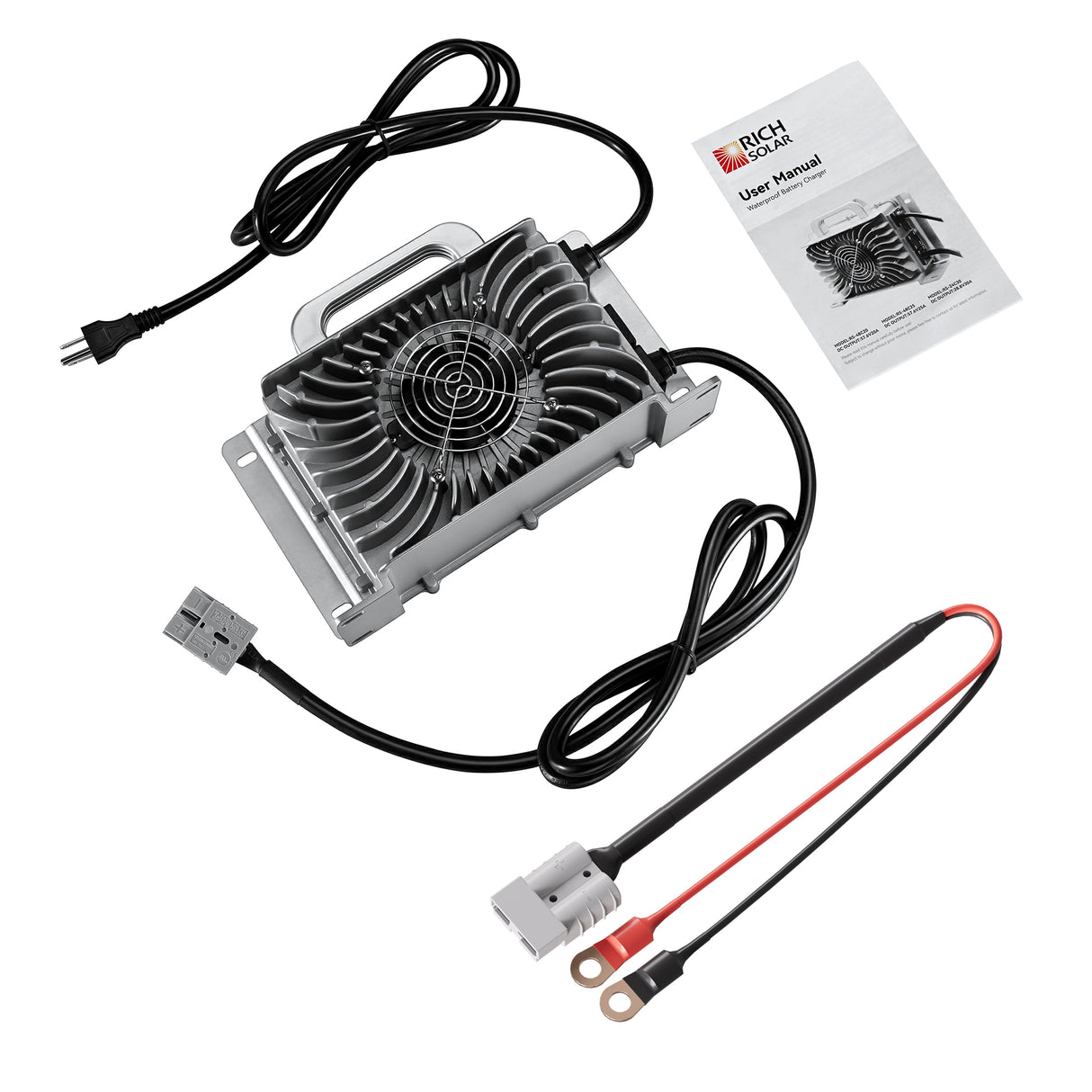

48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled
48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8-in-1 Protection, Fan-Cooled - 20A is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Full Specification:
DownloadCustomer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave,
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
48V (57.6V) Waterproof LiFePO4 Charger | 20A / 25A, 100-240V AC, 8...
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
Fast & Efficient Charging
- 88-93% peak efficiency for quick, energy-efficient charging
- LiFePO4-optimized design extends battery lifespan and ensures stable long-term performance
Industrial-Grade Protection
- IP67 waterproof, dustproof, and shock-resistant die-cast aluminum housing
- 8-in-1 safety protection: overvoltage, overcurrent, short-circuit, reverse polarity, overheating, undervoltage, auto-shutoff, and battery activation
- FCC, CE, and RoHS certified for safety, performance, and environmental compliance.
Reliable Power Output

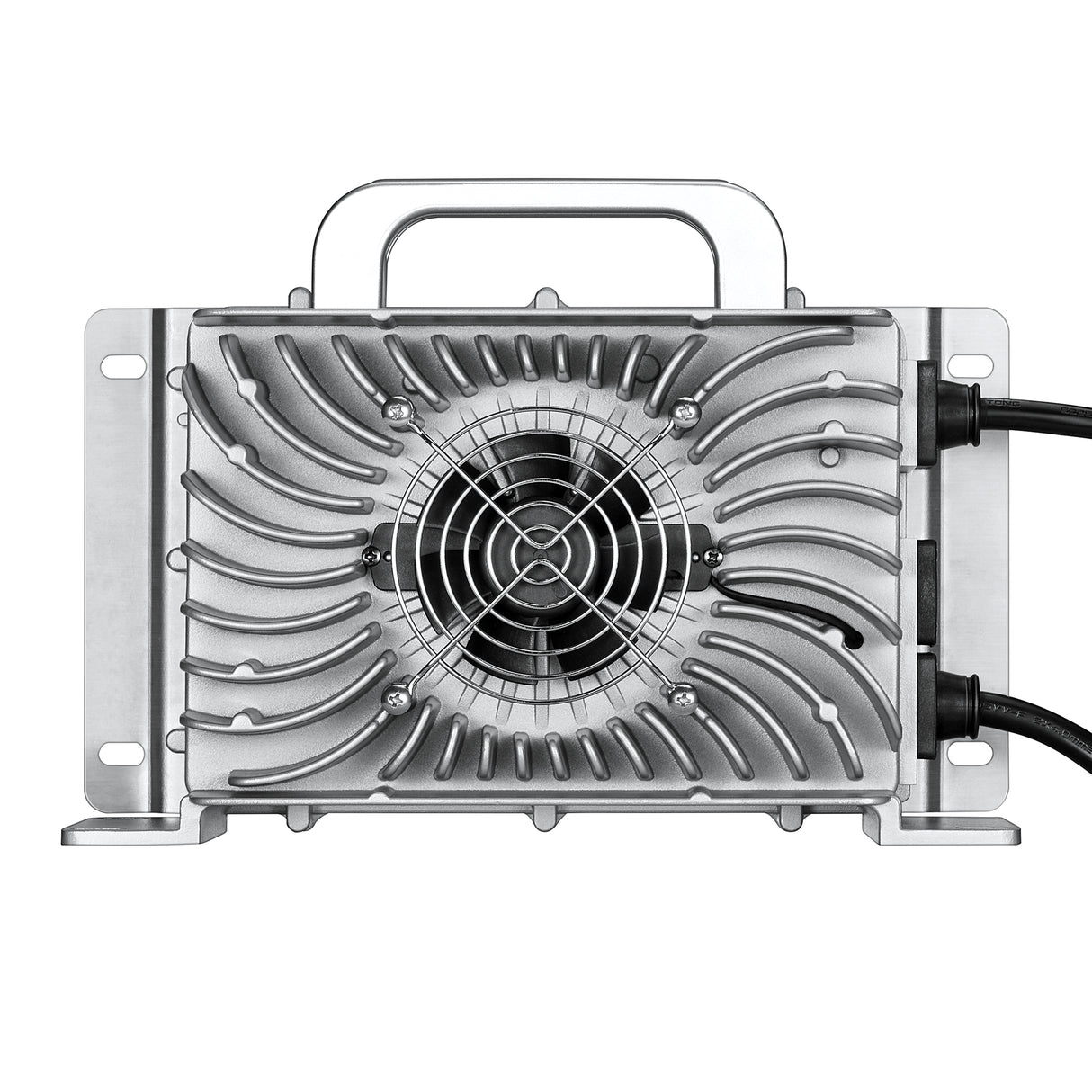

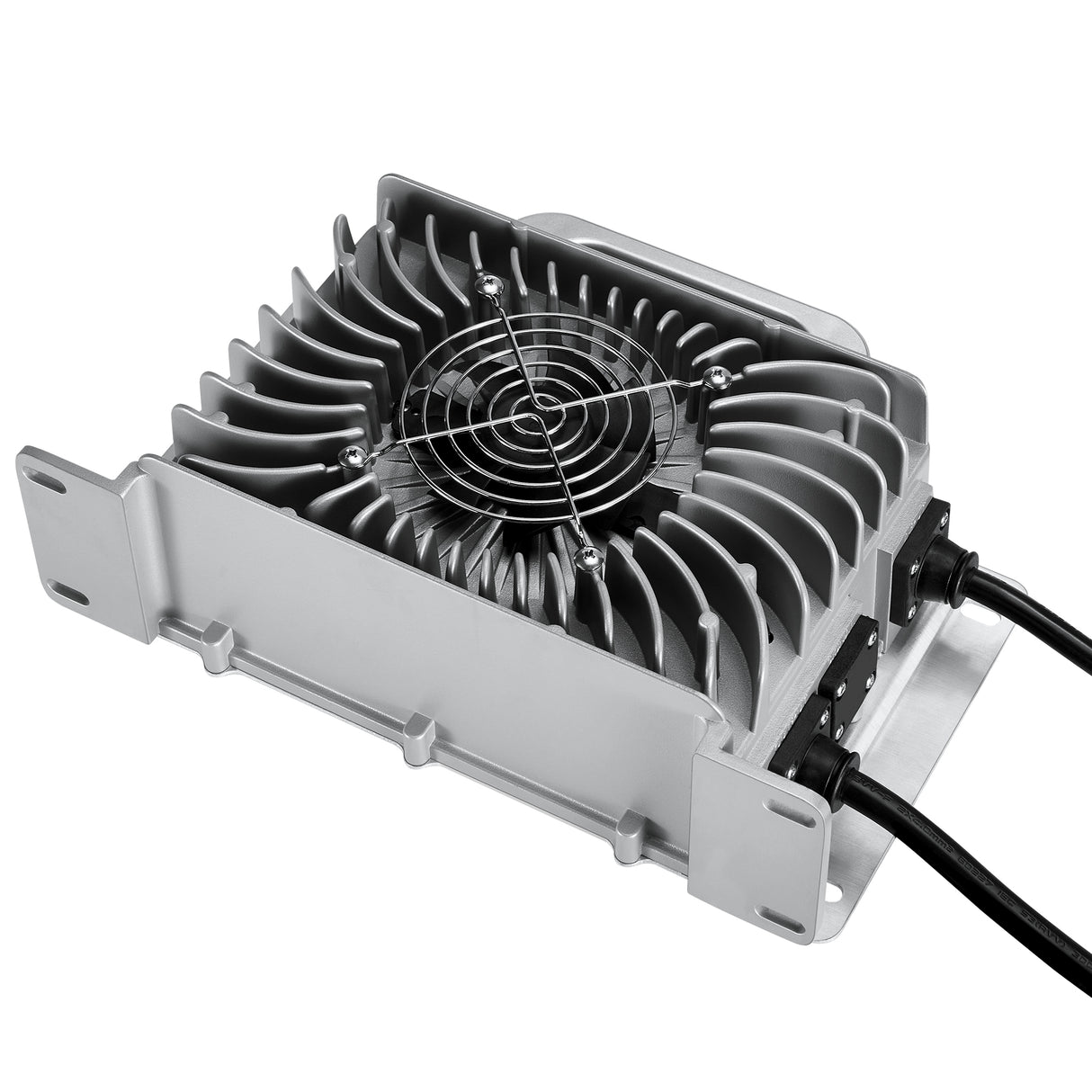

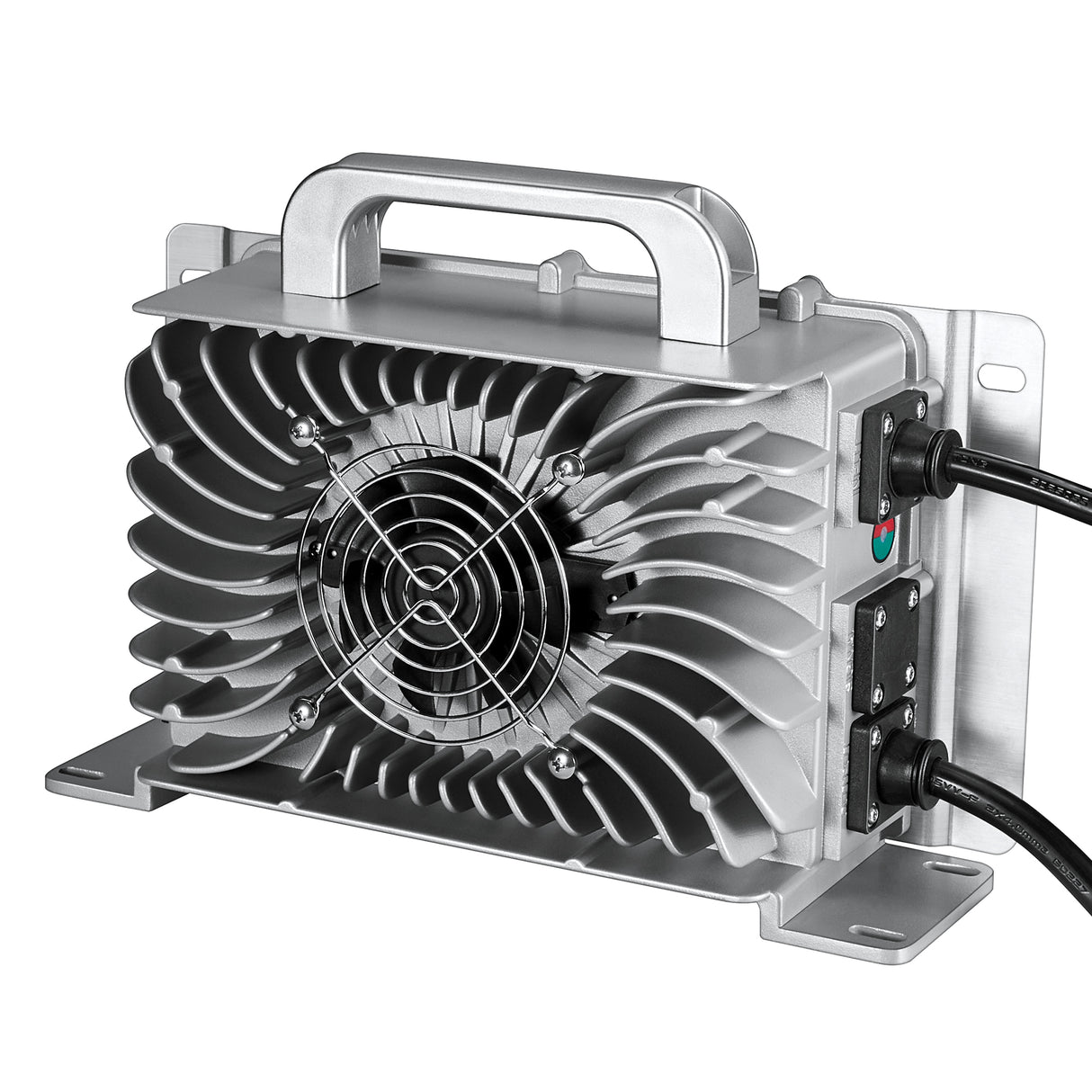

- Selectable 20A or 25A output with an active cooling fan for heat dissipation
- Universal AC input: 100-240V, 50/60Hz for global compatibility

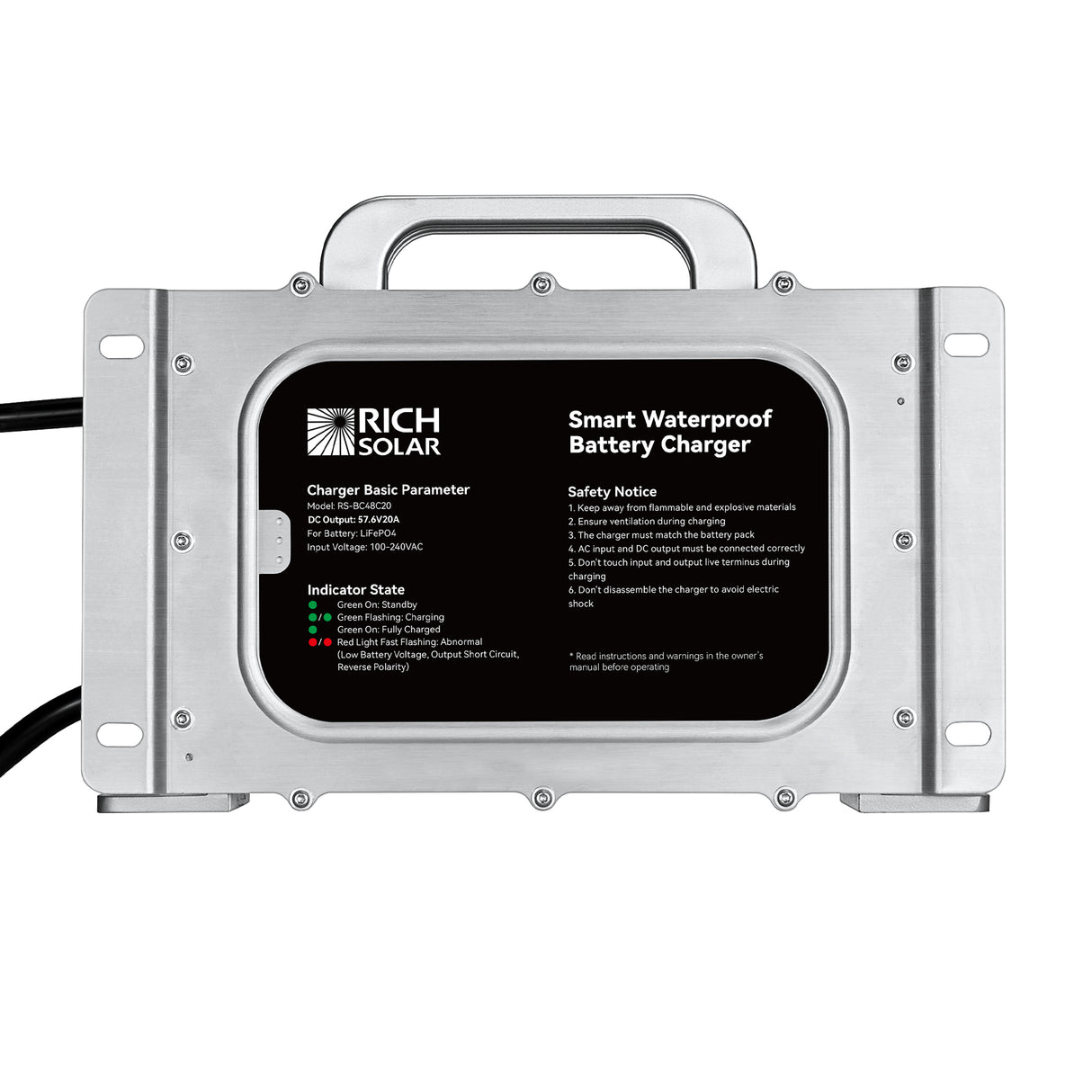

LED Indicator
- Green (Always On): Standby / No Load
- Green (Flashing): Battery is Charging
- Green (Always On): Battery Fully Charged
- Red (Flashing): Charger Fault or Under Protection
How to Connect
- Ensure the switch is off.

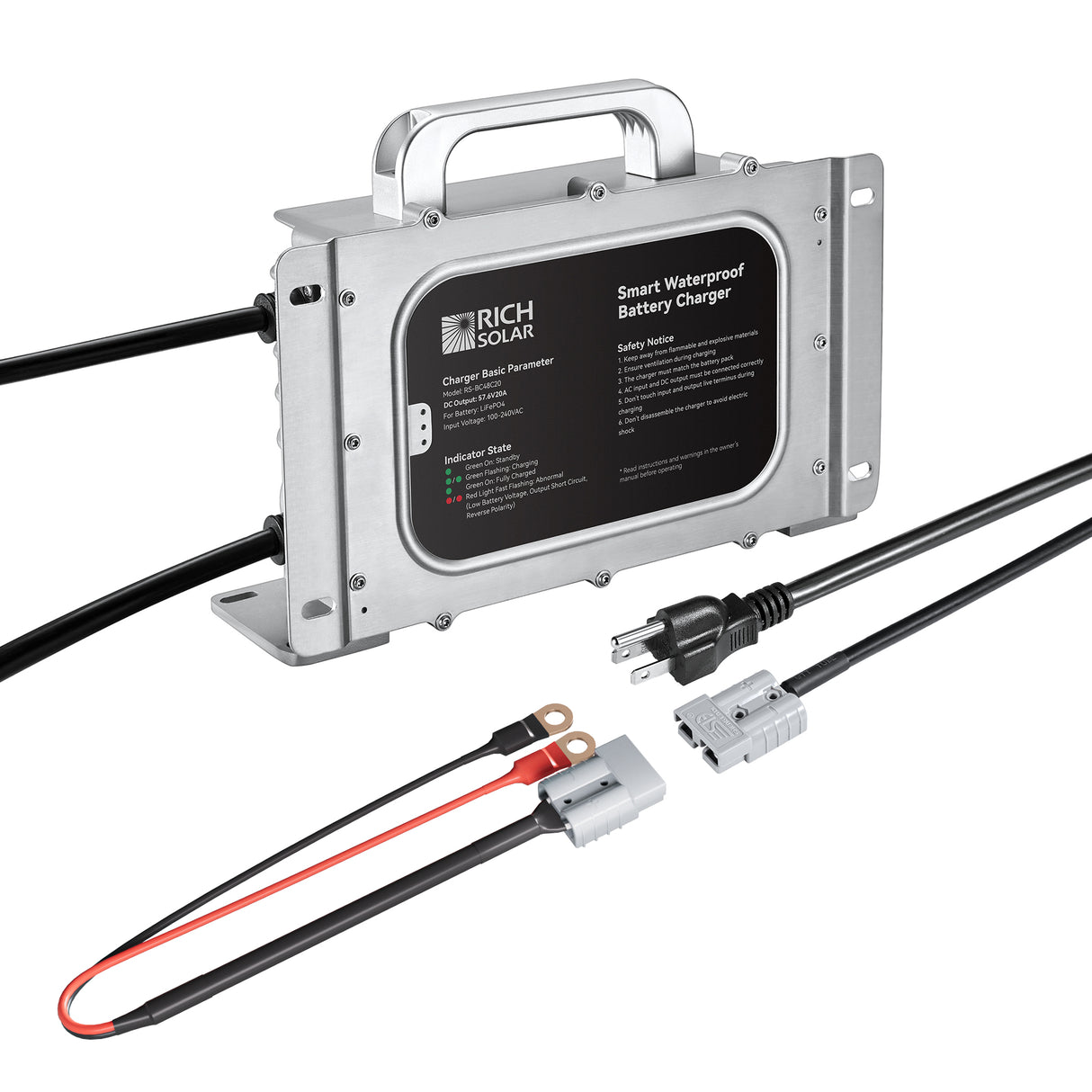

- Connect the DC output cable to the battery (+ to +, - to -) and attach the Anderson connector.
- Turn on the switch. The battery is charging when the LED indicator flashes green.
- Turn off the switch after charging is complete.
Specifications
- DC Output Current: Max 20A (RS-BC48C20); Max 25A (RS-BC48C25)
- DC Output Voltage: 57.6V
- Battery Type: LFP Battery
- Input Voltage Range: 100-240V AC, 50/60Hz
- Peak Efficiency: 88-93%
- Charging Indicator: Two-Color LED
- Operating Temperature: 14°F to 113°F (-10°C to 45°C)
- Protections: Overvoltage, Overcurrent, Short-Circuit, Reverse Polarity, etc.
- Enclosure Material: Die-Cast Aluminum
- Waterproof: IP67 Rated
- Weight: 9.5 lb

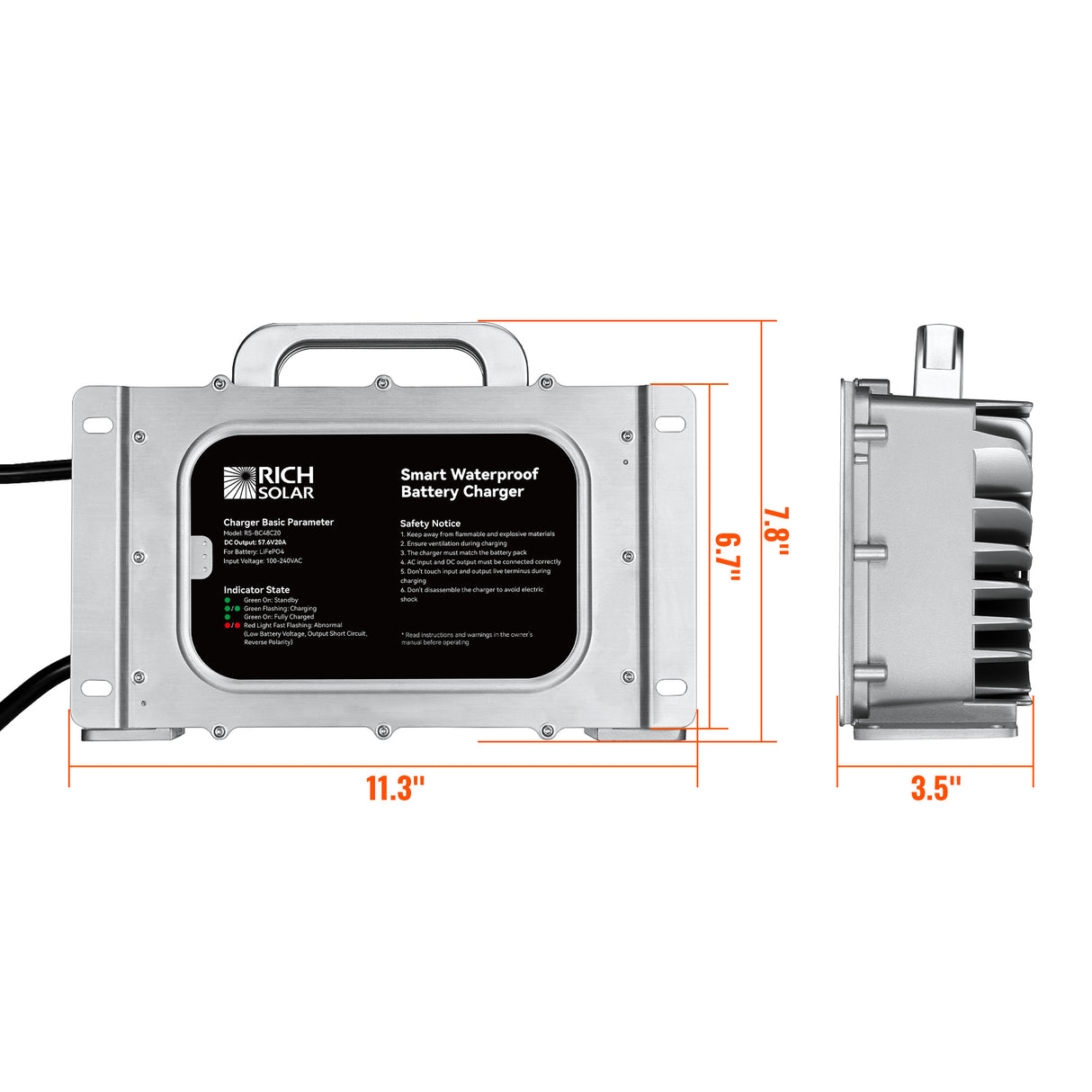

- Dimensions: 11.3 × 7.8 × 3.5 in
