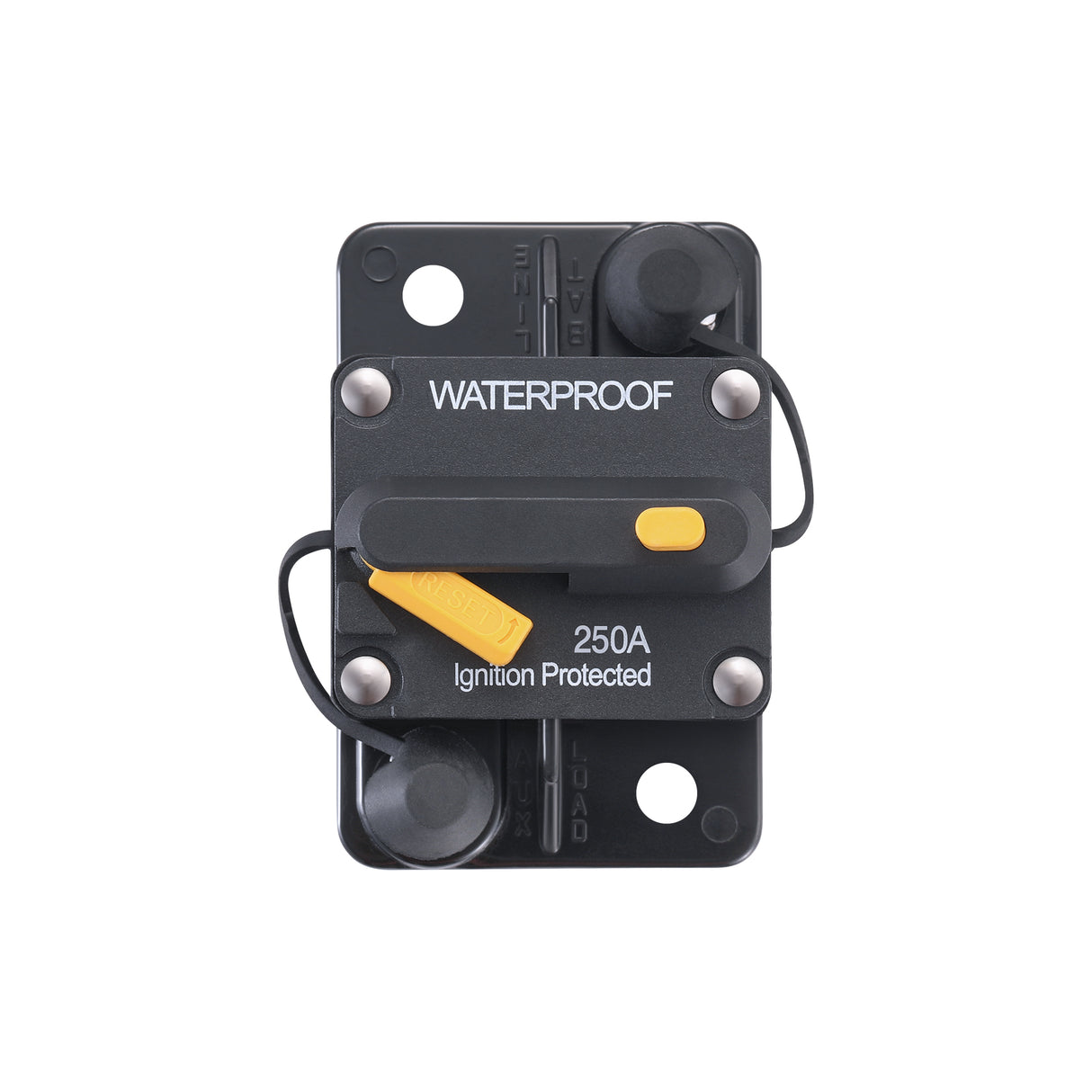

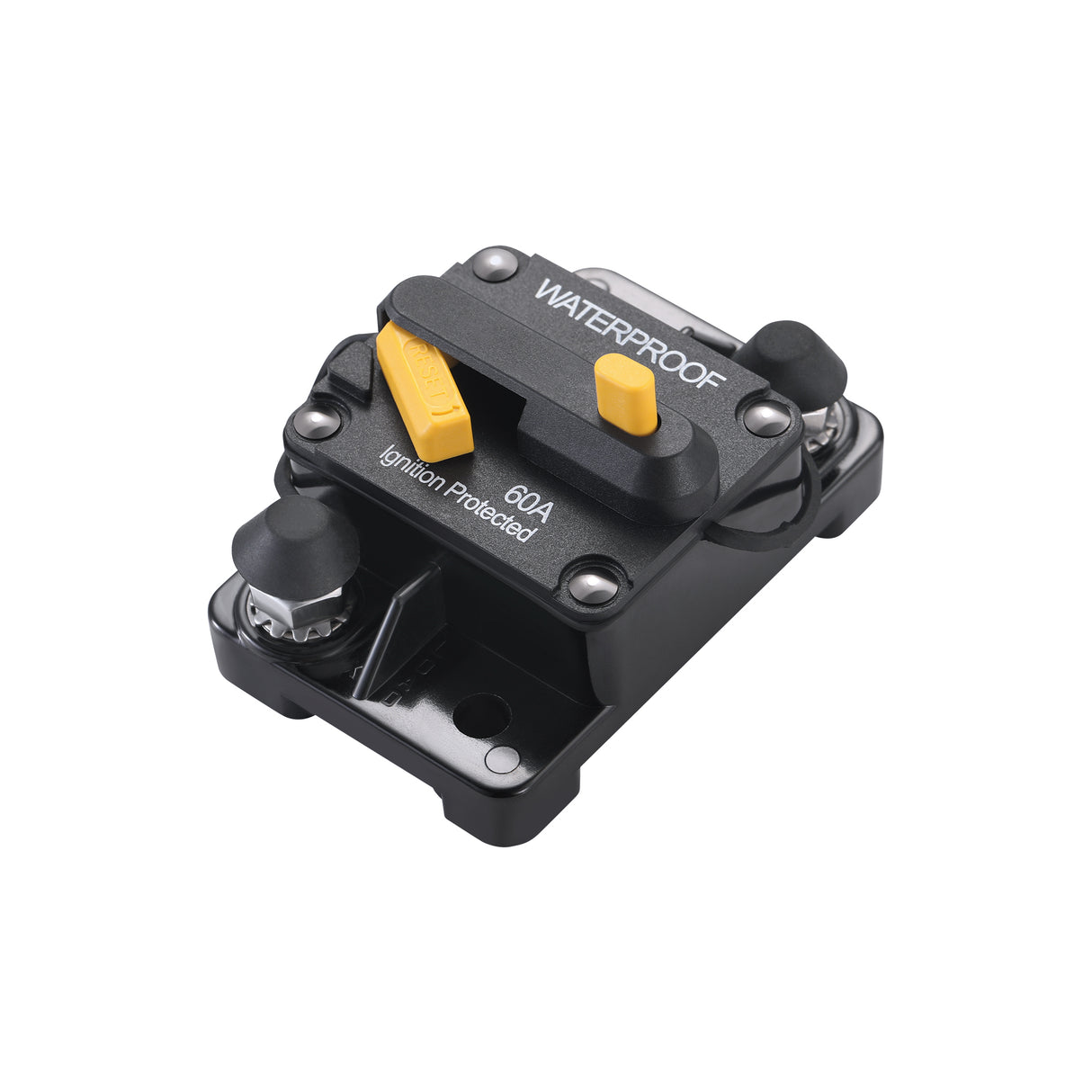

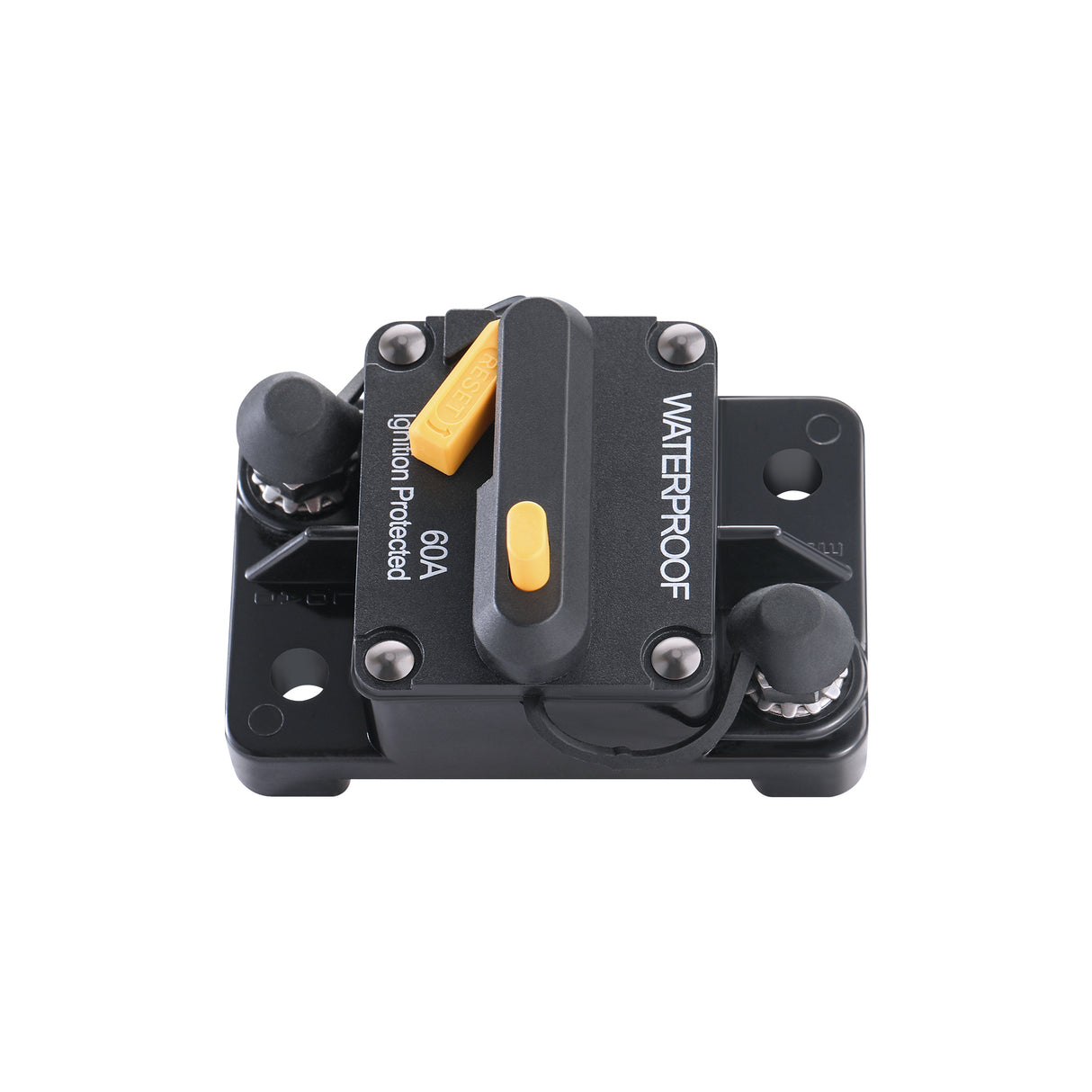

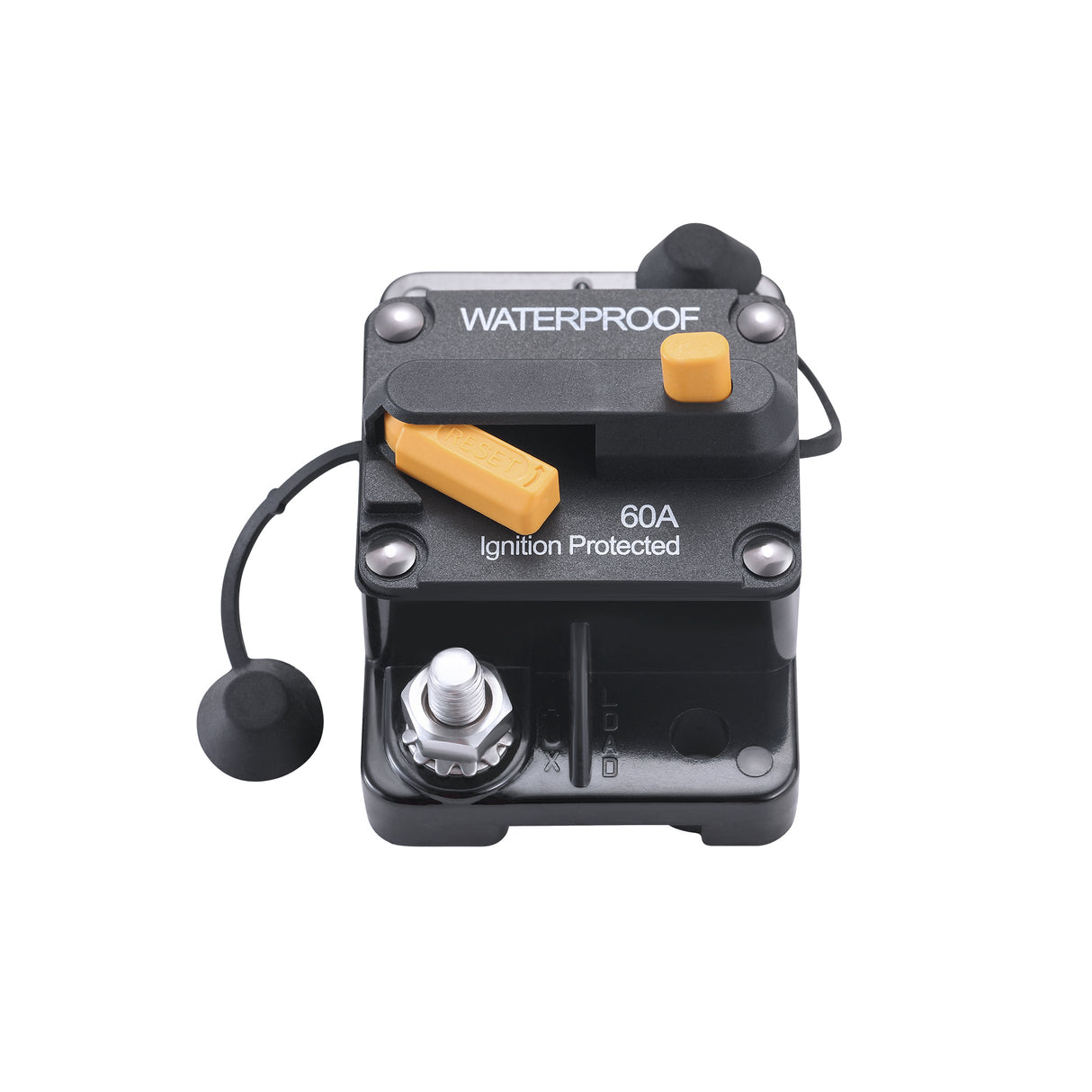

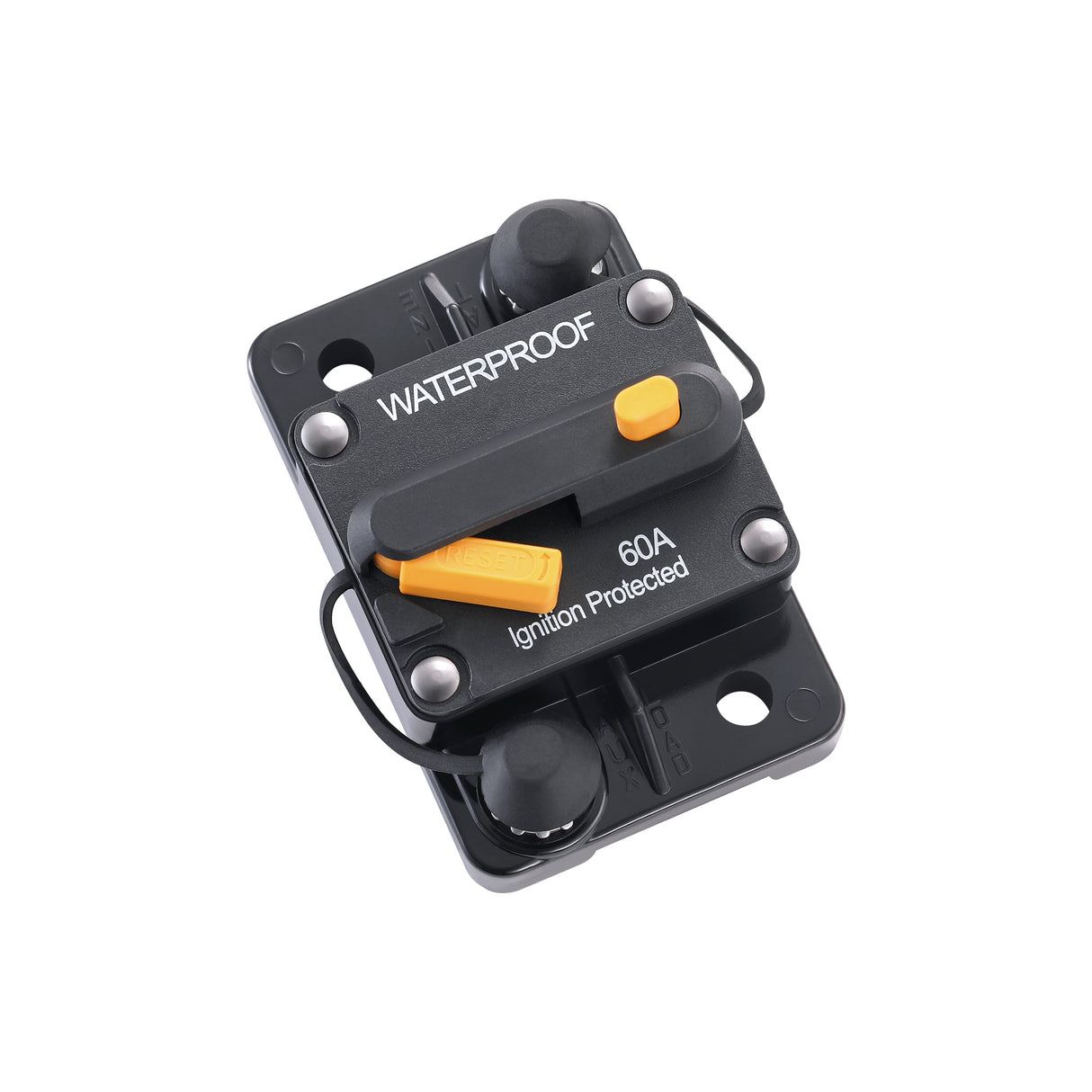

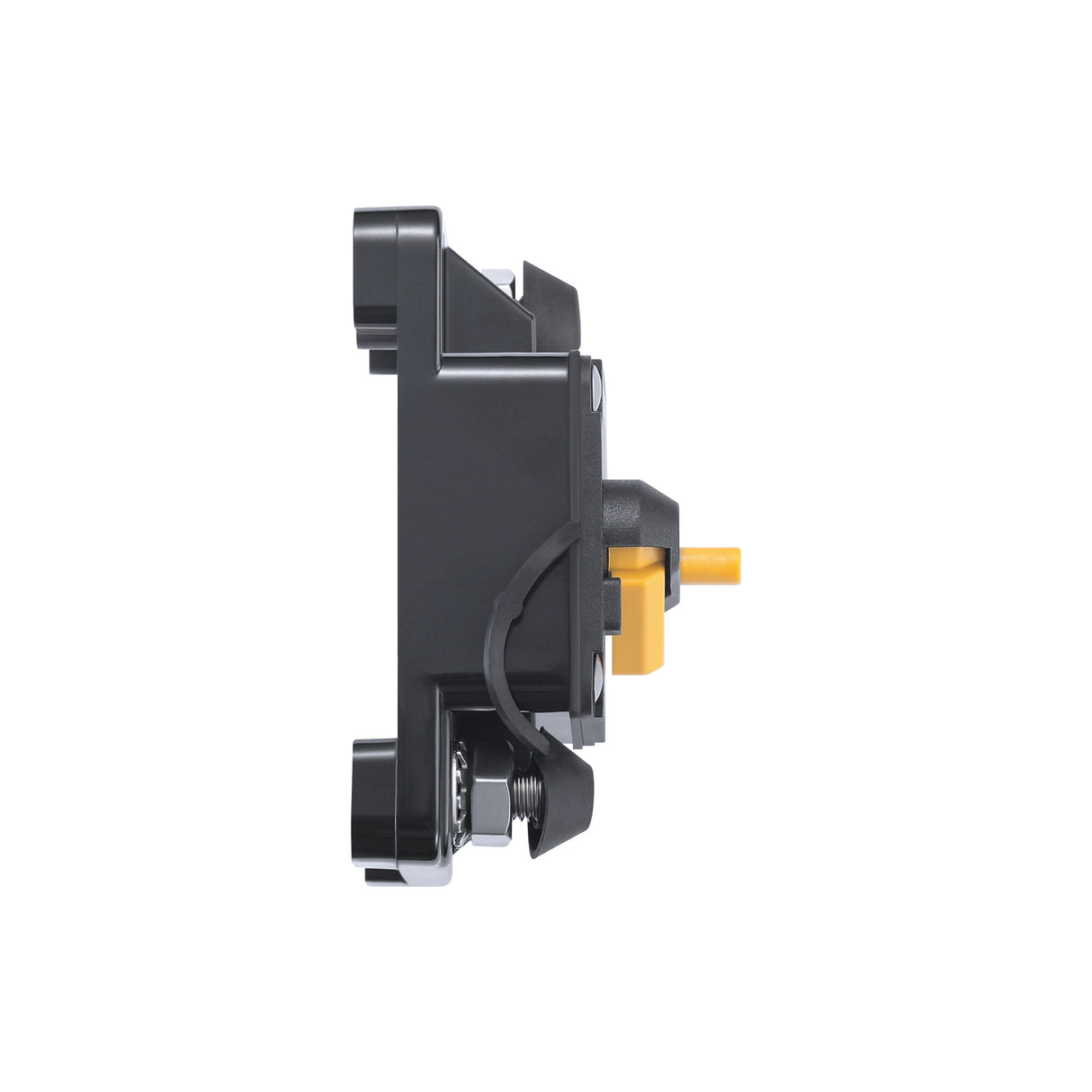

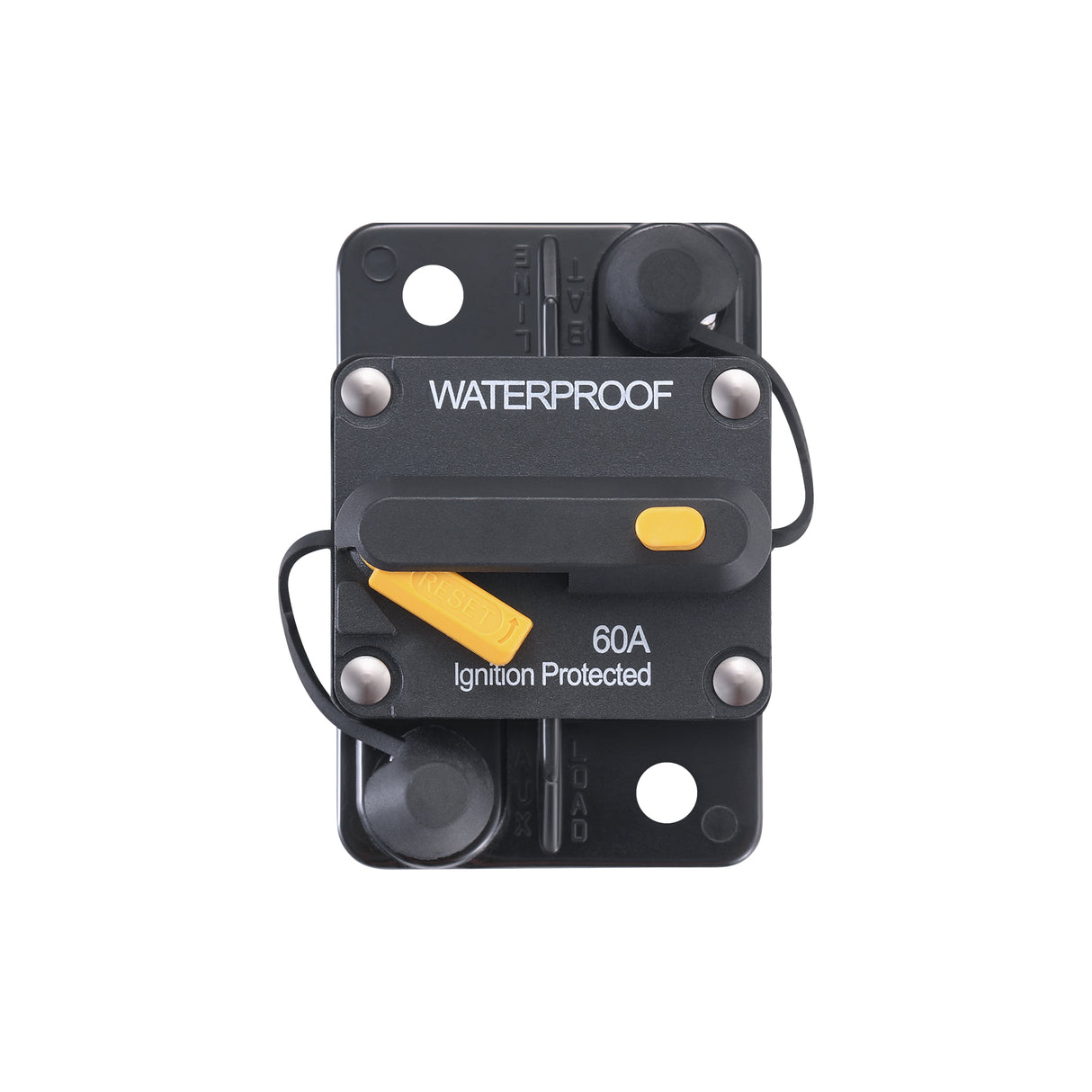

Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 30A, 40A, 60A, 80A, 100A, 120A, 150A, 200A, 250A

Features

• Advanced Circuit Protection: Protects DC systems from overloads and short circuits with a 3,000A @ 30VDC interrupt rating.

• Manual Reset Function: Features a push-to-trip button and reset lever for easy testing and quick power restoration.

• IP67 Waterproof Housing: Sealed construction protects against water, dust, and harsh outdoor environments.

• UL94 V-0 Flame-Retardant Housing: Durable thermoplastic housing with insulated terminals enhances safety and long-term reliability.

• Panel or Surface Mount: Supports flexible installation with 1/4"-28 or 3/8"-16 threaded stud terminals.

• 25A–250A Current Options: Available in multiple current ratings to support a wide range of DC power applications.

• Industry-Recognized Certifications: Meets SAE J1625, SAE J1171, ABYC E-11, and CE standards for dependable performance.

Specifications

• Current Ratings: 25A–250A

• Rated Voltage: 30VDC, 48VDC

• Interrupt Rating: 3,000A @ 30VDC

• Operating Temperature: -25°F to 180°F

• Storage Temperature: -30°F to 300°F

• Housing Material: UL94 V-0 Flame-Retardant Thermoset Plastic

• Terminal Type: 1/4"-28 or 3/8"-16 Threaded Studs

• Max Terminal Torque: 50 in-lbs (5.6 N·m)

• Mounting: Panel or Surface Mount

• Waterproof Rating: IP67

• Certifications: SAE J1625, SAE J1171 (Ignition Protected), ABYC E-11, CE

• Package Dimensions: 4 × 6 × 3 in

• Gross Weight: 1 lb
