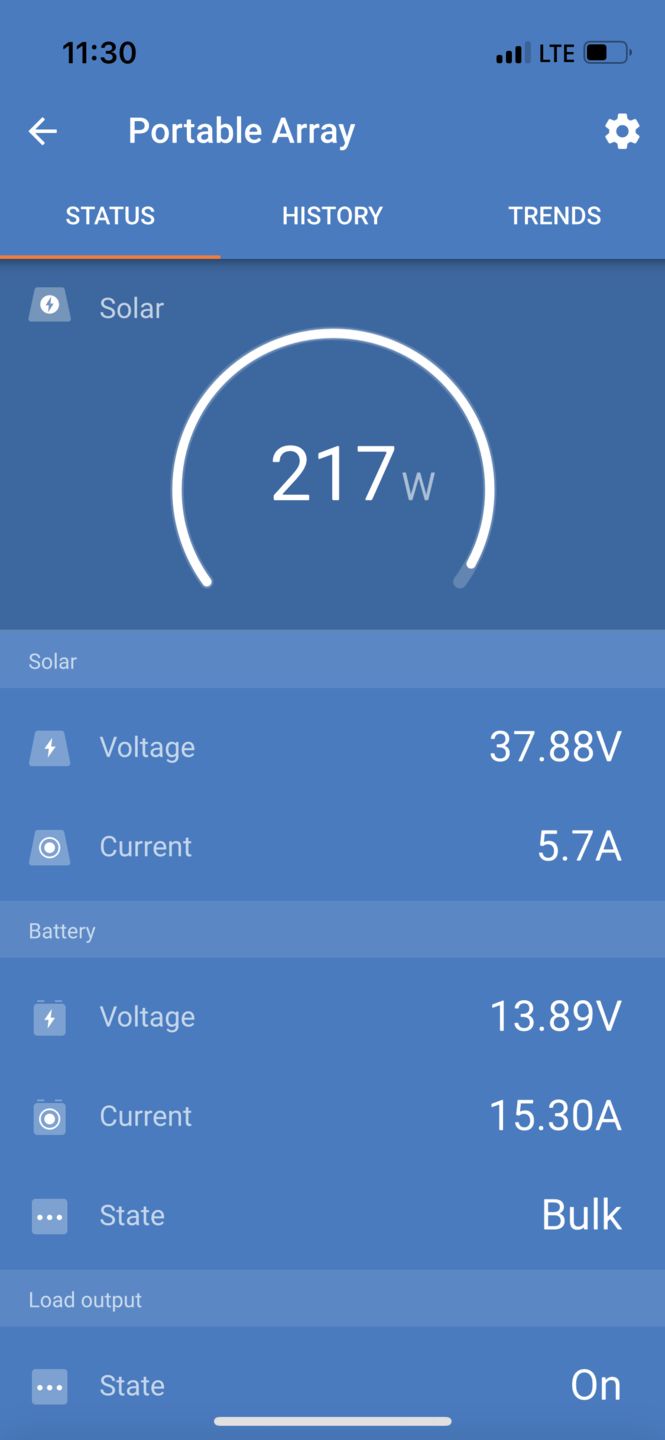

Just received the 100W panels. Testing out on my older Rich 1200 W battery. The unit was showing about 170W charge going into the unit in bright sun
1
of
14
Loading...
MEGA 100 Portable Briefcase Solar Panel | 100 Watt Portable Solar Panel | Premier 12V Portable Solar Panel for Generators, Power Stations, Vans | High Efficiency
SKU:
RS-X100B
Regular price
$199.99
Unit price
MEGA 100 Portable Briefcase Solar Panel | 100 Watt Portable Solar Panel | Premier 12V Portable Solar Panel for Generators, Power Stations, Vans | High Efficiency is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Product Images
Specifications
Download-
Maximum Power (Pmax)100W
-
Maximum Power Voltage (Vmp)18.6V
-
Maximum Power Current (Imp)5.38A
-
Open Circuit Voltage (Voc)22.8V
-
Short Circuit Current (Isc)5.78A
-
Maximum System Voltage (Vmax)1000V DC
-
Weight15.7 lb
-
Dimensions (folded)25.2 x 18.1 x 2.4 in
-
Dimensions (unfolded)36.4 x 25.2 x 1.2 in
-
Package Dimensions25 × 20 × 4 in
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave,
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
MEGA 100 Portable Briefcase Solar Panel | 100 Watt Portable Solar P...
Regular price
$199.99
Unit price
SKU:
RS-X100B
Regular price
$199.99
Unit price
MEGA 100 Portable Briefcase Solar Panel | 100 Watt Portable Solar Panel | Premier 12V Portable Solar Panel for Generators, Power Stations, Vans | High Efficiency is backordered and will ship as soon as it is back in stock.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
BACKORDER - Please email support@richsolar.com for ETA.
Features
- 100W portable briefcase solar panel.
- High-efficiency monocrystalline cells with up to 23.2% efficiency.
- Built-in kickstands for optimal sun exposure.
- Strong tempered glass and aluminum frame for enhanced durability.
- Corner protection for added impact resistance during transport.
- IP67-rated weatherproof design for reliable outdoor performance.
- Foldable briefcase design with carrying handle for easy transport.
- Ideal for portable power stations, solar generators, camping, RVs, and emergency
- backup power
Installation
- Built-in kickstands enable quick setup and optimal positioning.
- MC4 connectors with 5 ft pre-attached cables for quick and easy installation
- Compatible with most portable power stations and solar generators.
Warranty
- 25-Year Power Output Warranty
- 5-Year Workmanship Warranty
- 2-Year Warranty for Controller on Kits
Built-in Components
- Built-in kickstands
- Carrying handle
- Panel Leads (Pair): 12 AWG, 5 ft each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmp): 18.6V
- Maximum Power Current (Imp): 5.38A
- Open Circuit Voltage (Voc): 22.8V
- Short Circuit Current (Isc): 5.78A
- Maximum System Voltage (Vmax): 1000V DC
- Weight: 15.7 lb
- Dimensions (folded): 25.2 × 18.1 × 2.4 in
- Dimensions (unfolded): 36.4 × 25.2 × 1.2 in
- Package Dimensions: 25 × 20 × 4 in
Customer Reviews
Overall rating: 4.8 / 5 from 10 reviews.

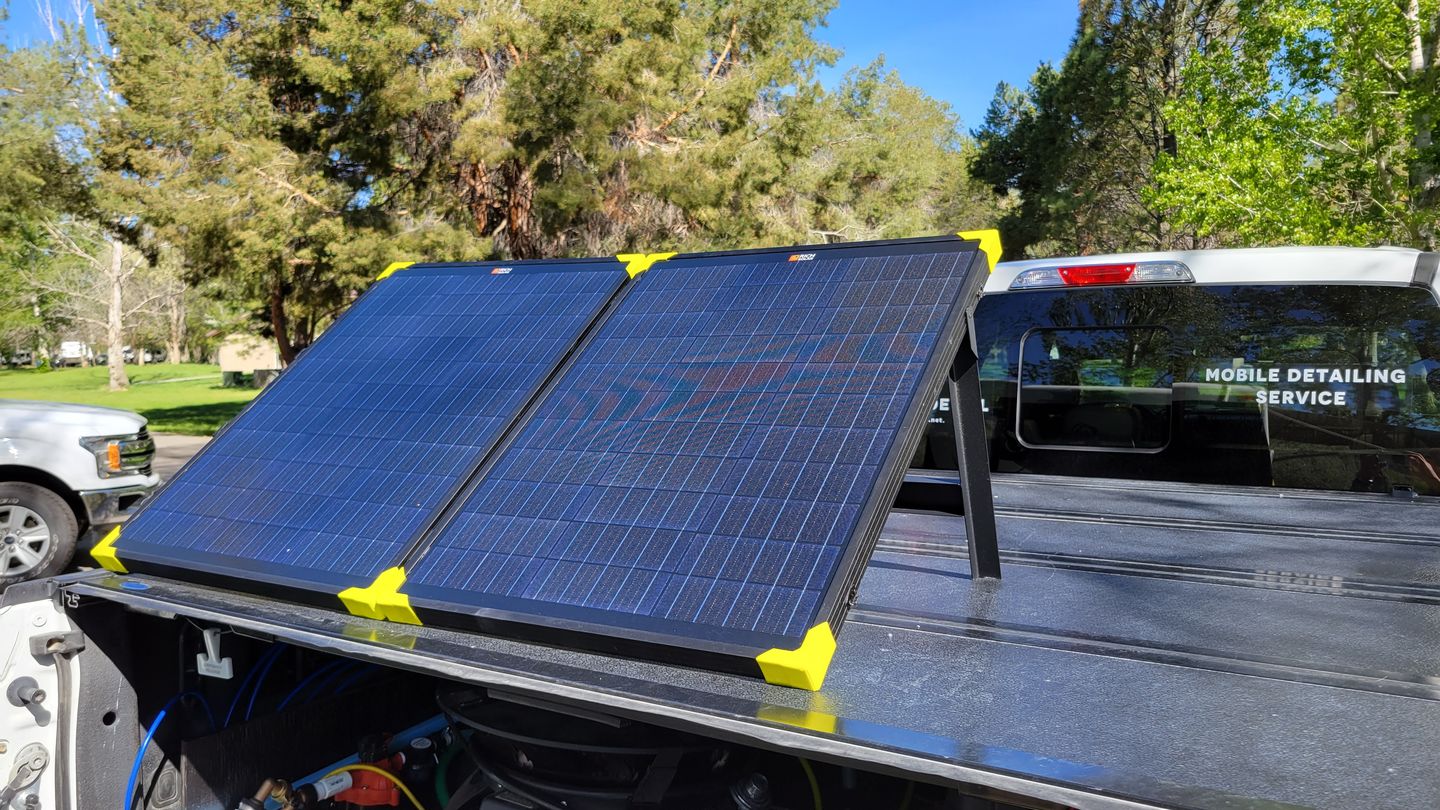

Ordered two Mega 100 Watt Portable Solar Panel Briefcase. The picture says it all. These panels rock! One complaint, the plastic connectors are brittle, the locking tab on one broke on first use and a second one the connector split.
This panel is built like a tank. Very heavy and heavy duty. Seems to be on par with the rated output as well. Got 95W today with full sun and ever so slight haze. Two things make it 4 instead of 5 stars. One, the weight - it is really heavy. The use of lighter metals would make it more portable although you do have the ruggedness of steel. The second thing is the latches. Time will tell but they seem a bit flimsy. Considering how the rest of the panel was built, the latches could have used a little beefing up.
I'm new to solar and after researching solar products I found Rich Solar to be more suited to my needs. When added all up Rich Solar offers better product quality, product features, cost and customer service. My intent is to have a reliable power back up source at home during emergencies and while camping. Thank you.
I am impressed. They actually work. I use them mostly to recharge a large battery. My guess is that they will pay for themselves in approx 6 months b/c I then use the battery to power lamps, appliances, and recharging laptop, phone, etc.
Purchased a 100W breif case for chargeing an echo flow finally got some sun to try out ,the battery was about 33% was able to charge full in about 5 hours very happy with the purchase
I ordered the panels and they came a few days later. Very good customer service and knowledgeable about their products
Used the 100W panel to keep my power station charged for a week long camping trip. Works really well so far on sunny days charging and keeping my power supply up. Was able to keep my power station full all week so that I could always charge all my electronics (phone, go pro, cameras, fishing electronics, trolling motor...)
It's a great panel. I'm ordering another one next week.
I’ve been researching off grid options for some time. I work remotely and now that I’ve got the yeti 500X and bought RICH SOLAR 100w briefcase solar panel. The products are well-made and they work beautifully.
