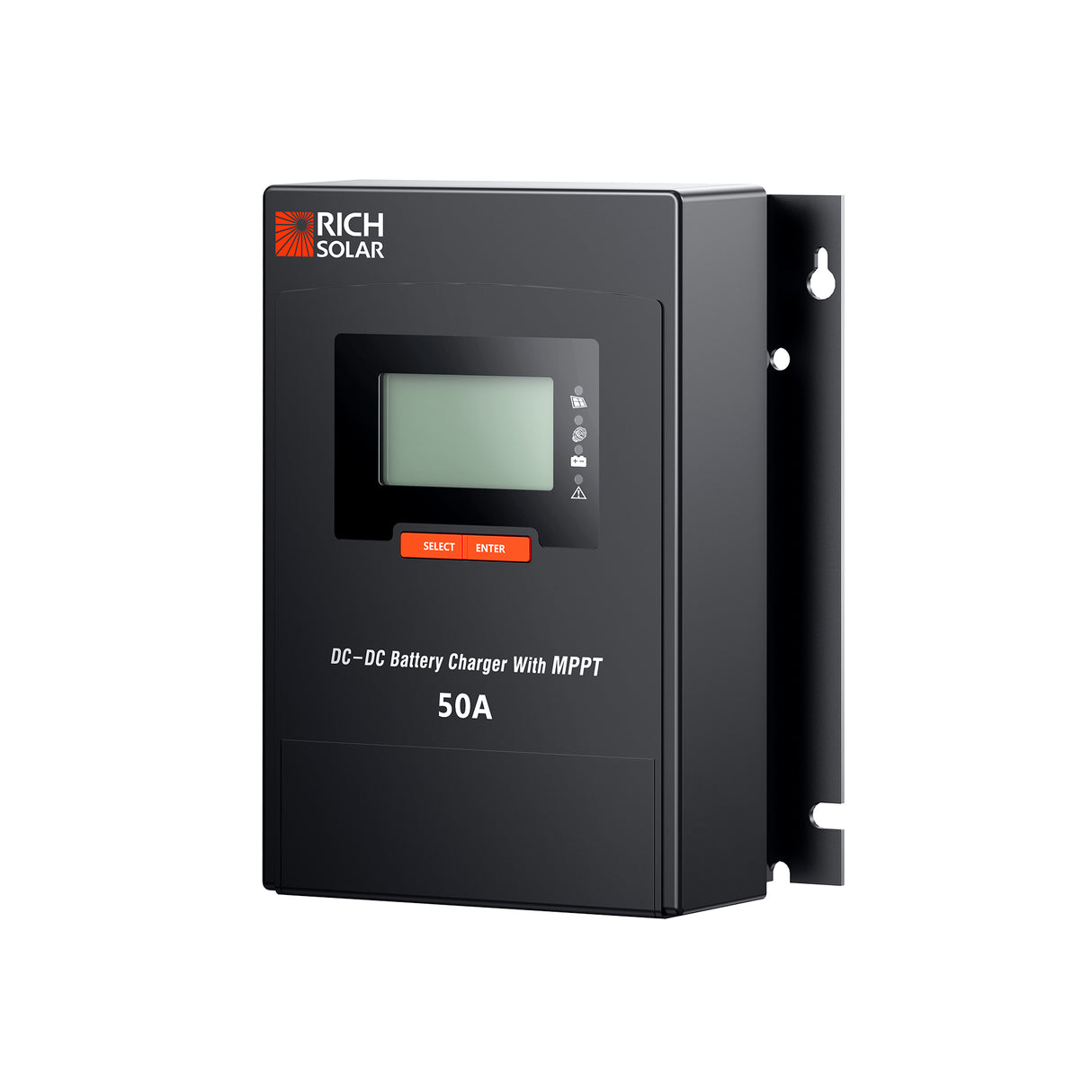

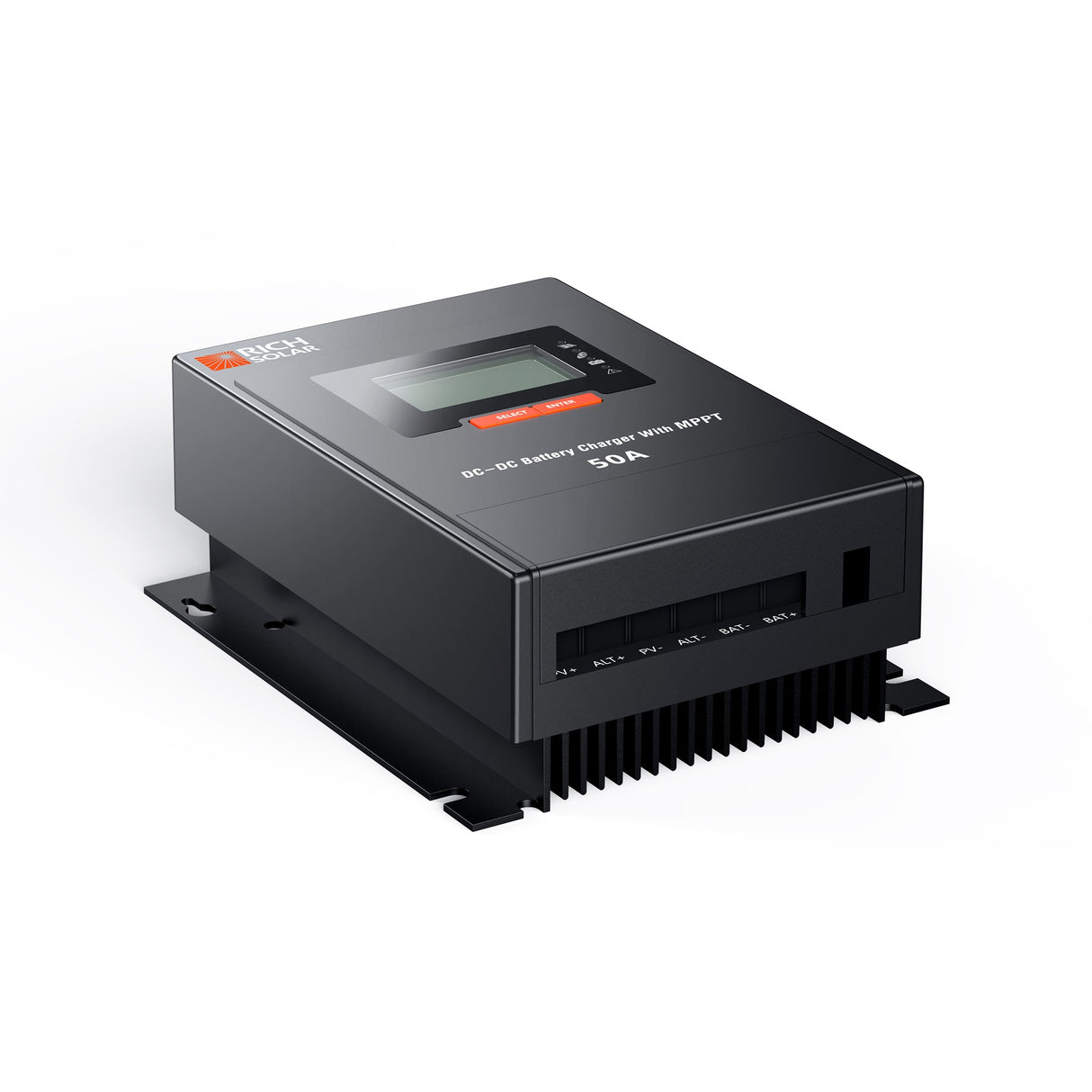

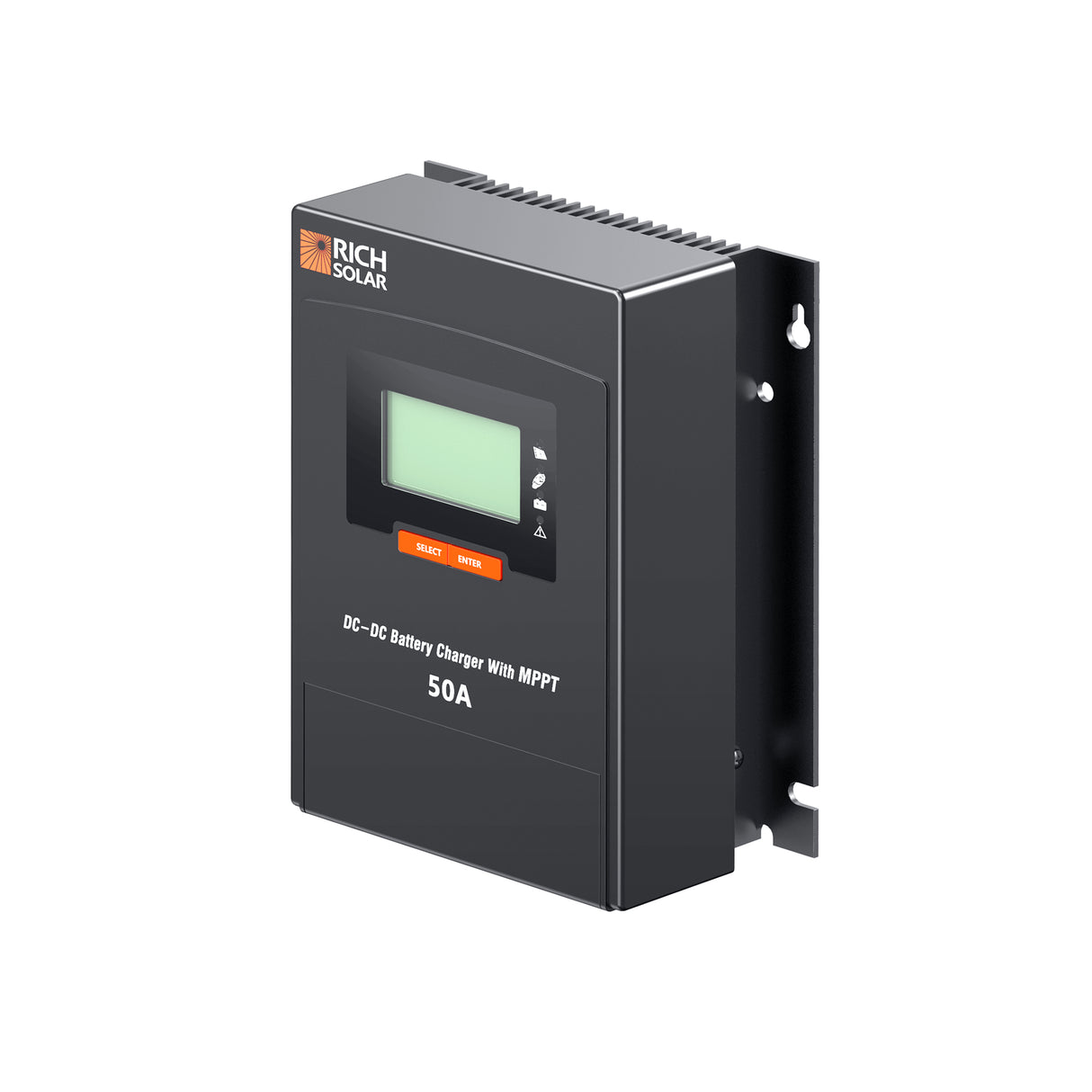

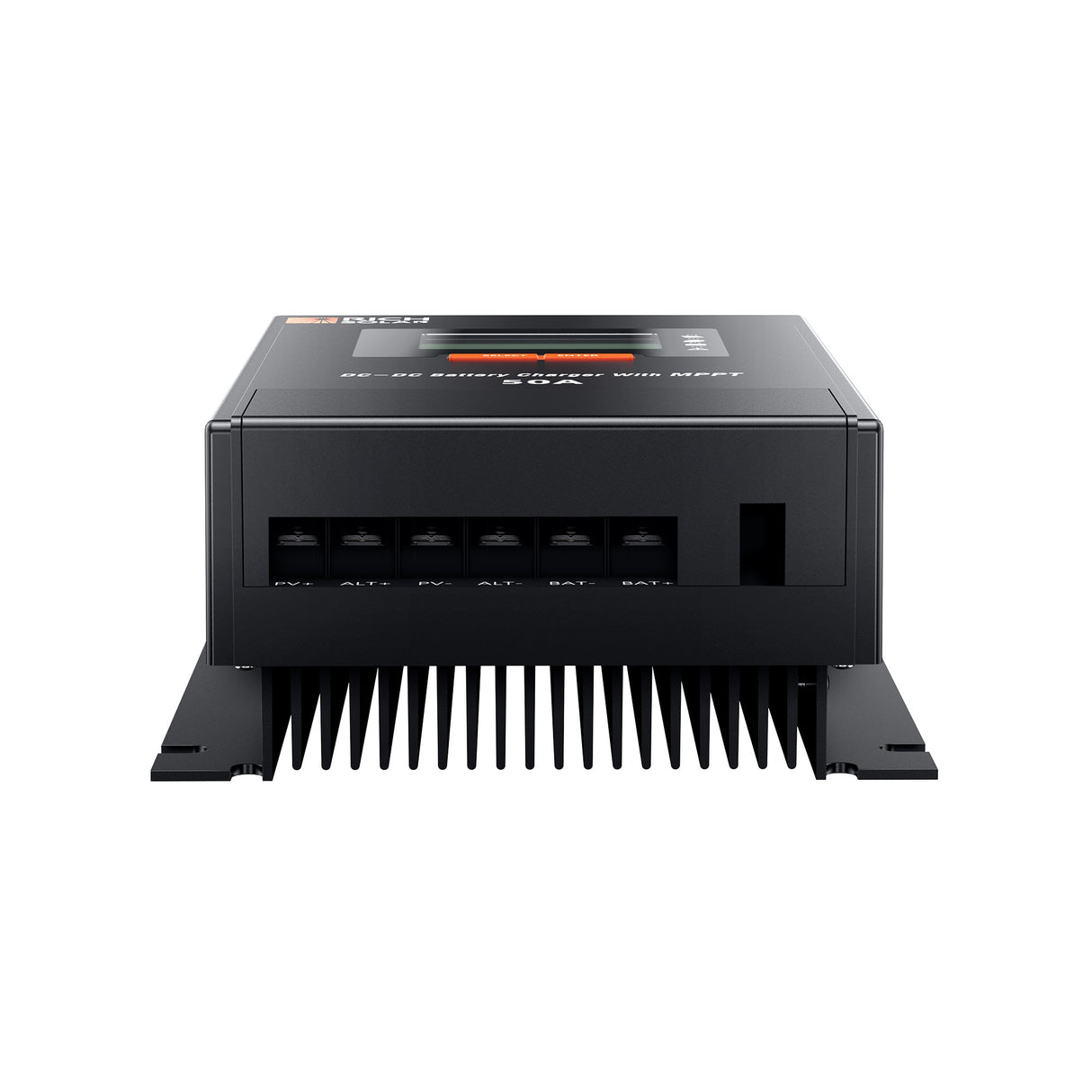

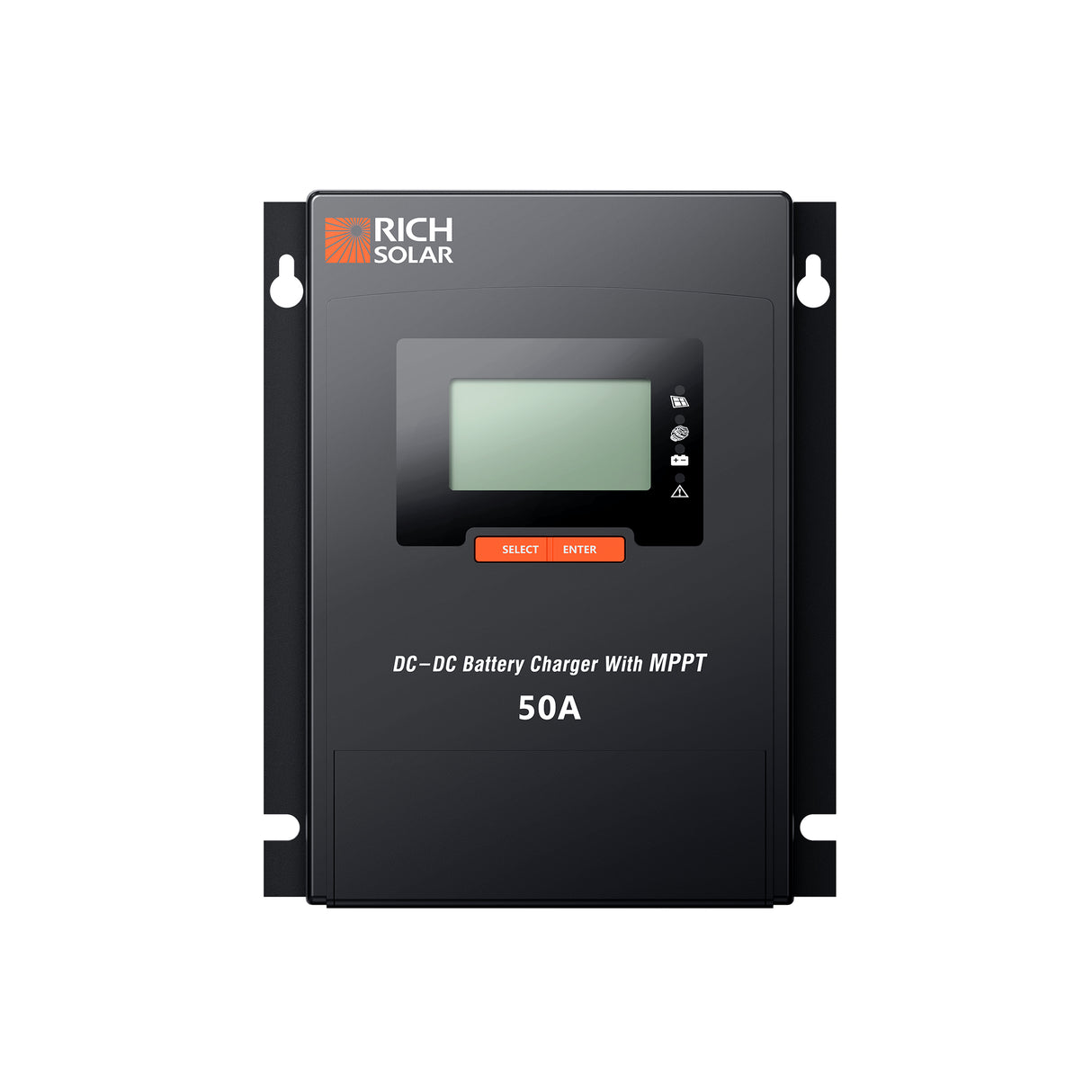

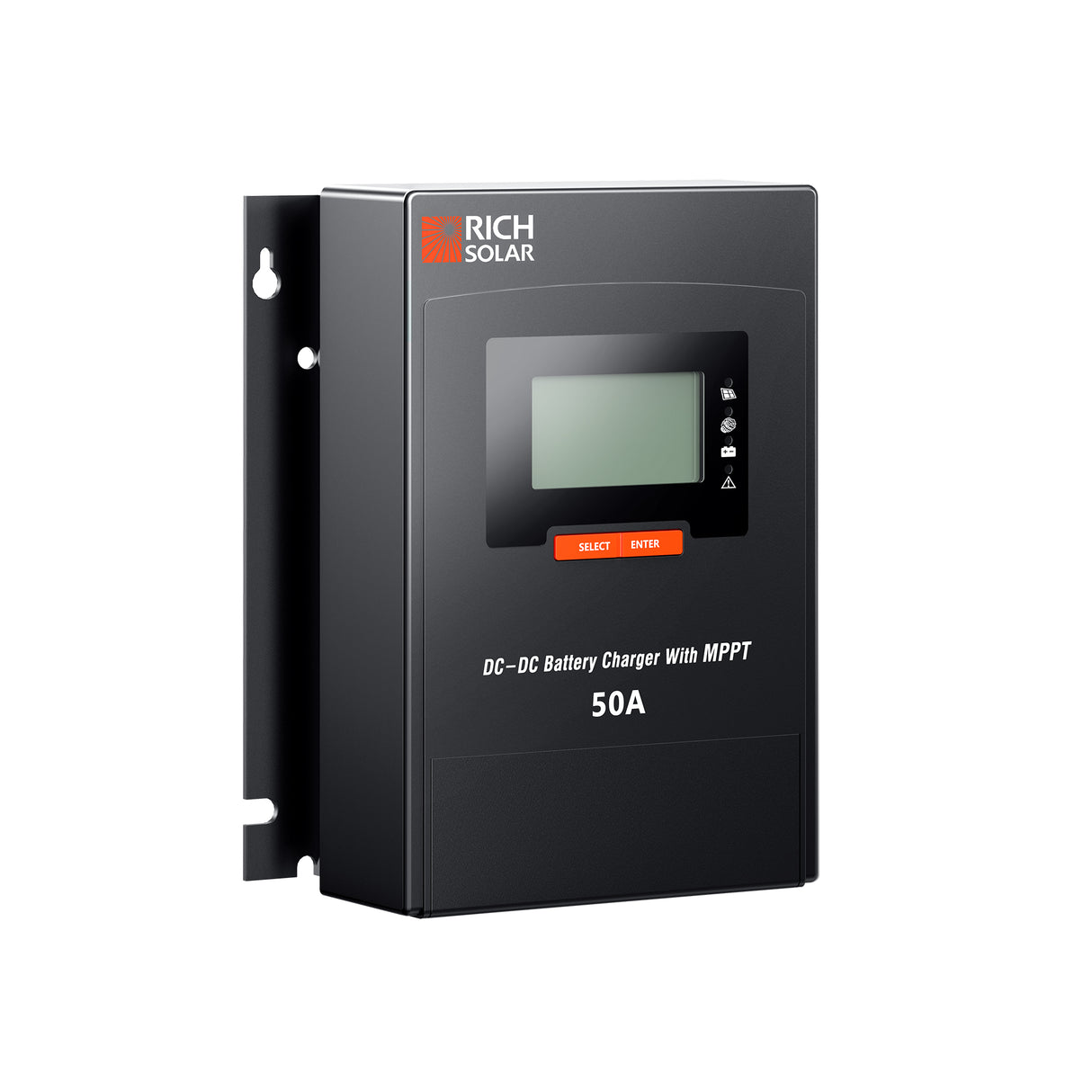

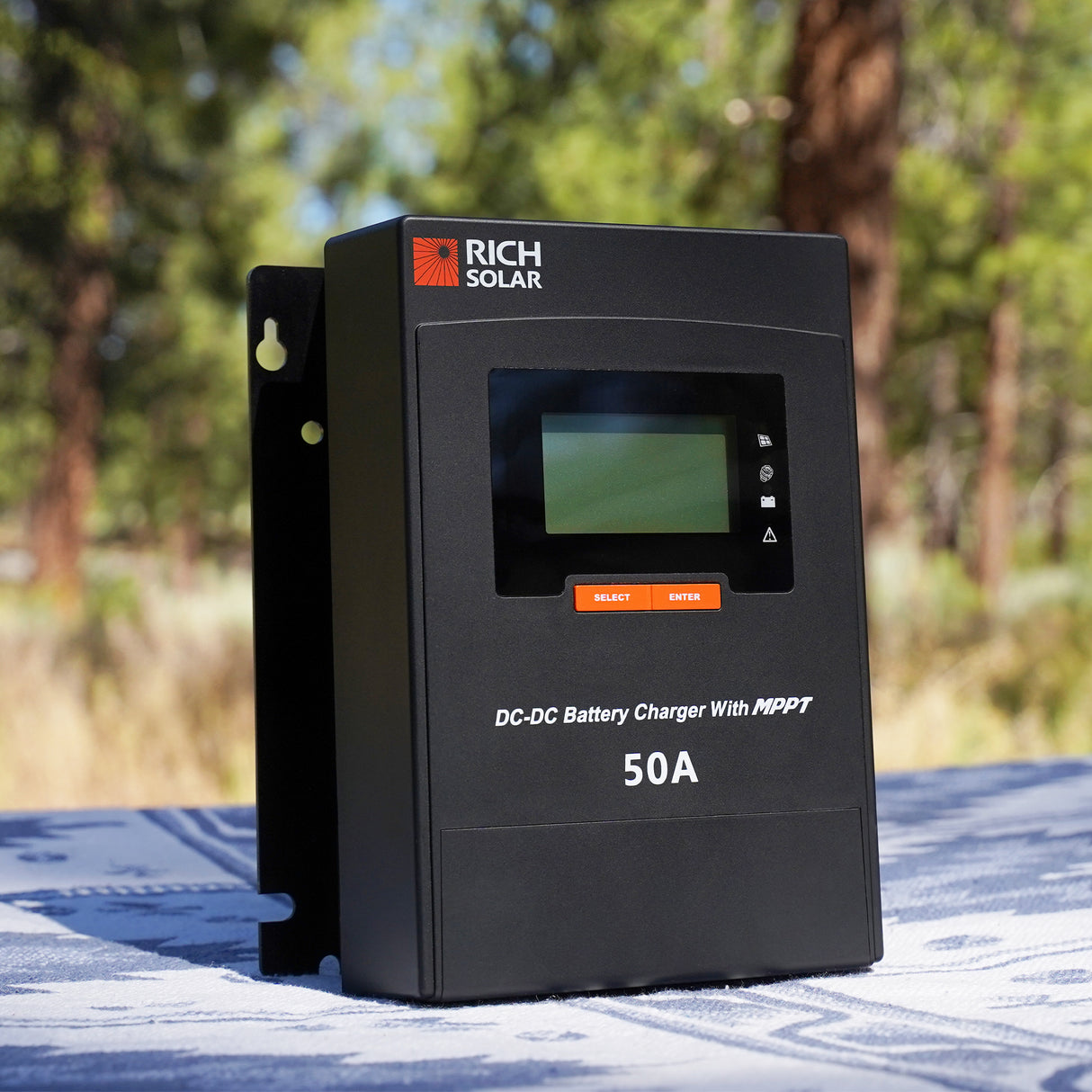

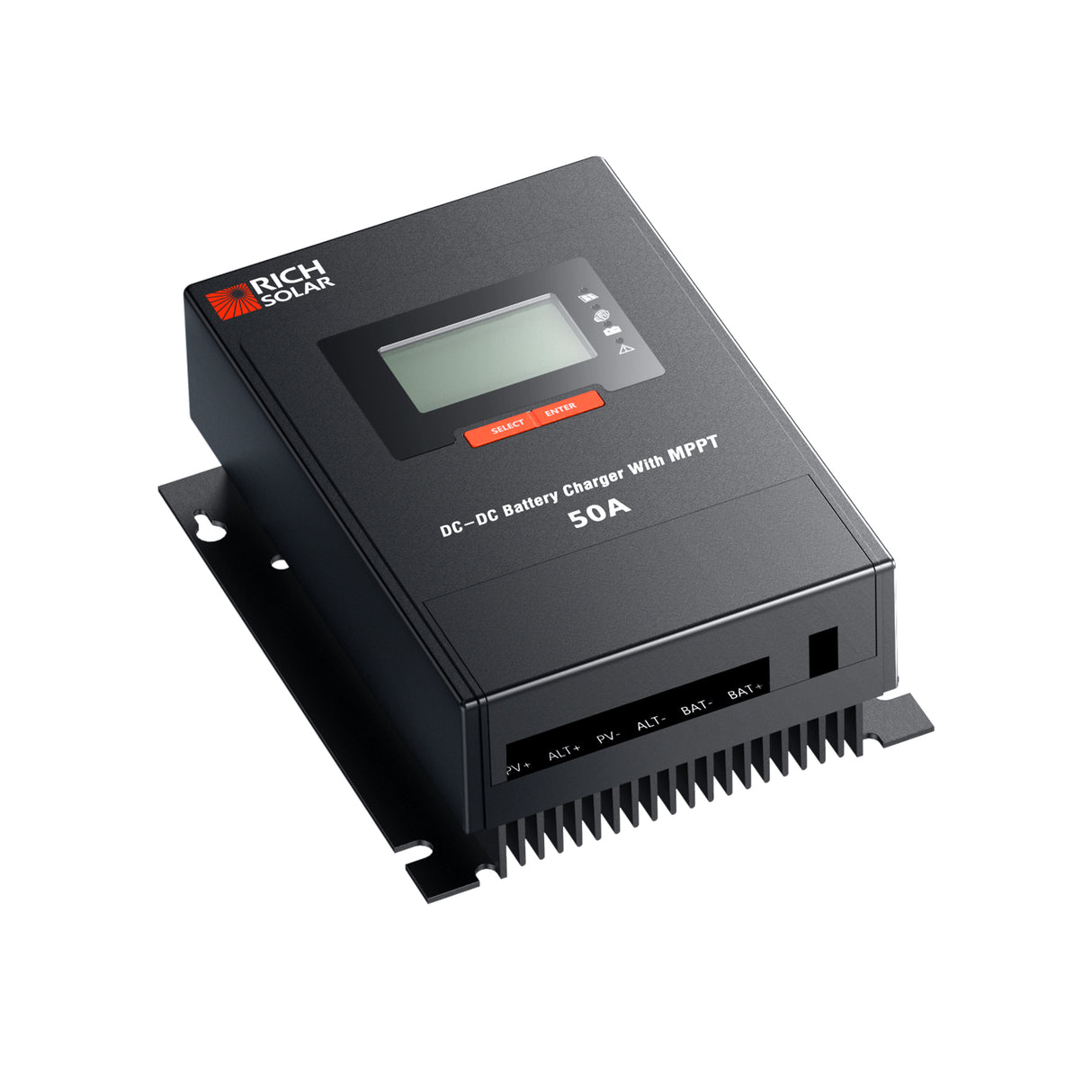

BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Ranked DC to DC Solar Controller

Featrues

Advanced Dual-Source Charging

• Dual Input Charging: Charges from solar panels and the vehicle alternator simultaneously or independently.

• Advanced MPPT Technology: PowerCatcher technology delivers over 99% MPPT tracking efficiency.

• Up to 96% Conversion Efficiency: Maximizes charging efficiency while minimizing energy loss.

Flexible System Compatibility

• Traditional & Smart Alternator Compatible: Supports both conventional and smart 12V/24V alternators.

• Supports Multiple Battery Types: Compatible with Flooded, AGM, GEL, Calcium, and LiFePO₄ batteries.

• 800W Max Solar Input: Supports solar panel configurations with up to 800W of recommended PV input.

Smart Monitoring & Communication

• Built-in Bluetooth Monitoring: Monitor and configure the controller through the RICH SOLAR App.

• Multiple Communication Interfaces: Supports Bluetooth, RS485, CAN (RV-C), and TTL communication.

• Selectable Charging Priority: Prioritize solar or alternator charging to match different power needs.

Reliable Performance

• Buck MPPT + Buck/Boost Charging: Optimized charging from both solar panels and vehicle alternators.

• Electronic Protection: Protects against over-temperature, overcharge, overcurrent, reverse polarity, and short circuit.

• Designed for Mobile Off-Grid Systems: Ideal for RVs, vans, trailers, boats, and other mobile power applications.

Specifications

• Max. Solar Input: 55V DC / 50A / 800W (recommended)
• MPPT Voltage Range: 17–36V DC
• Alternator Input: 12/24V, 65A max
• Battery System Voltage: 12V (9–16V range)
• Rated Charging Current: 50A
• Efficiency: MPPT: >99%; Conversion: up to 96%
• Communication: Bluetooth, TTL, RS485, CAN (RV-C protocol)
• Protections: Overcharge/current/temperature, reverse polarity
• Operating Temperature: -35°C to +65°C (-31°F to +149°F)
• Dimensions (W×D×H): 8.70 × 6.92 × 3.64 in

• Weight: 5.16 lb

• IP Rating: IP32

• Package Dimensions: 11 × 9 × 6 in

• Gross Weight: 7 lb
