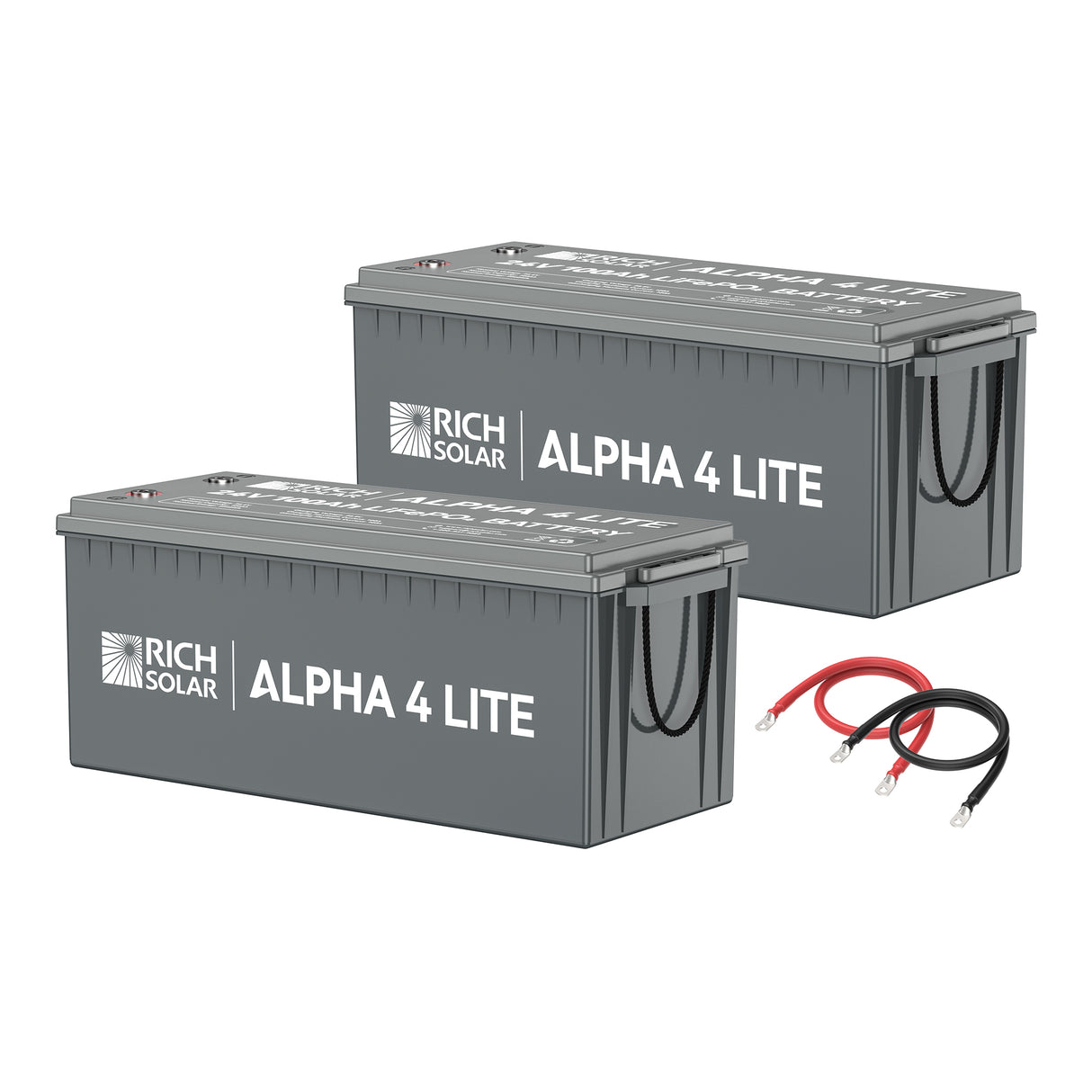

Package Includes

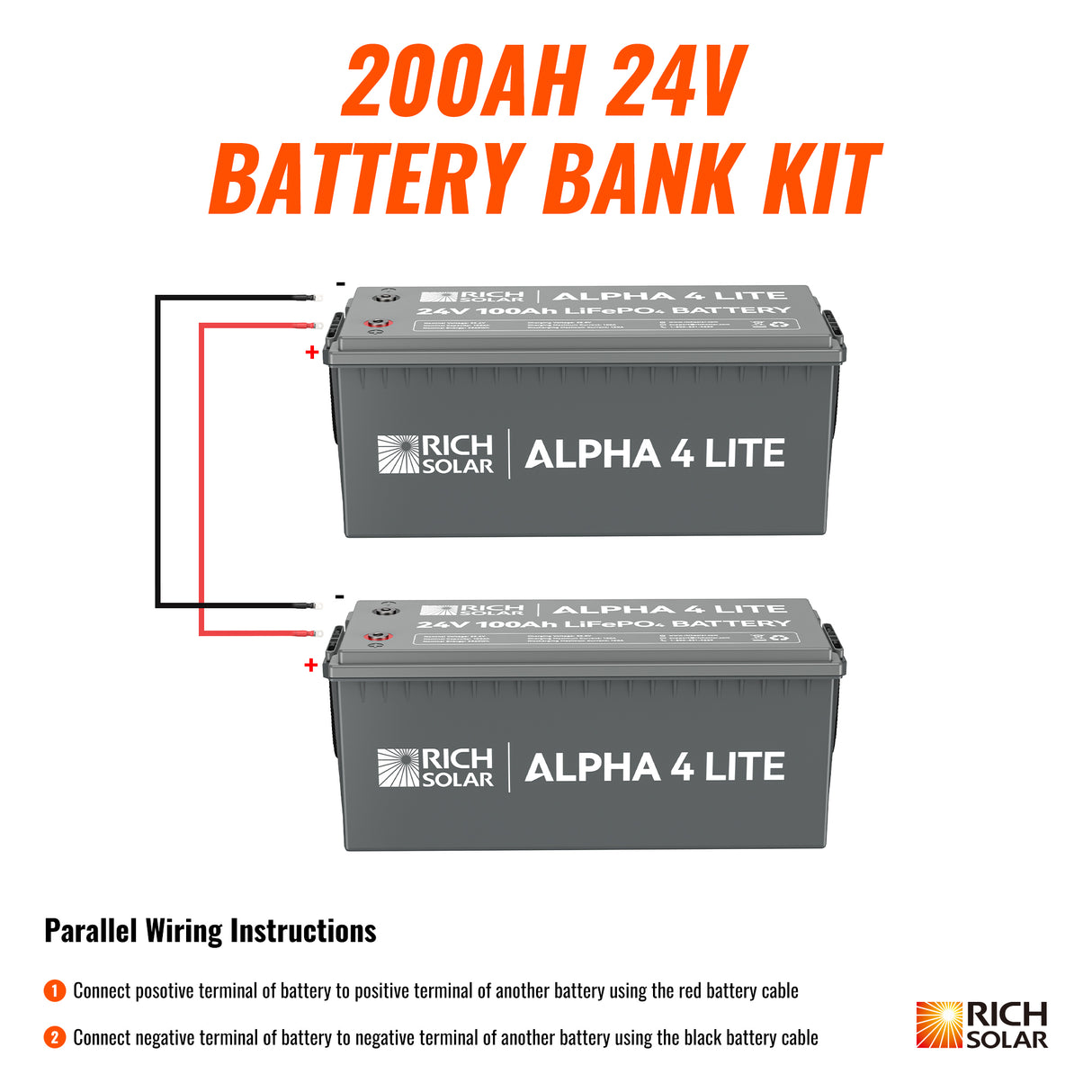

- 2 × ALPHA 4 LITE 24V 100Ah LiFePO₄ Batteries
- 2 × 1 ft 2 AWG Battery Cables
Features
Complete Battery Bank Solution
- 24V 200Ah Battery Bank: Delivers 5.12kWh of reliable energy storage for off-grid and backup power systems.
- Expandable Energy Storage: Easily increase capacity by adding additional battery banks as your energy needs grow.
- Pre-Matched Components: Batteries and cables are selected to work together for fast, hassle-free installation.
Reliable LiFePO₄ Performance
- Grade A+ LiFePO₄ Cells: Deliver superior reliability, safety, and long service life.
- Advanced BMS: Protects against overcharge, over-discharge, overcurrent, short circuit, and temperature risks.
- 4,000+ Cycle Life: Delivers dependable long-term performance and lower ownership costs.
Built for Reliable Power
- UL94 V-0 Flame-Retardant Housing: Improves durability and structural reliability.
- P65 Weather-Resistant Design: Built to perform in demanding indoor and outdoor environments.
- Wide Operating Temperature Range: Provides reliable performance across various environmental conditions.
Ready for Your System
- Compatible with 24V Solar Systems: Ideal for pairing with inverters, charge controllers, and solar panels.
- Plug-and-Play Battery Connections: Includes battery cables for quick system assembly.
- Ideal for RV, Cabin, Home Backup, Marine, and Off-Grid Applications.
Specifications
Individual Battery Specifications
-
Nominal Voltage: 25.6V
-
Rated Capacity: 100Ah
-
Nominal Energy: 2560Wh
-
Cell Chemistry: LiFePO₄
-
Cycle Life: 4,000+
-
Charging Voltage: 28.8V
-
Max. Charge Current: 100A
-
Max. Continuous Discharge Current: 100A
-
Parallel Expansion: Up to 4 units (4P)
-
Bluetooth: No
-
Internal Heating: No
-
Certifications: UN 38.3, MSDS
-
IP Rating: IP65
-
Warranty: 5 Years
-
Dimensions (L × W × H): 20.9 × 8.1 × 8.5 in
- Net Weight: 52.9 lbs
