1200 Watt Solar Kit

SKU: RS-K12004
$1,899.99
Option

Specifications & Downloads

Product Images

Full Specification:

MEGA 200 Solar Panel

Download

60 Amp MPPT Solar Charge Controller

Download

User Manual:

60 Amp MPPT Solar Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

  • 1200W Solar Array: Includes six 200W monocrystalline solar panels, producing approximately 4.3kWh of energy per day under 4 peak sun hours.
  • 24V Solar Charging System: Designed around a 24V solar charging system for compatible battery banks.
  • 60A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency and 98% peak conversion efficiency.
  • Solar Charging Kit: Includes professionally matched solar panels, an MPPT charge controller, and installation accessories for efficient battery charging.
  • Versatile Applications: Ideal for RVs, cabins, trailers, boats, and other off-grid solar charging systems.

Kit Includes

  • 6 x 200 Watt Monocrystalline Solar Panels (RS-M200)
  • 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
  • 1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller (RS-20101)
  • 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller (RS-20101)
  • 1 x 10 ft 8 AWG Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10 ft 8 AWG Battery Cable (Black), connects the controller to the battery (RS-810)
  • 6 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
  • 1 x Y Branch Parallel Adapters (RS-Y2)

  • MEGA 200

    200 Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    • No. of Panels: 6 x MEGA 200 Watt Solar Panels
    • Wattage Per Panel: 200W
    • Total Wattage of Panels: 1200W

    Features:

    • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Temperature Range: -40 ~ +185°F
    • Maximum Series Fuse Rating: 15A
    • Weight: 24 lb
    • Dimensions: 58.7 x 26.8 x 1.2 in

  • 60 Amp MPPT Solar Charge Controller

    Features:

    • Automatically detects 12V/24V/36V/48V DC system voltages.
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
    • Features diverse load control; also capable of charging over-discharged lithium batteries.
    • Die-cast aluminum design allows for efficient heat dissipation.
    • RS232 port for communicating with BT-1 Bluetooth module.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Rated Battery Current: 60A
    • Rated Load Current: 20A
    • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
    • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
    • Charge Circuit Voltage Drop: ≤0.26V
    • Discharge Circuit Voltage Drop: ≤0.15V
    • Operating Temperature: -31°F to 113°F
    • Max Terminal Size: <11mm
    • Overall Dimensions: 11.2 x 8.1 x 3.7 in
    • Net Weight: 7.94 lb

Customer Reviews

Overall rating: 4.8 / 5 from 4 reviews.

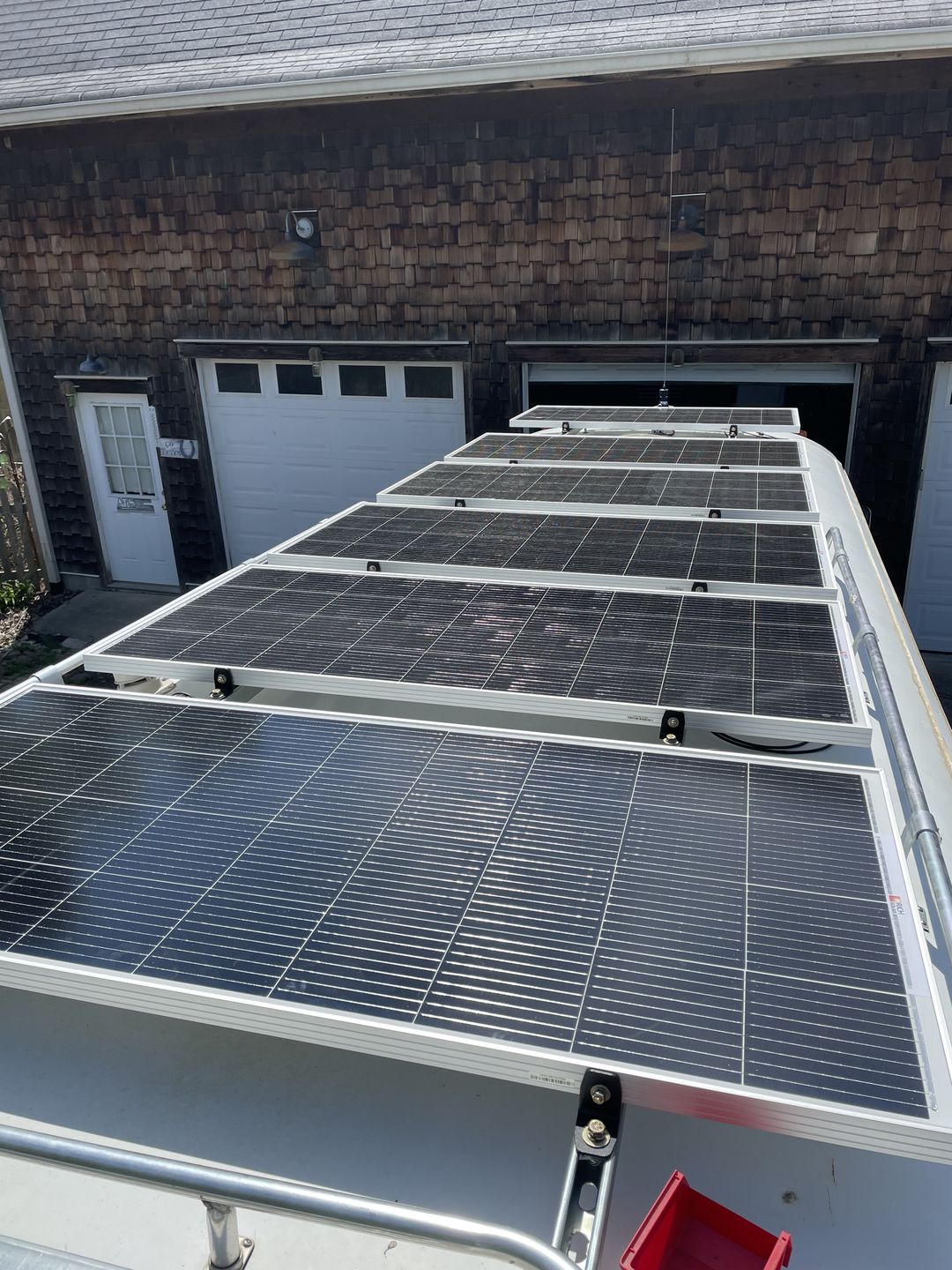

Customer photo review of 1200 Watt Solar Kit

The work on my project 1975 GMC Transmode continues! This morning, my son Cory Miller assisted with the final installation of my 1200watt panel system provided by Rich Solar. It turned out as designed

Dennis M. 5/5 Verified

1200 Watt Solar Kit

This time of year I don't have 4hr of daylight but my 1200w panels are fully charging my 200ah battery!👍

Christopher T J. 5/5 Verified

1200 Watt Solar Kit

I setup the 1200 watt solar kit on my off grid property to power my trailer along with 4 1200 watt storage batteries. My property is in Arizona where we get an abundance of sun light. This kit works perfectly.

Rory S. 5/5 Verified

1200 Watt Solar Kit

Haven't set up the system yet ,hope the wires are long enough and ,waiting on some fuses ,BUT 2 Panels came in broke out of the 6 (( glass shattered i'm sure shipping )) and they Replaced them Thank you Rich Solar

Zane H. 4/5 Verified

1200 Watt Solar Kit
