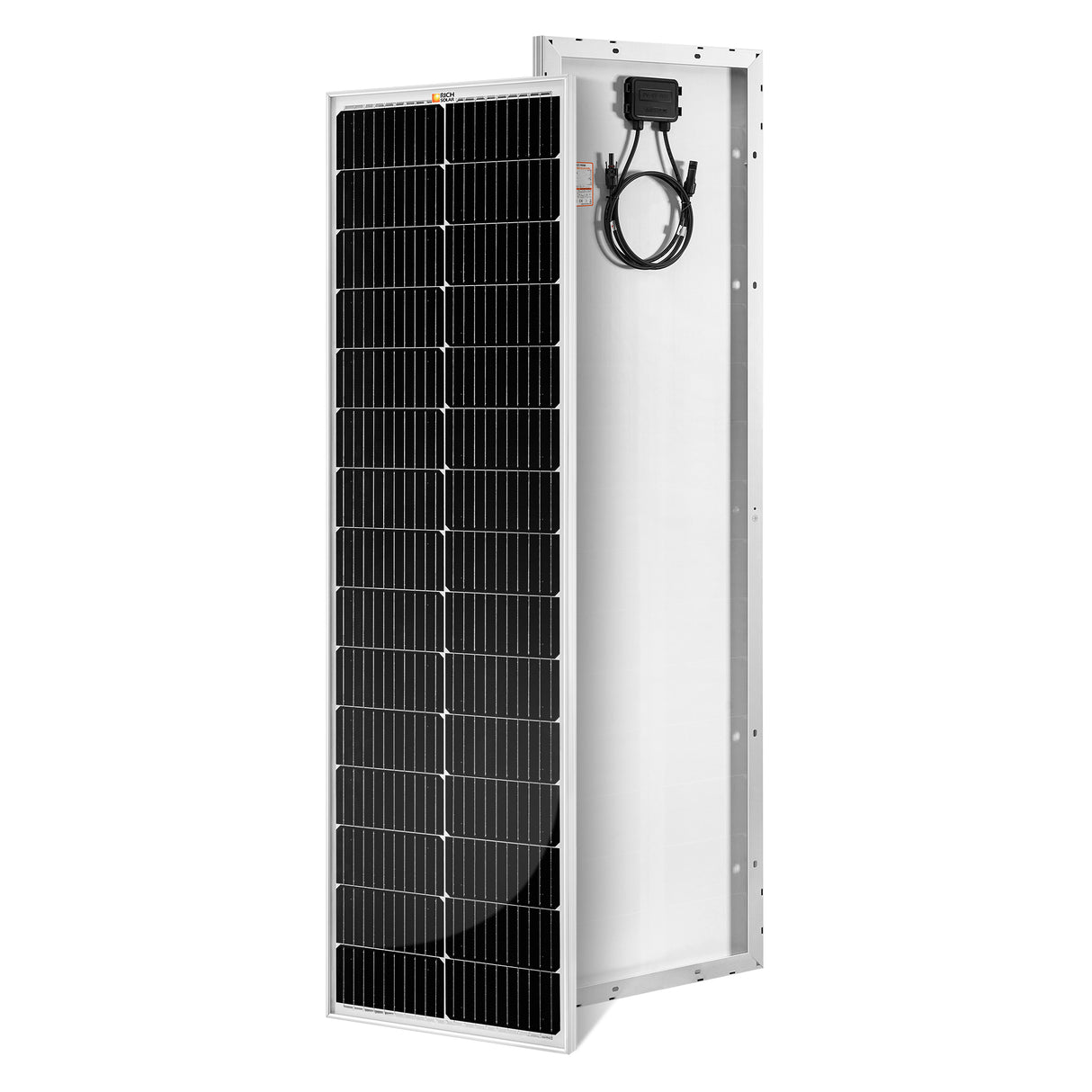

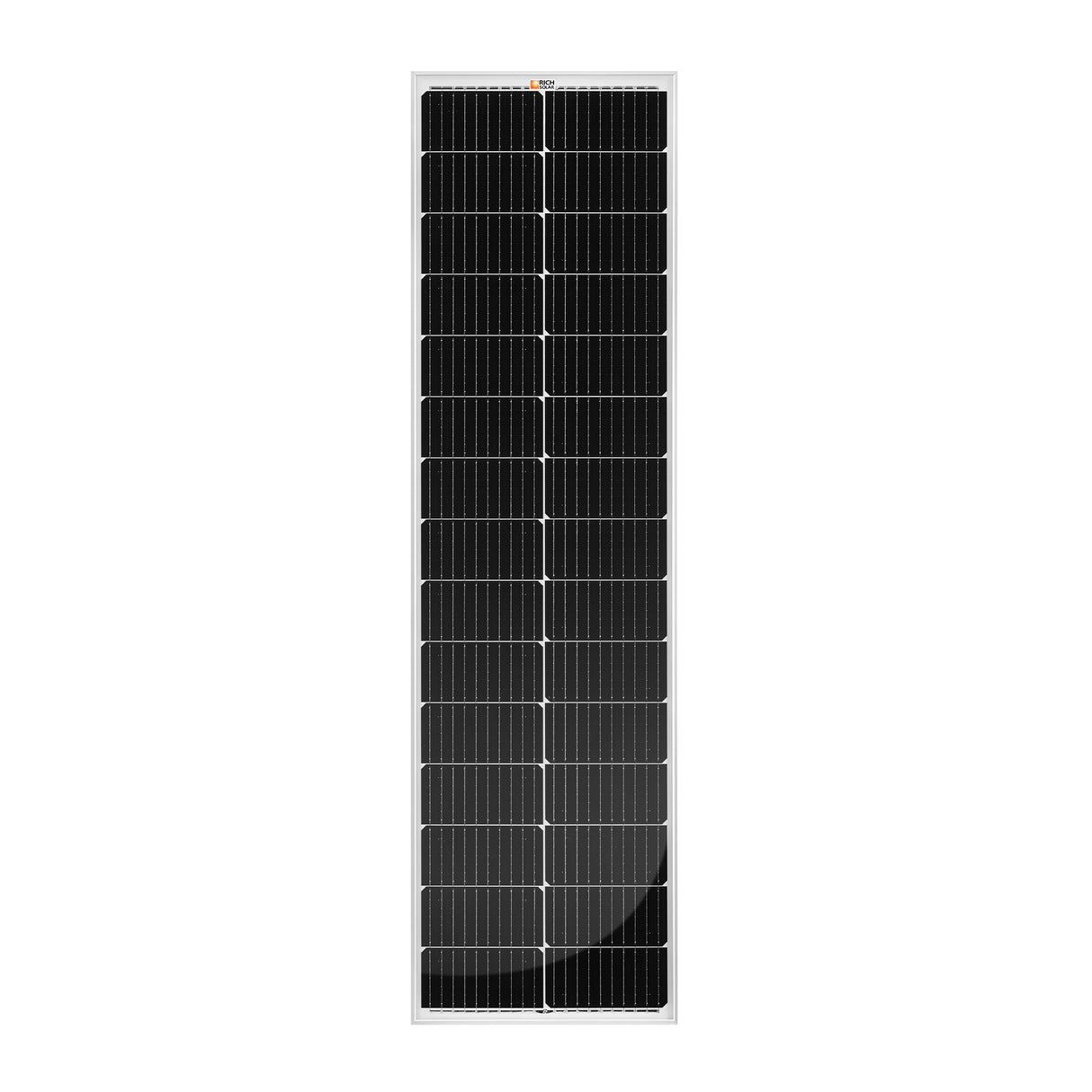

MEGA 100 SLIM 2025 | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Campers, Overlanders, Boats | 25-Year Output Warranty | UL Certified
MEGA 100 SLIM 2025 | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Campers, Overlanders, Boats | 25-Year Output Warranty | UL Certified is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
-
On Panel Cable Length≈ 35 in
-
MaterialTempered Glass, Aluminum, Monocrystalline Silicon
-

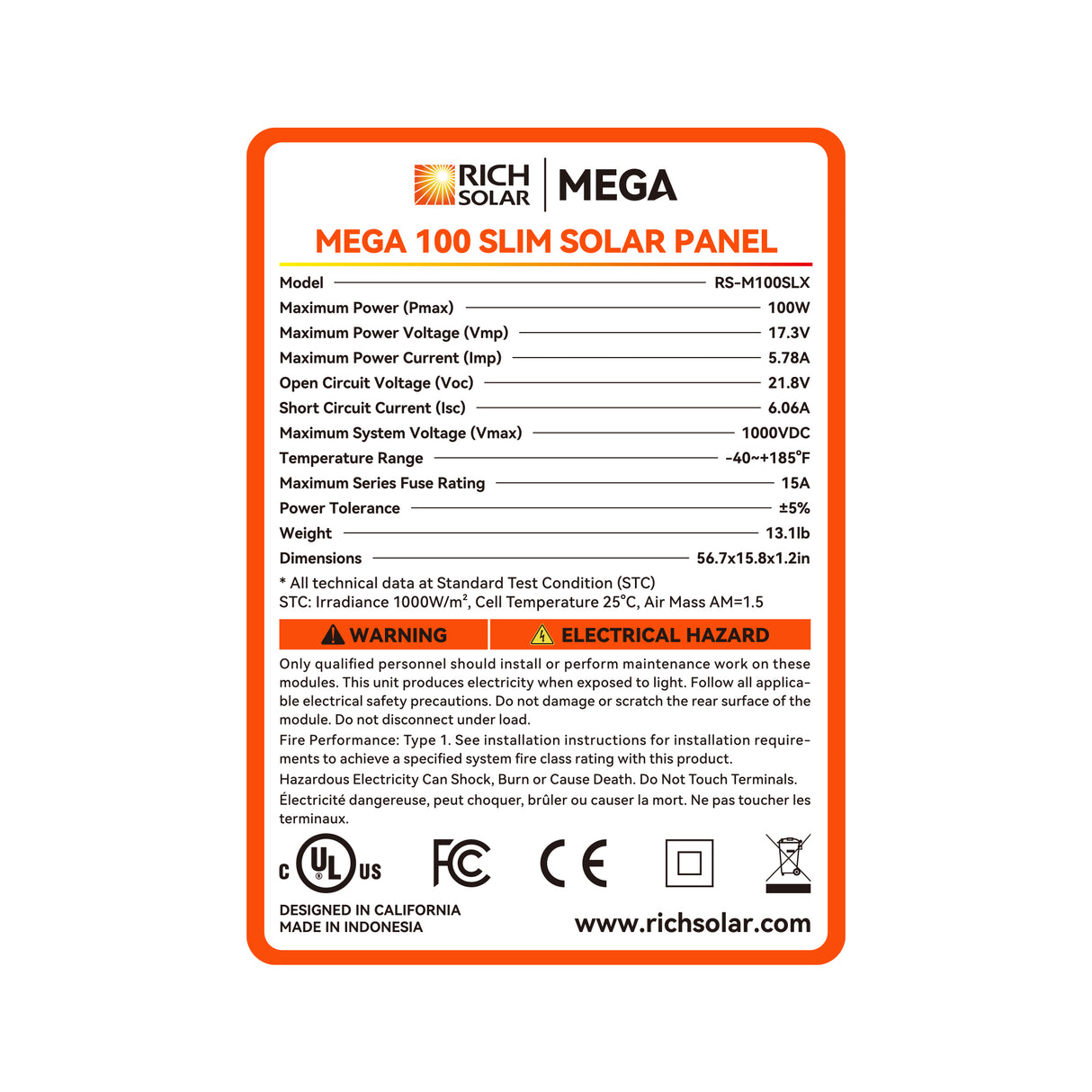

Maximum Power(Pmax)100W
-
Maximum Power Voltage(Vmp)17.3V
-
Maximum Power Current(Imp)5.78A
-
Open Circuit Voltage(Voc)21.8V
-
Short Circuit Current(Isc)6.06A
-
Maximum System Voltage(Vmax)1000VDC
-
Maximum Series Fuse Rating15A
-
Weight13.1b
-

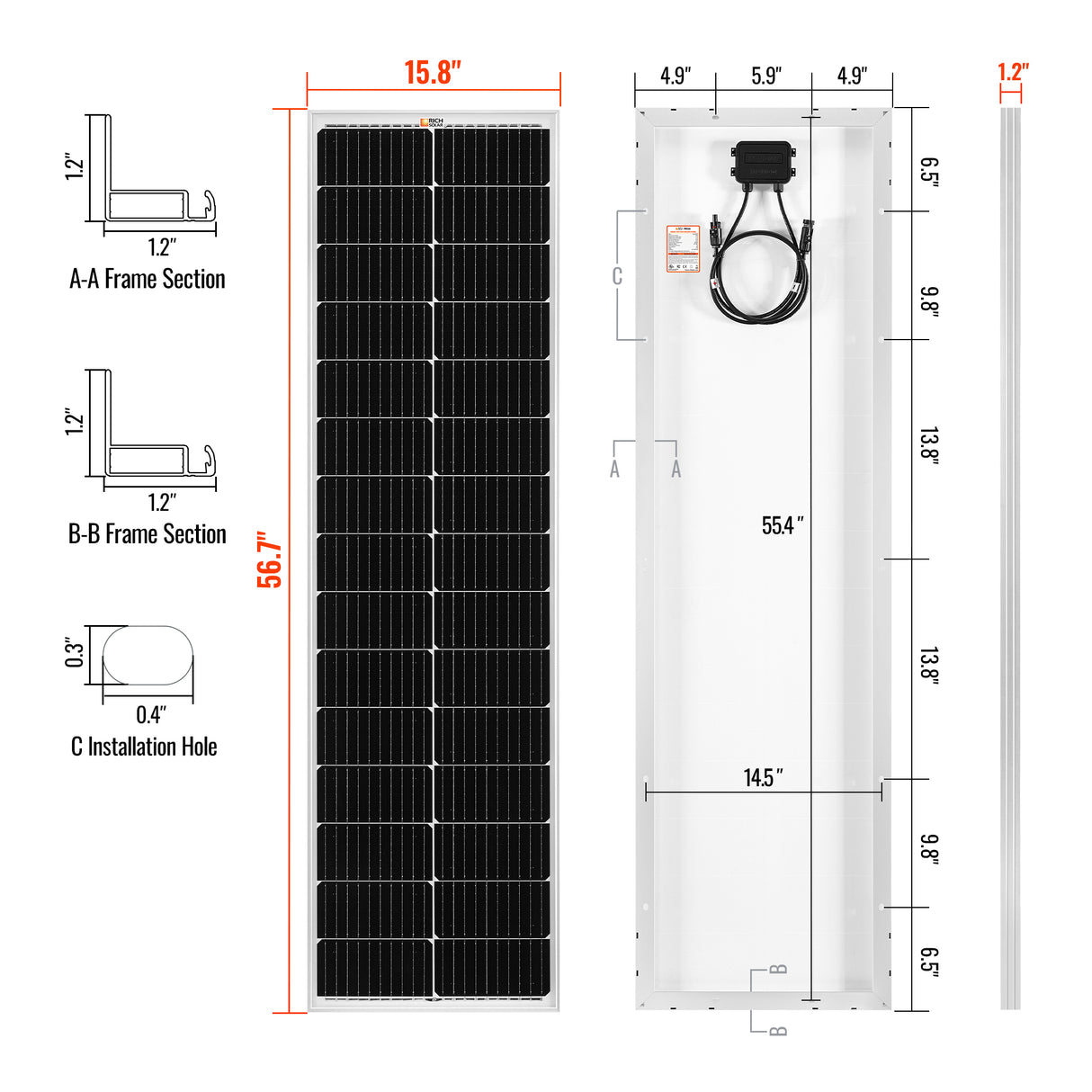

Dimensions56.7 x 15.8 x 1.2 in
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features

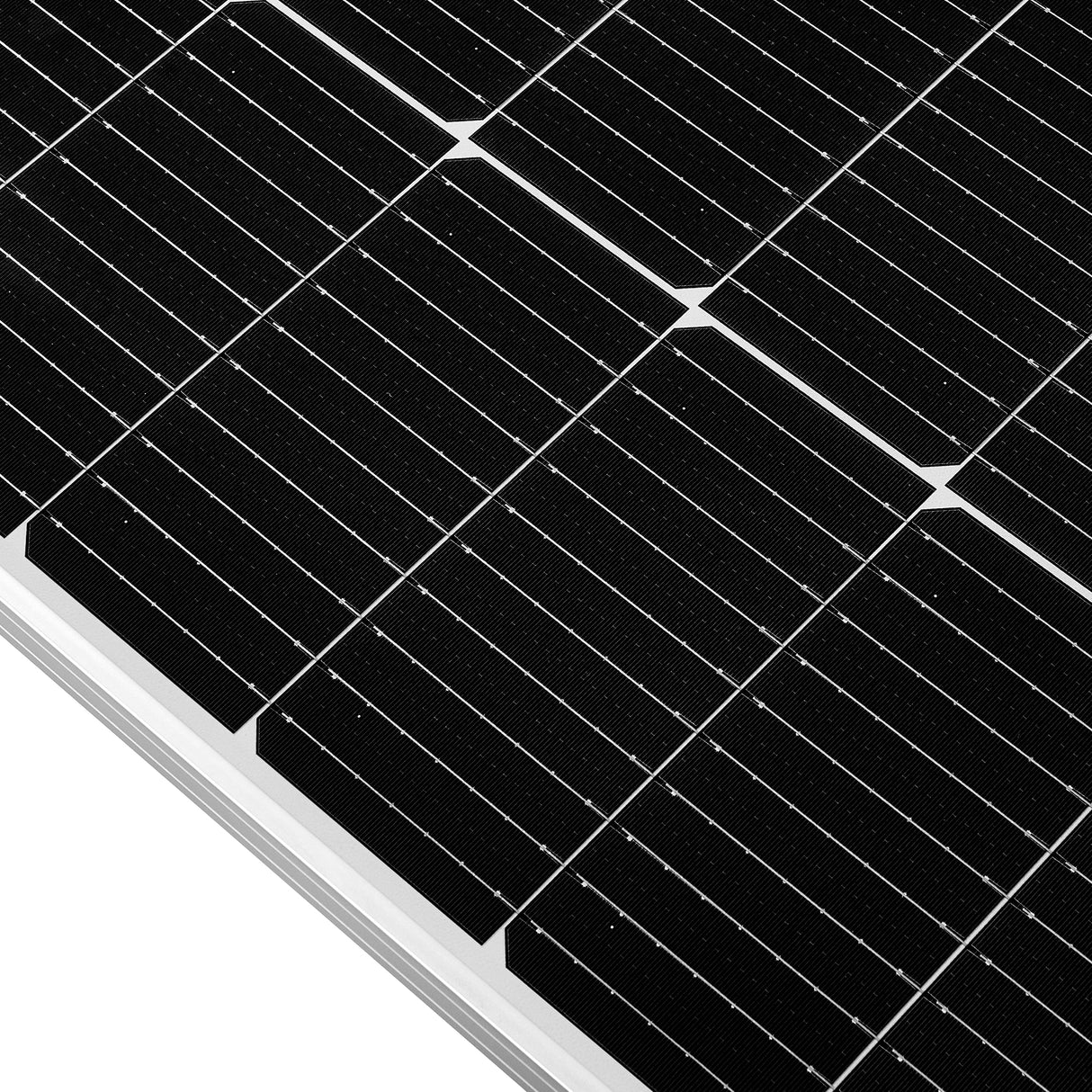

- 10-busbar monocrystalline cells with up to 22.6% efficiency
- 30-cell configuration delivers a reliable 100W output
- 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
- Power tolerance 0 to +5W ensures at least the rated output
- Excellent low-light performance on cloudy days and at dawn/dusk
- Tested for UV exposure, thermal cycling, humidity freeze, and more
- PID-resistant and double EL-inspected to prevent microcracks
- Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
- Ideal for high-end off-grid systems and mobile applications
Installation

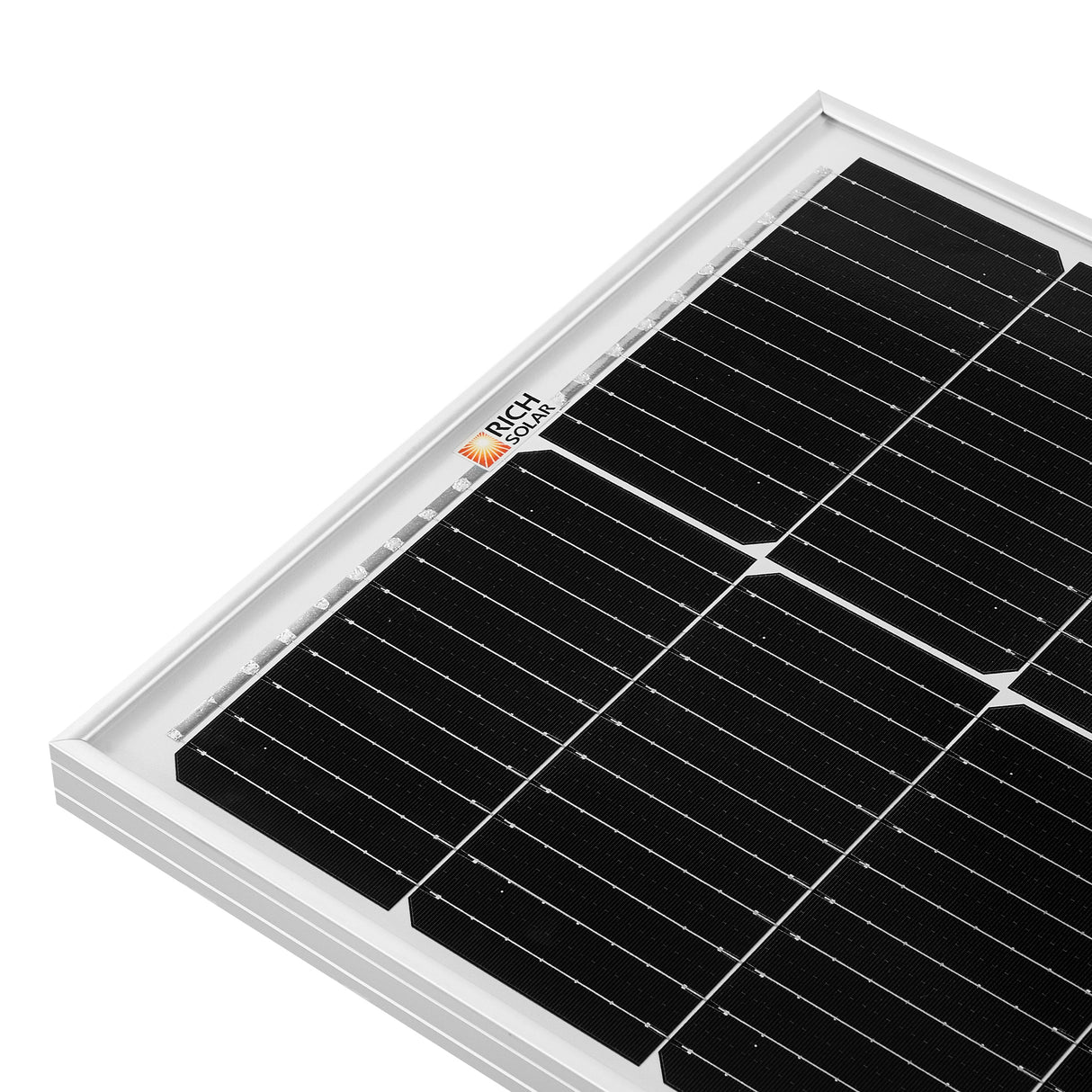

- Durable anodized aluminum frame, lightweight and corrosion-resistant
- 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- Solar connectors with 3 ft pre-attached cables for quick panel-to-panel connection
- Compatible with both on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year workmanship warranty

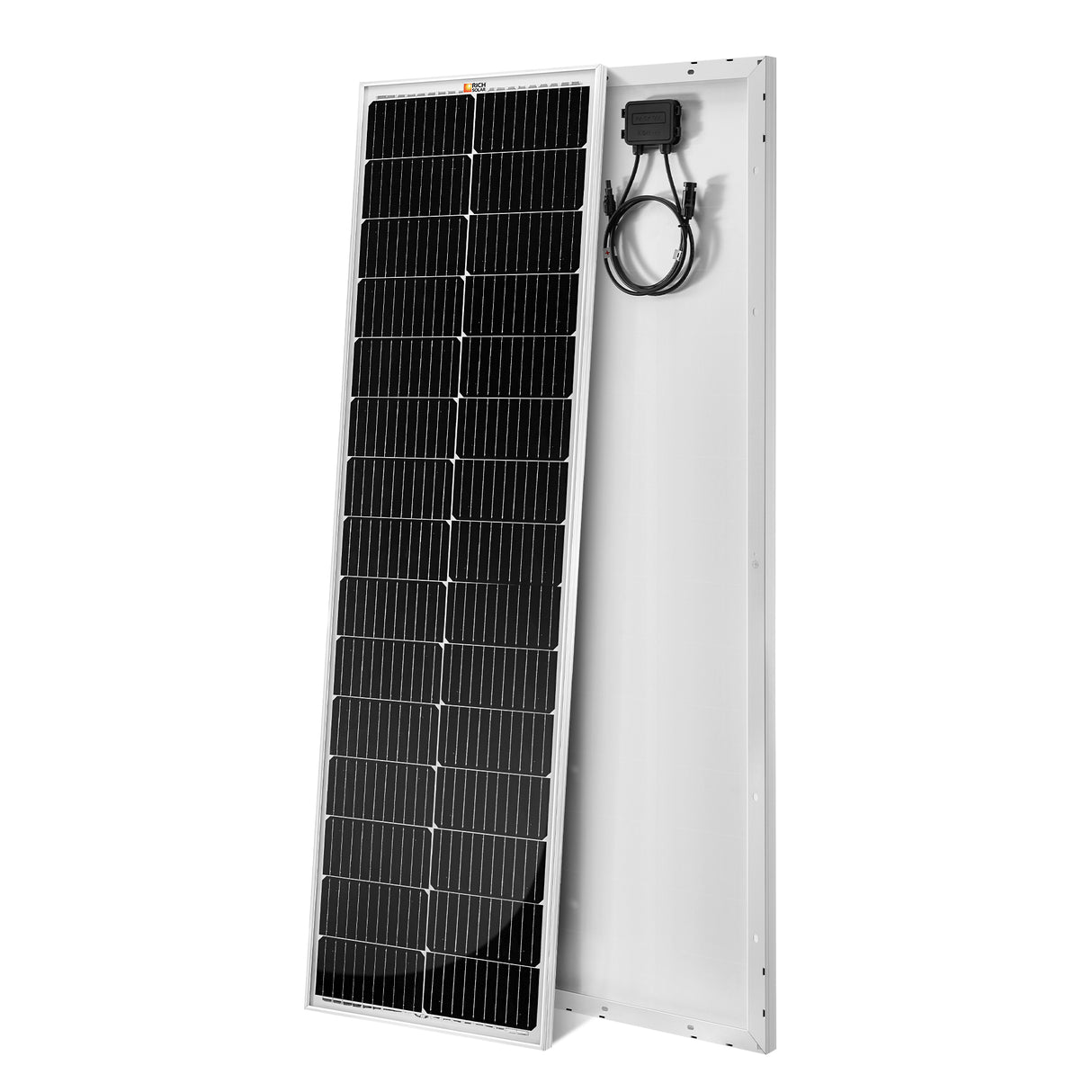

Built-in Components

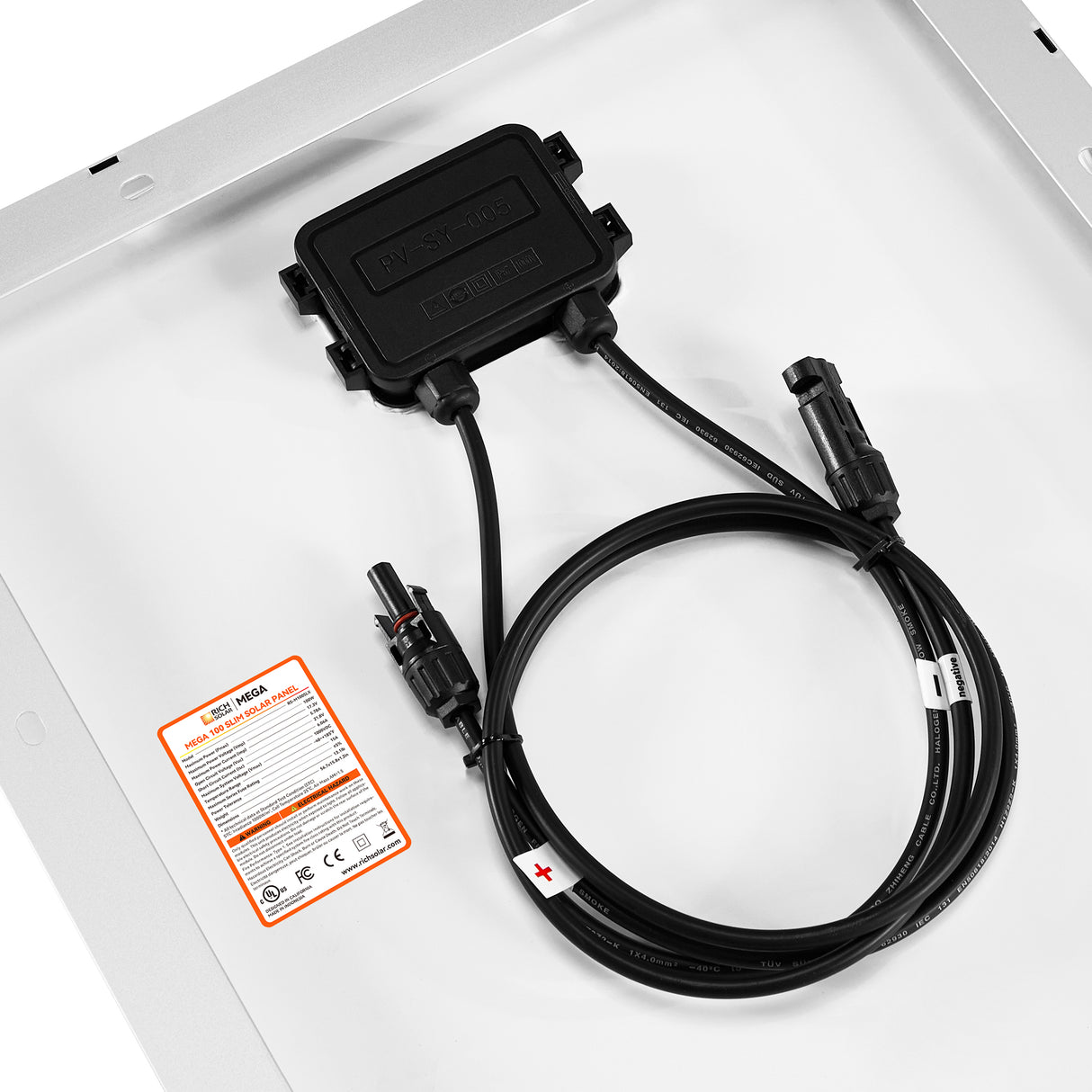

- Panel Leads (Pair): 12 AWG, 3 ft each

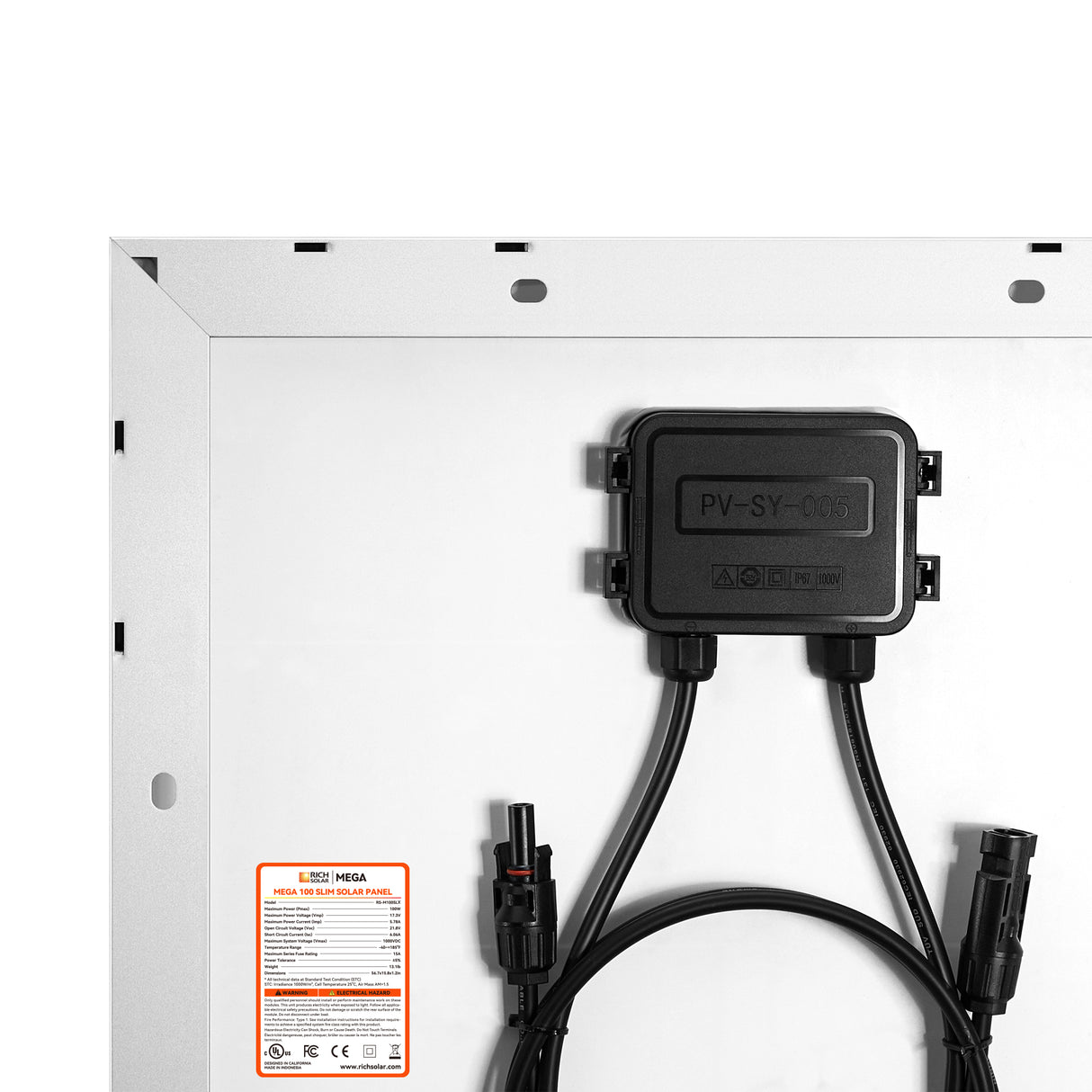

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Maximum Power(Pmax): 100W
- Maximum Power Voltage(Vmp): 17.3V
- Maximum Power Current(Imp): 5.78A
- Open Circuit Voltage(Voc): 21.8V
- Short Circuit Current(Isc): 6.06A
- Maximum System Voltage(Vmax): 1000VDC
- Maximum Series Fuse Rating: 15A
- Weight: 13.1 lb
- Dimensions: 56.7 x 15.8 x 1.2 in
