MEGA Series Solar Panels

MEGA 100 | 100 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for Vans, Campers, Boats | 25-Year Output Warranty | UL Certified

SKU: RS-M100
$119.99
Model Options:

Specifications & Downloads

Specifications

Download

UL Certification

Download
  • On Panel Cable Length
    ≈ 35 in
  • Material
    Tempered Glass, Aluminum, Monocrystalline Silicon

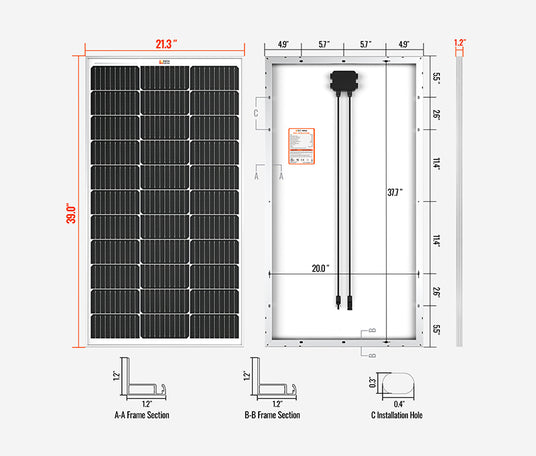

  • Dimensions
    39.0 x 21.3 x 1.2 in
  • Weight
    13.2lb
  • Maximum Power (PMAX)
    100W
  • Maximum Power Voltage (VMP)
    18.6V
  • Maximum Power Current (IMP)
    5.38A
  • Open Circuit Voltage (VOC)
    22.8V
  • Short Circuit Current (ISC)
    5.78A
  • Maximum System Voltage (VMAX)
    1000VDC

Warranty

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST


Local Pickup Available at Request:

1900 Mountain Ave
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


MEGA 100

12V 100W Solar Panel

100W Maximum Power Output

22.6% Maximum Efficiency

0~+5W Positive Power Tolerance

33 Cells Monocrystalline Module

RV

Van

Marine

Cabin

Off-Grid

DIY

Specifications

Maximum Power( Pmax): 100W
Maximum Power Voltage (Vmp): 18.6V
Maximum Power Current (Imp): 5.38A
Open Circuit Voltage (Voc): 22.8V
Short Circuit Current (Isc): 5.78A
Maximum System Voltage(Vmax): 1000VDC
Temperature Range: -40°F~ +185°F
Weight: 13.2 lb
Dimensions: 39.0 × 21.3 × 1.2 in

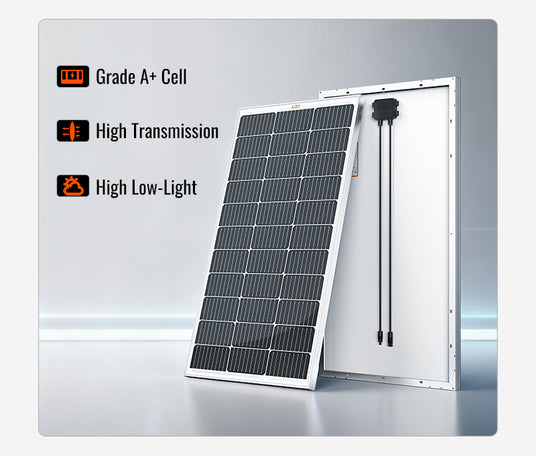

Performance You Can Count On

  • Grade A+ Cells: Premium cells deliver higher efficiency and longer lifespan.
  • Low Light Ready: Generates reliable power in cloudy, morning, and evening light.
  • Shading-Resistant: Built-in bypass diodes maintain stable output even under partial shade.

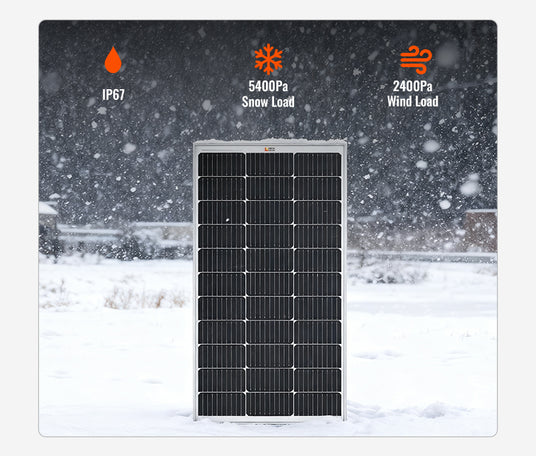

Built for All-Weather Durability

  • Waterproof: IP67 protection ensures your system continues to run, rain or shine.
  • Certified Strength: Handles 2400 Pa wind and 5400 Pa snow to ensure year-round stability.
  • Weatherproof Build: AR-coated tempered glass and TPT backsheet enhance sunlight capture and outdoor durability.

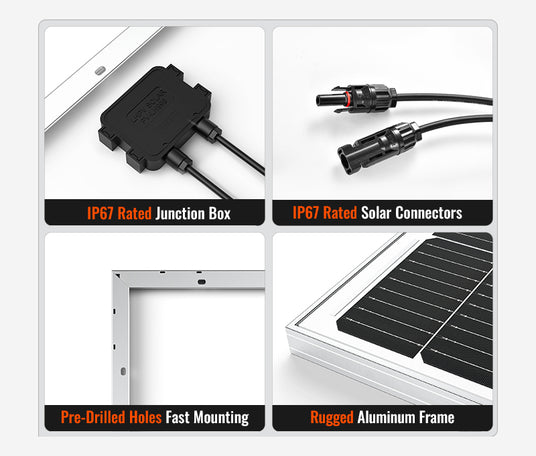

Effortless Installation

  • Easy Handling & Mounting: At just 13.2 lb, this lightweight panel makes installation quick and effortless.
  • Quick Setup: Pre-drilled holes provide flexible mounting options for fast and hassle-free installation.
  • Plug & Play: Easy-to-connect IP67 MC4 connectors ensure reliable, water- and dust-proof performance.

Versatile Uses for Your Solar Panel

FAQ

Do l need to install an inverter if l only want to charge my boat or Rv battery with a solar panel?

You don’t need an inverter if you’re only charging your battery. However, if you want to use the battery to run different appliances, like a TV or a refrigerator, you need an inverter to convert the DC power to AC power.

Will solar panels work in the winter in my state or province?

Wherever there is sunlight, solar panels will generate electricity. Cooler conditions, like those during the winter, can help improve solar panel performance. Solar panels can still generate electricity in cloudy conditions, just not as efficiently. The panel won't generate any electricity if there is any snow build-up on it, so make sure to keep the panel clear. This goes for any type of obstruction including shade or dirt.

Does my solar panel system require roof penetration?

Solar panels don’t always need a roof penetration for installation. Most times, they can be permanently mounted on the roof using a sealant. Alternatively, they can be installed on the ground.

Can the solar panel drain my battery at night?

If you have a solar charge controller installed in your system, there is no danger of a reverse current draining your battery.

How long will the solar panels last?

The RICH SOLAR MEGA Series solar panels have a performance warranty of 25 years. After 5 years of use, the panels should output more than 95% of the rated power. After 10 years, that output is 90%, and after 25 years, the output should be 80%.

Can the solar module overcharge my battery?

Yes, but only if it’s used without the charge controller, which is why it’s important to always use one when you have a battery.

Can l run my 110V appliances with my solar power system?

Yes, you can run your 110V appliances with your solar power system using an inverter. The inverter connects your solar panel to your battery, converting the DC energy into AC energy, and allowing you to power your appliances.

How to avoid common mistakes in solar panel installation?

Shading: Avoid obstacles that block sunlight. Use shading analysis tools.

Improper Angle: Set panels at a 30–45° tilt facing true south for optimal efficiency.

Wrong Direction: Make sure panels directly face the sun.

Irregular Cleaning: Dirt reduces output—clean panels regularly with soft tools.

Mismatched Equipment: Use compatible panels, batteries, and inverters with matching specs.

Improper Connections: Use high-quality cables and ensure all connections are secure to prevent faults or fire.

What is a Basic Solar System?

Understanding the basics of an off-grid solar system.
