800 Watt Solar Kit

SKU: RS-K8004
$1,399.99
Option

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Our largest 12V kit contains 4 high efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with 4 of our 100AH 12V Lithium batteries and is capable of powering off-grid RV solar systems, small RVs, and tiny homes. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV solar setup, boat, or trailer!

Kit Includes:

  • 4 x 200 Watt Monocrystalline Solar Panel(RS-M200)
  • 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
  • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
  • 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
  • 4 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
  • 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

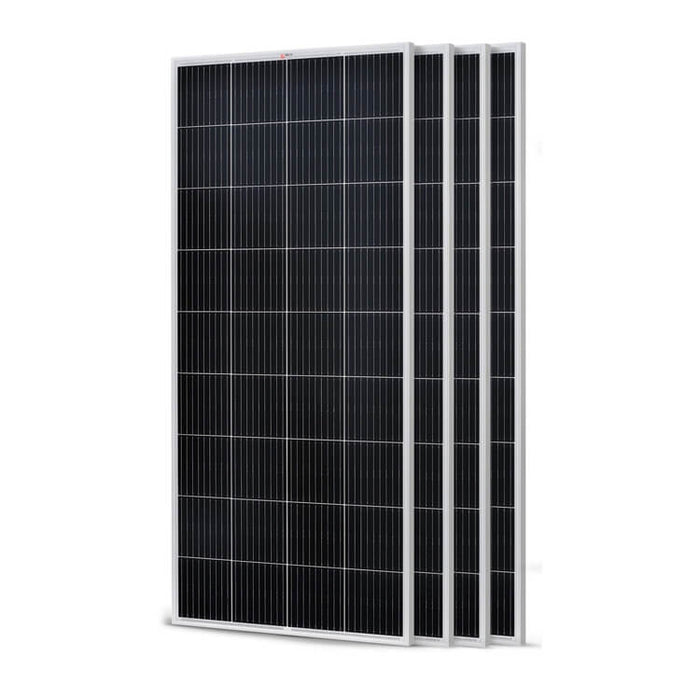

  • 800W Solar Panels

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    • No. of Panels: 4
    • Wattage Per Panel: 200W
    • Total Wattage of Panels: 800W

    Features:

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Nominal Operating Cell Temp (NOCT): 113 +/-35° F
    • Temperature Range: -40 ~ +185°F
    • Weight: 23.6 lbs
    • Dimensions: 58.7 x 26.8 x 1.2 in

  • 60 Amp MPPT Solar Charge Controller

    Features:

    • Automatically detects 12V/24V/36V/48V DC system voltages.
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
    • Features diverse load control; also capable of charging over-discharged lithium batteries.
    • Die-cast aluminum design allows for efficient heat dissipation.
    • RS232 port for communicating with BT-1 Bluetooth module.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Rated Battery Current: 60A
    • Rated Load Current: 20A
    • Max Solar Input Voltage: 150V
    • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
    • Charge Circuit Voltage Drop: = 0.26V
    • Discharge Circuit Voltage Drop: = 0.15V
    • Operating Temperature: -31 °F to 113 °F
    • Max Terminal Size: 4AWG
    • Overall Dimensions: 11.2 x 8.1 x 4.0 in
    • Net Weight: 7.9 lb
