300 Watt Solar Kit

SKU: RS-K3004
$599.99

Specifications & Downloads

Full Specification:

MEGA 100W Solar Panel

Download

BRAVO 40A MPPT Charge Controller

Download
User Manual:

BRAVO 40A MPPT Charge Controller

Download

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Our 300W kit contains 3 of our high efficiency 100W Monocrystalline panels with 9 busbars and our 20A MPPT controller. The perfect addition to your collection of solar panels for travel trailers, this kit can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

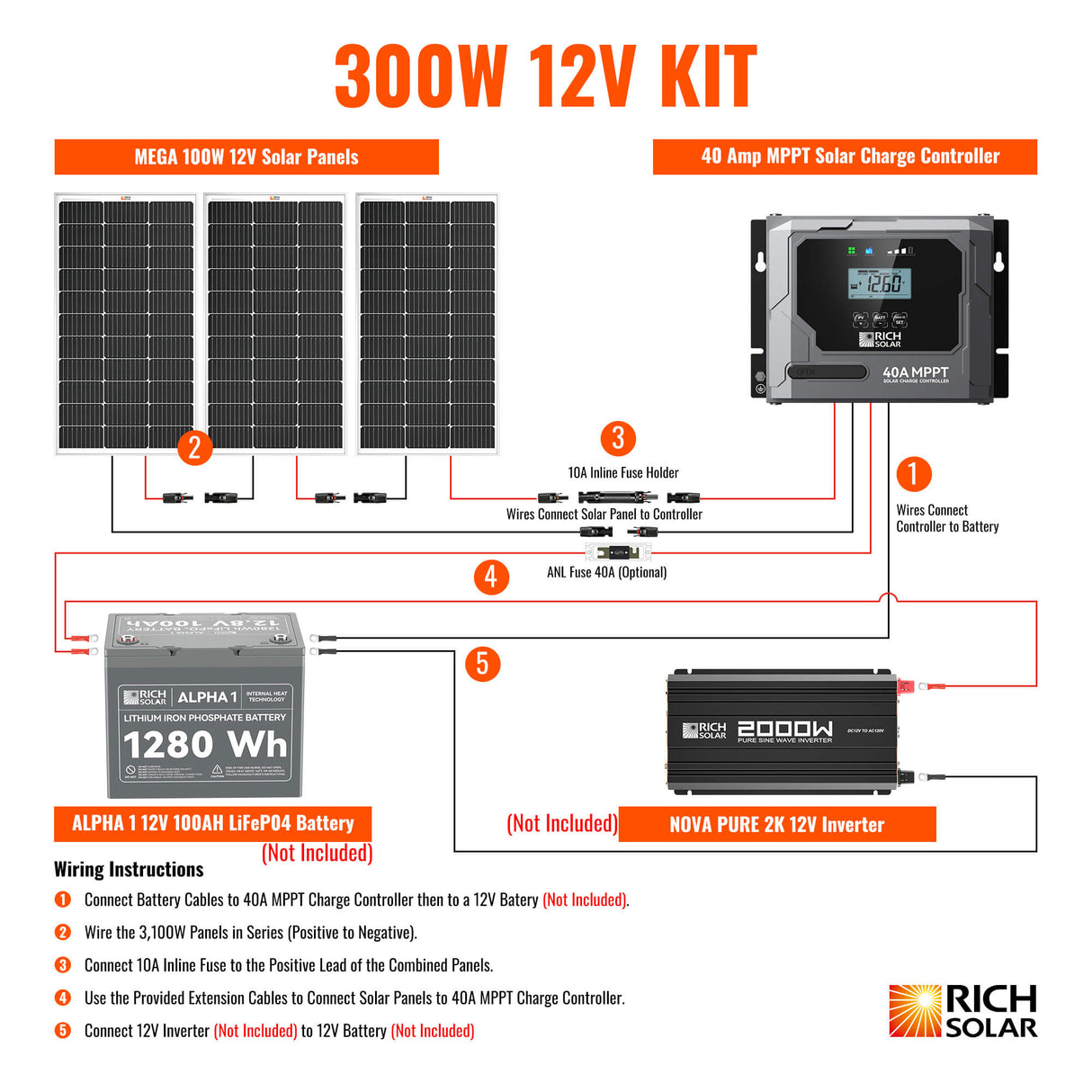

Kit Includes:

  • 3 x 100 Watt Monocrystalline Solar Panel (RS-M100)
  • 1 x 40A MPPT Charge Controller (RS-MPPT40P)
  • 1 x 20' #10 Gauge Solar Cable (Red), connects solar panel to controller (RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects solar panel to controller (RS-20101)
  • 1 x 10' #8 Gauge Battery Cable (Red), connects controller to battery (RS-810)
  • 1 x 10' #8 Gauge Battery Cable (Black), connects controller to battery (RS-810)
  • 3 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
  • 1 x 10A Inline Fuse Holder with Fuse(RS-SC10F)

  • MEGA 100 Watt Solar Panel

    The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 is UL Certified and can handle whatever you throw at it.

    • No. of Panels: 3 x MEGA 100 Watt Solar Panels
    • Wattage Per Panel: 100W
    • Total Wattage of Panels: 300W

    Features:

    • 12V off-grid solar panel.
    • 0~+5W guaranteed positive power output.
    • IP67-rated.
    • Built with strong tempered glass and aluminum frame.
    • Certified to withstand challenging environmental conditions.
    • Excellent low light performance on cloudy days, mornings and evenings.

    Installation:

    • Easy installation and handling for various applications.
    • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
    • Compatible with on-grid and off-grid inverters.

    Warranty:

    • 25-year output warranty.
    • 10-year workmanship warranty.

    Specifications:

    • Maximum Power(Pmax): 100W
    • Maximum Power Voltage(Vmp): 18.6V
    • Maximum Power Current(Imp): 5.38A
    • Open Circuit Voltage(Voc): 22.8V
    • Short Circuit Current(Isc): 5.78A
    • Maximum System Voltage(Vmax): 1000VDC
    • Weight: 15 lb

    Dimensions: 39.0 x 21.3 x 1.2 in

  • BRAVO 40 Amp MPPT Solar Charge Controller

    Features:

    • MPPT
    • Tracking Efficiency Above 99.5%
    • Charge Conversion Efficiency as high as 98%
    • 12V/24V DC System Self-Adaptation
    • Reverse Discharge Protection
    • Targeted for Accuracy
    • Overvoltage Protection
    • Common Negative Connection
    • Charging Data Storage
    • Conformal Coating For Inside Board
    • Designed According to UL1741, EN/IEC 62109 1
    • In-house Design And Manufacture
    • Extensive Internal Electronics In-Circuit Protections And Safety Protections
    • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
    • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

    Warranty:

    • 2-Year Warranty

    Specifications:

    • System Nominal Voltage: 12/24V Auto
    • Max. PV Open Circuit Voltage: 100VOC
    • Charging Technology: MPPT
    • Max PV Charging Current: 40A
    • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
    • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    • Housing Case Color: Black / Grey
    • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    • Net Weight: 1.17kg / 2.58lb
    • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
