400 Watt Complete Solar Kit

SKU: RS-CK400
$1,599.99

Warranty

Check out our full Warranty page here for more information.

Customer Support:

Call 800-831-9889 to speak with one of our representatives.

Email: support@richsolar.com

Phone Hours: Mon-Fri 9am-5pm PST

Local Pickup Available at Request:

1900 Mountain Ave,
Norco, CA 92860

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

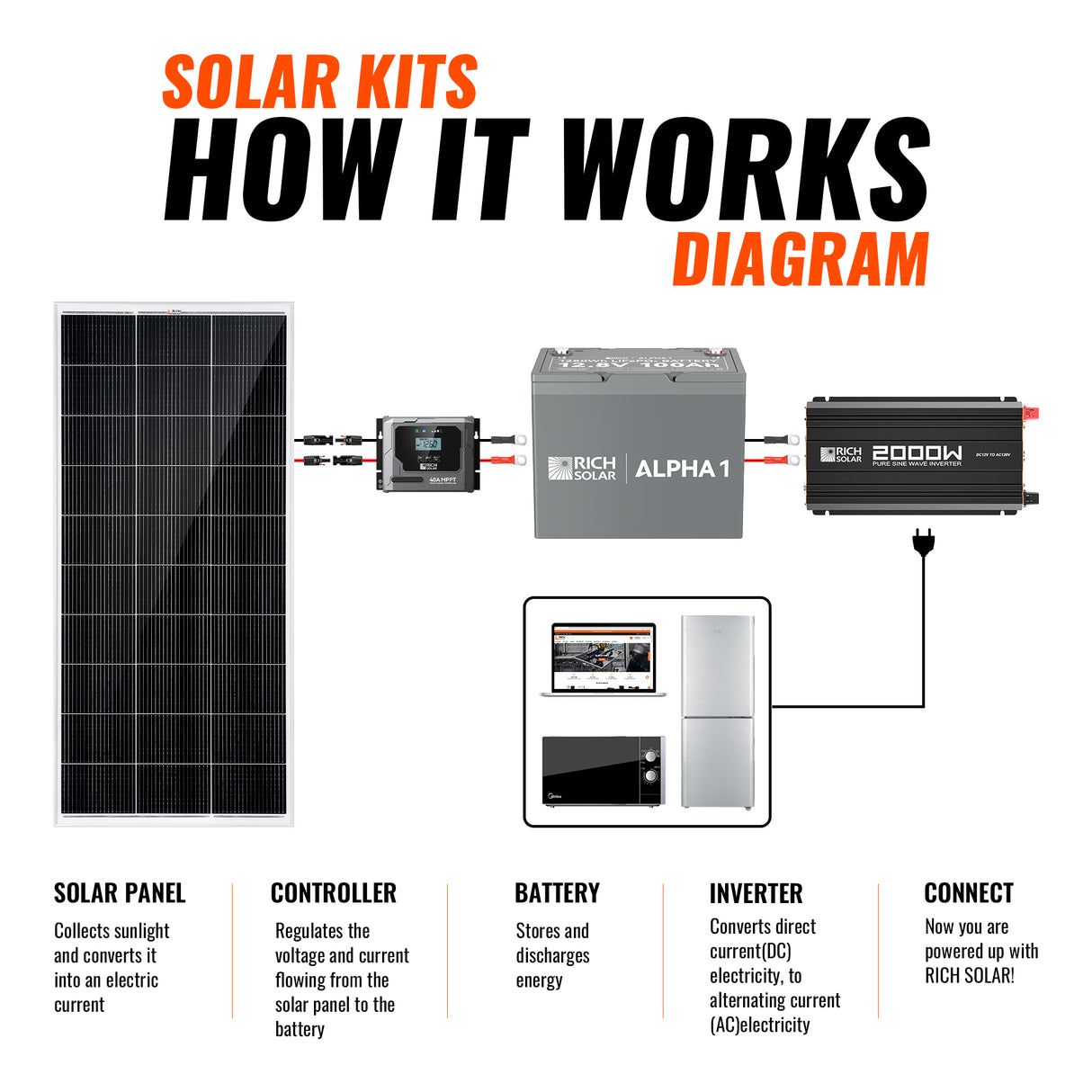

Our 400 Watt 12V Complete Solar Kit includes all the essential components to begin your solar journey. The kit features two high-efficiency 200W Monocrystalline panels, a 40A MPPT controller, a 2000W 12V inverter, and an ALPHA 1 Lithium battery. Ideal for your RV or tiny home, this kit makes embarking on your solar adventure easy and efficient. Start building your energy independence today!

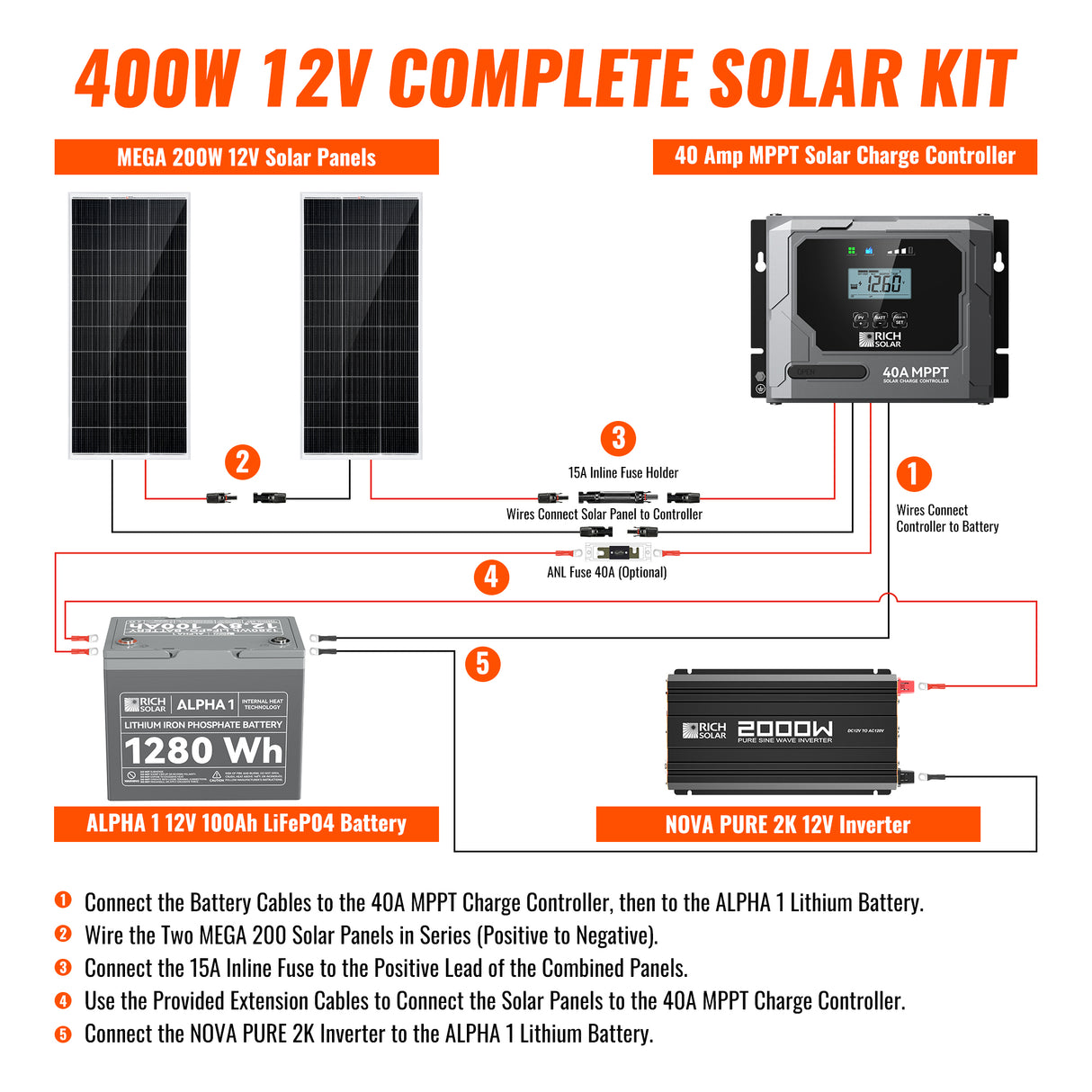

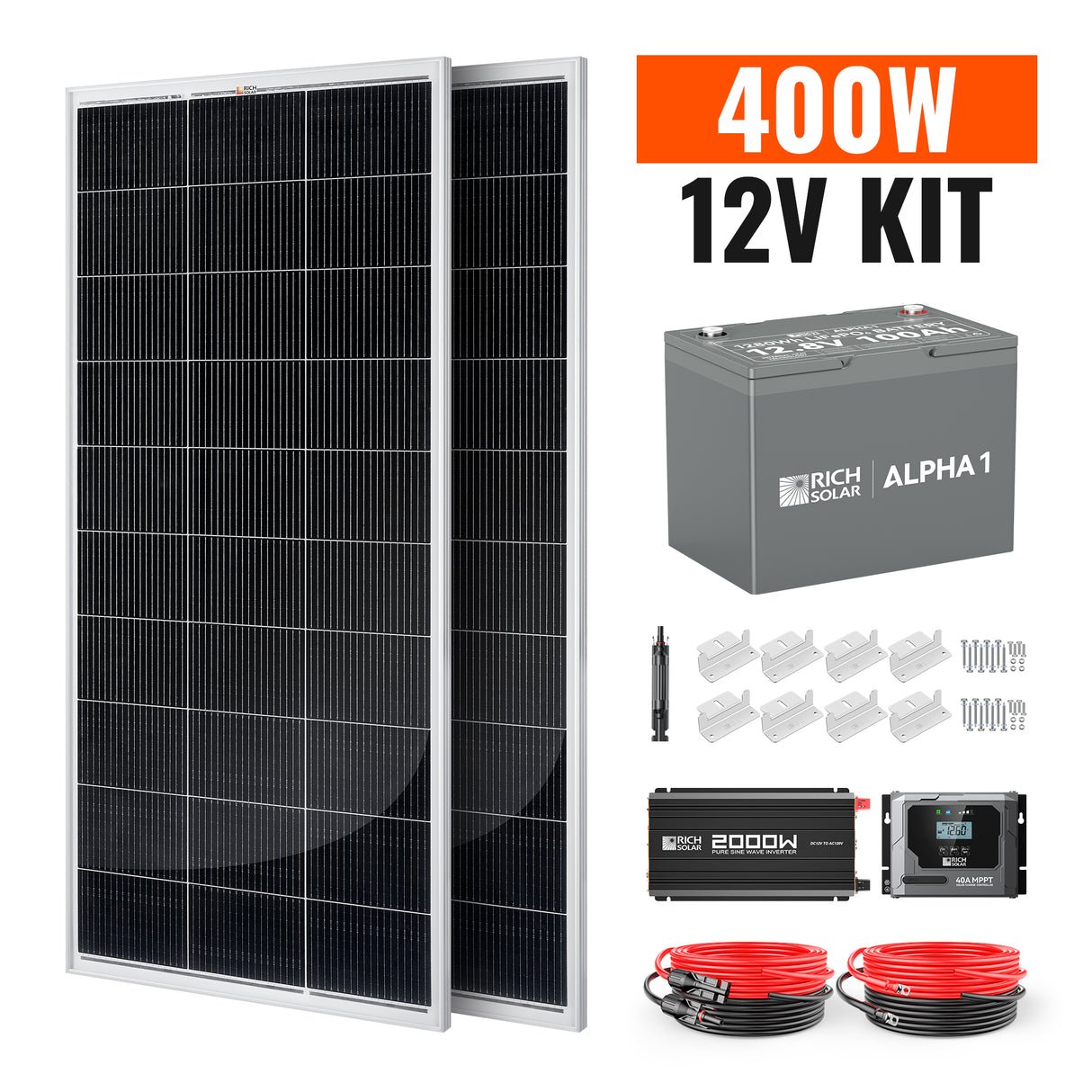

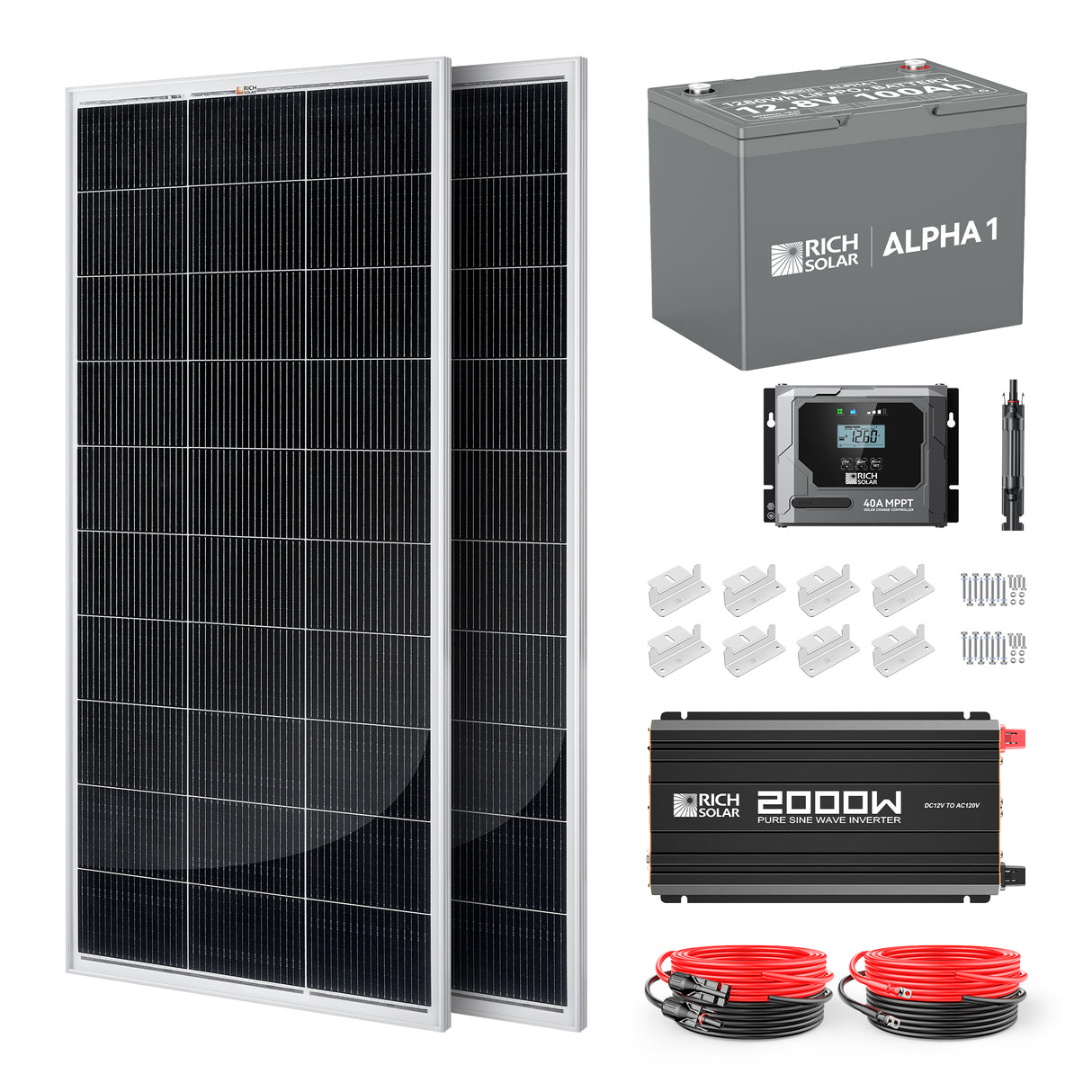

Kit Includes:

  • 2 x MEGA 200W 12V Panel (RS-M200)
  • 1 x ALPHA 1 Lithium Battery (RS-B121S)
  • 1 x NOVA 2000W 12V Inverter (RS-V2P12)
  • 1 x 40A MPPT Charge Controller (RS-MPPT40P)
  • 2 x Z Bracket Set (RS-ZB4C)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 8 AWG Battery Cable Set (Controller to Battery) (RS-810)

  • MEGA 200 Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    • No. of Panels: 2 x MEGA 200 Watt Solar Panels
    • Wattage Per Panel: 200W
    • Total Wattage of Panels: 400W

    Features:

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Nominal Operating Cell Temp (NOCT): 113 +/-35° F
    • Temperature Range: -40 ~ +185°F
    • Weight: 23.6 lbs
    • Dimensions: 58.7 x 26.8 x 1.2 in

  • ALPHA 1 12V 100Ah LiFePO4 Battery

    Features:

    • Stay powered in low temps with advanced internal heating tech
    • Track battery health in real time from your phone
    • Over 5,000 cycles with UL94 V-0 flame-retardant protection
    • IP65 waterproof, dustproof, and tested for extreme safety
    • Free of toxic metals—safe for you and the planet
    • Lightweight design, heavy-duty performance
    • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

    Warranty:

    • *5-Year Warranty

    Specifications:

    Battery

    • Cell Type: LiFePO4 Battery
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Nominal Energy: 1280Wh
    • Cycle Life: 5000 cycles

    BMS

    • BMS: 100A
    • Maximum Charging Current: 100A
    • Maximum Continuous Discharge Current: 100A
    • Maximum Discharge Current 10 Seconds: 110A

    Charge

    • Charge Method: CC/CV
    • Charge Voltage: 14.4V ± 0.2V
    • Recommend Charge Current: 50A (0.2C)

    Temperature

    • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
    • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
    • Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

    Self-heating

    • External Power Draw: 100W
    • Internal Heating Starts: < 41℉ (5℃)
    • Internal Heating Stops: > 50℉ (10℃)

    Others

    • Net Battery Weight: 24.0lb
    • Size(L*W*H): 10.2x6.6x8.3in (Group 24 size)
    • Housing Material: ABS (Flame Retardant Plastic)
    • Protection Class: IP65
    • Warranty: 5 Years

  • NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

    Features:

    • Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
    •  Offers high-quality waveform with little harmonic distortion.
    •  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
    •  Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
    •  High-speed ventilation fans to help keep the inverter running at a low temperature.
    •  120V AC outlets allow for the operation of more than one appliance simultaneously.
    • Quiet, no static or humming noises.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Model: RS-V2P12
    • Rated Voltage: 12V DC
    • Continuous Power: 2000W
    • Peak Surge: 4000W
    • Waveform: Pure Sine Wave
    • Input Voltage: 12V DC
    • Output Voltage: 120V AC
    • Output Frequency: 60 Hz
    • Output Efficiency: ＞88%
    • AC Output Sockets: 3
    • USB Power Port: 5V / 2.1A
    • Power Output Control: AC On/Off Switch
    • Operating Temperature: 14°F to 122°F
    • Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
    • Weight: 10.1 (lb) / 4.6 (kg)

  • 40 Amp MPPT Solar Charge Controller

    Features:

    • Automatically detects 12V or 24V DC system voltages.
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
    • Features diverse load control; also capable of charging over-discharged lithium batteries.
    • Die-cast aluminum design allows for efficient heat dissipation.
    • RS232 port to communicate with BT-1 Bluetooth module.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Rated Battery Current: 40A
    • Rated Load Current: 20A
    • Max. PV Input Short Current: 50A
    • Max. Battery Voltage: 32V
    • Max Solar Input Voltage: 100VDC
    • Charge Circuit Voltage Drop: 0.26V
    • Discharge Circuit Voltage Drop: 0.15V
    • Working Temperature: -31°F to +113°F
    • Max Terminal Size: 8AWG
    • Rated Load Current: 10% to 90% NC
    • Overall Dimensions: 9.37 x 6.81 x 2.85 in
    • Net Weight: 4.41 lb
