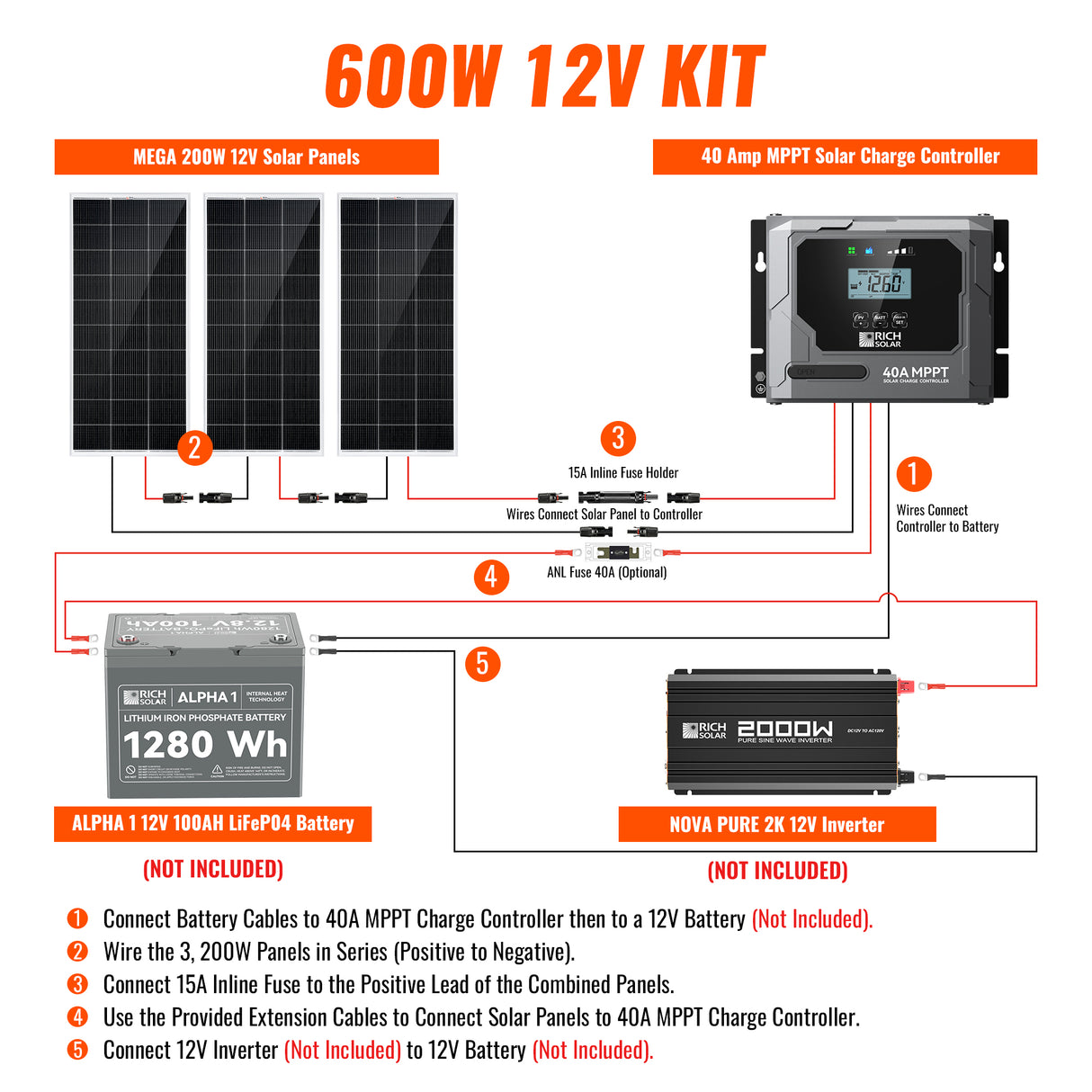

Our 600W kit contains 3 of our high-efficiency 200W Monocrystalline panels with 9 busbars and our 40A MPPT controller. This kit can be paired with 3 of our 100AH 12V Lithium batteries wired in parallel for your trailer solar system. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

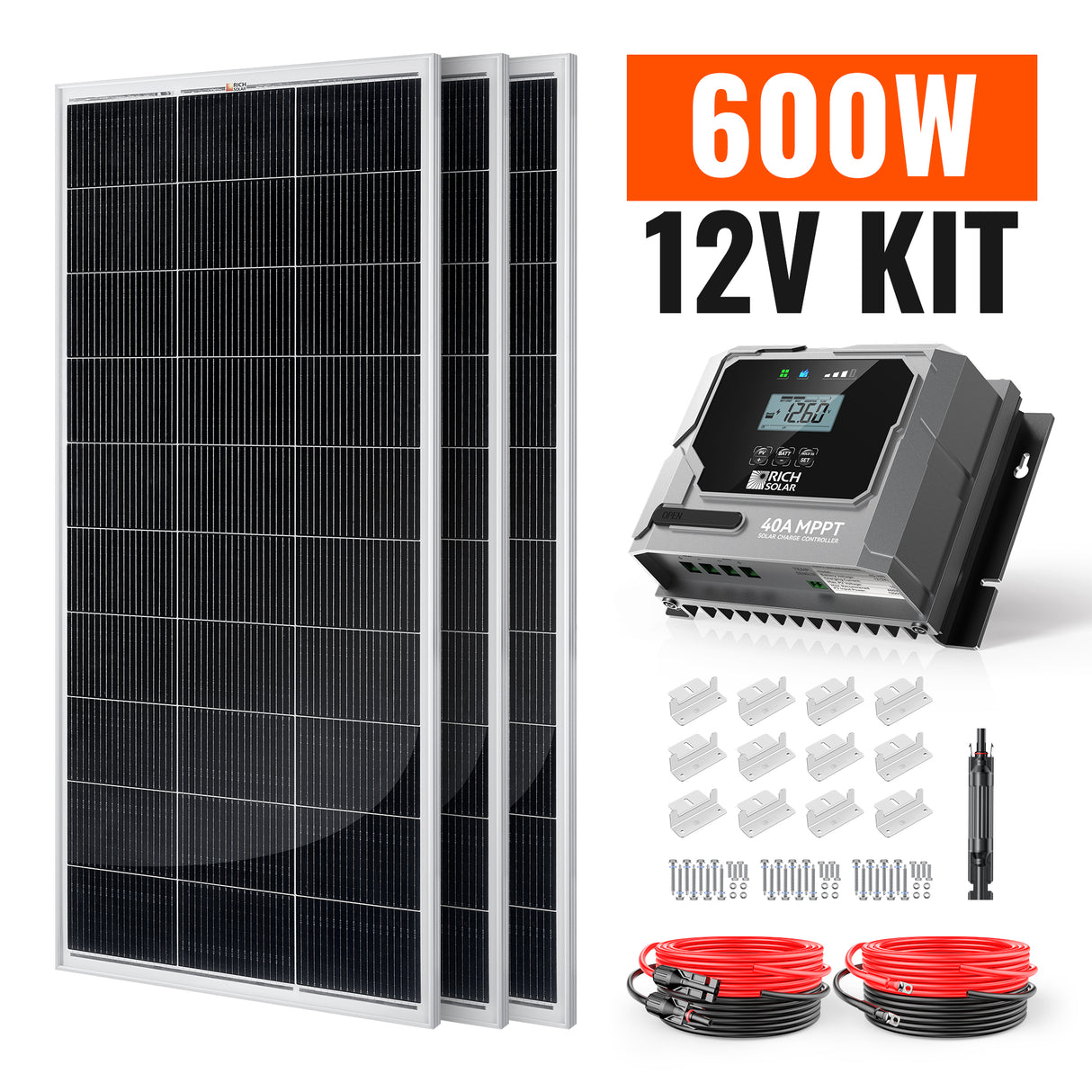

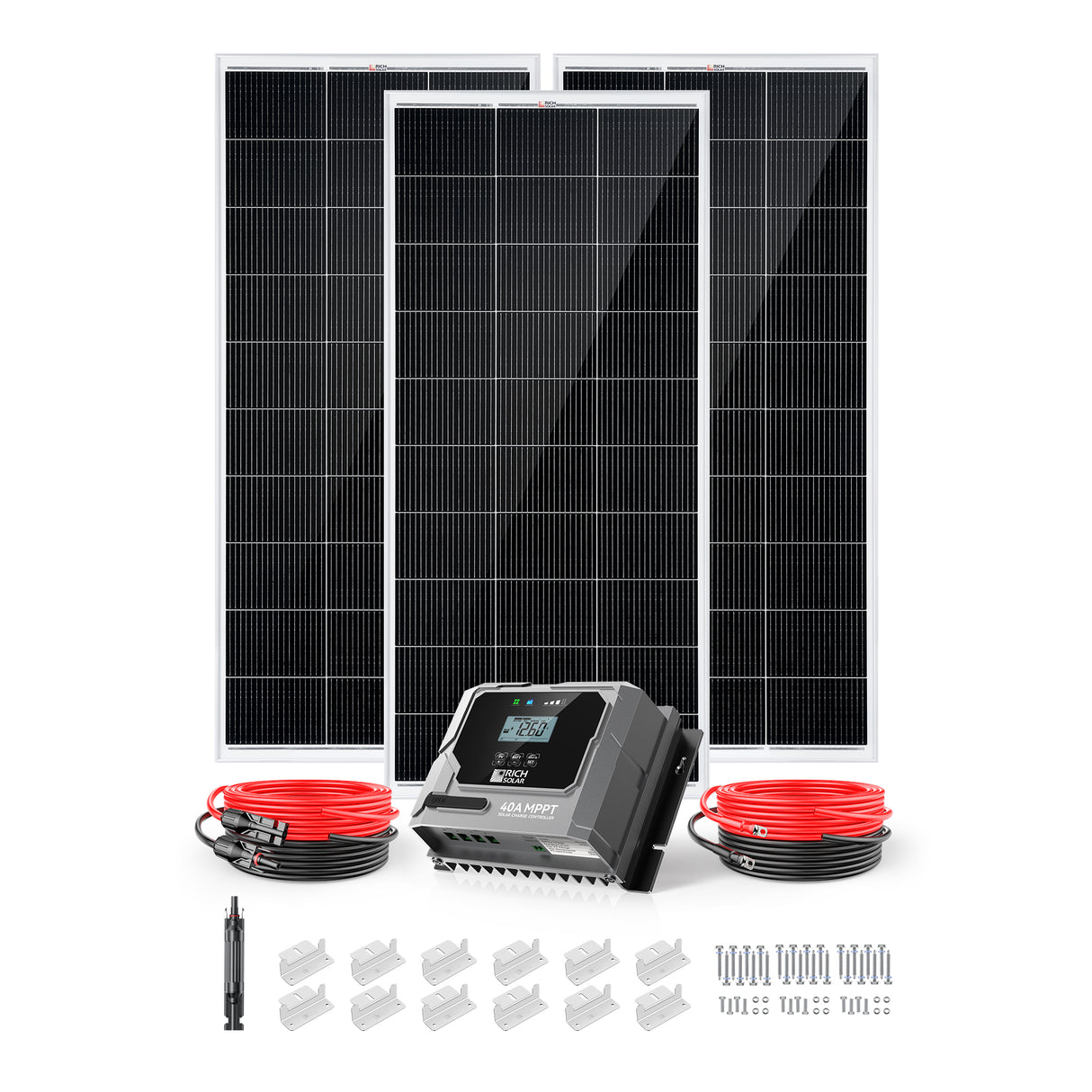

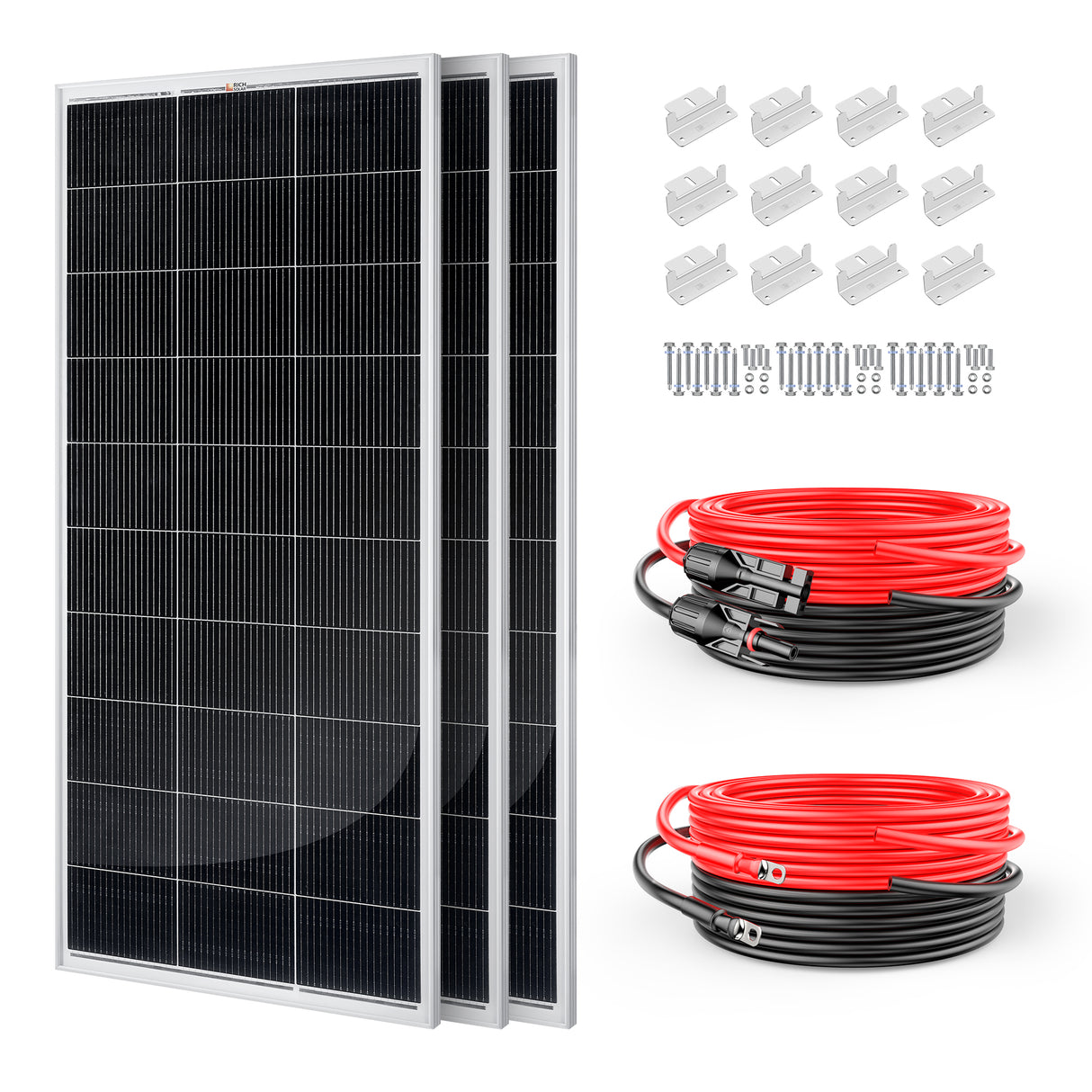

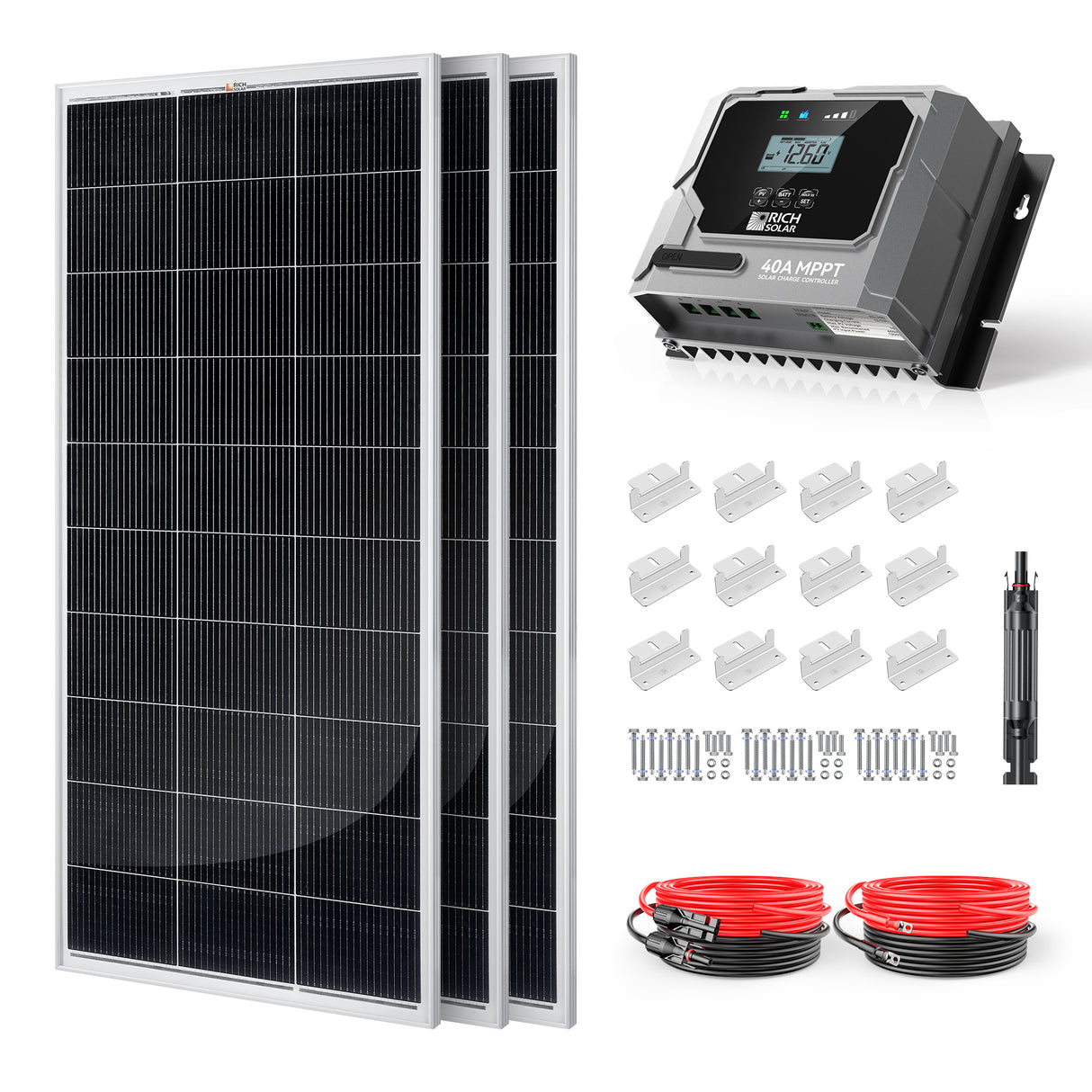

Package Includes:

  • 3 x 200 Watt Monocrystalline Solar Panel(RS-M200)
  • 1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
  • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
  • 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery(RS-810)
  • 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery(RS-810)
  • 3 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
  • 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
  • mega_200_-200_watt_12_volt_solar_panel_20240912_1__PID:45cf1c86-b631-491f-8509-f07947c29ee8

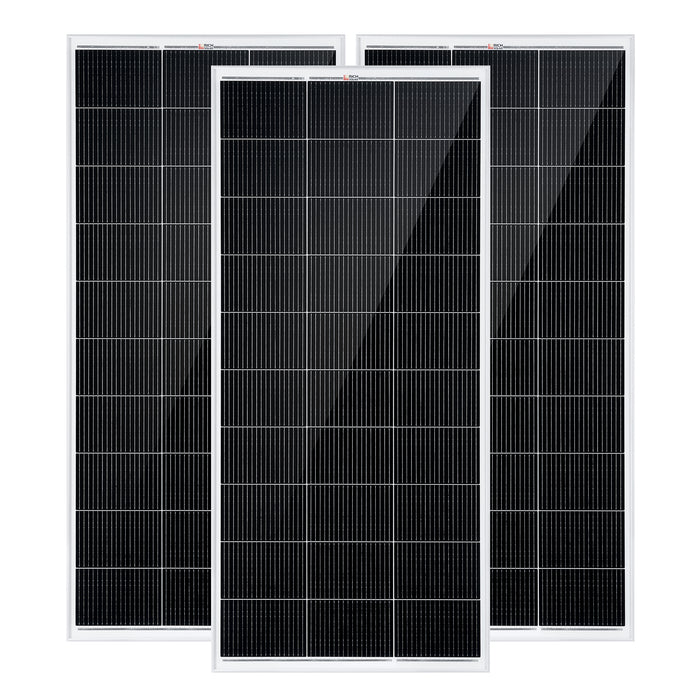

    MEGA 200 Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc):21.8V
    • Short Circuit Current(Isc): 11.6A
    • Nominal Operating Cell Temp: (NOCT)113 +/-35° F
    • Temperature Range: -40 ~ +185°F
    • Weight: 23.6 lbs
    • Dimensions: 58.7 x 26.8 x 1.2 in

  • charge_controller_mppt40p_-_1__PID:55db95b1-17c5-4dc2-b53c-3871c27b25b6

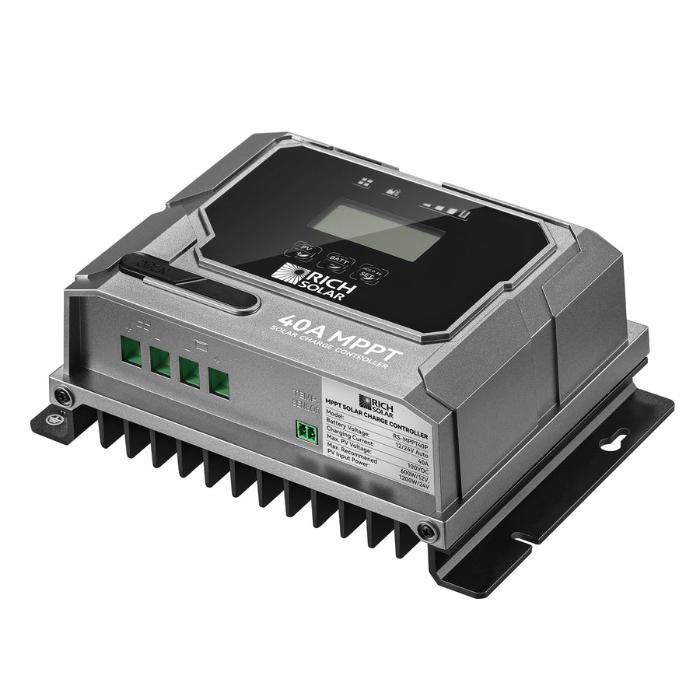

    BRAVO 40 Amp MPPT Solar Charge Controller

    Features

    • MPPT
    • Tracking Efficiency Above 99.5%
    • Charge Conversion Efficiency as high as 98%
    • 12V/24V DC System Self-Adaptation
    • Reverse Discharge Protection
    • Targeted for Accuracy
    • Overvoltage Protection
    • Common Negative Connection
    • Charging Data Storage
    • Conformal Coating For Inside Board
    • Designed According to UL1741, EN/IEC 62109 1
    • In-house Design And Manufacture
    • Extensive Internal Electronics In-Circuit Protections And Safety Protections
    • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
    • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

    Warranty

    • 2-Year Warranty

    Specifications

    • System Nominal Voltage: 12/24V Auto
    • Max. PV Open Circuit Voltage: 100VOC
    • Charging Technology: MPPT
    • Max PV Charging Current: 40A
    • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
    • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    • Housing Case Color: Black / Grey
    • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    • Net Weight: 1.17kg / 2.58lb
    • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
