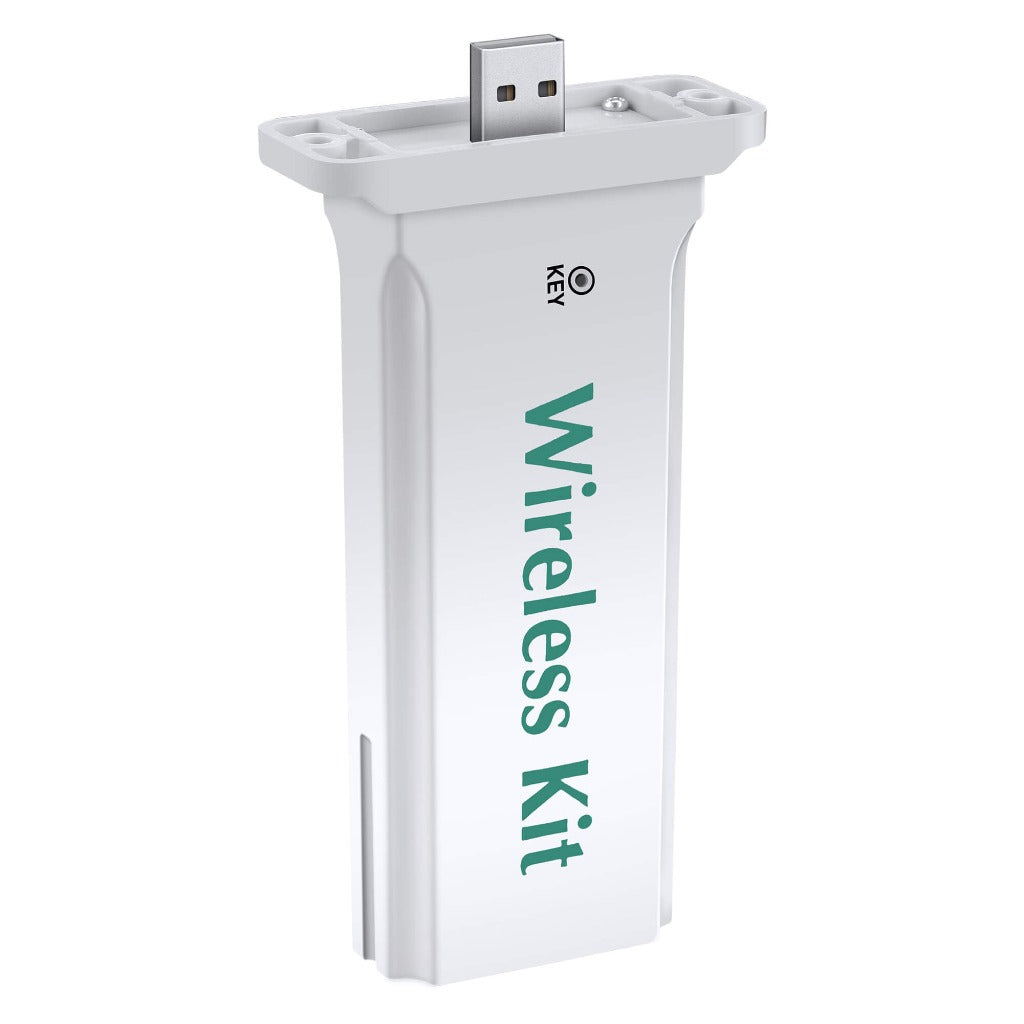

USB WiFi Monitoring Stick | Only for NOVA 3K | Plug and Play
USB WiFi Monitoring Stick | Only for NOVA 3K | Plug and Play is backordered and will ship as soon as it is back in stock.
Specifications & Downloads
Specifications & Downloads
Customer Support:
Call 800-831-9889 to speak with one of our representatives.
Email: support@richsolar.com
Phone Hours: Mon-Fri 9am-5pm PST
Local Pickup Available at Request:
1900 Mountain Ave
Norco, CA 92860
Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
USB Wifi Monitoring Device - works with RICH SOLAR off-grid inverter model: RS-H3048 or H3000. Wifi-F is a plug-and-play monitoring device to help monitor the status of the PV system, this device is installed on the inverter or controller for uploading and receiving data from the server.
Specifications
-
General Data
- Dimensions (L / W / H): 135 / 79 / 29 mm
- Weight: 63g
- Manual language: English
-
Wireless Parameters
- Wireless type: WiFi
- Wireless standard: 802.11 b/g/n
-
Transmit power:
- 802.11b: +20dBm (Max.)
- 802.11g: +18dBm (Max.)
- 802.11n: +15dBm (Max.)
-
Receiver sensitivity:
- 802.11b: -89dBm (Max.)
- 802.11g: -81dBm (Max.)
- 802.11n: -71dBm (Max.)
-
Hardware Parameters
- Data interface: UART: 9600bps; Ethernet: 100Mbps
- Operating voltage: 5V (+/-15%)
- Operating current: 1A
- Operating temperature: -4°F~+149°F
- Storage temperature: -40°F~+158°F
- Network type: AP (Access Point); station mode (with soft AP)
- Security mechanisms: WEP / WPA-PSK / WPA2-PSK
- Encryption: WEP64 / WEP128 / TKIP / AES
-
Application on Parameters
- Supported servers: ShineServer
- Inverter communication: USB A-type
- Server Communication: WiFi via router (Modbus TCP protocol)
- Supported Routers: Wireless router (including 3G router)
- User Configuration Interface: Wireless web server (Internet Browser)
- Max. Communication Range: 100m
- Data transmission interval: 5 minutes
- Default Server URL: server.pvbutler.com
