Our 200W 12V Complete Kit provides everything you need to harness, store, and utilize solar energy. This kit features a high-efficiency 200W monocrystalline panel, a 20A MPPT controller, a 2000W 12V inverter, and an Alpha 1 Lithium battery. Perfect for your RV or tiny home, this kit is your gateway to a solar-powered lifestyle. Start your solar adventure today!

Kit Includes:

  • 1 x MEGA 200W 12V Panel (RS-M200)
  • 1 x ALPHA 1 Lithium Battery (RS-B121S)
  • 1 x NOVA 2000W 12V Inverter (RS-V2P12)
  • 1 x 20A MPPT Charge Controller (RS-MPPT20)
  • 1 x Z Bracket Set (RS-ZB4C)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
  • mega_200_-200_watt_12_volt_solar_panel_20240912_1__PID:45cf1c86-b631-491f-8509-f07947c29ee8

    MEGA 200 Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Nominal Operating Cell Temp (NOCT): 113 +/-35° F
    • Temperature Range: -40 ~ +185°F
    • Weight: 23.6 lbs
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology - RICH SOLAR

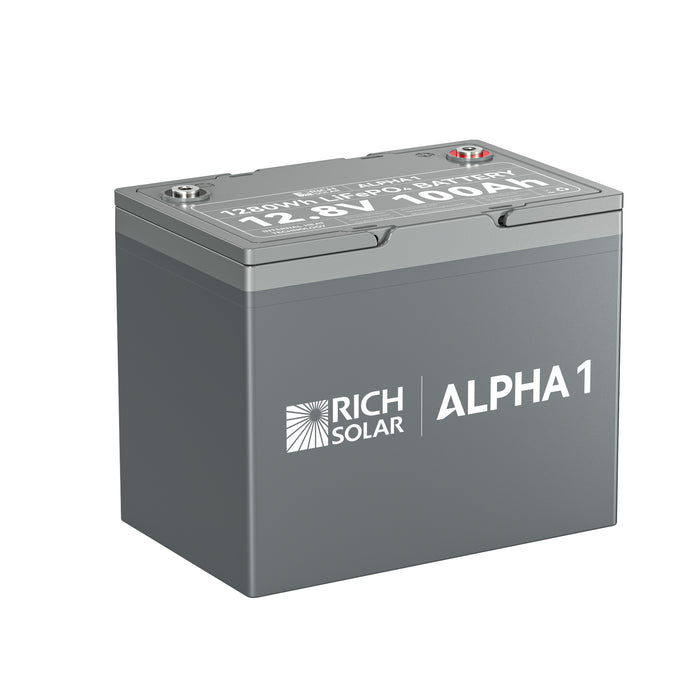

    ALPHA 1 12V 100Ah LiFePO4 Battery

    Features

    • Stay powered in low temps with advanced internal heating tech
    • Track battery health in real time from your phone
    • Over 5,000 cycles with UL94 V-0 flame-retardant protection
    • IP65 waterproof, dustproof, and tested for extreme safety
    • Free of toxic metals—safe for you and the planet
    • Lightweight design, heavy-duty performance
    • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

    Warranty

    • *5-Year Warranty

    Specifications

    Battery

    • Cell Type: LiFePO4 Battery
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Nominal Energy: 1280Wh
    • Cycle Life: 5000 cycles

    BMS

    • BMS: 100A
    • Maximum Charging Current: 100A
    • Maximum Continuous Discharge Current: 100A
    • Maximum Discharge Current 10 Seconds: 110A

    Charge

    • Charge Method: CC/CV
    • Charge Voltage: 14.4V ± 0.2V
    • Recommend Charge Current: 50A (0.2C)

    Temperature

    • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
    • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
    • Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

    Self-heating

    • External Power Draw: 100W
    • Internal Heating Starts: < 41℉ (5℃)
    • Internal Heating Stops: > 50℉ (10℃)

    Others

    • Net Battery Weight: 24.0lb
    • Size(L*W*H): 10.2x6.6x8.3in (Group 24 size)
    • Housing Material: ABS (Flame Retardant Plastic)
    • Protection Class: IP65
    • Warranty: 5 Years
  • 2000_watt_12_volt_industrial_pure_sine_wave_inverter_20240625_2__PID:927733db-7992-4266-a464-008eba93c6bd

    NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

    This is a compact and highly portable power inverter that has an excellent track record in the field of high-frequency inverters. From the 12V DC outlet in your applications e.g., vehicle or boat, or directly from a dedicated 12V DC battery, this inverter can efficiently and reliably power a wide variety of household AC products, such as TV, Computers, Air-conditioning units, etc.

    Features

    • Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
    •  Offers high-quality waveform with little harmonic distortion.
    •  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
    •  Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
    •  High-speed ventilation fans to help keep the inverter running at a low temperature.
    •  120V AC outlets allow for the operation of more than one appliance simultaneously.
    • Quiet, no static or humming noises.

    Warranty

    • 2-Year Warranty

    Specifications

    • Model: RS-V2P12
    • Rated Voltage: 12V DC
    • Continuous Power: 2000W
    • Peak Surge: 4000W
    • Waveform: Pure Sine Wave
    • Input Voltage: 12V DC
    • Output Voltage: 120V AC
    • Output Frequency: 60 Hz
    • Output Efficiency: >88%
    • AC Output Sockets: 3
    • USB Power Port: 5V / 2.1A
    • Power Output Control: AC On/Off Switch
    • Operating Temperature: 14°F to 122°F
    • Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
    • Weight: 10.1 (lb) / 4.6 (kg)
  • 20 Amp MPPT Solar Charge Controller - RICH SOLAR

    20 Amp MPPT Solar Charge Controller

    Features

    • Automatically detects 12V or 24V DC system voltages
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
    • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
    • Features diverse load control; also capable of charging over-discharged lithium batteries
    • Die-cast aluminum design allows for efficient heat dissipation
    • RS232 port to communicate with BT-1 Bluetooth module

    Warranty

    • 2-Year Warranty

    Specifications

    • Nominal System Voltage: 12V/24V Auto Recognition
    • Rated Battery Current: 20A
    • Rated Load Current: 20A
    • Max. PV Input Short Current: 25A
    • Max. Battery Voltage: 32V
    • Max Solar Input Voltage: 100 VDC
    • Mounting Oval: 0.30 x 0.18 in
    • Net Weight: 3.08 lb
    • Discharge Circuit Voltage Drop: = 0.15V
    • Overall Dimensions: 8.27 x 5.94 x 2.34 in
